ترانسفورماتور حس جریان
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | محدوده فرکانس | تایپ کنید | رتبه فعلی (آمپر) | اندوکتانس | ET (ولت-زمان) | نسبت چرخش - اولیه: ثانویه | نسبت فعلی | مقاومت DC (DCR) | رتبه بندی ها | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | سبک خاتمه |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FIS111NLCURR SENSE XFMR 1:100 15A T/H |
908 |
|
برگه مشخصات |
FIS | Tube | Active | 200kHz Max | Non-Invasive (Solid Core) | - | 22 mH | 350VµS | 1:100 | - | 1.3Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
FIS125NLCURR SENSE XFMR 1:200 25A T/H |
10,446 |
|
برگه مشخصات |
FIS 1X5 | Tube | Active | 500kHz Max | Invasive | - | 76 mH | 700VµS | 1:200 | - | 4.5Ohm Max | - | Through Hole | 0.693" L x 0.591" W (17.60mm x 15.00mm) | 0.492" (12.50mm) | PC Pin |
|
CSE186LCURR SENSE XFMR 1:166 10A T/H |
2,522 |
|
برگه مشخصات |
- | Bulk | Active | 50Hz ~ 400Hz | Invasive | 10 A | - | - | 1:166 | - | 2mOhm Primary, 23Ohm Secondary | - | Through Hole | 0.846" L x 0.945" W (21.50mm x 24.00mm) | 0.709" (18.00mm) | PC Pin |
|
CST25-0100CURR SENSE XFMR 1:100 25A TH |
282 |
|
برگه مشخصات |
CST | Tube | Active | 50kHz ~ 500kHz | Invasive | 25 A | 18 mH | 350VµS | 1:100 | - | 2Ohm | - | Through Hole | 0.669" L x 0.591" W (17.00mm x 15.00mm) | 0.472" (12.00mm) | PC Pin |
|
|
FIS121NLCURR SENSE XFMR 1:200 15A T/H |
1,110 |
|
برگه مشخصات |
FIS | Tube | Active | 200kHz Max | Non-Invasive (Solid Core) | - | 94.5 mH | 700VµS | 1:200 | - | 4.5Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
P8208NLCURR SENSE XFMR 1:100 SMD |
1,500 |
|
برگه مشخصات |
P820X | Tray | Active | 50kHz ~ 1MHz | Invasive | - | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
PH9505.100NLTCURR SENSE XFMR 1:100 30A SMD |
2,886 |
|
برگه مشخصات |
PH9505.XXXNL | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 7 mH | - | 1:100 | - | 0.5mOhm Primary, 3.1Ohm Secondary Max | - | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
P8208NLTCURR SENSE XFMR 1:100 SMD |
2,167 |
|
برگه مشخصات |
P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
P8207NLTCURR SENSE XFMR 1:70 SMD |
544 |
|
برگه مشخصات |
P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 980 µH | - | 1:70 | - | 6mOhm Primary, 4.75Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
FIS101NLCURR SENSE XFMR 1:50 15A T/H |
978 |
|
برگه مشخصات |
FIS | Tube | Active | 200kHz Max | Non-Invasive (Solid Core) | 15 A | 5 mH | 175VµS | 1:50 | - | 650mOhm Secondary Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
FIS105NLCURR SENSE XFMR 1:50 25A T/H |
1,080 |
|
برگه مشخصات |
FIS 1X5 | Tube | Active | 500kHz Max | Invasive | - | 4.7 mH | 175VµS | 1:50 | - | 500mOhm Max | - | Through Hole | 0.693" L x 0.591" W (17.60mm x 15.00mm) | 0.492" (12.50mm) | PC Pin |
|
PE-51686NLCURR SENSE XFMR 20A T/H |
1,175 |
|
برگه مشخصات |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 5 mH | - | - | 50:1 | 50Ohm Primary, 700mOhm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
|
CSE184LCURR SENSE XFMR 1A T/H |
145 |
|
برگه مشخصات |
- | Bulk | Active | 50Hz ~ 400Hz | Invasive | 1 A | - | - | - | - | 125mOhm Primary, 23Ohm Secondary | - | Through Hole | 0.846" L x 0.945" W (21.50mm x 24.00mm) | 0.709" (18.00mm) | PC Pin |
|
PB0025NLCURR SENSE XFMR 50:1 35A SMD |
967 |
|
برگه مشخصات |
PB002XNL | Tray | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | - | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
B82801A1824A100CURR SENSE XFMR 1:100 SMD |
4,659 |
|
برگه مشخصات |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 820 µH | - | - | - | 2.5mOhm Primary, 8.7Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|

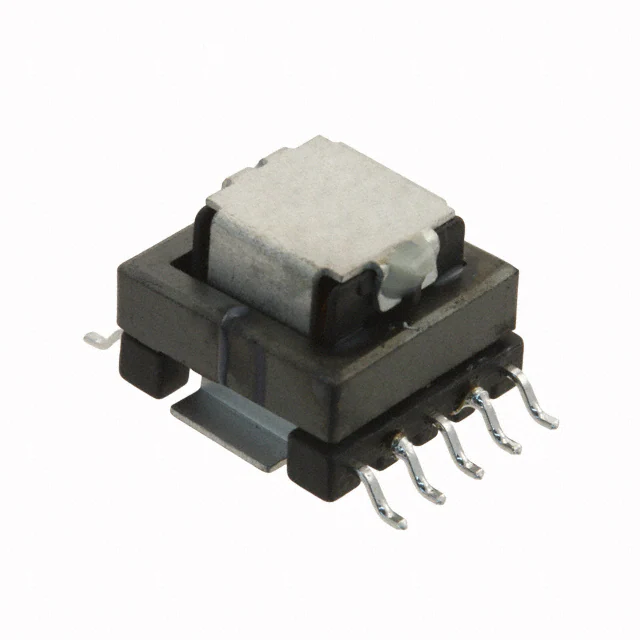

B82801C2245A200CURR SENSE XFMR 1:200 SMD |
1,691 |
|
برگه مشخصات |
B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 22.4 mH | - | 1:200 | - | 0.28mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|

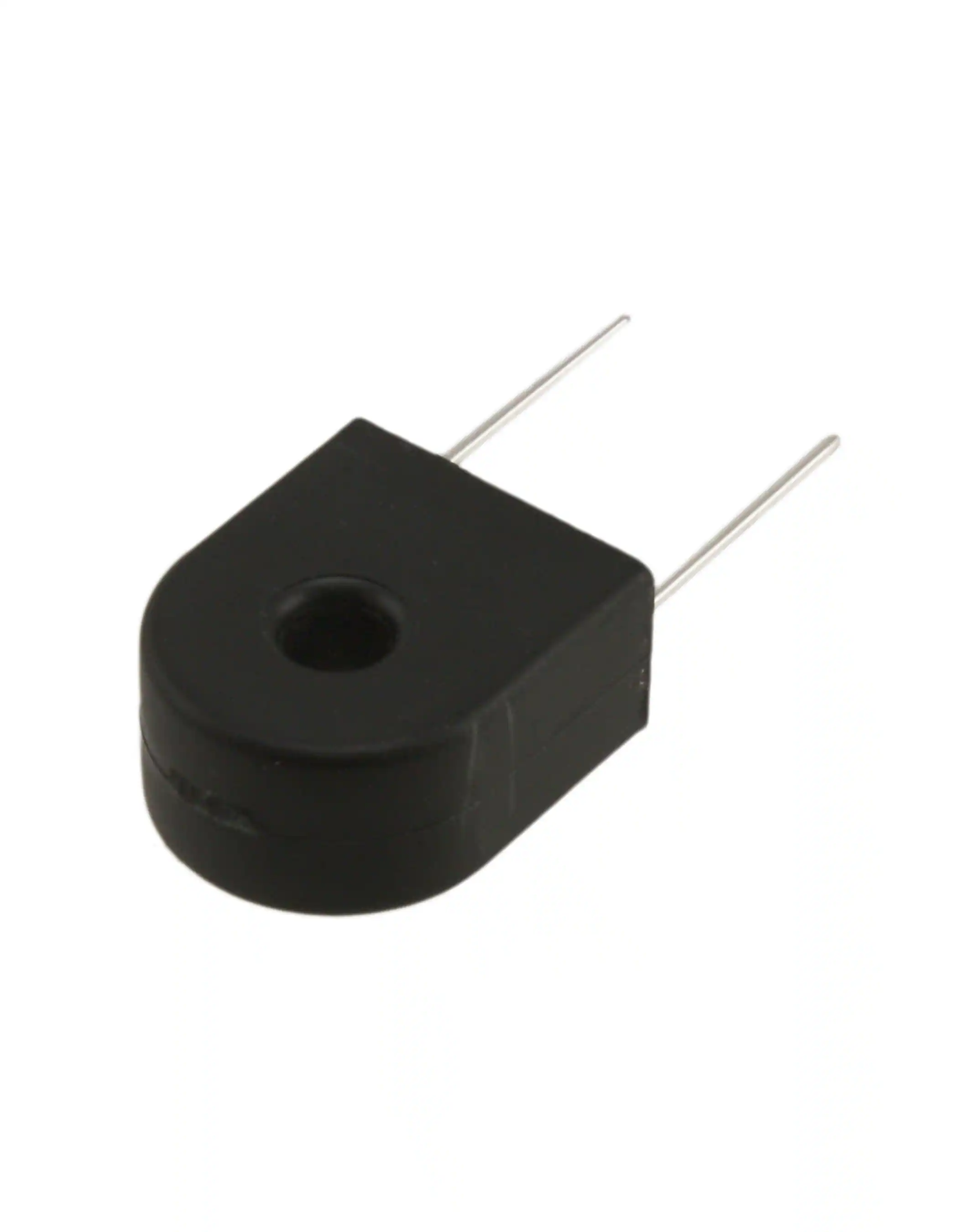

PE-51687NLCURR SENSE XFMR 20A T/H |
1,038 |
|
برگه مشخصات |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
PE-51719NLCURR SENSE XFMR 20A T/H |
548 |
|
برگه مشخصات |
- | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PB0027NLTCURR SENSE XFMR 200:1 35A SMD |
1,312 |
|
برگه مشخصات |
PB002XNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 0.42mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PB0026NLTCURR SENSE XFMR 100:1 35A SMD |
137 |
|
برگه مشخصات |
PB002XNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 5.6 mH | - | 100:1 | - | 0.42mOhm Primary, 1.4Ohm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
