ترانسفورماتور حس جریان
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | محدوده فرکانس | تایپ کنید | رتبه فعلی (آمپر) | اندوکتانس | ET (ولت-زمان) | نسبت چرخش - اولیه: ثانویه | نسبت فعلی | مقاومت DC (DCR) | رتبه بندی ها | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | سبک خاتمه |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
101990064CURR SENSE XFMR 60A CHAS MNT |
421 |
|
برگه مشخصات |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 60 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
|
101990061CURR SENSE XFMR 1800:1 20A CHAS |
153 |
|
برگه مشخصات |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 20 A | - | - | 1800:1 | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
101990059CURR SENSE XFMR 10A CHAS MNT |
131 |
|
برگه مشخصات |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 10 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
101990058CURR SENSE XFMR 5A CHAS MNT |
104 |
|
برگه مشخصات |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 5 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
T60404E4624X501CURR SENSE XFMR 1:2500 60A TH |
4,628 |
|
برگه مشخصات |
- | Box | Active | 50Hz | Non-Invasive (Solid Core) | 60 A | 3 H | - | 1:2500 | 2500:1 | 55Ohm | - | Through Hole | 1.220" L x 0.551" W (31.00mm x 14.00mm) | 1.240" (31.50mm) | PC Pin |
|
AC1060CURR SENSE XFMR 60A T/H |
708 |
|
برگه مشخصات |
AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 60 A | - | - | - | 1000:1 | 24Ohm | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
CT-06-50CURR SENSE XFMR 500:1 10A TH |
965 |
|
برگه مشخصات |
CT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | 500:1 | 500:1 | - | - | Through Hole | 0.709" L x 0.280" W (18.00mm x 7.10mm) | 0.494" (22.40mm) | Wire Leads |
|
CT-07-100CURR SENSE XFMR 1000:1 10A TH |
147 |
|
برگه مشخصات |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | 1000:1 | 1000:1 | - | - | Through Hole | 0.748" L x 0.394" W (19.00mm x 10.00mm) | 0.795" (20.20mm) | PC Pin |
|

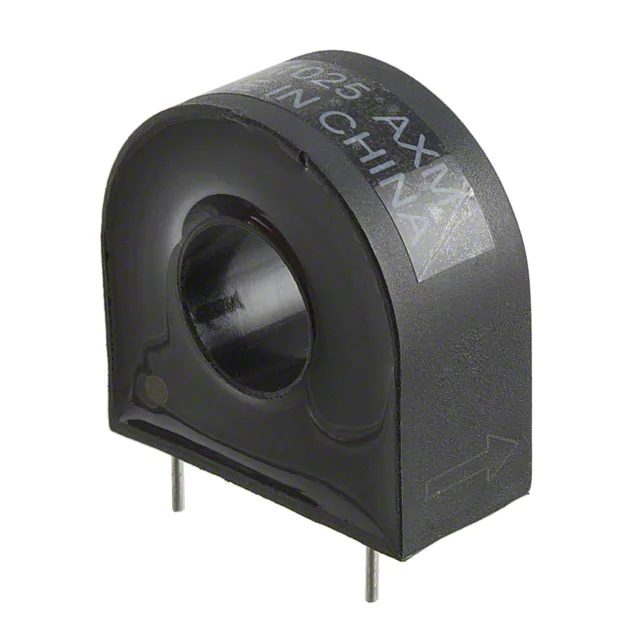

CST-1025CURR SENSE XFMR 25A T/H |
668 |
|
برگه مشخصات |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 25 A | - | - | - | 1000:1 | 46Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
101990028CURR SENSE XFMR 1800:1 30A CHAS |
222 |
|
برگه مشخصات |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 30 A | - | - | 1800:1 | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|

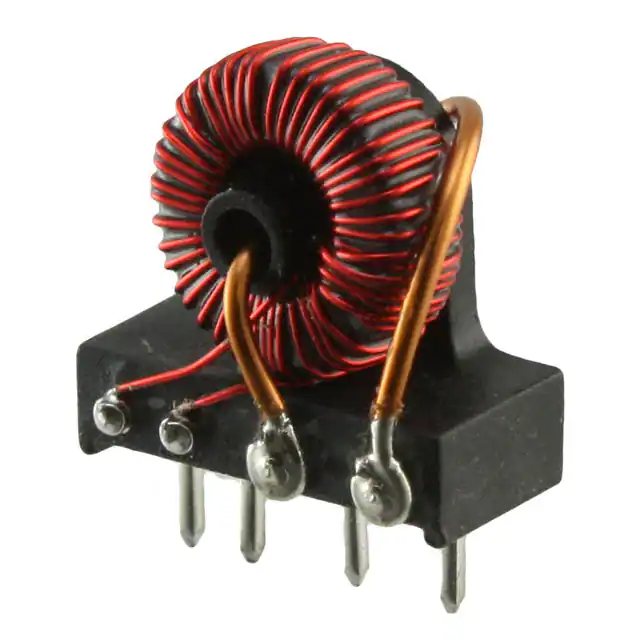

PE-64978NLCURR SENSE XFMR 20A T/H |
148 |
|
برگه مشخصات |
THT | Tube | Active | 200kHz ~ 500kHz | Invasive | 20 A | 4 mH | - | - | 50:1 | 6mOhm Primary, 240mOhm Secondary | - | Through Hole | 0.550" L x 0.380" W (13.97mm x 9.65mm) | 0.580" (14.73mm) | PC Pin |
|

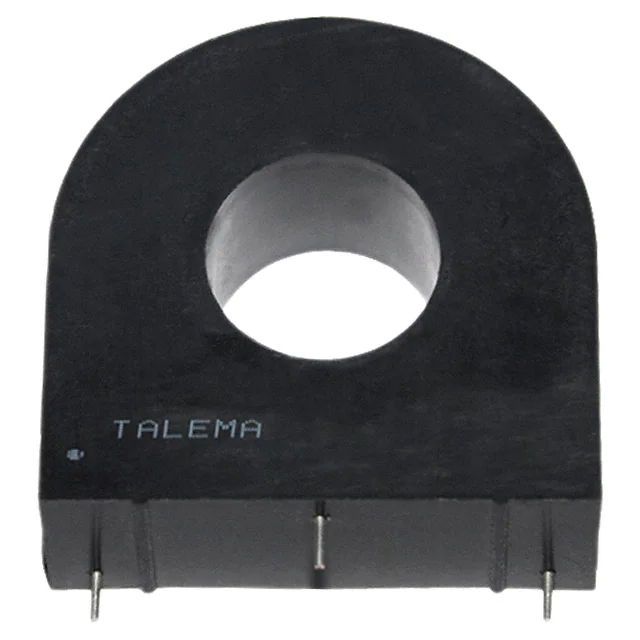

AC1200CURR SENSE XFMR 200A T/H |
120 |
|
برگه مشخصات |
AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | 1000:1 | 11Ohm | - | Through Hole | 2.189" L x 0.811" W (55.60mm x 20.60mm) | 2.189" (55.60mm) | PC Pin |
|
CR8448-2500-NCURR SENSE XFMR 40A IN-LINE |
1,207 |
|
برگه مشخصات |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 40 A | - | - | - | 2500:1 | 134Ohm | - | Free Hanging (In-Line) | 1.160" L x 0.922" W (29.46mm x 23.42mm) | 0.435" (11.05mm) | Wire Leads |
|

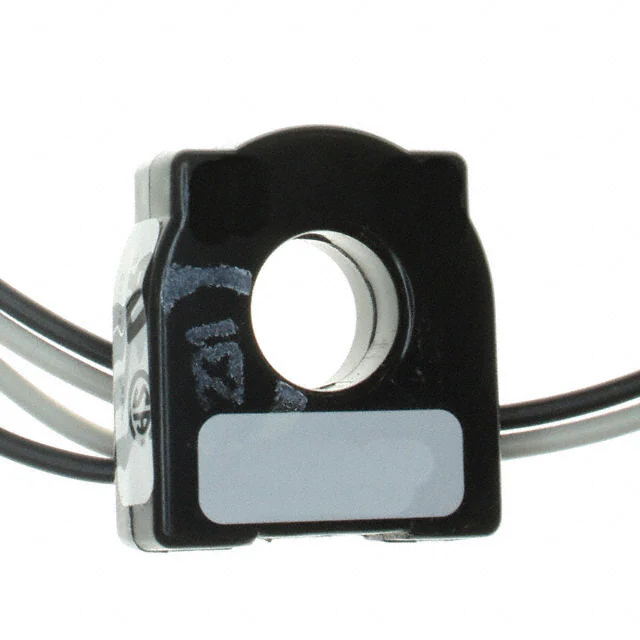

MODEL 18-600CURR SENSE XFMR |
242 |
|
برگه مشخصات |
PH | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | - | 1.331" L x 0.520" W (33.80mm x 13.20mm) | 1.488" (37.80mm) | Wire Leads |
|
ART-B22-D70CURR SENSE XFMR FLEXIBLE COIL |
45 |
|
برگه مشخصات |
ART | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | - | 180 µH | - | Rogowski Coil | - | 55Ohm | - | Free Hanging (In-Line) | 2.205" L x 1.326" W (56.01mm x 33.69mm) | 0.744" (18.91mm) | Wire Leads 1.5m |
|
|
ART-B22-D300CURR SENSE XFMR FLEXIBLE COIL |
59 |
|
برگه مشخصات |
ART | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | - | 566 µH | - | Rogowski Coil | - | 170Ohm | - | Free Hanging (In-Line) | 2.205" L x 1.326" W (56.01mm x 33.69mm) | 0.744" (18.91mm) | Wire Leads |
|
PA0368.050NLCURR SENSE XFMR 1:50 4A SMD |
314 |
|
برگه مشخصات |
- | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 1.7 mH | - | 1:50 | - | 4mOhm Primary, 900mOhm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
|
53020CCURR SENSE XFMR 1:20 10A SMD |
2,617 |
|
برگه مشخصات |
5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 80 µH | - | 1:20 | - | 7mOhm Primary, 550mOhm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
54200CCURR SENSE XFMR 1:1:200 15A SMD |
450 |
|
برگه مشخصات |
5400 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 60 mH | - | 1:1:200 | - | 7mOhm Primary, 6.6Ohm Secondary | - | Surface Mount | 0.354" L x 0.425" W (9.00mm x 10.80mm) | 0.323" (8.20mm) | Gull Wing |
|
PA1005.030QNLCURR SENSE XFMR 1:30 20A SMD |
1,562 |
|
برگه مشخصات |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 180 µH | - | 1:30 | - | 0.75mOhm Primary, 870mOhm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
