ترانسفورماتور حس جریان
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | محدوده فرکانس | تایپ کنید | رتبه فعلی (آمپر) | اندوکتانس | ET (ولت-زمان) | نسبت چرخش - اولیه: ثانویه | نسبت فعلی | مقاومت DC (DCR) | رتبه بندی ها | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | سبک خاتمه |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7492540500CURR SENSE XFMR 1:500 40A SMD |
922 |
|
برگه مشخصات |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 135 mH | 1240Vµs | 1:500 | - | 0.28mOhm Primary, 21.2Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492541000CURR SENSE XFMR 1:1000 40A SMD |
861 |
|
برگه مشخصات |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 540 mH | 2480Vµs | 1:1000 | - | 0.28mOhm Primary, 87.64Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540200CURR SENSE XFMR 1:200 40A SMD |
430 |
|
برگه مشخصات |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 22.4 mH | 496Vµs | 1:200 | - | 0.28mOhm | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540020CURR SENSE XFMR 1:20 40A SMD |
236 |
|
برگه مشخصات |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 224 µH | 49Vµs | 1:20 | - | 0.28mOhm Primary, 33mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
CT-05CURR SENSE XFMR 500:1 10A TH |
1,051 |
|
برگه مشخصات |
CT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | 500:1 | 500:1 | - | - | Through Hole | 0.689" L x 0.689" W (17.50mm x 17.50mm) | 0.394" (10.00mm) | PC Pin |
|

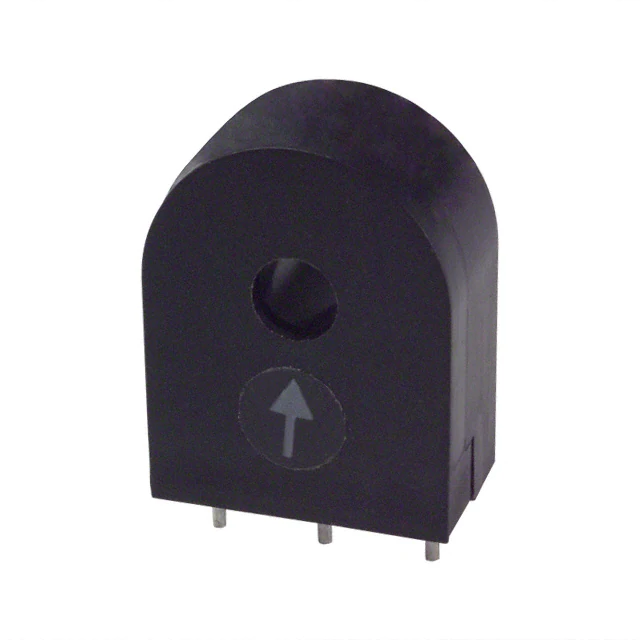

CST306-1TCURR SENSE XFMR 35A T/H |
912 |
|
برگه مشخصات |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 35 A | 3.5 mH | 500VµS | - | 50CT:1 | 340mOhm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|

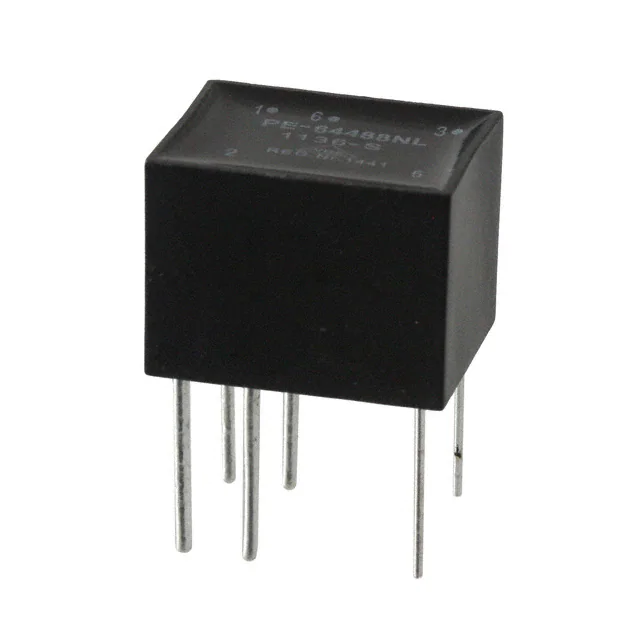

PE-64488NLCURR SENSE XFMR 20A T/H |
658 |
|
برگه مشخصات |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
B78417A2287A003CURR SENSE XFMR 1:125 SMD |
2,211 |
|
برگه مشخصات |
B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 11 mH | - | 1:125 | - | 1.9mOhm Primary, 5.3Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
|
B78417A2285A003CURR SENSE XFMR 1:50 SMD |
1,924 |
|
برگه مشخصات |
B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 1.7 mH | - | 1:50 | - | 1.9mOhm Primary, 2.1Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
CT-1010CURR SENSE XFMR 10A T/H |
1,202 |
|
برگه مشخصات |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
CT-1015CURR SENSE XFMR 15A T/H |
427 |
|
برگه مشخصات |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|

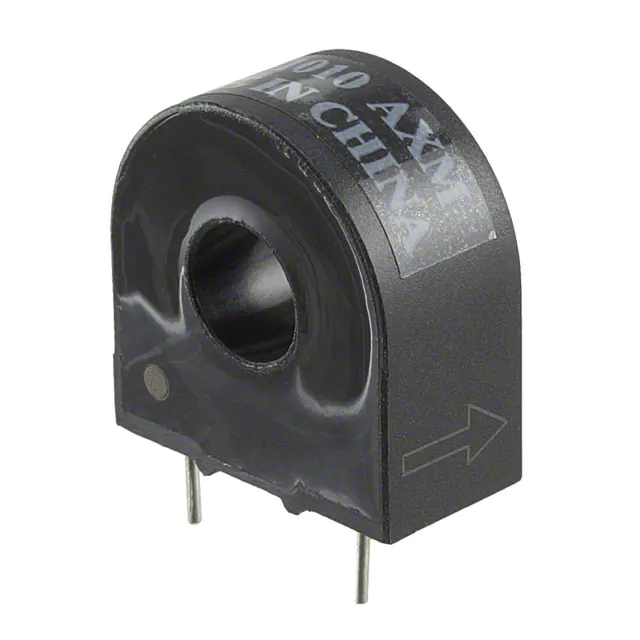

CST-1010CURR SENSE XFMR 10A TH |
166 |
|
برگه مشخصات |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|

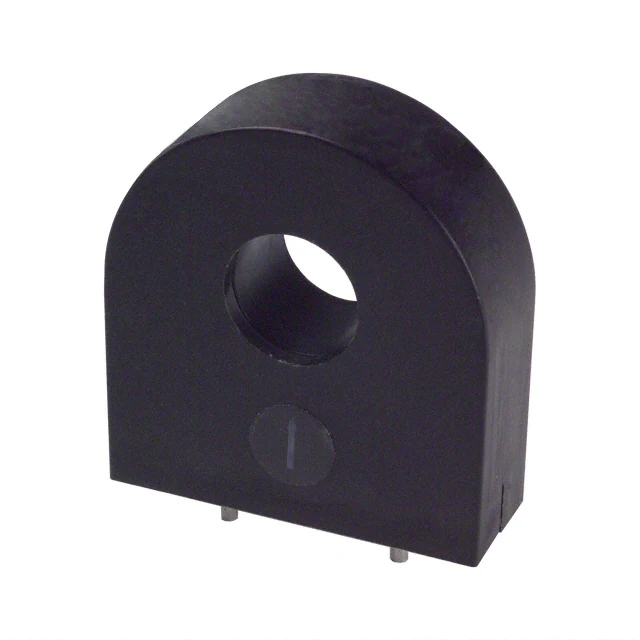

CST206-3TCURR SENSE XFMR 70A T/H |
180 |
|
برگه مشخصات |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 70 A | 130 mH | 6000VµS | - | 300:1 | 12.4Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
CT-06-100CURR SENSE XFMR 1000:1 10A TH |
108 |
|
برگه مشخصات |
CT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | 1000:1 | 1000:1 | - | - | Through Hole | 0.709" L x 0.280" W (18.00mm x 7.10mm) | 0.882" (22.40mm) | Wire Leads |
|

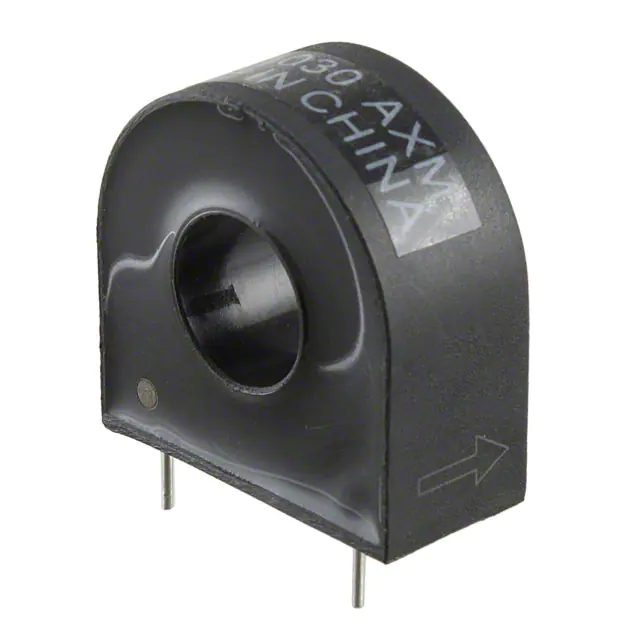

CST-1030CURR SENSE XFMR 30A T/H |
2,302 |
|
برگه مشخصات |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 1000:1 | 46Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
PA3828NLCURR SENSE XFMR 100A |
465 |
|
برگه مشخصات |
- | Tray | Active | - | Non-Invasive (Split Core) | 100 A | - | - | - | - | - | - | - | 1.280" L x 1.280" W (32.50mm x 32.50mm) | 0.532" (13.50mm) | - |
|
SPCT 62/40 250/5 A VA 2.5 CL 0.5-CU-ROHSCURR SENSE XFMR 250A DIN RAIL |
676 |
|
برگه مشخصات |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 250 A | - | - | - | 250:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|
SPCT 62/40 200/5 A VA 2.5 CL 0.5-CU-ROHSCURR SENSE XFMR 200A DIN RAIL |
147 |
|
برگه مشخصات |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | 200:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|
MR-4CURR SENSE XFMR 125A CHAS MNT |
385 |
|
برگه مشخصات |
MR | Bulk | Active | 60Hz | Non-Invasive (Solid Core) | 125 A | - | - | - | - | 30Ohm | - | Chassis Mount | 1.358" L x 1.260" W (34.50mm x 32.00mm) | 0.425" (10.80mm) | Wire Leads |
|

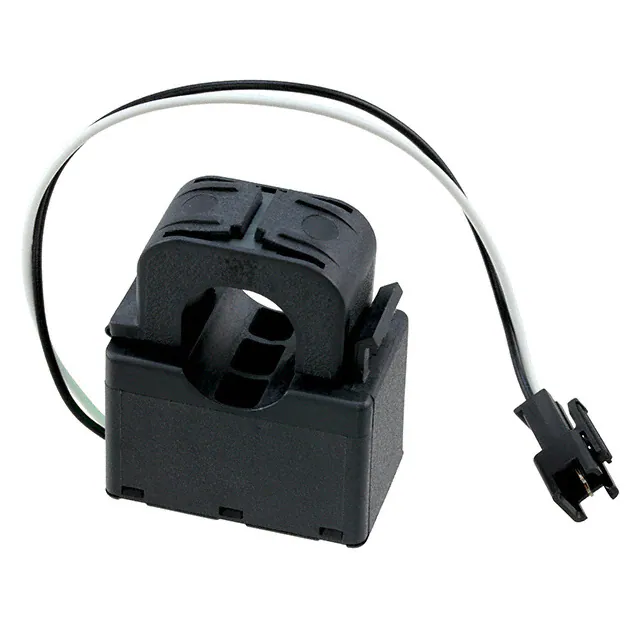

C/CT-1216CURR SENSE XFMR 120A CHAS MNT |
513 |
|
برگه مشخصات |
C/CT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 120 A | - | - | 3000:1 | 3000:1 | - | - | Chassis Mount | 1.445" L x 0.906" W (36.70mm x 23.00mm) | 1.693" (43.00mm) | Wire Leads with Connector |
