ترانسفورماتور حس جریان
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | محدوده فرکانس | تایپ کنید | رتبه فعلی (آمپر) | اندوکتانس | ET (ولت-زمان) | نسبت چرخش - اولیه: ثانویه | نسبت فعلی | مقاومت DC (DCR) | رتبه بندی ها | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | سبک خاتمه |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82801B0504A050CURR SENSE XFMR 1:50 SMD |
4,358 |
|
برگه مشخصات |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 500 µH | - | 1:50 | - | 0.8mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
PH9505.180NLTCURR SENSE XFMR 1:180 30A SMD |
768 |
|
برگه مشخصات |
PH9505.XXXNL | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 25 mH | - | 1:180 | - | 0.5mOhm Primary, 9Ohm Secondary Max | - | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
PA1005.050QNLTCURR SENSE XFMR 1:50 20A SMD |
1,787 |
|
برگه مشخصات |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.100QNLTCURR SENSE XFMR 1:100 20A SMD |
460 |
|
برگه مشخصات |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 2 mH | - | 1:100 | - | 0.75mOhm Primary, 5.5Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
749252100CURR SENSE XFMR 1:100 7A SMD |
1,726 |
|
برگه مشخصات |
WE-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 7 A | 820 µH | 45VµS | 1:100 | - | 3mOhm Primary, 9.5Ohm Secondary | - | Surface Mount | 0.185" L x 0.183" W (4.70mm x 4.65mm) | 0.140" (3.55mm) | Gull Wing |
|
749251070CURR SENSE XFMR 1:70 10A SMD |
1,549 |
|
برگه مشخصات |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 980 µH | 35VµS | 1:70 | - | 6mOhm Primary, 2.2Ohm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
749251125CURR SENSE XFMR 1:125 10A SMD |
1,350 |
|
برگه مشخصات |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 3 mH | 68VµS | 1:125 | - | 6mOhm Primary, 6.5Ohm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
749251020CURR SENSE XFMR 1:20 10A SMD |
479 |
|
برگه مشخصات |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 80 µH | 10VµS | 1:20 | - | 6mOhm Primary, 200mOhm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
749251050CURR SENSE XFMR 1:50 10A SMD |
144 |
|
برگه مشخصات |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 500 µH | 25VµS | 1:50 | - | 6mOhm Primary, 1.4Ohm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
PA0368.100NLTCURR SENSE XFMR 1:100 SMD |
3,254 |
|
برگه مشخصات |
PA0368NL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 6.7 mH | - | 1:100 | - | 4mOhm Primary, 1.6Ohm Secondary | - | Surface Mount | 0.325" L x 0.325" W (8.25mm x 8.25mm) | 0.134" (3.40mm) | - |
|
|
PA1005.125NLCURR SENSE XFMR 1:125 20A SMD |
1,578 |
|
برگه مشخصات |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 3 mH | - | 1:125 | - | 0.75mOhm Primary, 6.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.125QNLTCURR SENSE XFMR 1:125 20A SMD |
4,385 |
|
برگه مشخصات |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 3 mH | - | 1:125 | - | 0.75mOhm Primary, 6.5Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.040QNLTCURR SENSE XFMR 1:40 20A SMD |
1,125 |
|
برگه مشخصات |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 320 µH | - | 1:40 | - | 0.75mOhm Primary, 1.14Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.020QNLCURR SENSE XFMR 1:20 20A SMD |
1,108 |
|
برگه مشخصات |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 80 µH | - | 1:20 | - | 0.75mOhm Primary, 550mOhm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
PH9494.200NLTCURR SENSE XFMR 200:1 30A SMD |
1,730 |
|
برگه مشخصات |
PH9494.XXXNLT | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 10 mH | - | 200:1 | - | 0.35mOhm Primary, 10Ohm Secondary | - | Surface Mount | 0.504" L x 0.382" W (12.80mm x 9.70mm) | 0.283" (7.20mm) | Gull Wing |
|

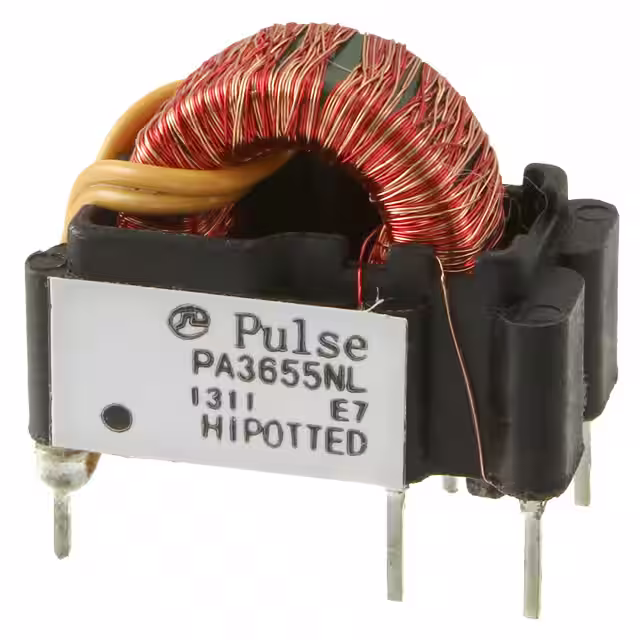

PA3655NLCURR SENSE XFMR 34A T/H |
985 |
|
برگه مشخصات |
- | Tray | Active | 50kHz ~ 500kHz | Invasive | 34 A | 76 mH | - | - | 200:200:1 | 15.8Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|
|
PA0368.050NLTCURR SENSE XFMR 1:50 SMD |
2,389 |
|
برگه مشخصات |
PA0368NL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 1.7 mH | - | 1:50 | - | 4mOhm Primary, 900mOhm Secondary | - | Surface Mount | 0.325" L x 0.325" W (8.25mm x 8.25mm) | 0.134" (3.40mm) | - |
|
PA1005.070NLTCURR SENSE XFMR 1:70 20A SMD |
1,285 |
|
برگه مشخصات |
PA1005.XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
B82801B0324A040CURR SENSE XFMR 1:40 SMD |
3,283 |
|
برگه مشخصات |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 320 µH | - | 1:40 | - | 0.8mOhm Primary, 1.14Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
P8202NLTCURR SENSE XFMR 1:20 SMD |
2,333 |
|
برگه مشخصات |
P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 80 µH | - | 1:20 | - | 6mOhm Primary, 550mOhm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
