تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-506EVAL BOARD FOR LNK3204D |
4 |
|
برگه مشخصات |
LinkSwitch®-TN2 | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 1.44 W | 12V | 120mA | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK3204D |
|

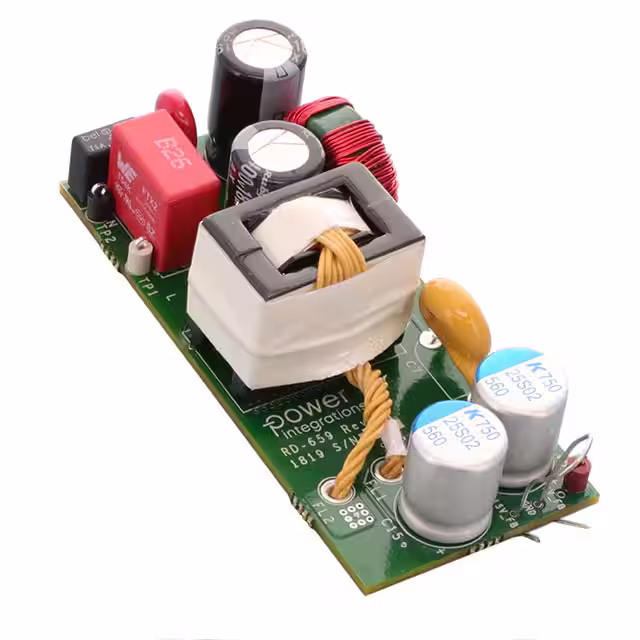

RDK-659EVAL BOARD FOR INN3268C |
4 |
|
برگه مشخصات |
InnoSwitch™3-CP | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 30 W | 5.1V | 6A | 180 ~ 265 VAC | Flyback | - | Board(s) | INN3268C |
|
RDK-669EVAL BOARD FOR LNK625 |
4 |
|
برگه مشخصات |
LinkSwitch®-CV | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK625 |
|

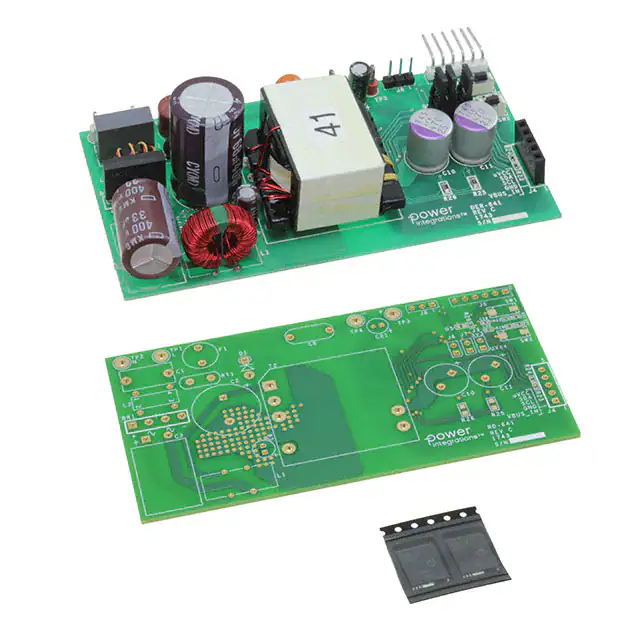

RDK-641EVAL BOARD FOR INNOSWITCH3PRO |
3 |
|
برگه مشخصات |
PowiGaN™, InnoSwitch™3-Pro | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | - | 3V ~ 8V, 8V ~ 20V | 5A | 85 ~ 265 VAC | Flyback | 50Hz ~ 60Hz | Board(s) | InnoSwitch3-Pro |
|

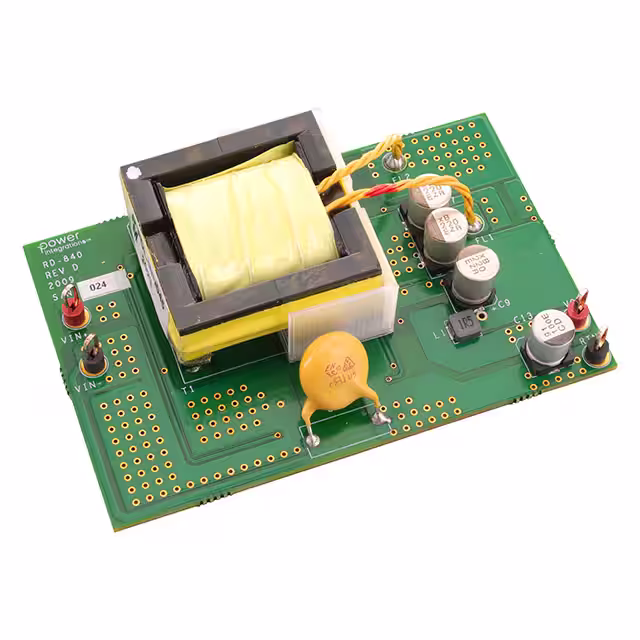

RDK-840QEVAL BOARD FOR INN3977CQ |
3 |
|
برگه مشخصات |
InnoSwitch™3-AQ | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 30 W | 12V | 2.5A | 30V ~ 550V | Flyback | - | Board(s) | INN3977CQ |
|

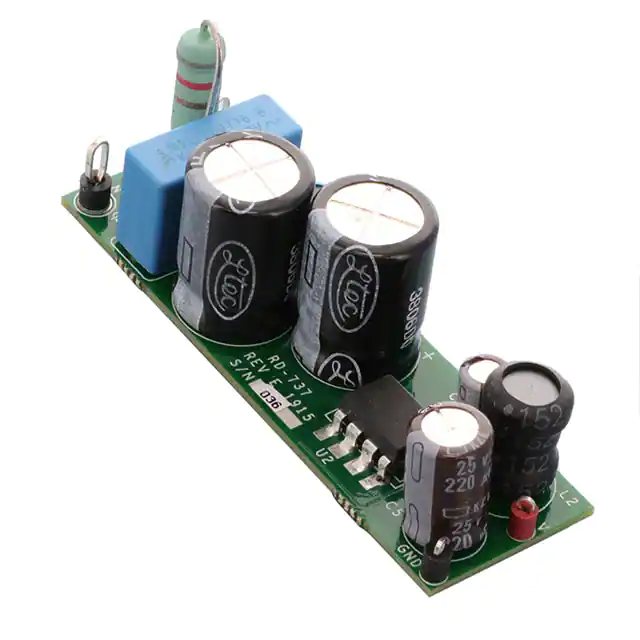

RDK-737EVAL BOARD FOR LNK3294 |
3 |
|
- |
LinkSwitch®-TN2 | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 1.44 W | 12V | 120mA | 85 ~ 440 VAC | Buck | - | Board(s) | LNK3294 |
|
RDK-706EVAL BOARD FOR TOP267VG |
3 |
|
برگه مشخصات |
TOPSwitch®-JX | Box | Active | AC/DC Converter | 2 Isolated Outputs | 26.5 W | 5V, 12V | 2A, 500mA | 90 ~ 265 VAC | Flyback | - | Board(s) | TOP267VG |
|

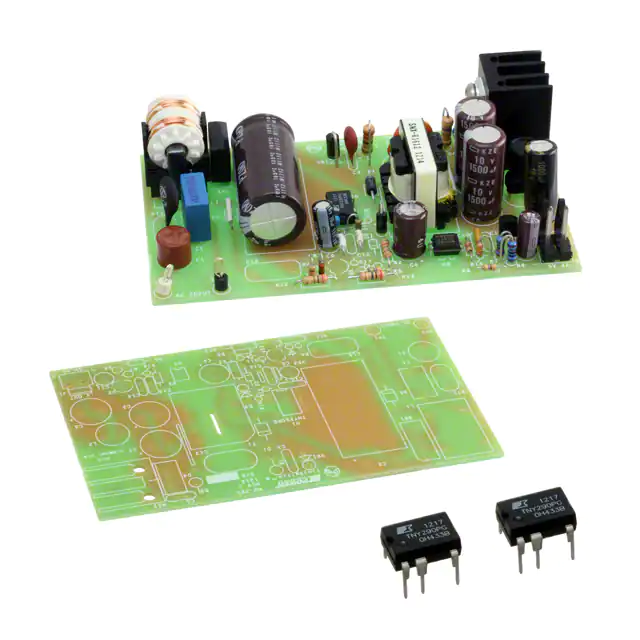

RDK-295EVAL BOARD FOR TNY290 |
2 |
|
برگه مشخصات |
TinySwitch®-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 90 ~ 295 VAC, 110V ~ 420V | Flyback | - | Board(s) | TNY290 |
|

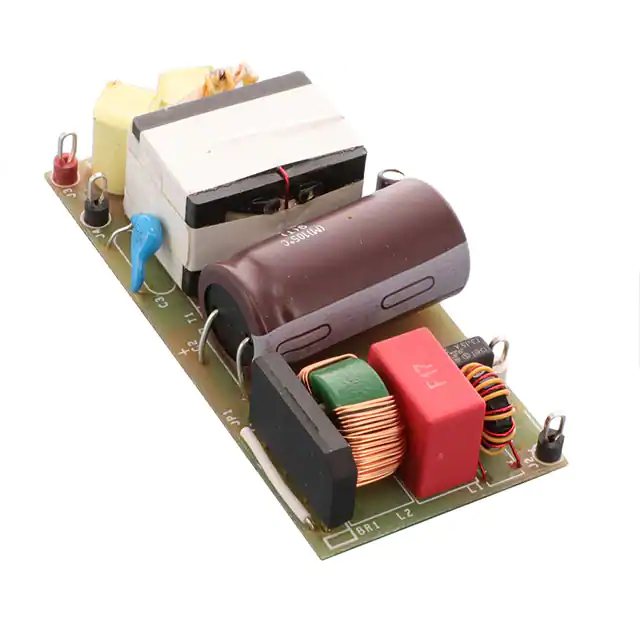

RDK-747EVAL BOARD FOR INN3679C |
2 |
|
برگه مشخصات |
InnoSwitch™3-EP | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 65 W | 20V | 3.25A | 90 ~ 265 VAC | Flyback | - | Board(s) | INN3679C |
|
RDK-877EVAL BOARD FOR LNK3306D |
2 |
|
برگه مشخصات |
LinkSwitch®-TNZ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 6 W | 12V | 500mA | 90 ~ 305 VAC | Flyback | - | Board(s) | LNK3306D |
|
|
RDK-710EVAL BOARD FOR INN3074M |
2 |
|
برگه مشخصات |
- | Box | Active | AC/DC Converter | 2 Isolated Outputs | 12 W | 5V, 12V | 1.4A, 420mA | 85 ~ 265 VAC | Flyback | - | Board(s) | INN3074M |
|
|
RDK-734EVAL BOARD FOR LNK6407D |
2 |
|
برگه مشخصات |
LinkSwitch™-3 | Box | Active | AC/DC Converter | 1 Isolated Output | 8.4 W | 12V | 700mA | 90 ~ 265 VAC | Flyback | 77.5kHz | Board(s) | LNK6407D |
|
|
RDK-707QEVAL BOARD FOR LNK3209GQ |
2 |
|
برگه مشخصات |
LinkSwitch®-TN2Q | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | - | 30V ~ 550V | Buck | - | Board(s) | LNK3209GQ |
|

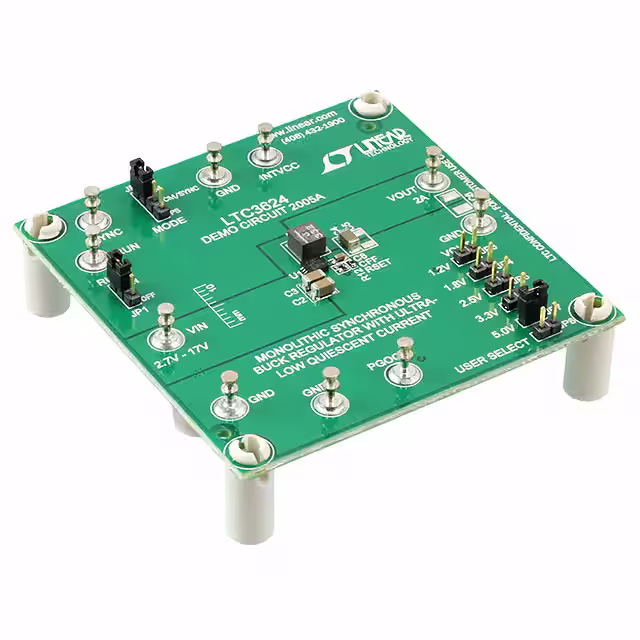

DC2005AEVAL BOARD FOR LTC3624 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTC3624 |
|
DC2504AEVAL BOARD FOR LT8630 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 600mA | 13V ~ 100V | Buck | - | Board(s) | LT8630 |
|

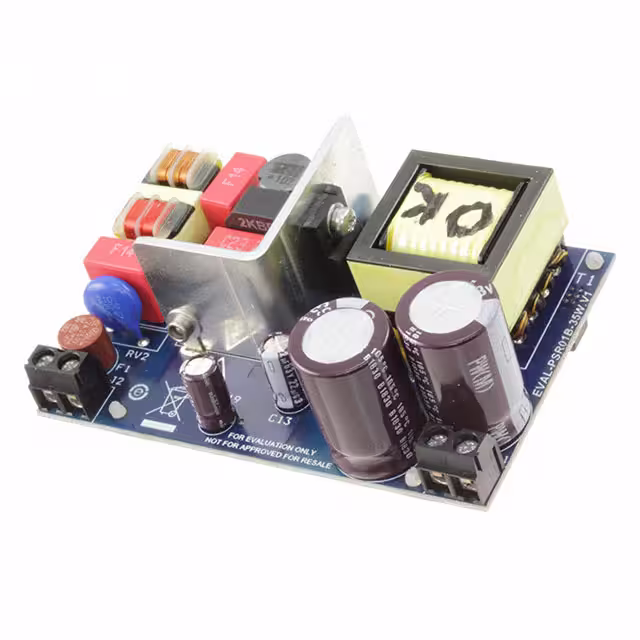

EVAL-PSR01B-35WEVAL BOARD HVLED001B STF10LN80K5 |
3 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 35 W | 48V | 730mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED001B, STF10LN80K5 |
|

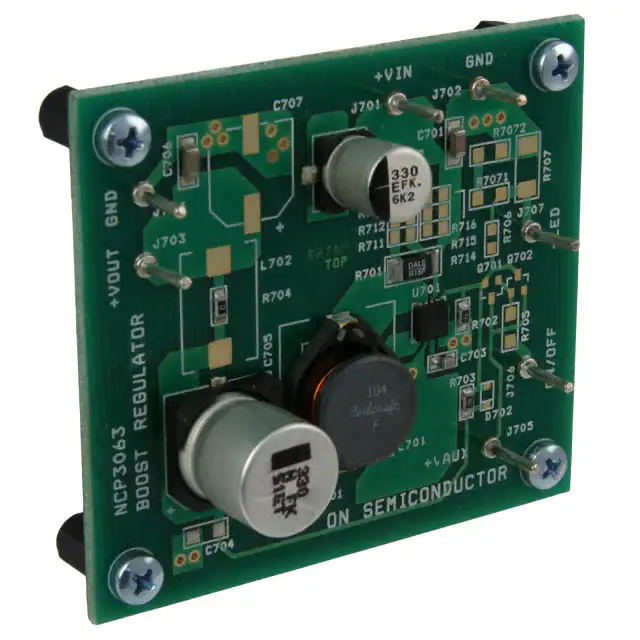

NCP3063DFBSTGEVBEVAL BOARD FOR NCP3063 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 350mA | 12V | Boost | - | Board(s) | NCP3063 |
|

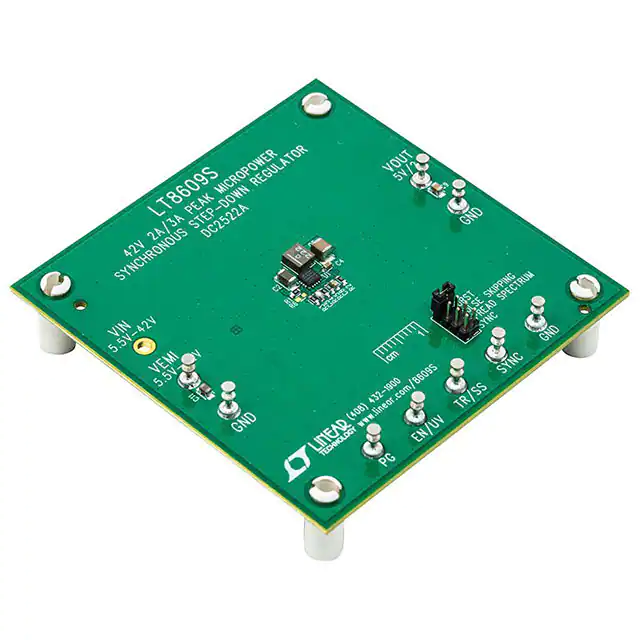

DC2522AEVAL BOARD FOR LT8609S |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8609S |
|

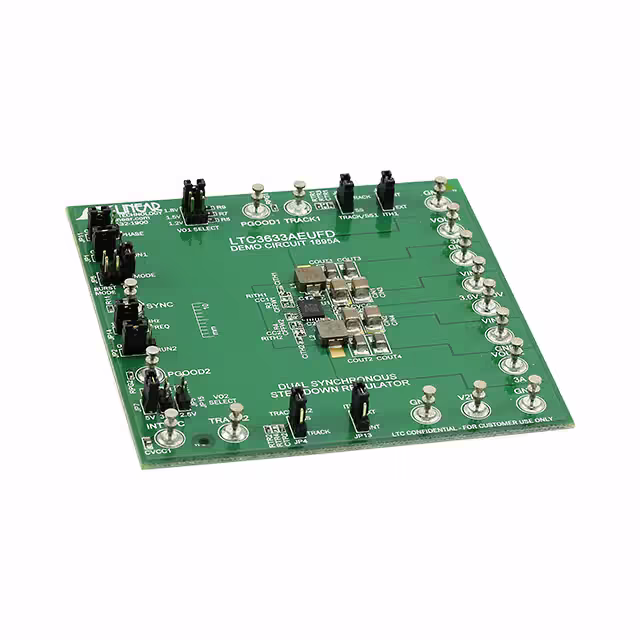

DC1895AEVAL BOARD FOR LTC3633A |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 3.6V ~ 20V | Buck | - | Board(s) | LTC3633A |
|
|
DC2822AEVAL BOARD FOR LT8618 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 5.5V ~ 60V | Buck | 2MHz | Board(s) | LT8618 |
