تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

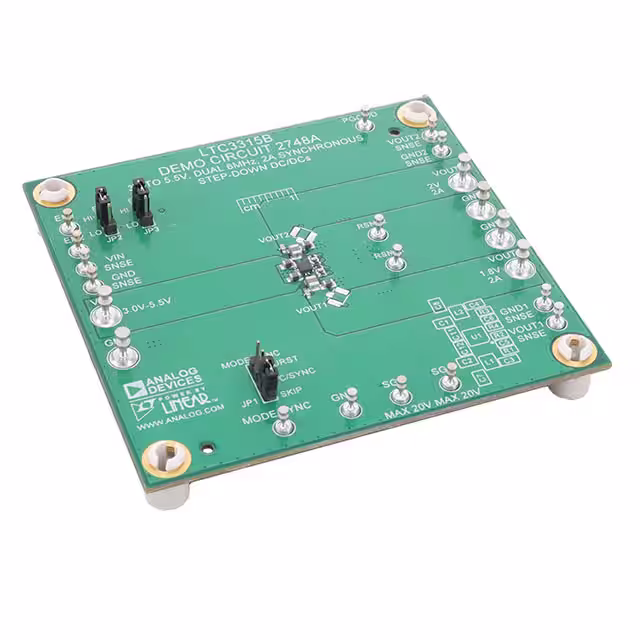

DC2748AEVAL BOARD FOR LTC3315B |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2V | 2A | 2.25V ~ 5.5V | Buck | 6.45MHz | Board(s) | LTC3315B |
|

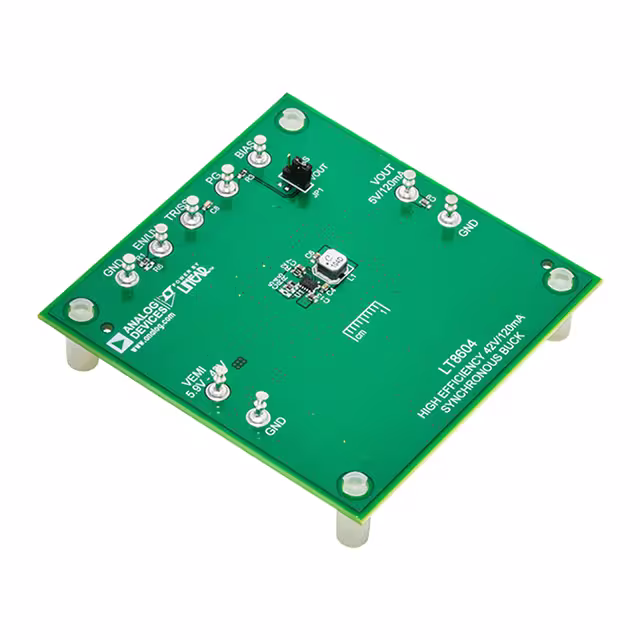

EVAL-LT8604-AZEVAL BOARD FOR LT8604 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 120mA | 5.9V ~ 42V | Buck | 700kHz | Board(s) | LT8604 |
|

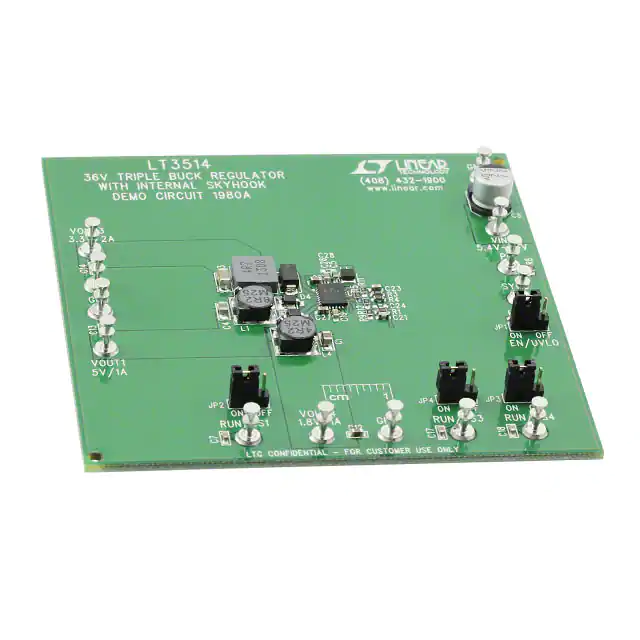

DC1980AEVAL BOARD FOR LT3514 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 2A, 1A, 1A | 5.4V ~ 36V | Buck | 1MHz | Board(s) | LT3514 |
|

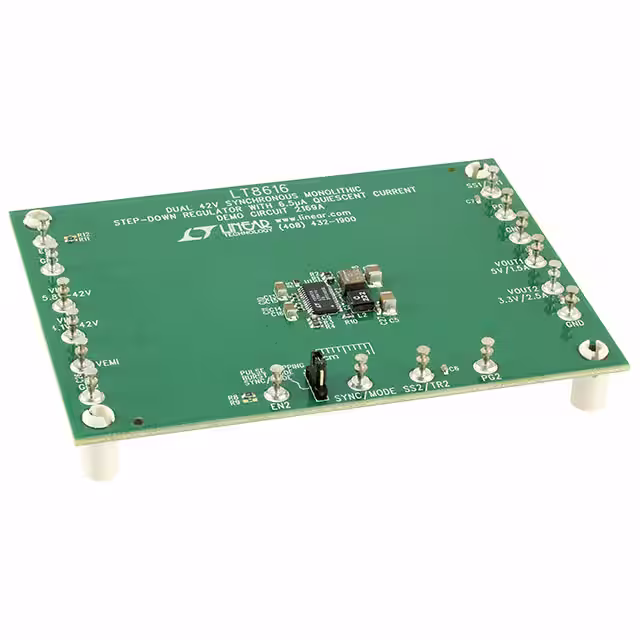

DC2169AEVAL BOARD FOR LT8616 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2.5A, 1.5A | 4.1V ~ 42V | Buck | 2.05MHz | Board(s) | LT8616 |
|

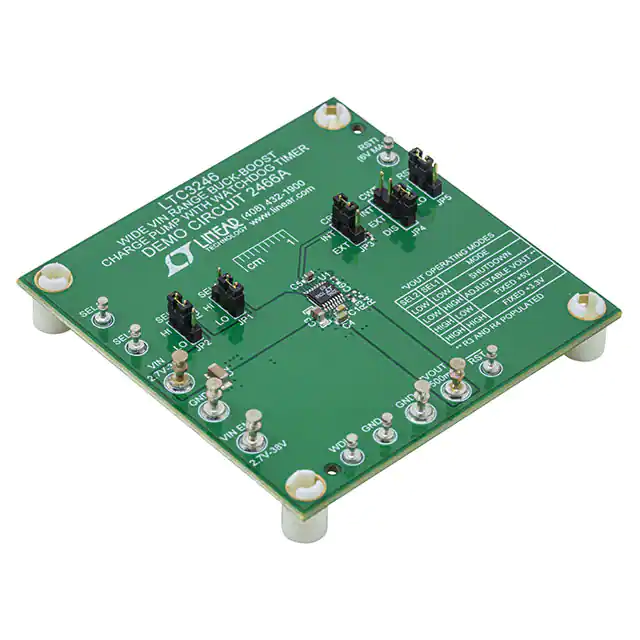

DC2466AEVAL BOARD FOR LTC3246 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.1V, 3.3V or 5V | 500mA | 2.7V ~ 38V | Buck-Boost | - | Board(s) | LTC3246 |
|

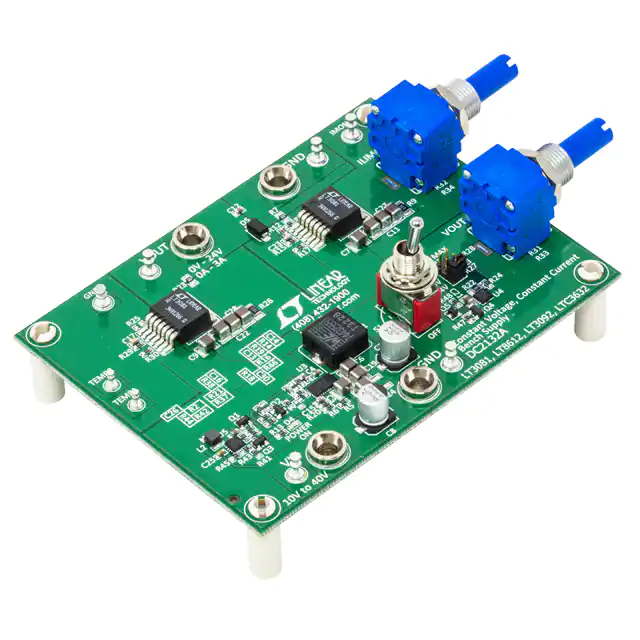

DC2132AEVAL BOARD LT3081 LT3092 LT8612 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down with LDO | 1 Non-Isolated Output | - | 0V ~ 24V | 3A | 10V ~ 40V | Buck | 700kHz | Board(s) | LT3081, LT3092, LT8612 |
|

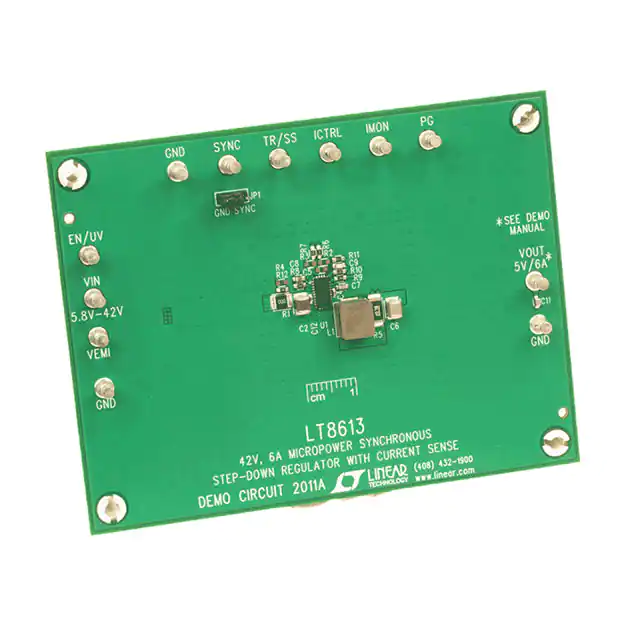

DC2011AEVAL BOARD FOR LT8613 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5.8V ~ 42V | Buck | 700kHz | Board(s) | LT8613 |
|
DC1949AEVAL BOARD FOR LT8602 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 2.5A, 1.8A, 1.8A, 1.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8602 |
|

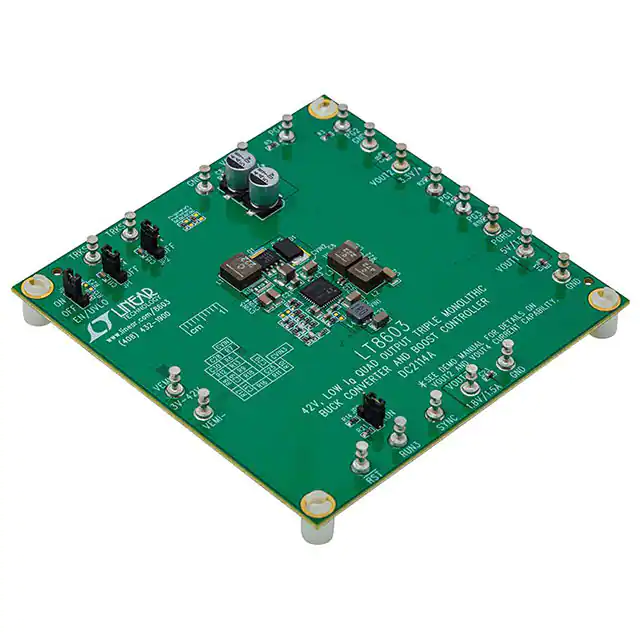

DC2114AEVAL BOARD FOR LT8603 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V, 8V | 2.5A, 1.8A, 1.5A, 1.5A | 3V ~ 42V | Boost, Buck | - | Board(s) | LT8603 |
|

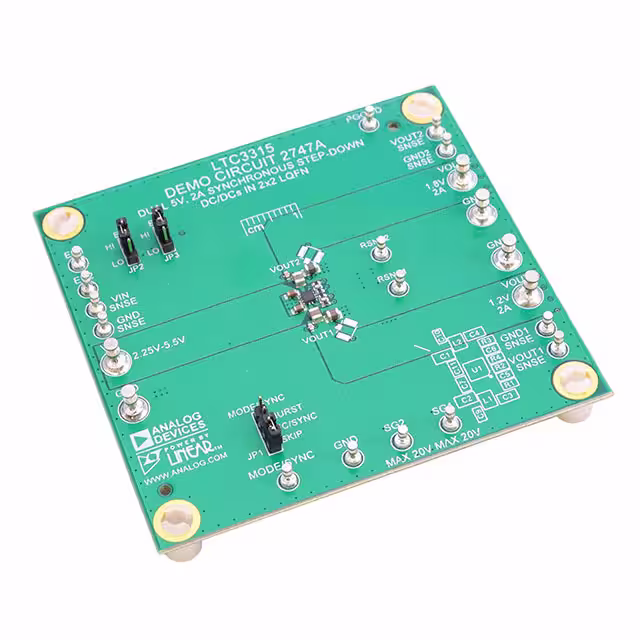

DC2747AEVAL BOARD FOR LTC3315A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 2A, 2A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3315A |
|
DC1992AEVAL BOARD FOR LT8620 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 65V | Buck | 2MHz | Board(s) | LT8620 |
|
DC1237A-AEVAL BOARD FOR LTC35271 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 5V | - | 0.7V ~ 5.5V | Boost | 1.2MHz, 2.2MHz | Board(s) | LTC3527-1 |
|

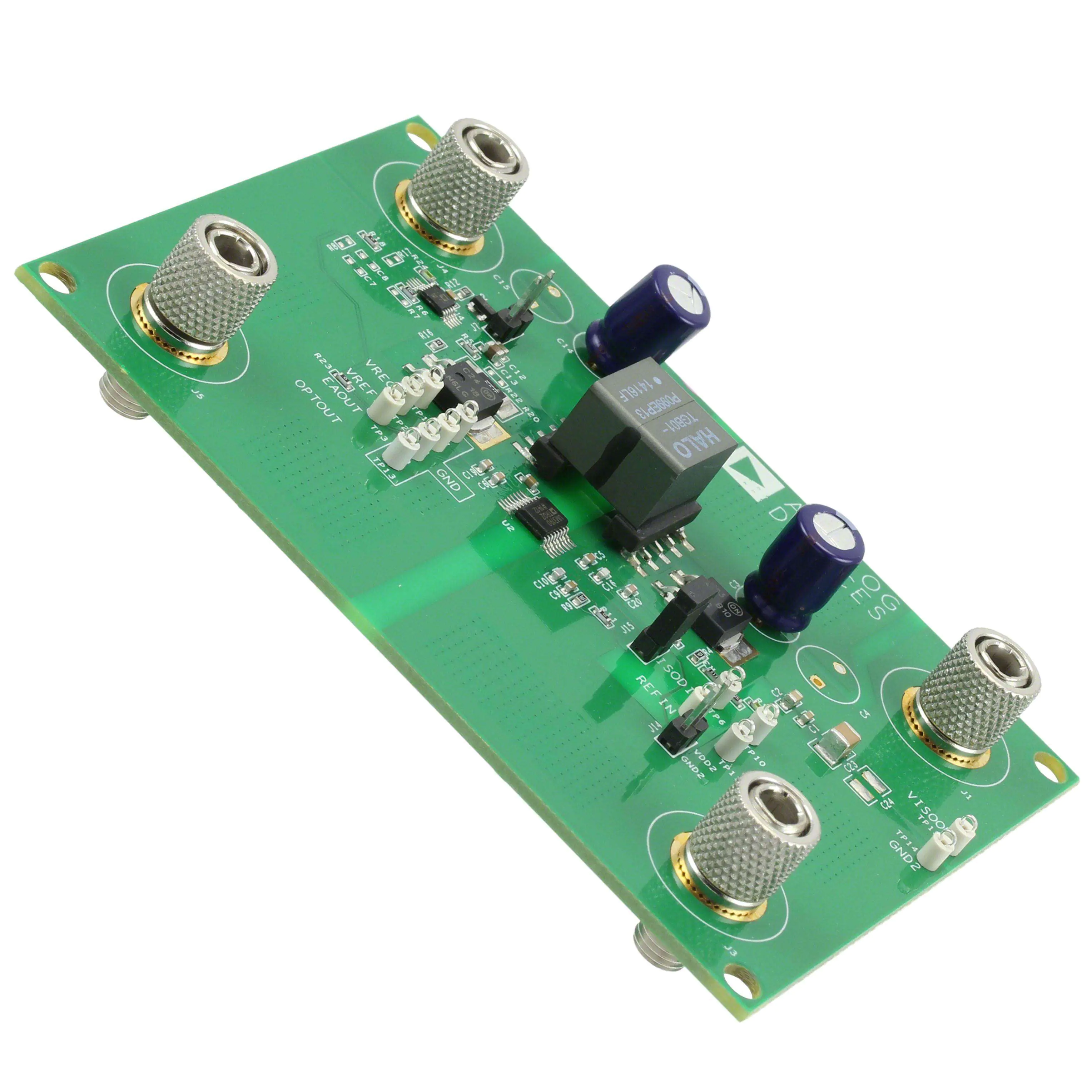

EVAL-CN0342-EB1ZEVAL BOARD FOR ADP1621 ADUM3190 |
1 |
|
- |
Circuits from the Lab™ | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | - | 5V | 1A | 5V ~ 24V | Flyback | - | Board(s) | ADP1621, ADuM3190 |
|
|
BD7F205EFJ-EVK-001EVAL BOARD FOR BD7F205 |
6 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 3 Isolated Outputs | 6 W | 6.2V, 6.2V, 16.5V | 300mA, 300mA, 100mA | 8V ~ 32V | Flyback | 363kHz | Board(s) | BD7F205 |
|

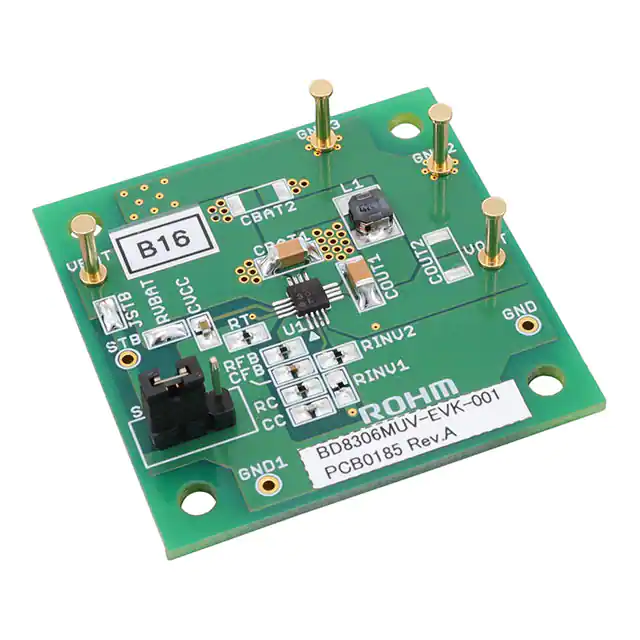

BD8306MUV-EVK-001EVAL BOARD FOR BD8306 |
5 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 2.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | BD8306 |
|

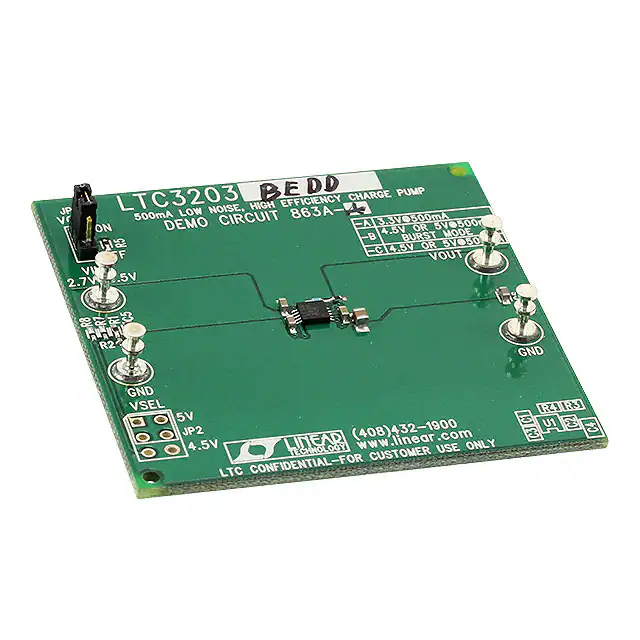

DC863A-AEVAL BOARD FOR LTC3203B |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.7V ~ 5.5V | Boost | 900kHz, 1MHz | Board(s) | LTC3203B |
|
EV1412-0600-AEVAL BOARD FOR FS1412 |
13 |
|
برگه مشخصات |
µPOL™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1V | 12A | 12V | - | 1MHz | Board(s) | FS1412 |
|
EV1403-5000-AEVAL BOARD FOR FS1403 |
2 |
|
برگه مشخصات |
µPOL™ micro-POL | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 12V | Buck | 1.3MHz | Board(s) | FS1403 |
|
EV1406-1800-AEVAL BOARD FOR FS1406 |
2 |
|
برگه مشخصات |
µPOL™ micro-POL | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 12V | Buck | 1.9MHz | Board(s) | FS1406 |
|
DC1658A-AEVAL BOARD FOR LTC33881 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V or 2.5V | 50mA | 2.7V ~ 20V | Buck | - | Board(s) | LTC3388-1 |
