تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

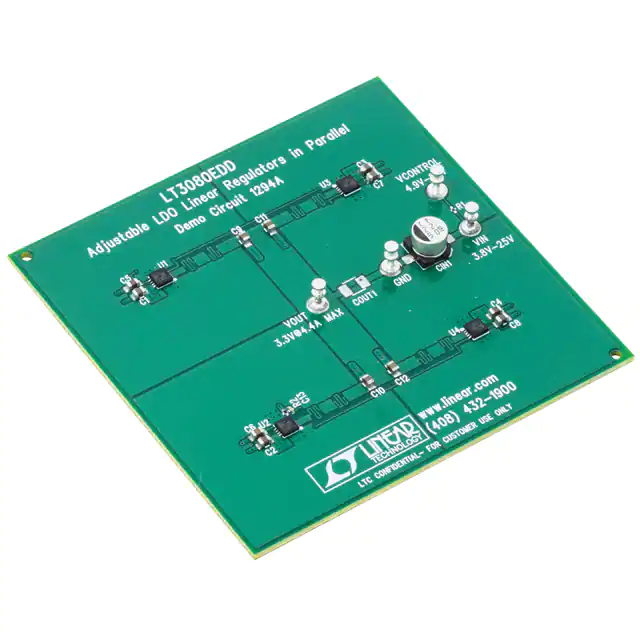

DC1294AEVAL BOARD FOR LT3080 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4.4A | 3.8V ~ 25V | Buck | - | Board(s) | LT3080 |
|

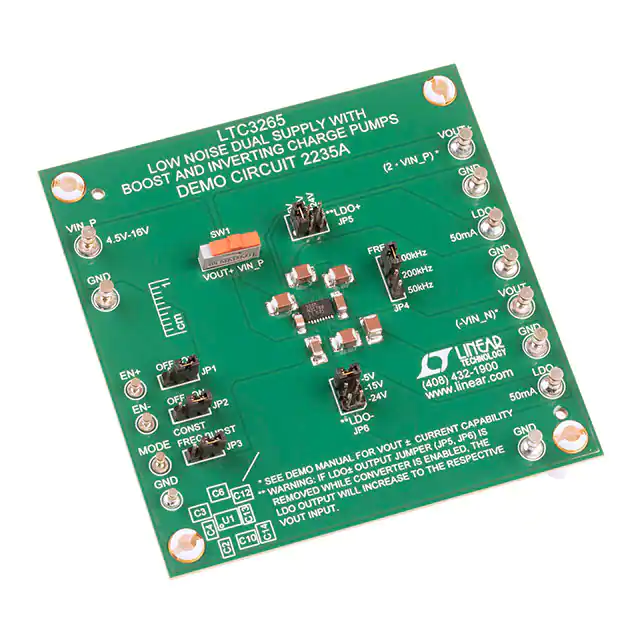

DC2235AEVAL BOARD FOR LTC3265 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Positive and Negative | 4 Non-Isolated Outputs | - | - | 100mA, 100mA, 50mA, 50mA | 4.5V ~ 16V | Boost, Inverting | - | Board(s) | LTC3265 |
|

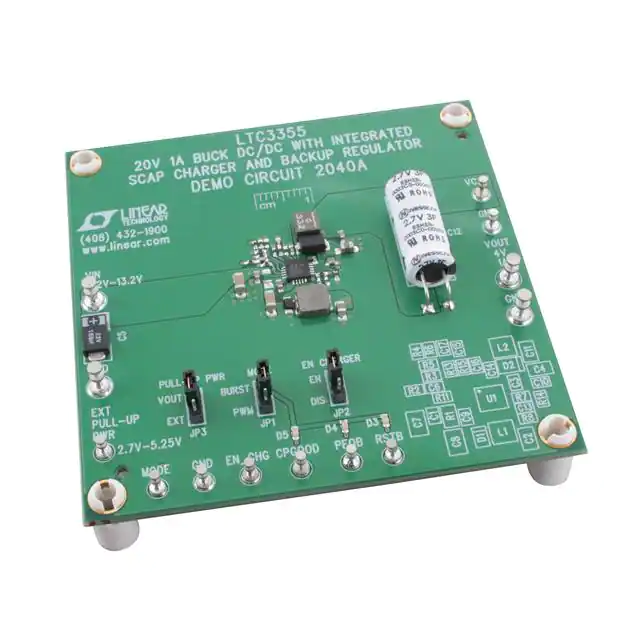

DC2040AEVAL BOARD FOR LTC3355 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4V | 1A | 11.2V ~ 13.2V | Buck | - | Board(s) | LTC3355 |
|
DC3059AEVAL BOARD FOR LTC33110.85 |
3 |
|
برگه مشخصات |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 12.5A | 3V ~ 3.6V | Buck | 2MHz | Board(s) | LTC3311-0.85 |
|

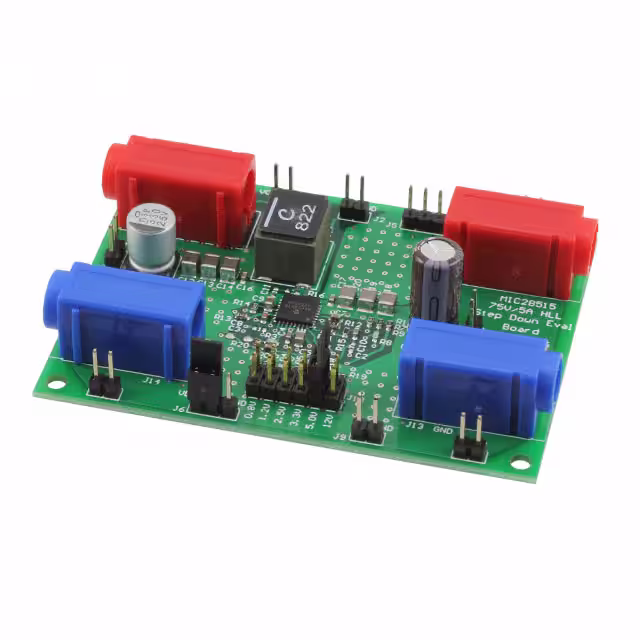

ADM00845EVAL BOARD FOR MIC28515 |
3 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 4.5V ~ 75V | Buck | 300kHz | Board(s) | MIC28515 |
|

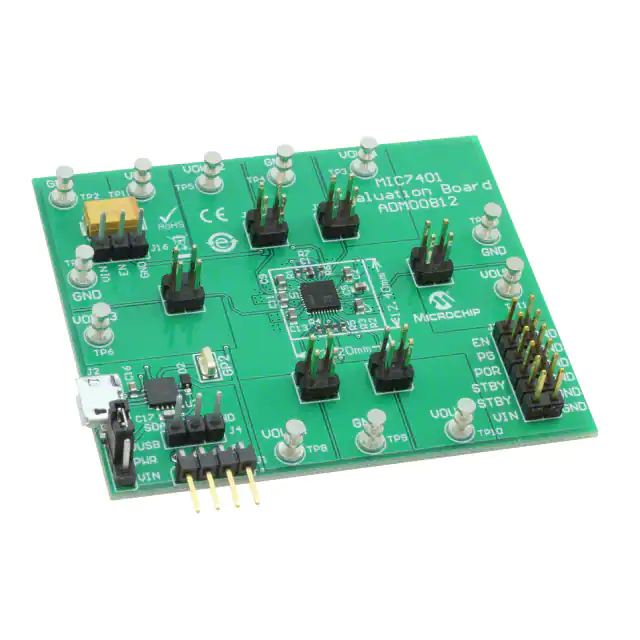

ADM00812EVAL BOARD FOR MIC7401 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up or Down | 6 Non-Isolated Outputs | - | 1.05V, 1.1V, 1.25V, 1.8V, 1.8V or 12V | 3A, 1A, 800mA, 500mA, 500mA or 200mA | 2.4V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | MIC7401 |
|

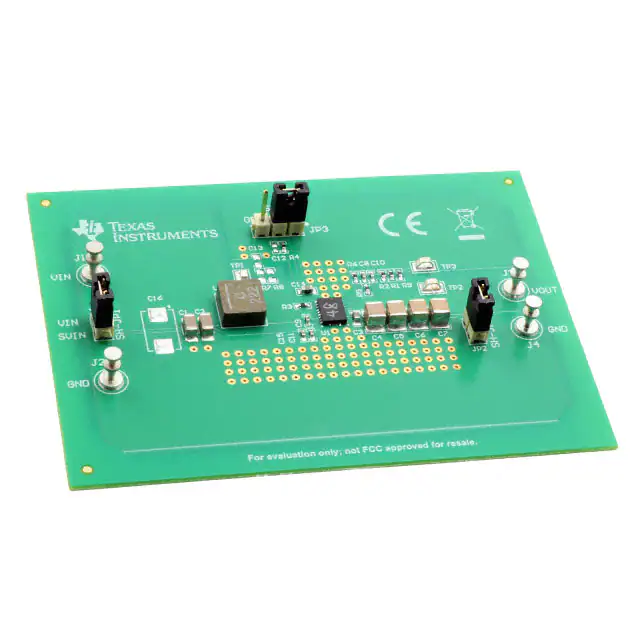

TPS61088Q1EVM-037EVAL BOARD FOR TPS61088Q1 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 4.5V ~ 12V | 2A | 2.7V ~ 10V | Boost | 400kHz | Board(s) | TPS61088-Q1 |
|

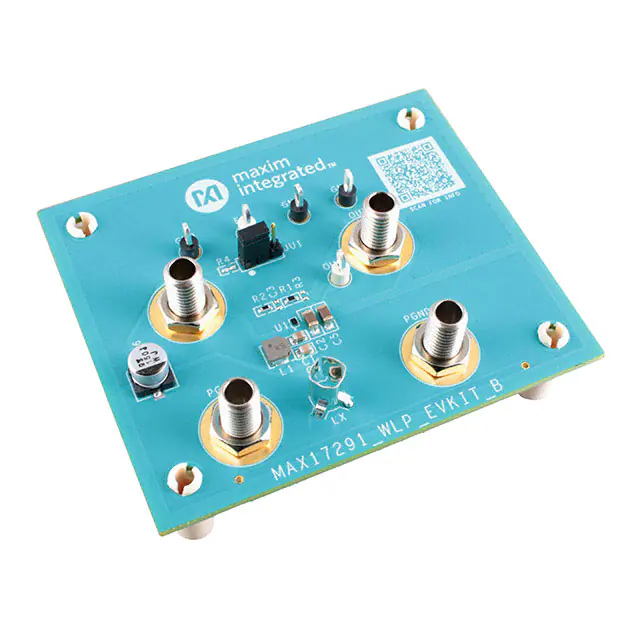

MAX17291EVK#WLPEVAL BOARD FOR MAX17291 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 310mA | 1.8V ~ 5.5V | Boost | - | Board(s) | MAX17291 |
|

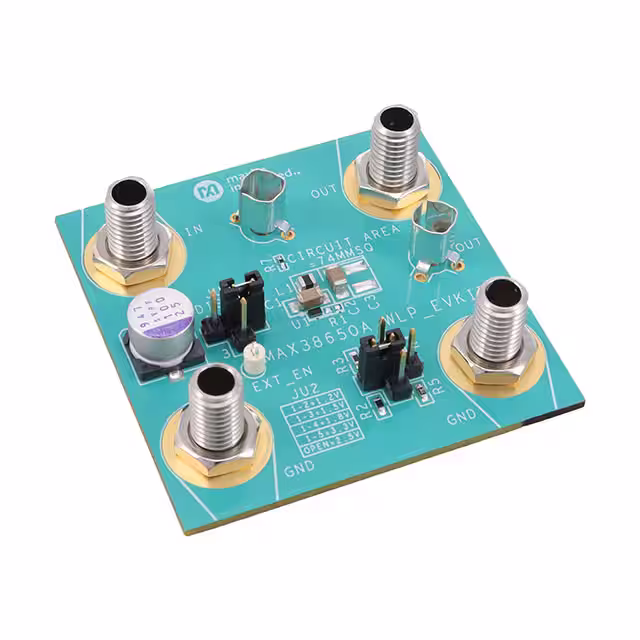

MAX38650AEVK#WLPEVAL BOARD FOR MAX38650A |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 100mA | 1.8V ~ 5.5V | Buck | - | Board(s) | MAX38650A |
|

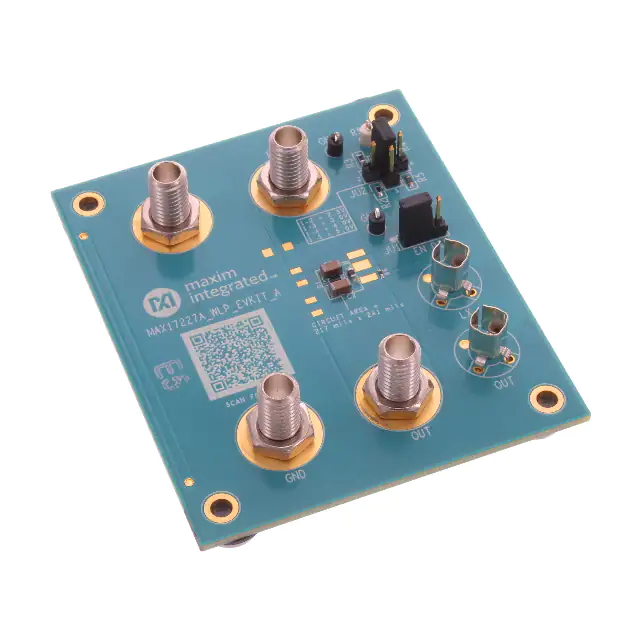

MAX17227AEVK#WLPEVAL BOARD FOR MAX17227A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V | 1A | 0.4V ~ 5.5V | Boost | - | Board(s) | MAX17227A |
|

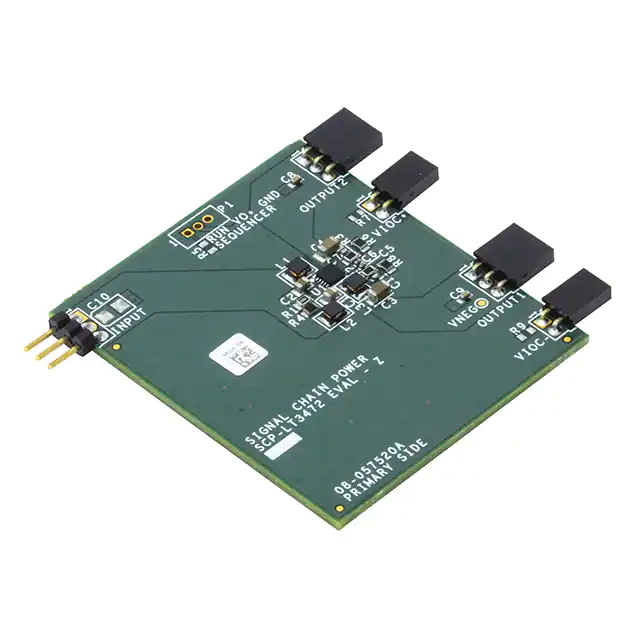

SCP-LT3472-EVALZEVAL BOARD FOR LT3472 |
2 |
|
برگه مشخصات |
SCP | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 15V, -8V | 65mA, 45mA | 2.7V ~ 4.2V | Boost, Inverting | 1.1MHz | Board(s) | LT3472 |
|

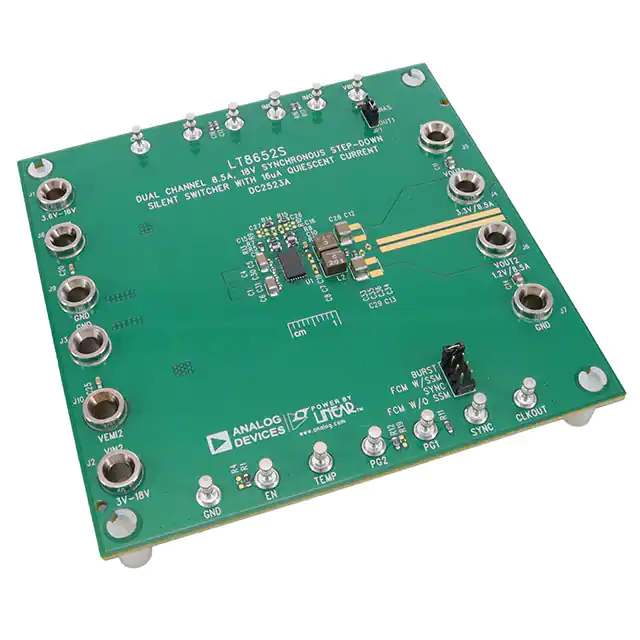

DC2523AEVAL BOARD FOR LT8652S |
0 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 12A, 12A | 3.6V ~ 18V | Buck | 2MHz | Board(s) | LT8652S |
|
|
EVAL5BR2280BZ700MA1TOBO1EVAL BOARD FOR ICE5BR2280BZ |
6 |
|
برگه مشخصات |
CoolSET™ | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 10.5 W | 15V | 700mA | 85 ~ 264 VAC | Buck | - | Board(s) | ICE5BR2280BZ |
|
|
REF5BR3995CZ16W1TOBO1EVAL BOARD FOR ICE5BR3995CZ |
3 |
|
برگه مشخصات |
CoolSET™ | Bulk | Active | AC/DC, Primary Side | 3 Isolated Outputs | 16 W | 5V, 5V, 12V | 1A, 200mA, 200mA | 85 ~ 460 VAC | Flyback | - | Board(s) | ICE5BR3995CZ |
|
DC1570A-BEVAL BOARD FOR LT36635 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.2A | 7.5V ~ 36V | Buck | 1MHz | Board(s) | LT3663-5 |
|
DC1601B-CEVAL BOARD FOR LTM4607 |
9 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 20A | 6V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4607 |
|

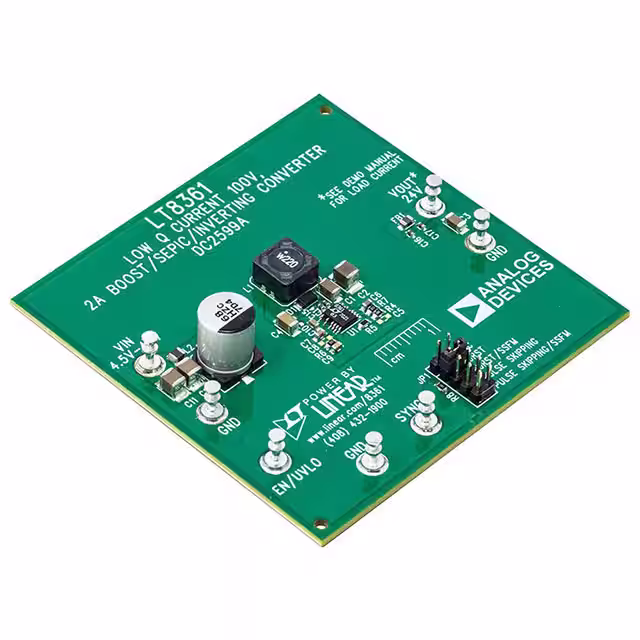

DC2599AEVAL BOARD FOR LT8361 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 600mA | 4.5V ~ 48V | Boost, SEPIC | 400kHz | Board(s) | LT8361 |
|

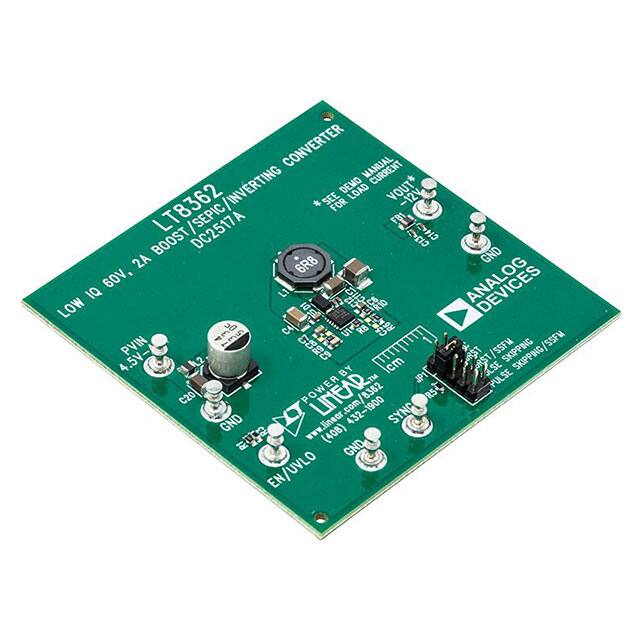

DC2517AEVAL BOARD FOR LT8362 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 1A | 4.5V ~ 42V | Inverting | 2MHz | Board(s) | LT8362 |
|

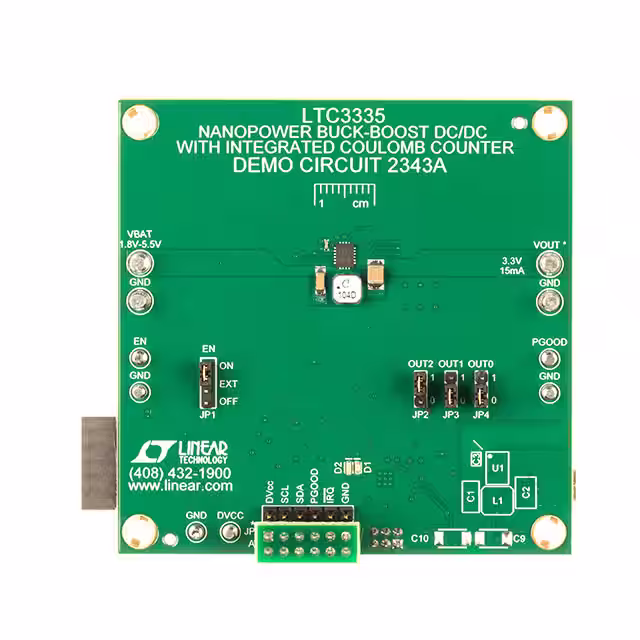

DC2343AEVAL BOARD FOR LTC3335 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 15mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3335 |
|

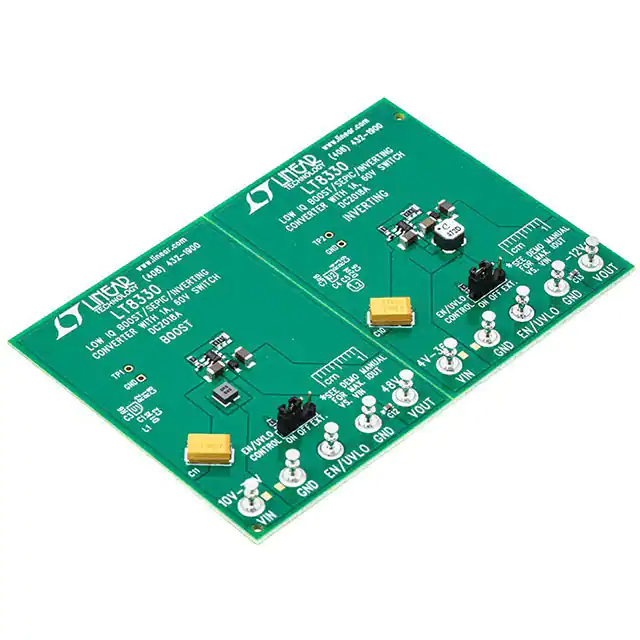

DC2018AEVAL BOARD FOR LT8330 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 48V, -12V | 400mA, 280mA | 10V ~ 36V | Boost, Inverting | 2MHz | Board(s) | LT8330 |
