تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

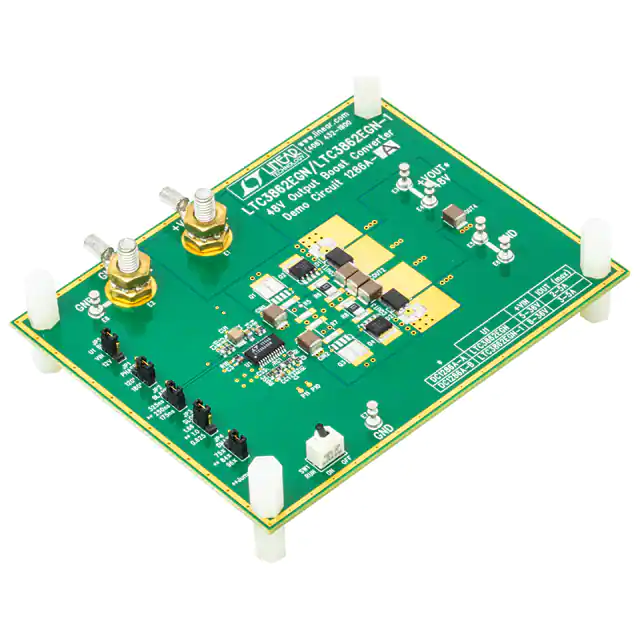

DC1286A-BEVAL BOARD FOR LTC3862 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 5A | 8V ~ 36V | Boost | 200kHz | Board(s) | LTC3862 |
|

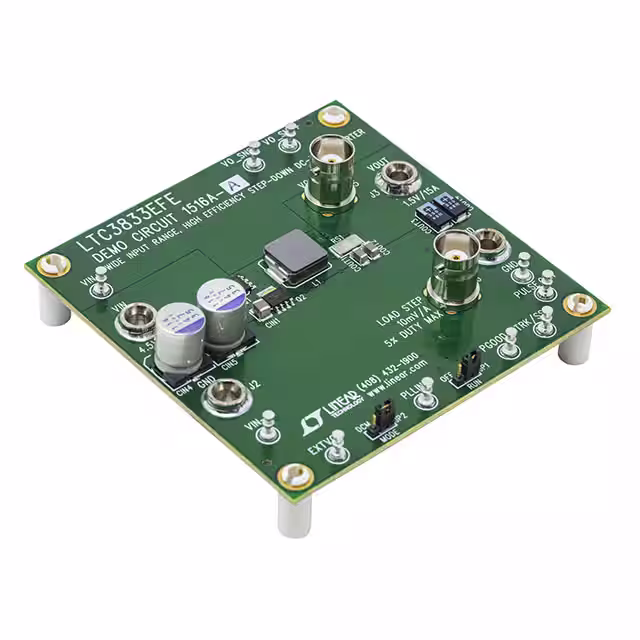

DC1516A-AEVAL BOARD FOR LTC3833 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 24V | Buck | 300kHz | Board(s) | LTC3833 |
|

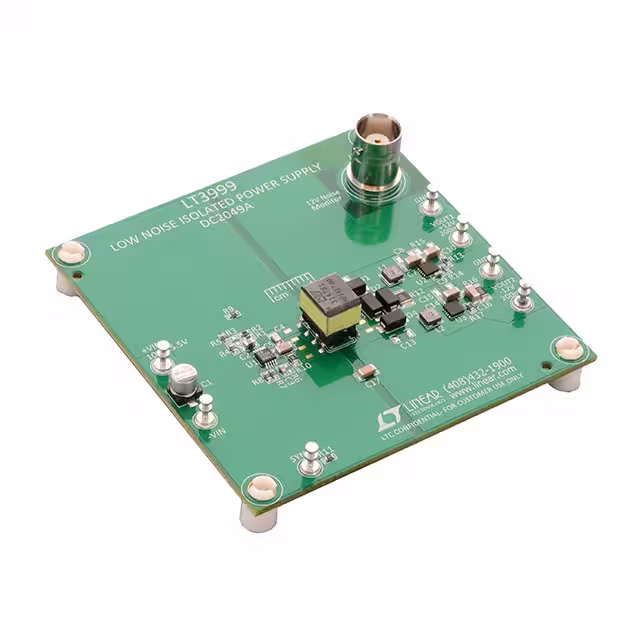

DC2049AEVAL BOARD FOR LT3999 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Isolated Power Supply | 2 Isolated Outputs | - | ±12V | 200mA, 200mA | 10V ~ 15.5V | - | 1MHz | Board(s) | LT3999 |
|

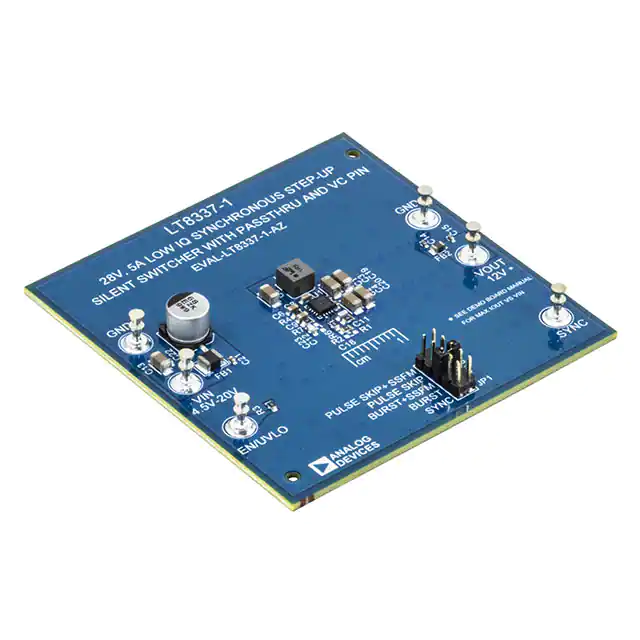

EVAL-LT8337-1-AZEVAL BOARD FOR LT83371 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2.5A | 4V ~ 12V | Boost | 2MHz | Board(s) | LT8337-1 |
|

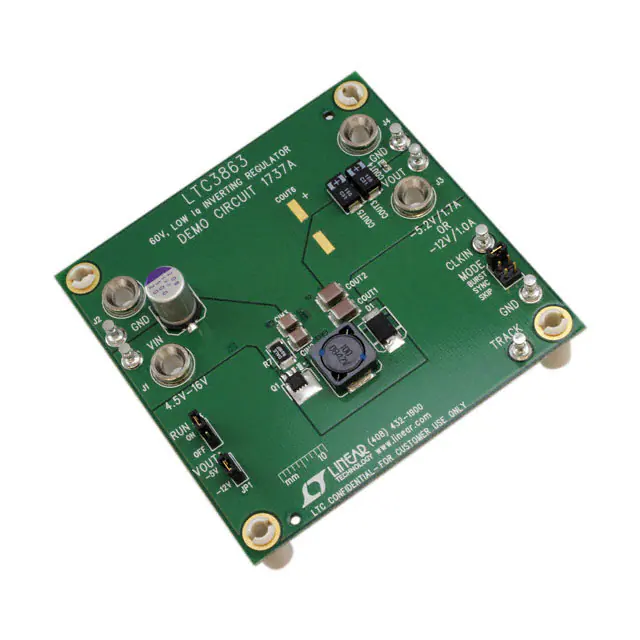

DC1737AEVAL BOARD FOR LTC3863 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5.2V or -12V | 1.7A | 4.5V ~ 16V | Inverting | 400kHz | Board(s) | LTC3863 |
|

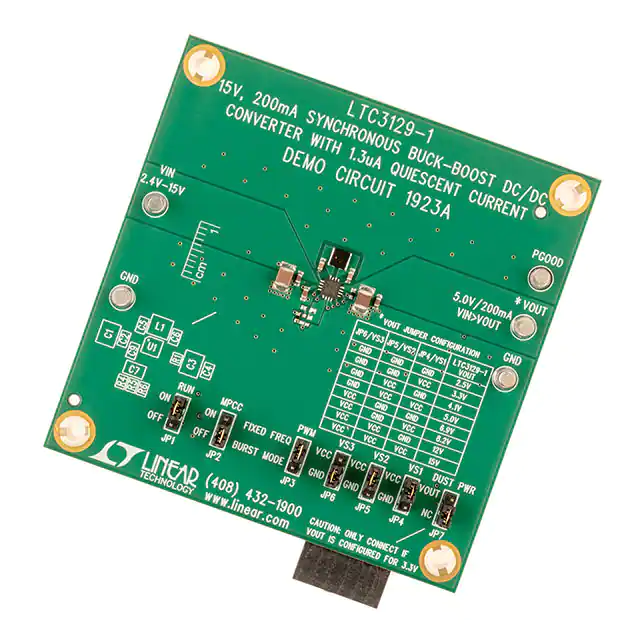

DC1923AEVAL BOARD FOR LTC31291 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 200mA | 2.42V ~ 15V | Buck-Boost | - | Board(s) | LTC3129-1 |
|

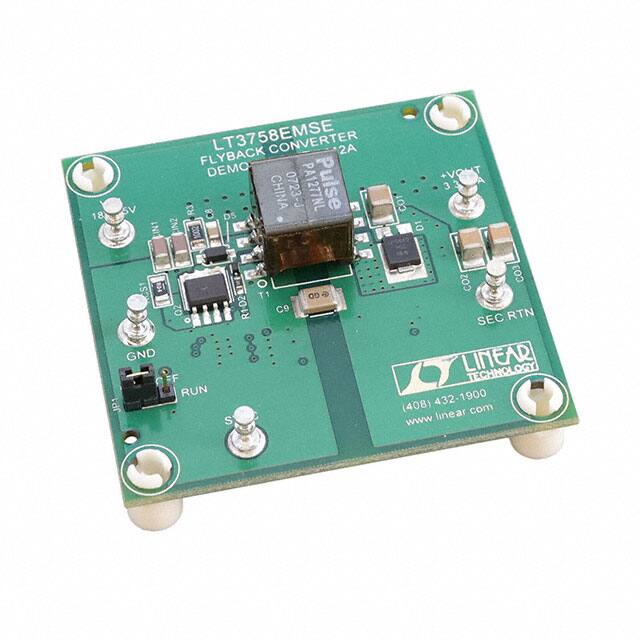

DC1412AEVAL BOARD FOR LT3758 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 18V ~ 75V | Flyback | 300kHz | Board(s) | LT3758 |
|
DC1526AEVAL BOARD FOR LT3991 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 4.5V ~ 55V | Buck | 2MHz | Board(s) | LT3991 |
|

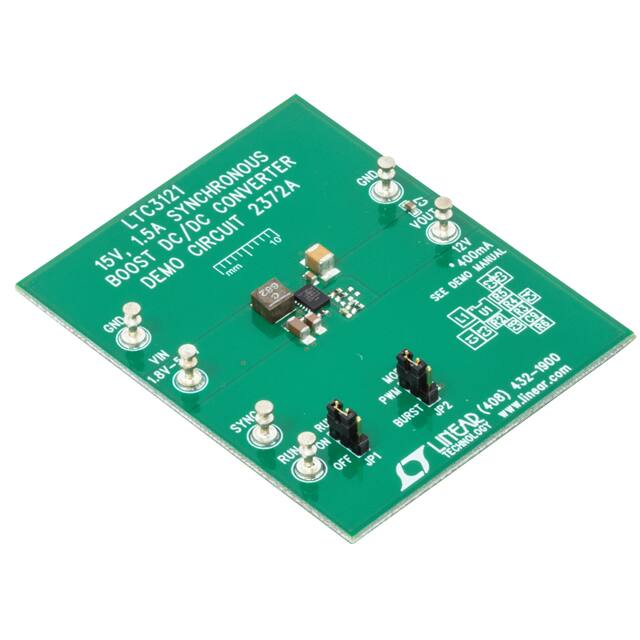

DC2372AEVAL BOARD FOR LTC3121 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 400mA | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3121 |
|
DC2490AEVAL BOARD FOR LT8303 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 840mA | 36V ~ 72V | Flyback | 260kHz | Board(s) | LT8303 |
|

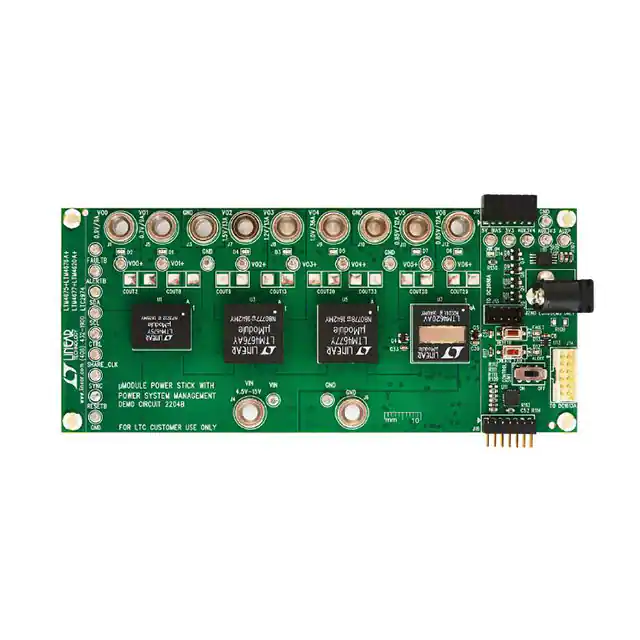

DC2204BEVAL BOARD FOR LTC2974 LTM4620A |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC Converter | 7 Non-Isolated Outputs | - | 0.7V, 0.85V, 0.9V, 0.95V, 1V, 1.2V, 1.5V | 36A, 13A, 13A, 13A, 13A, 9A, 9A | 4.5V ~ 15V | - | - | Board(s) | LTC2974, LTM4620A, LTM4675, LTM4676A, LTM4677 |
|

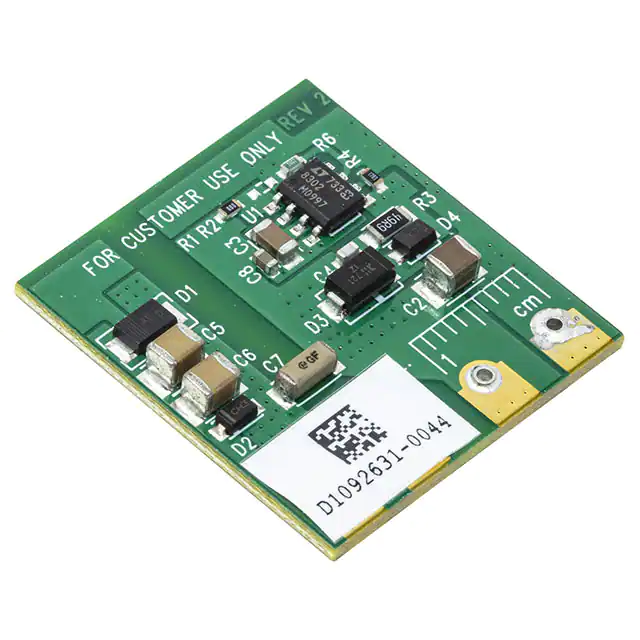

DC2821AEVAL BOARD FOR LT8302 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 1.4A | 4V ~ 28V | Flyback | - | Board(s) | LT8302 |
|
DC1922AEVAL BOARD FOR LTC3129 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | - | - | 5V | 200mA | 2.42V ~ 15V | Buck-Boost | - | Board(s) | LTC3129 |
|

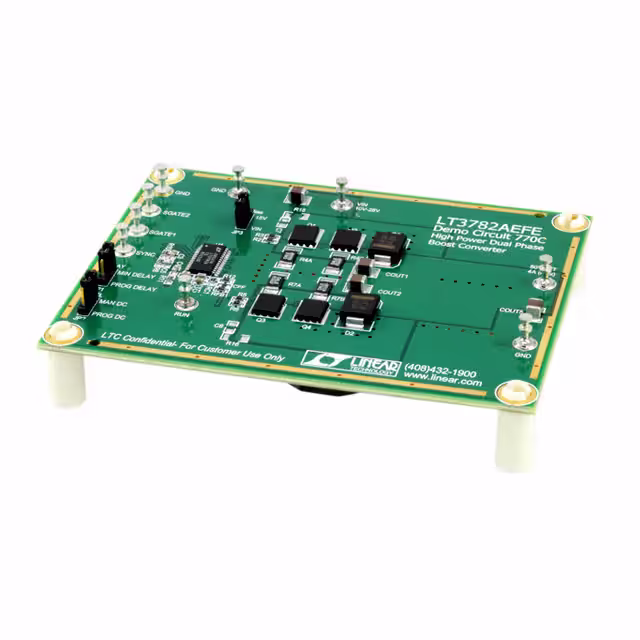

DC770CEVAL BOARD FOR LT3782A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 50V | 4A | 10V ~ 28V | Boost | 250kHz | Board(s) | LT3782A |
|

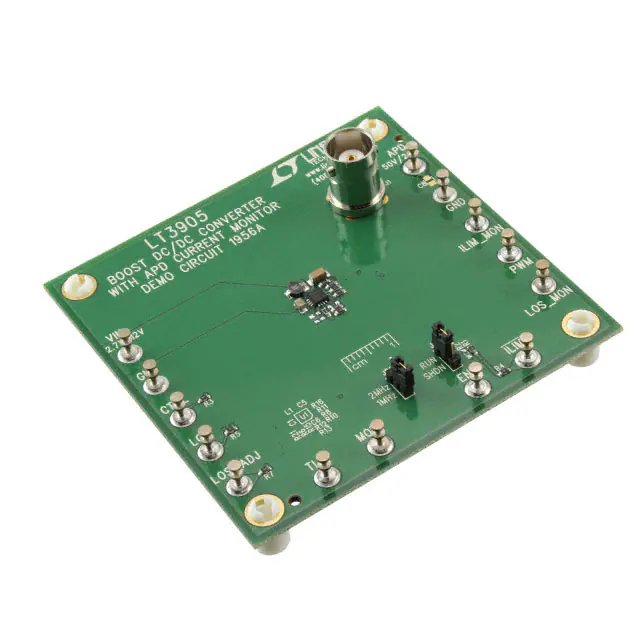

DC1956AEVAL BOARD FOR LT3905 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 50V | 2mA | 2.7V ~ 12V | Boost | 1MHz | Board(s) | LT3905 |
|

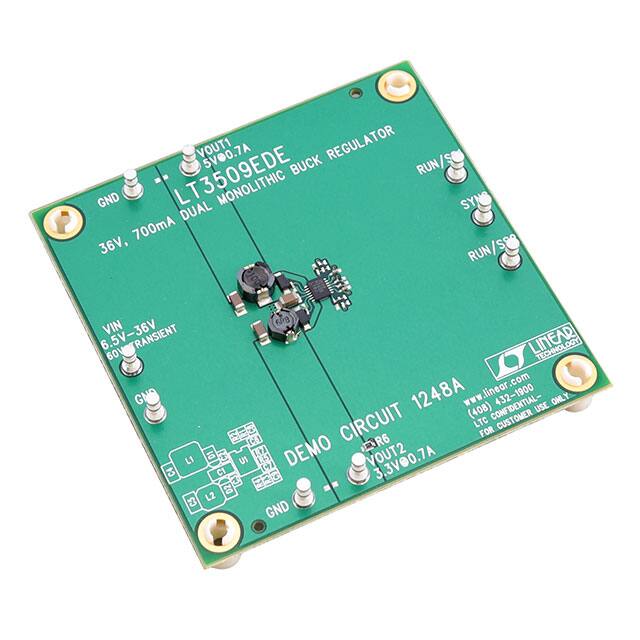

DC1248AEVAL BOARD FOR LT3509 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 700mA, 700mA | 6.5V ~ 36V | Buck | 2.2MHz | Board(s) | LT3509 |
|
|
DC2057AEVAL BOARD FOR LTC3638 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 250mA | 4V ~ 140V | Buck | - | Board(s) | LTC3638 |
|

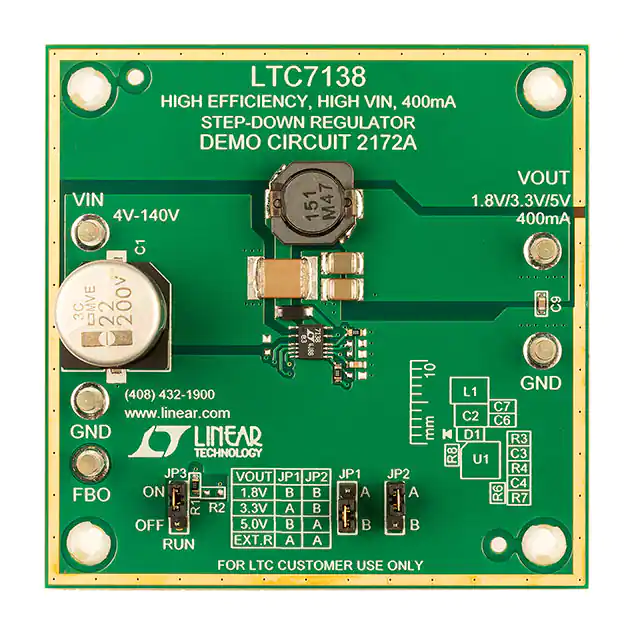

DC2172AEVAL BOARD FOR LTC7138 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 400mA | 4V ~ 140V | Buck | - | Board(s) | LTC7138 |
|

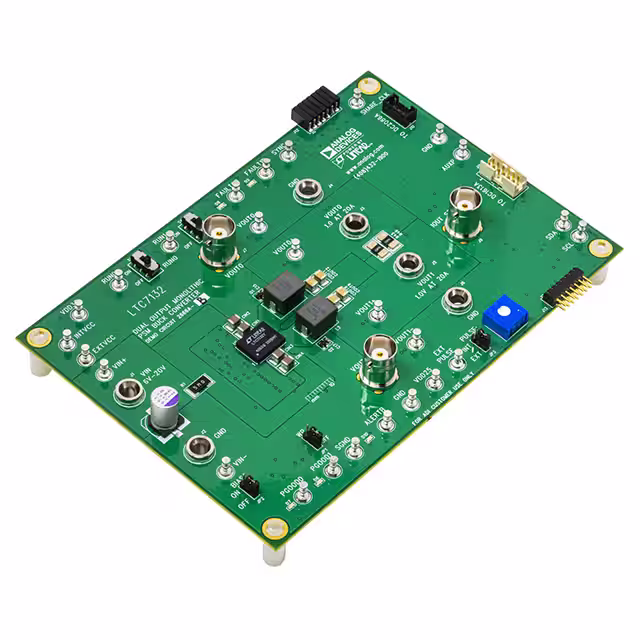

DC2666A-BEVAL BOARD FOR LTC7132 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 6V ~ 20V | Buck | 425kHz | Board(s) | LTC7132 |
|

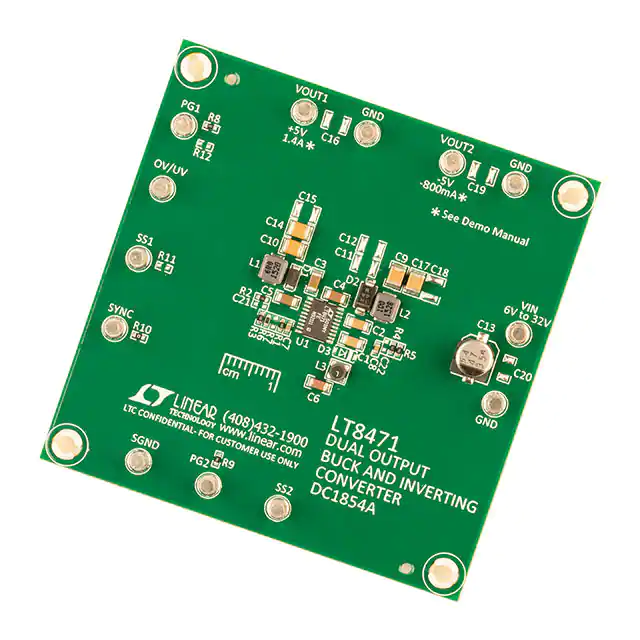

DC1854AEVAL BOARD FOR LT8471 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 2 Non-Isolated Outputs | - | ±5V | 1.4A, 800mA | 6V ~ 32V | Inverting | 450kHz | Board(s) | LT8471 |
