تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1228AEVAL BOARD FOR LT3573 |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 5V | 1A | 10V ~ 30V | Flyback | 238kHz | Board(s) | LT3573 |
|

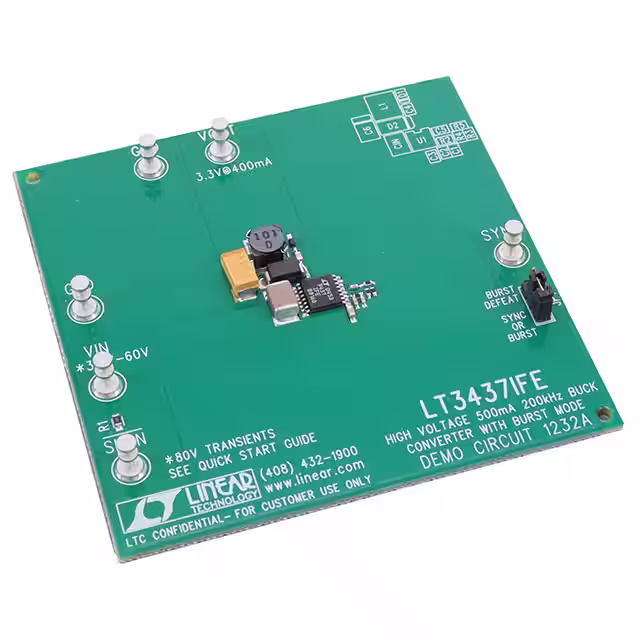

DC1232AEVAL BOARD FOR LT3437 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 400mA | 3.7V ~ 60V | Buck | 200kHz | Board(s) | LT3437 |
|

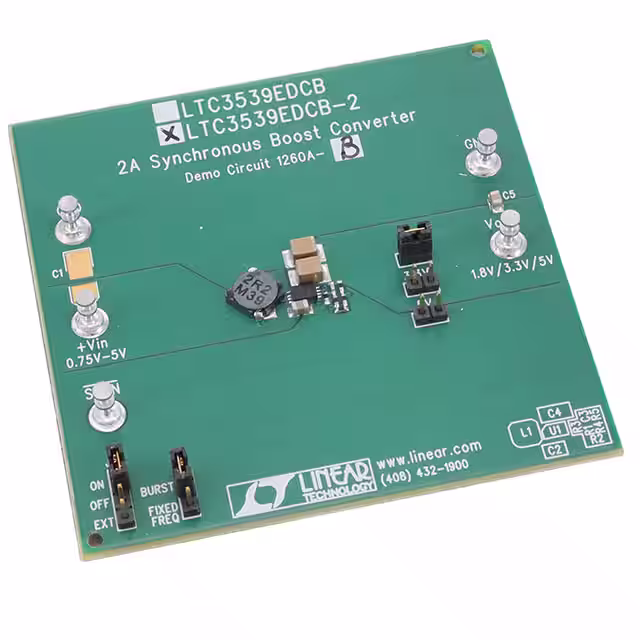

DC1260A-BEVAL BOARD FOR LTC3539EDCB2 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 5V | 2A | 0.7V ~ 5.5V | Boost | 2MHz | Board(s) | LTC3539EDCB-2 |
|
DC1429AEVAL BOARD FOR LTC3642 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V, 5V | 20mA | 4.5V ~ 45V | Buck | 350kHz | Board(s) | LTC3642 |
|

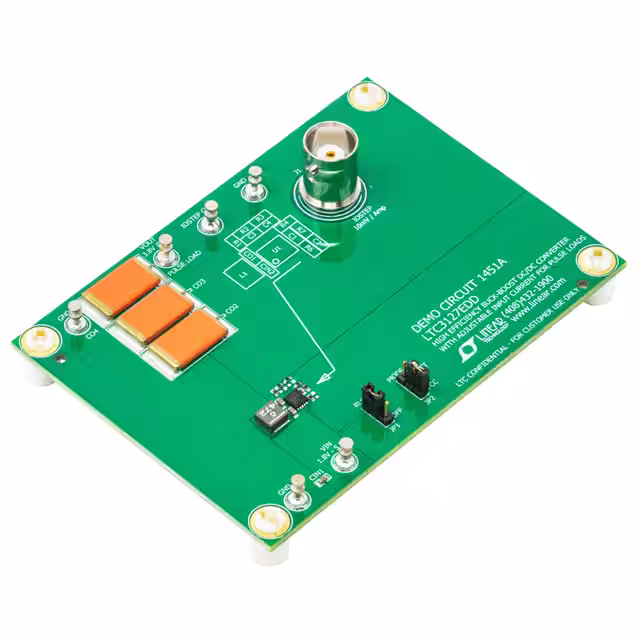

DC1451AEVAL BOARD FOR LTC3127 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.8V | 1A | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3127 |
|

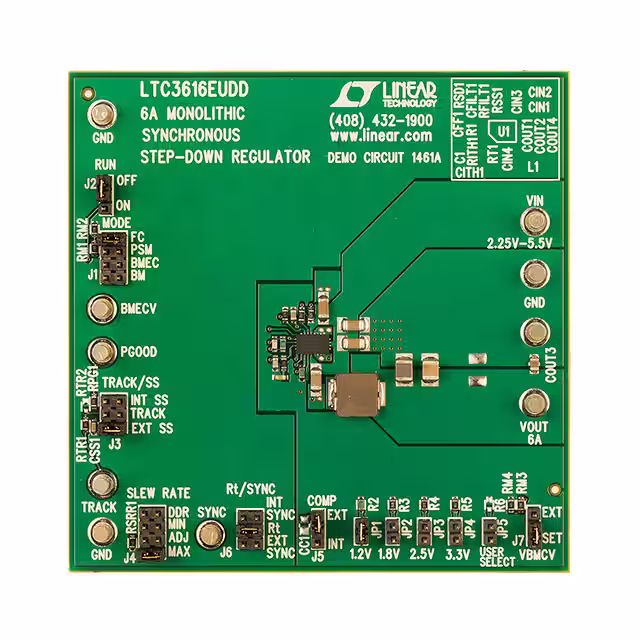

DC1461AEVAL BOARD FOR LTC3616 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V or 3.3V | 6A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3616 |
|

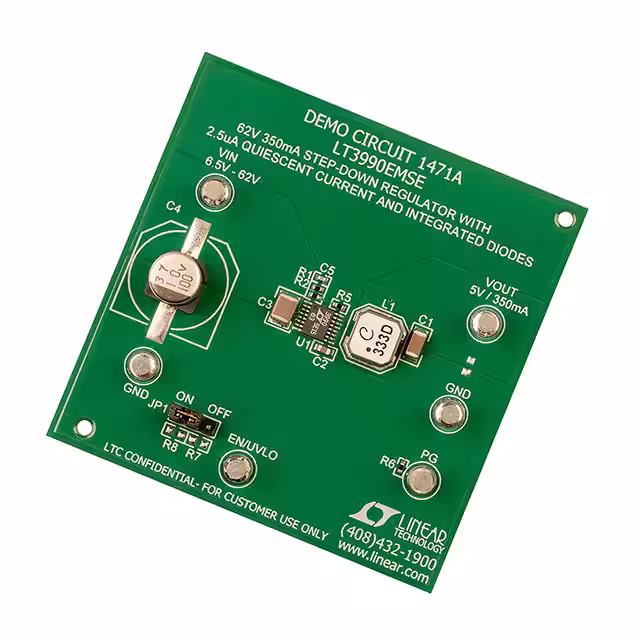

DC1471AEVAL BOARD FOR LT3990 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 350mA | 6.5V ~ 62V | Buck | 400kHz | Board(s) | LT3990 |
|
DC1499AEVAL BOARD FOR LTC3631 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 4.5V ~ 45V | Buck | 350kHz | Board(s) | LTC3631 |
|

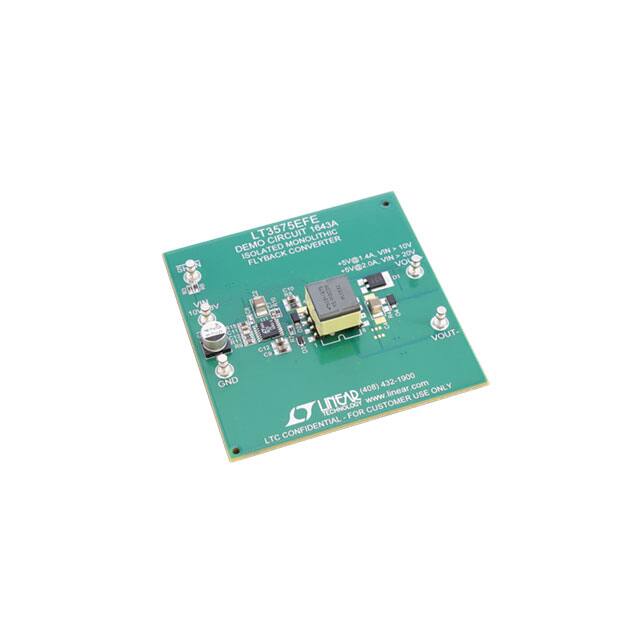

DC1643AEVAL BOARD FOR LT3575 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 2A | 10V ~ 28V | Flyback | 90kHz | Board(s) | LT3575 |
|
DC1667AEVAL BOARD FOR LTC3600 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.5A | 4.5V ~ 15V | Buck | 1MHz | Board(s) | LTC3600 |
|

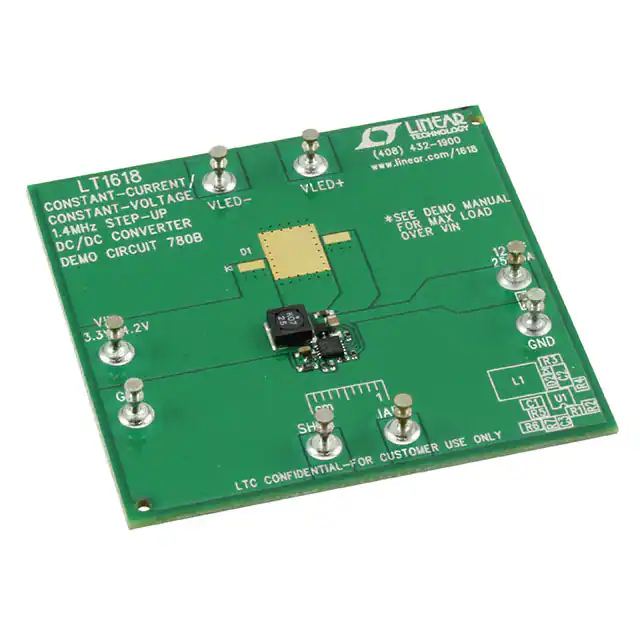

DC780BEVAL BOARD FOR LT1618 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 250mA | 3.3V ~ 4.2V | Boost | 1.4MHz | Board(s) | LT1618 |
|

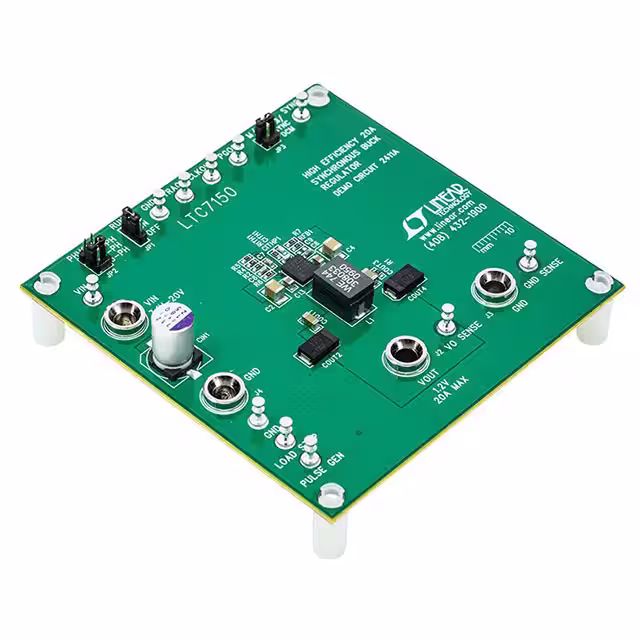

DC2411AEVAL BOARD FOR LTC7150SEY |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 3.1V ~ 20V | Buck | 400kHz | Board(s) | LTC7150SEY |
|

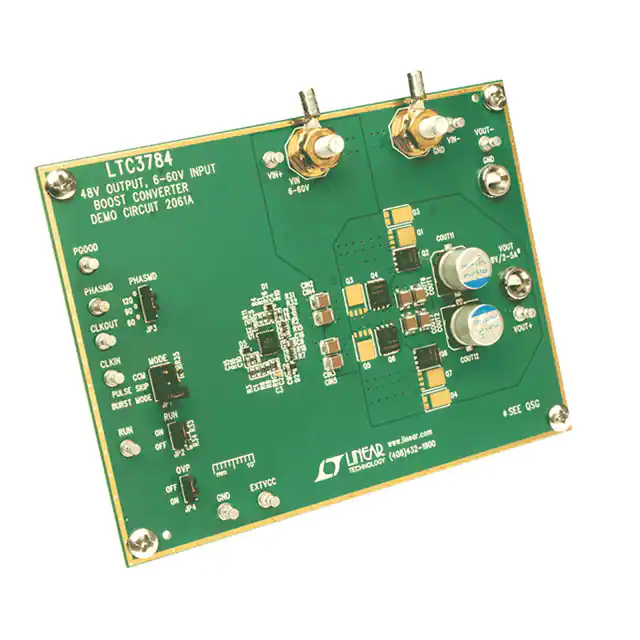

DC2061AEVAL BOARD FOR LTC3784 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 3A | 6V ~ 60V | Boost | 150kHz | Board(s) | LTC3784 |
|

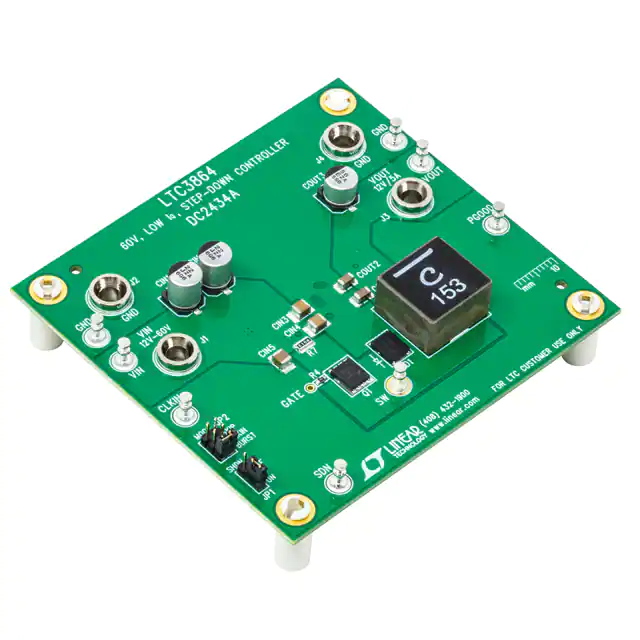

DC2434AEVAL BOARD FOR LTC3864 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 6V ~ 60V | Buck | 200kHz | Board(s) | LTC3864 |
|

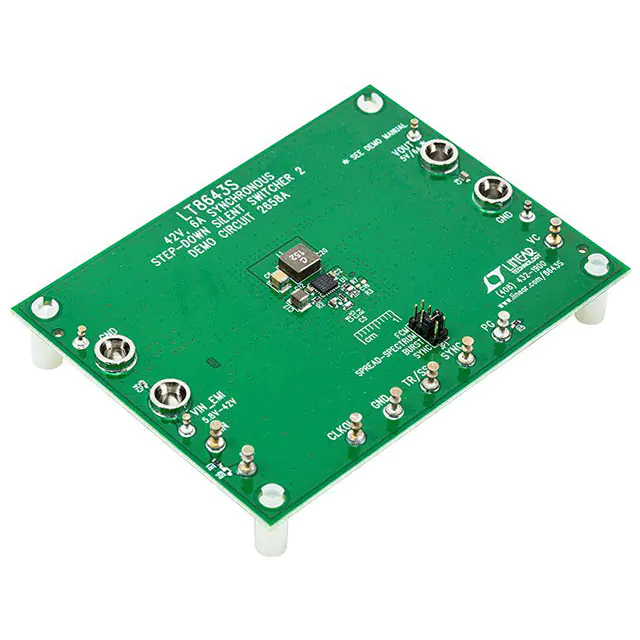

DC2658AEVAL BOARD FOR LT8643S |
1 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8643S |
|

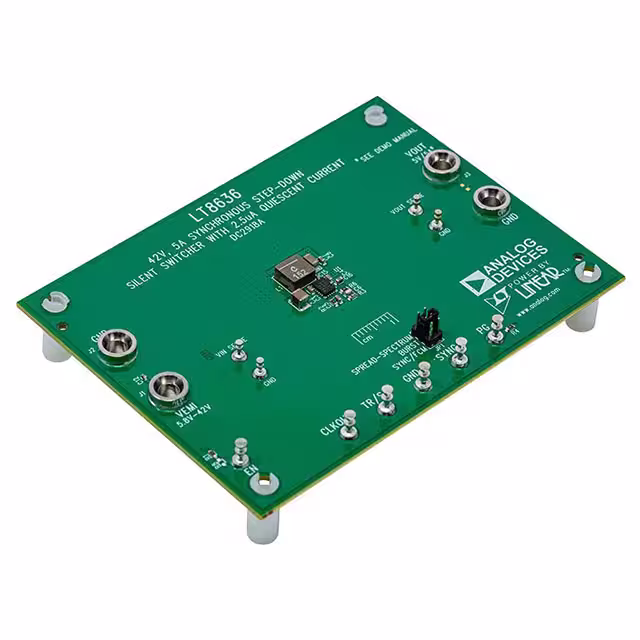

DC2918AEVAL BOARD FOR LT8636 |
1 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8636 |
|

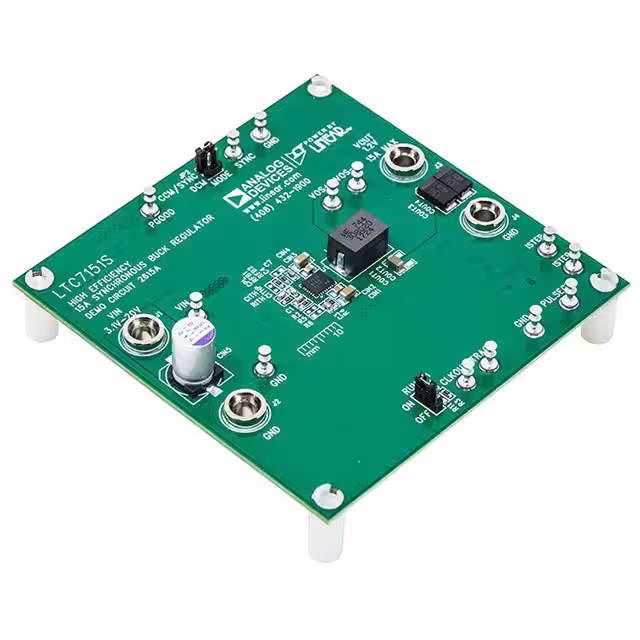

DC2615AEVAL BOARD FOR LTC7151S |
1 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 3.1V ~ 20V | Buck | 1MHz | Board(s) | LTC7151S |
|

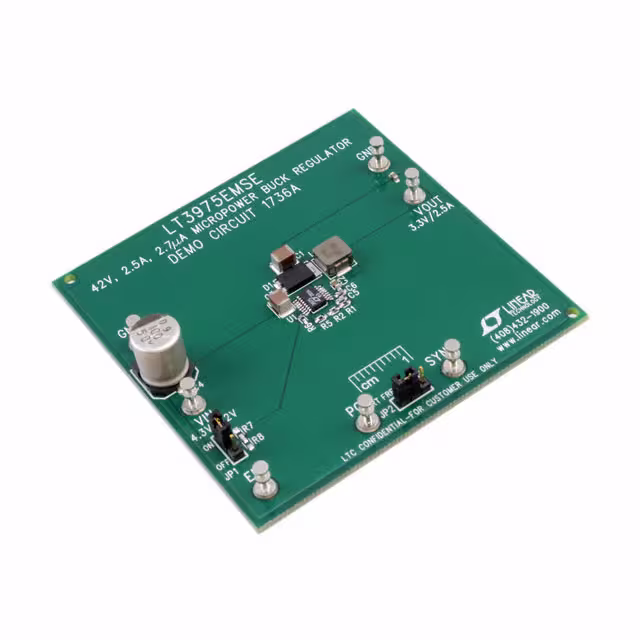

DC1736AEVAL BOARD FOR LT3975 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 4.3V ~ 42V | Buck | 600kHz | Board(s) | LT3975 |
|

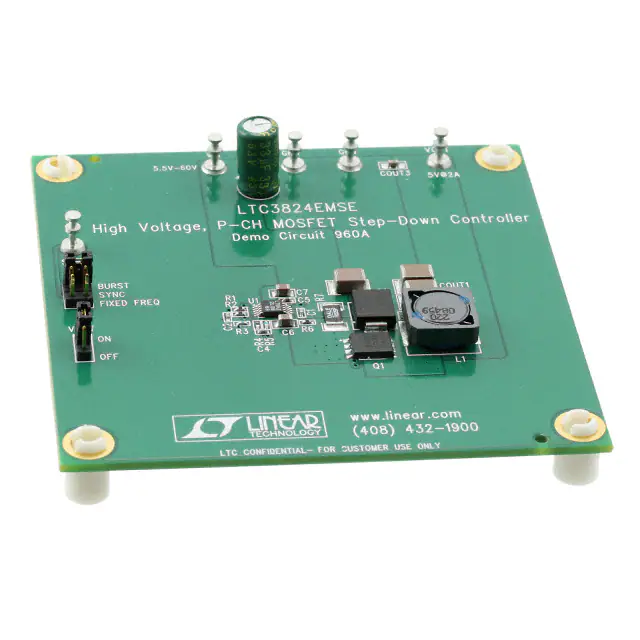

DC960AEVAL BOARD FOR LTC3824 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 60V | Buck | 200kHz | Board(s) | LTC3824 |
|

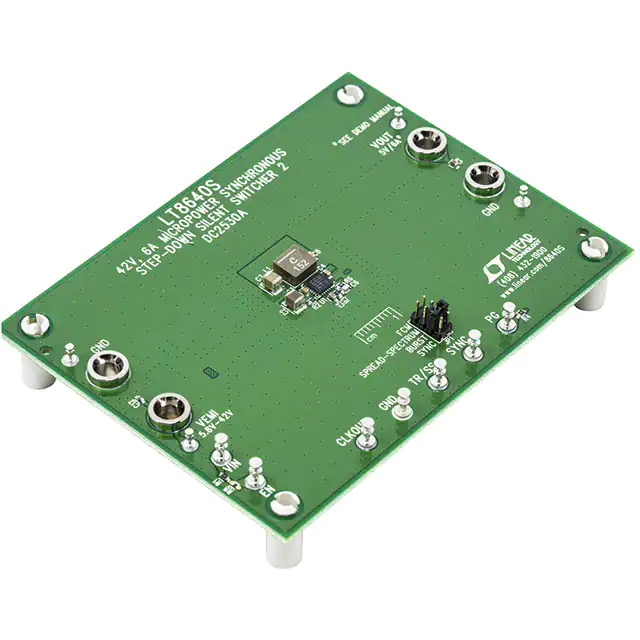

DC2530AEVAL BOARD FOR LT8640S |
0 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 6A | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8640S |
