تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

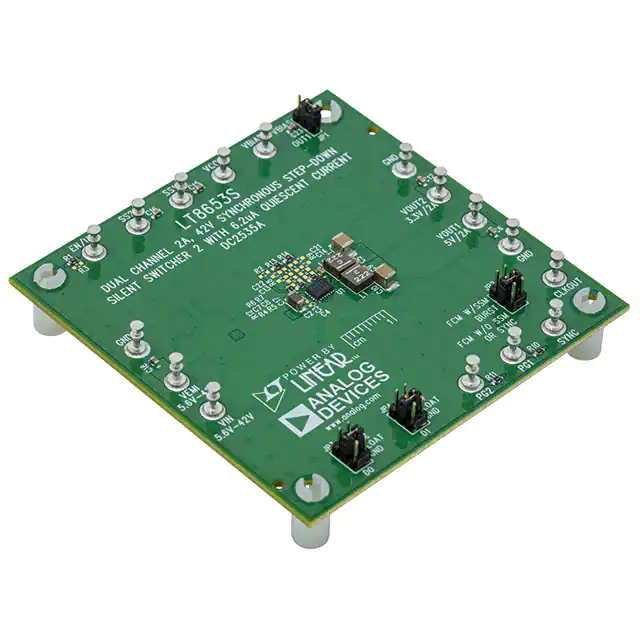

DC2535AEVAL BOARD FOR LT8653S |
0 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8653S |
|

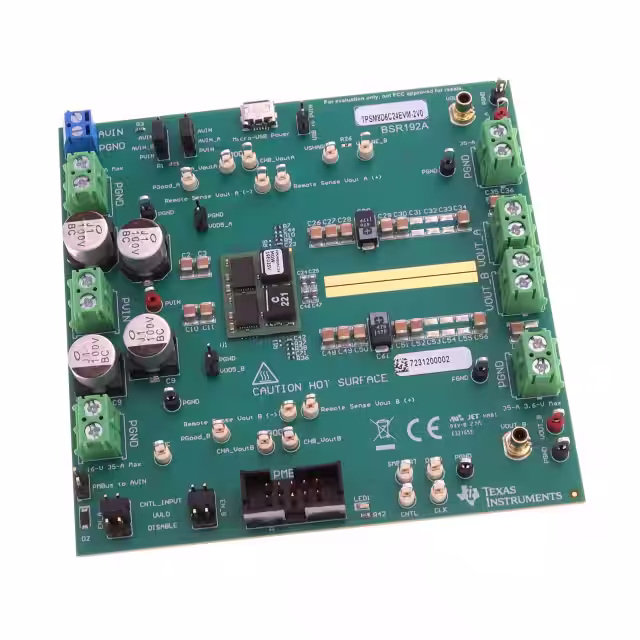

TPSM8D6C24EVM-2V0EVAL BOARD FOR TPSM8D6C24 |
6 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V, 1.2V | 35A, 35A | 5V ~ 16V | Buck | 550kHz | Board(s) | TPSM8D6C24 |
|

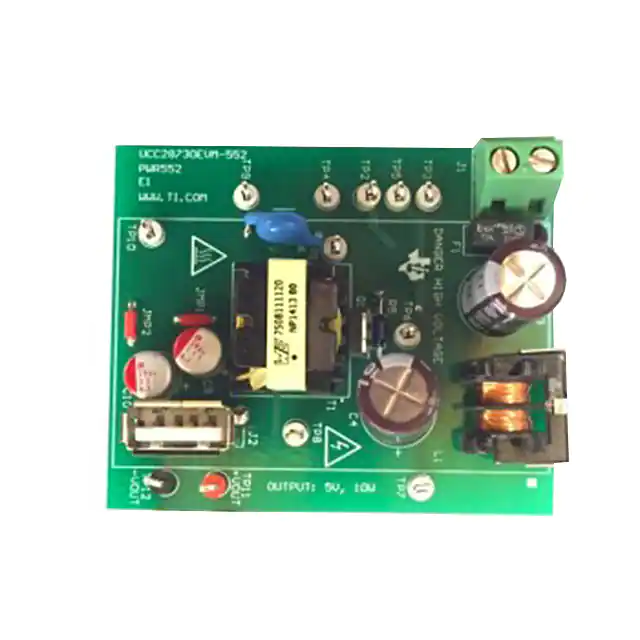

UCC28730EVM-552EVAL BOARD FOR UCC24650 UCC28730 |
5 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 10 W | 5V | 2A | 85 ~ 265 VAC | Flyback | 28kHz | Board(s) | UCC24650, UCC28730 |
|

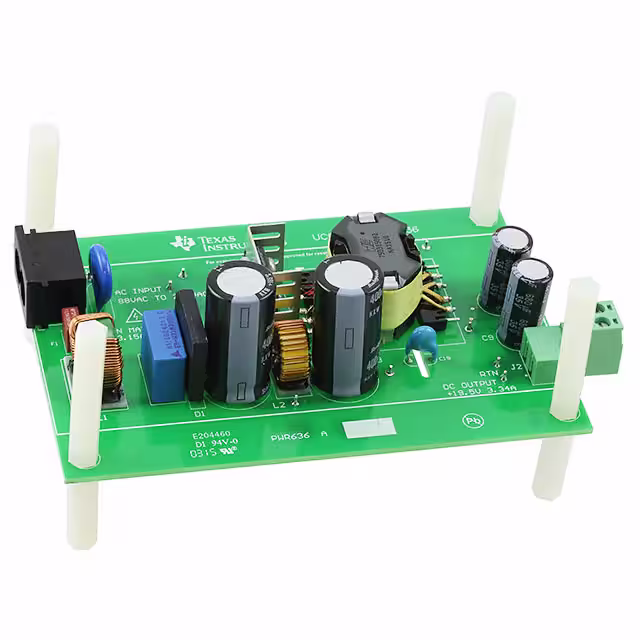

UCC24630EVM-636EVAL BOARD FOR UCC24630 |
5 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 65 W | 19.5V | 3.33A | 90 ~ 265 VAC | Flyback | - | Board(s) | UCC24630 |
|

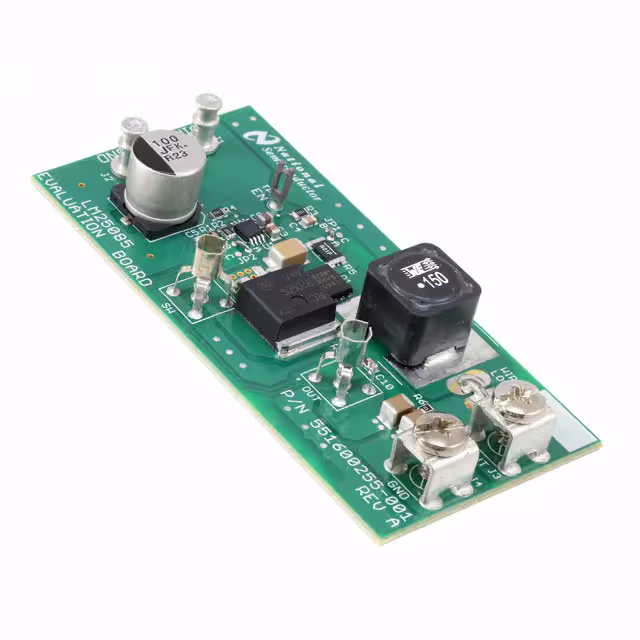

LM25085MYEVAL/NOPBEVAL BOARD FOR LM25085 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.5V ~ 42V | Buck | 300kHz | Board(s) | LM25085 |
|

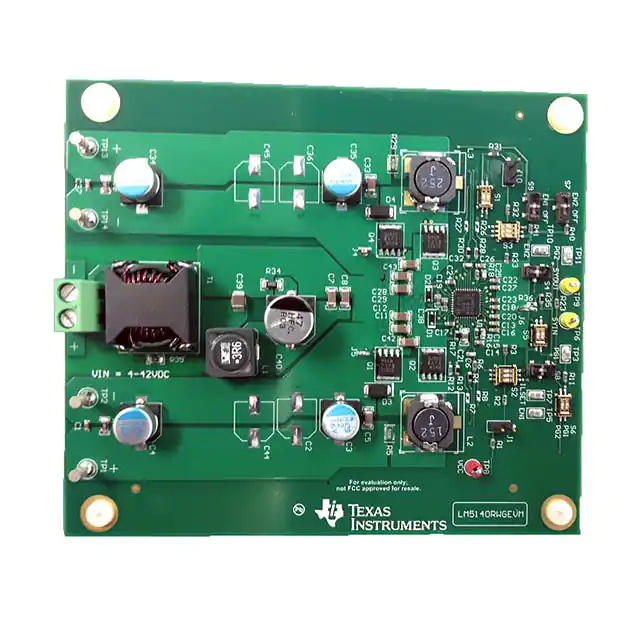

LM5140RWGEVMEVAL BOARD FOR LM5140Q1 |
4 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 6A, 5A | 3.8V ~ 42V | Buck | 2.2MHz | Board(s) | LM5140-Q1 |
|
UCC28610EVM-474EVAL BOARD FOR UCC28610 |
3 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 25 W | 12V | 2.1A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28610 |
|
UCC28630EVM-572EVAL BOARD FOR UCC28630 |
3 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19.5V | 3.34A | 90 ~ 265 VAC | Flyback | - | Board(s) | UCC28630 |
|

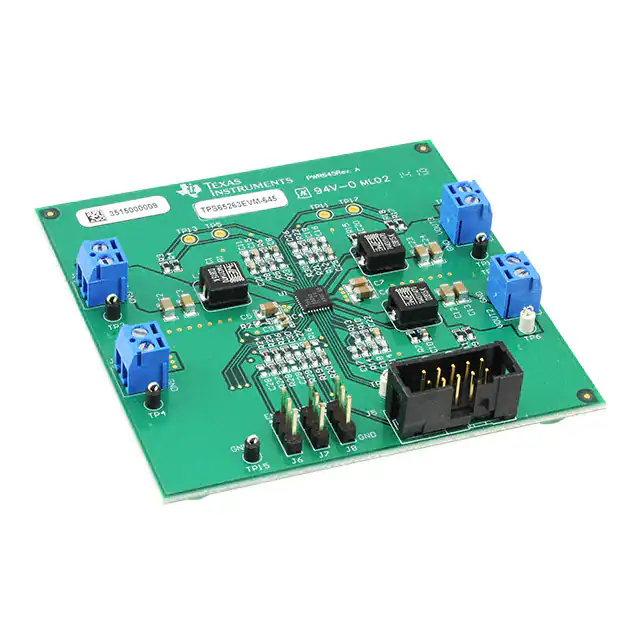

TPS65263EVM-645EVAL BOARD FOR TPS65263 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V | 3A, 2A, 2A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | TPS65263 |
|

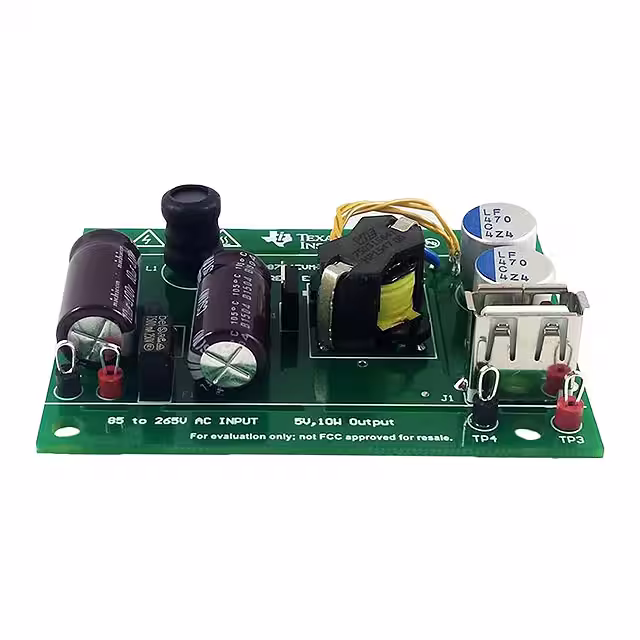

UCC28704EVM-724EVAL BOARD FOR UCC28704 |
3 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28704 |
|

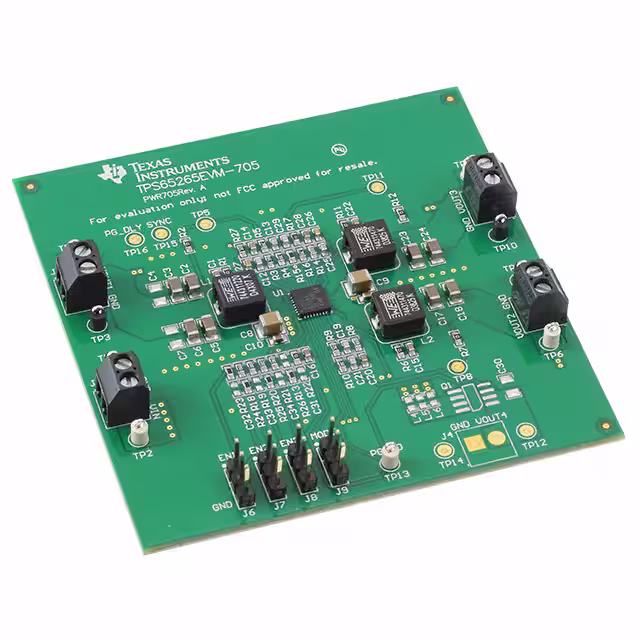

TPS65265EVM-705EVAL BOARD FOR TPS65265 |
3 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V | 5A, 3A, 2A | 4.5V ~ 17V | Buck | - | Board(s) | TPS65265 |
|

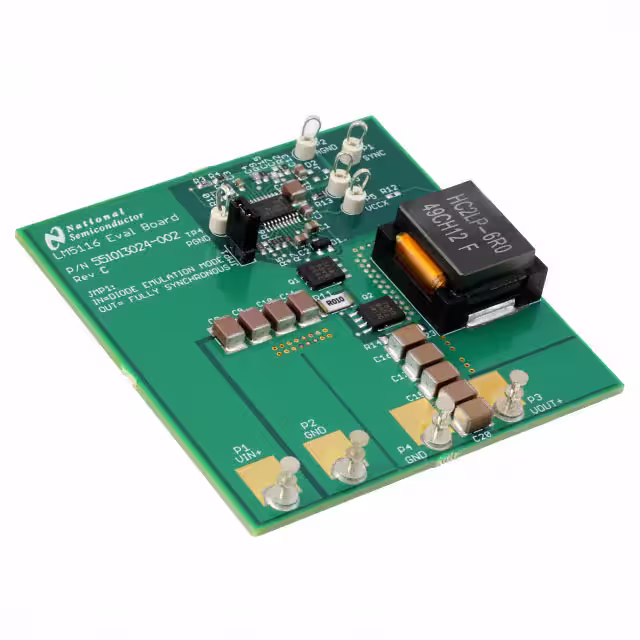

LM5116EVAL/NOPBEVAL BOARD FOR LM5116 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 7V ~ 60V | Buck | 250kHz | Board(s) | LM5116 |
|

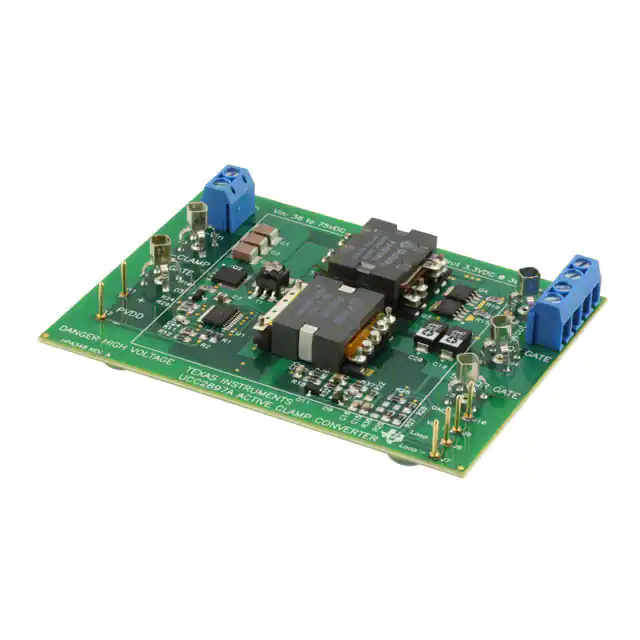

UCC2897AEVMEVAL BOARD FOR UCC2897A |
2 |
|
برگه مشخصات |
TrueDrive™ | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 72V | Forward Converter | 250kHz | Board(s) | UCC2897A |
|
LM25116EVAL/NOPBEVAL BOARD FOR LM25116 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 7V ~ 42V | Buck | 250kHz | Board(s) | LM25116 |
|

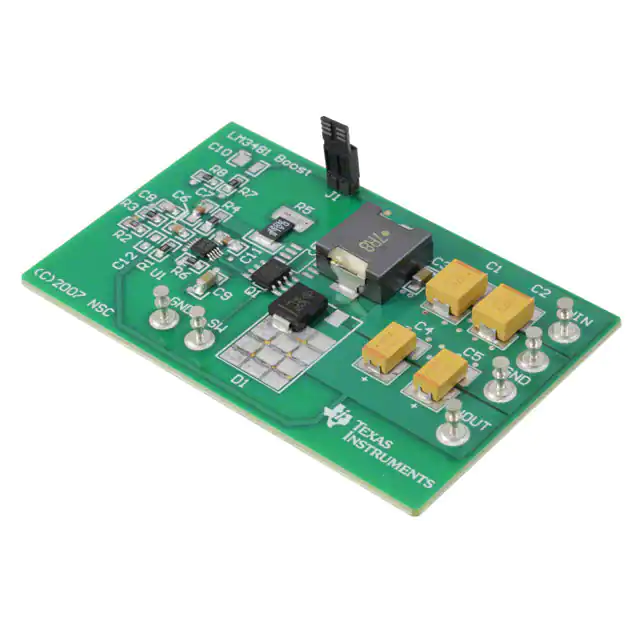

LM3481EVAL/NOPBEVAL BOARD FOR LM3481 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 3V ~ 11V | Boost | 300kHz | Board(s) | LM3481 |
|

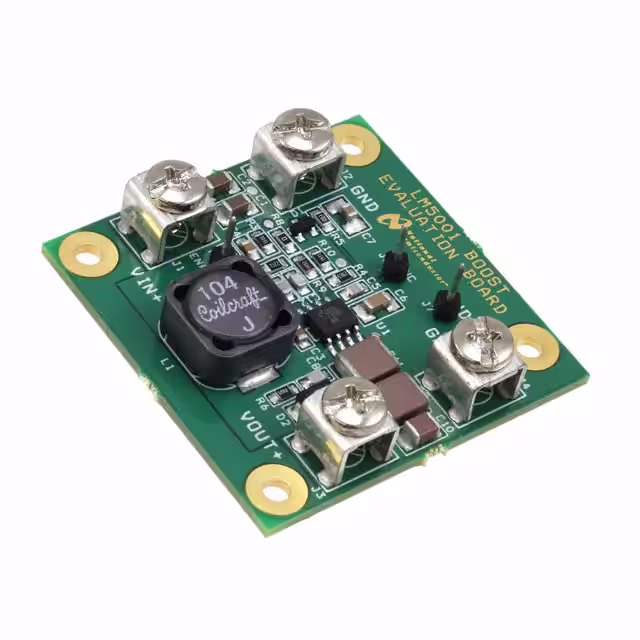

LM5001BSTEVAL/NOPBEVAL BOARD FOR LM5001 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 48V | 150mA | 16V ~ 36V | Boost | 240kHz | Board(s) | LM5001 |
|

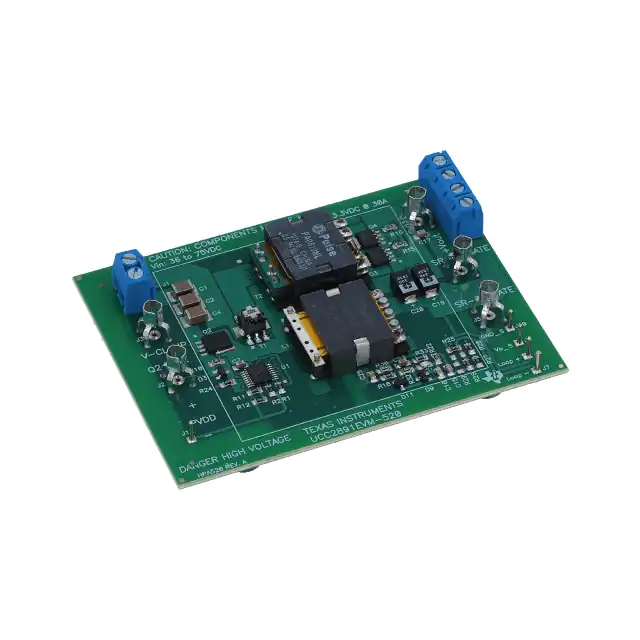

UCC2891EVM-520EVAL BOARD FOR UCC2891 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 30A | 36V ~ 75V | Forward Converter | 250kHz | Board(s) | UCC2891 |
|

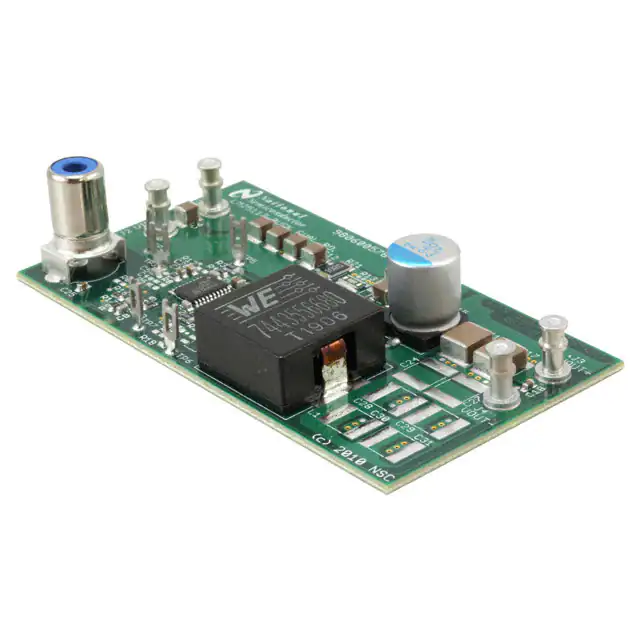

LM25117EVAL/NOPBEVAL BOARD FOR LM25117 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 9A | 6V ~ 36V | Buck | 230kHz | Board(s) | LM25117 |
|
LM25037EVAL/NOPBEVAL BOARD FOR LM25037 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 10A | 16V ~ 32V | Buck | 250kHz | Board(s) | LM25037 |
|

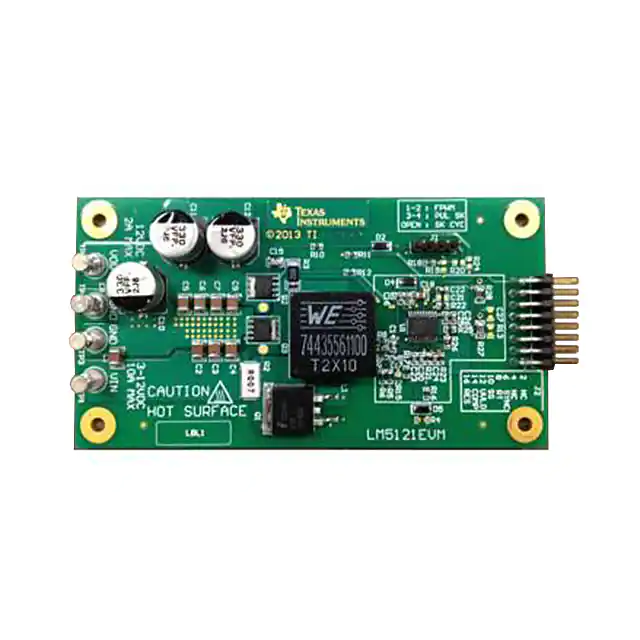

LM5121EVMEVAL BOARD FOR LM5121 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 3V ~ 12V | Boost | 250kHz | Board(s) | LM5121 |
