تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1053A-HEVAL BOARD FOR LTC3526LB2 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 2MHz | Board(s) | LTC3526LB-2 |
|
DC1053A-FEVAL BOARD FOR LTC3526LB |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3526LB |
|

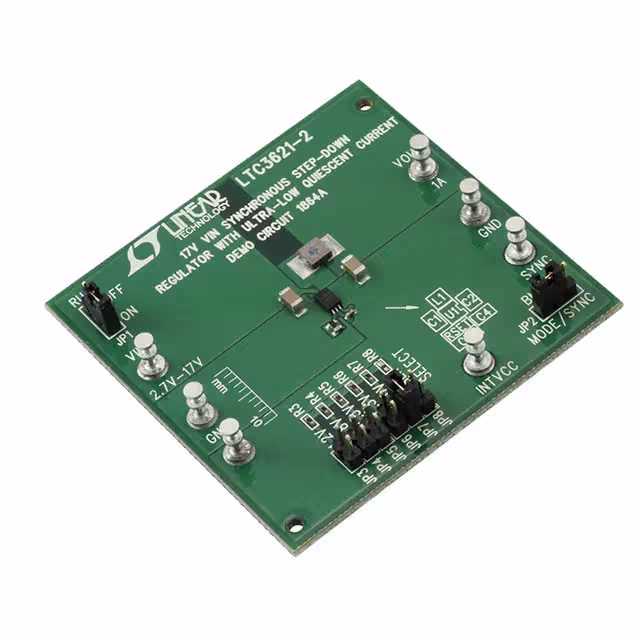

DC1864AEVAL BOARD FOR LTC36212 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.7V ~ 17V | Buck | 2.25MHz | Board(s) | LTC3621-2 |
|

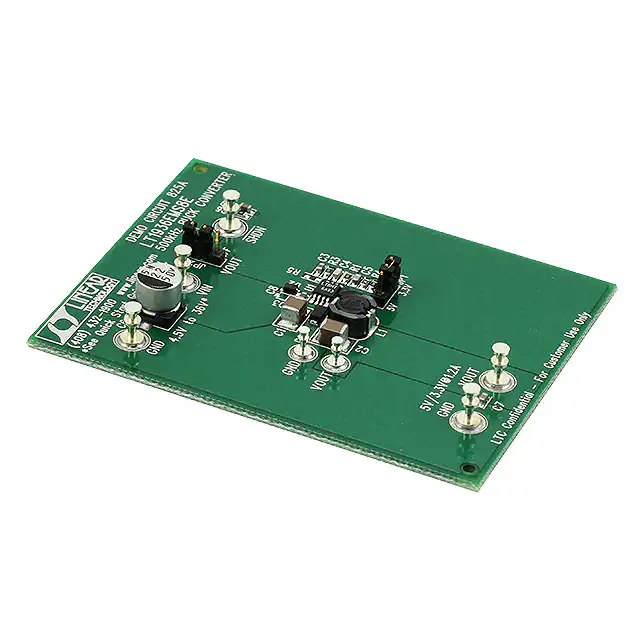

DC825AEVAL BOARD FOR LT1936 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LT1936 |
|

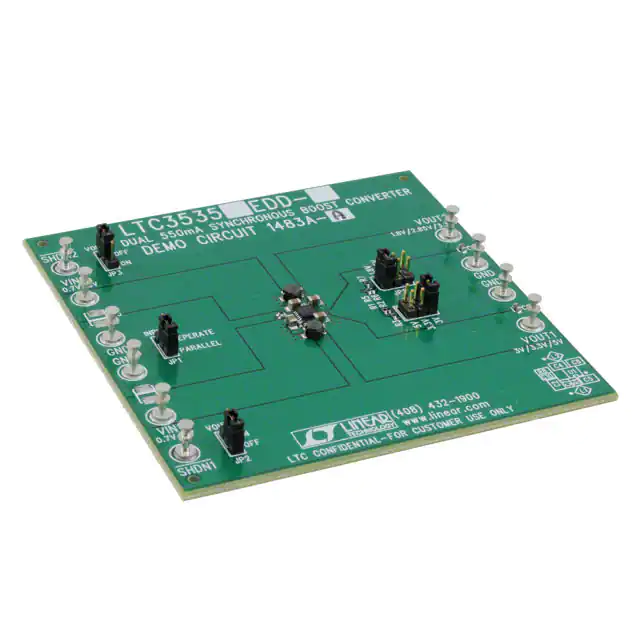

DC1483AEVAL BOARD FOR LTC3535 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 1.8V ~ 5V | 100mA, 100mA | 0.8V ~ 5V | Boost | 1MHz | Board(s) | LTC3535 |
|

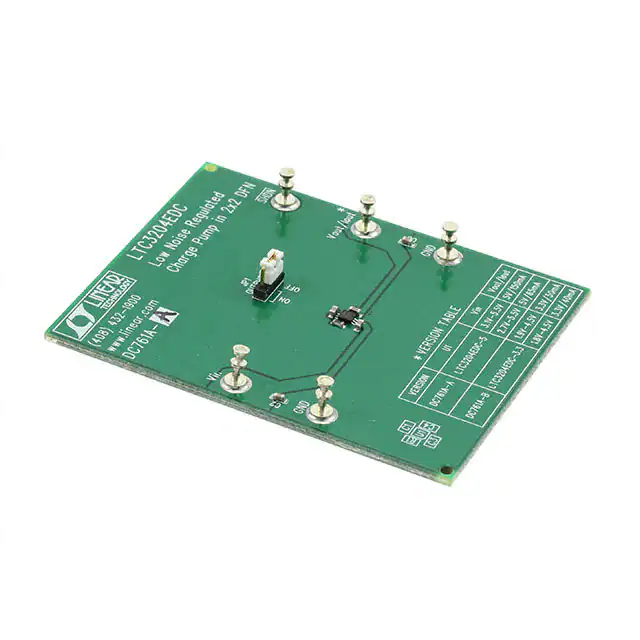

DC761A-AEVAL BOARD FOR LTC32045 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 150mA | 2.7V ~ 5.5V | Boost | 1.2MHz | Board(s) | LTC3204-5 |
|
DC1100AEVAL BOARD FOR LTC3803 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 18V ~ 72V | Flyback | 300kHz | Board(s) | LTC3803 |
|
DC1211A-BEVAL BOARD FOR LTC3528B |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | - | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3528B |
|

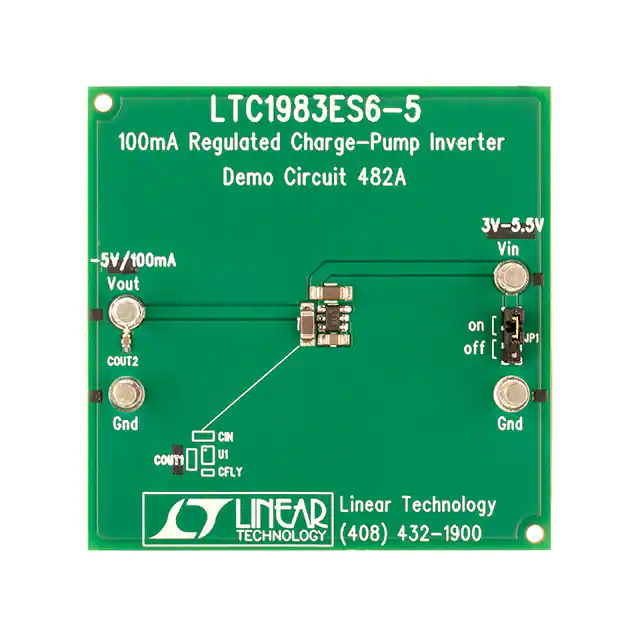

DC482AEVAL BOARD FOR LT19835 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 100mA | 3V ~ 6V | Inverting | - | Board(s) | LT1983-5 |
|

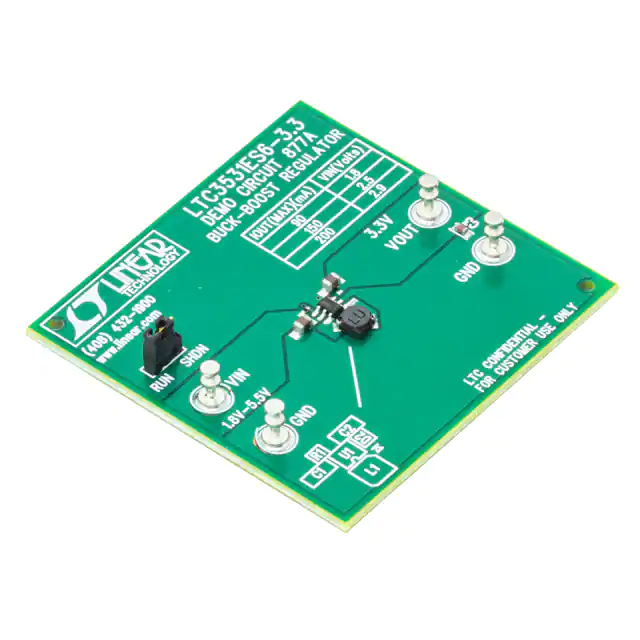

DC877AEVAL BOARD FOR LTC35313.3 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 200mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3531-3.3 |
|

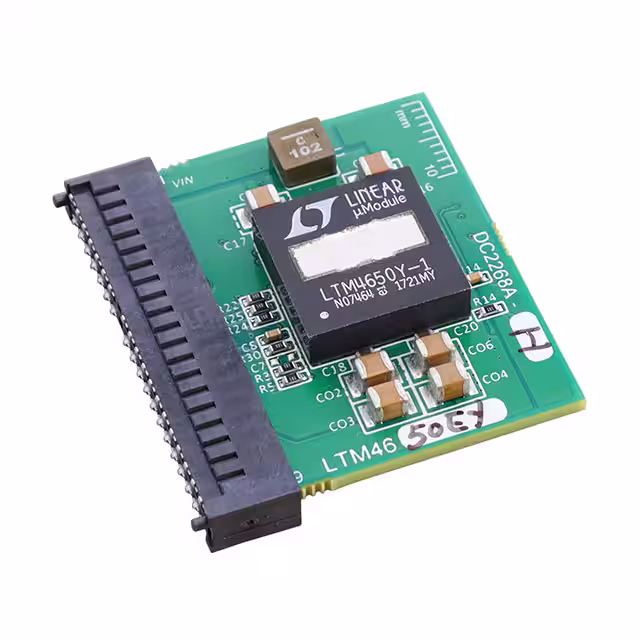

DC2268A-HEVAL BOARD FOR LTM46501 |
3 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
.jpg)
|
DC2268A-IEVAL BOARD FOR LTM4650A1 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 25A, 25A | 4.5V ~ 16V | Buck | 600kHz | Board(s) | LTM4650A-1 |
|
MAX1724EVKIT+EVAL BOARD FOR MAX1722 MAX1723 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 3.6V | 100mA | 0.91V ~ 3.3V | Boost | - | Board(s) | MAX1722, MAX1723, MAX1724 |
|
LM3262EVM/NOPBEVAL BOARD FOR LM3262 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.6V | 800mA | 2.5V ~ 5.5V | Buck | 6MHz | Board(s) | LM3262 |
|

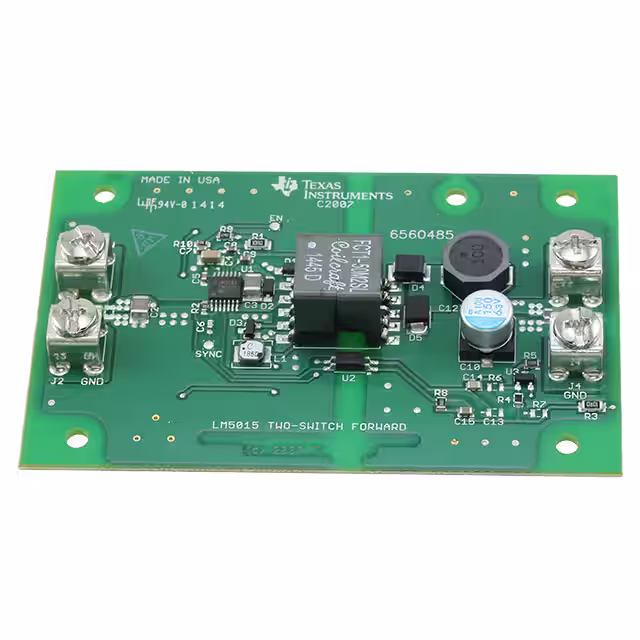

LM5015ISOEVAL/NOPBEVAL BOARD FOR LM5015 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 36V ~ 72V | Buck | 300kHz | Board(s) | LM5015 |
|

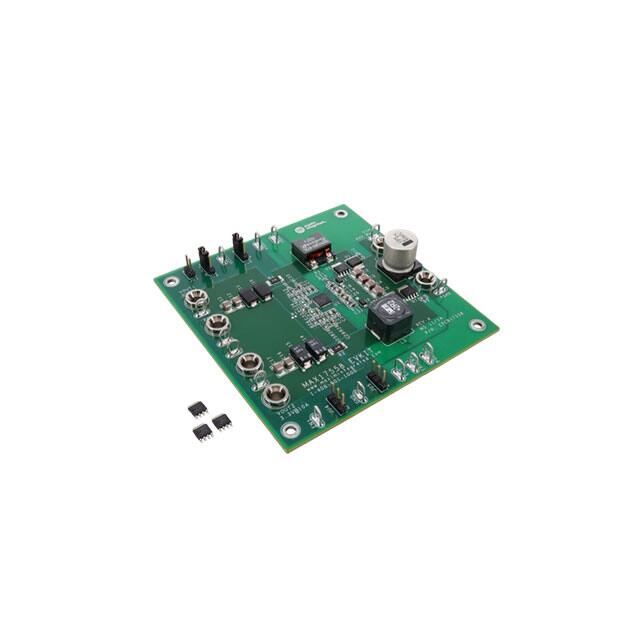

MAX17558EVKIT#EVAL BOARD FOR MAX17558 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 10A, 5A | 6V ~ 60V | Buck | 350kHz | Board(s) | MAX17558 |
|

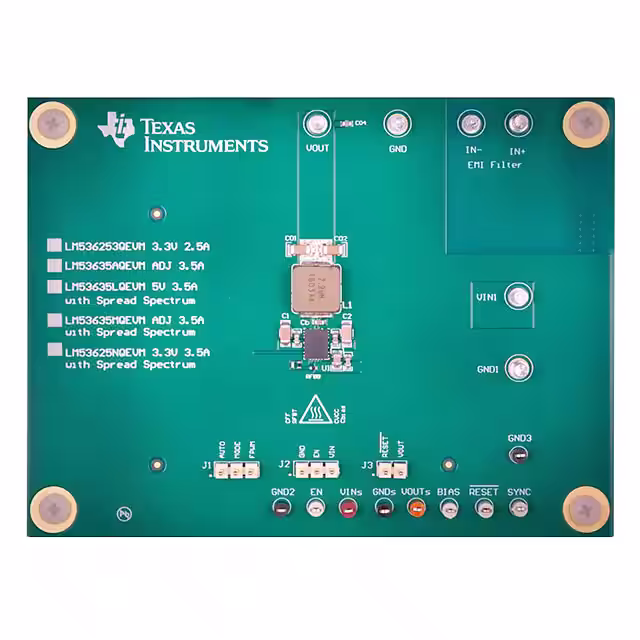

LM53635AQEVMEVAL BOARD FOR LM53635AQ1 |
8 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635A-Q1 |
|
TPSM82823AEVM-127EVAL BOARD FOR TPSM82823A |
6 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82823A |
|
LM53635MQEVMEVAL BOARD FOR LM53635MQ1 |
5 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635M-Q1 |
|
|
DC2867AEVAL BOARD FOR LT8604C |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 120mA | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8604C |
