هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

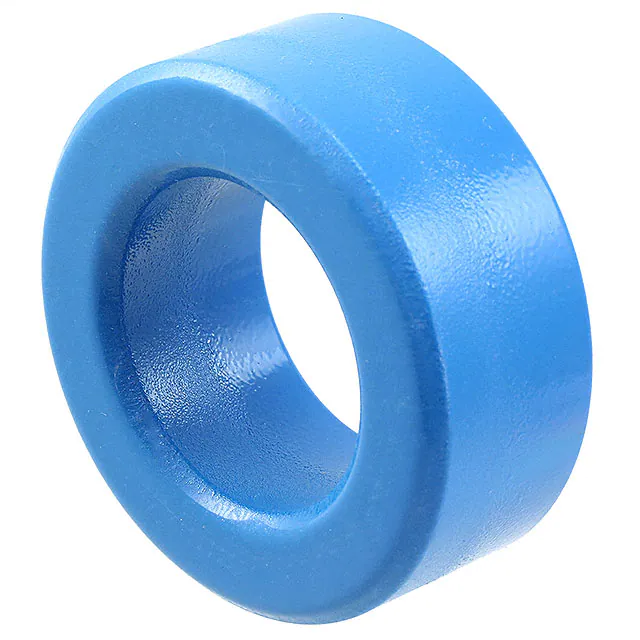

B64290L0699X065FERRITE CORE TOROID 12.6UH T65 |
40 |
|
برگه مشخصات |
TX63/38/25 | Box | Active | Toroid | - | T65 | 2.571" (65.30mm) | 12.6 µH | ±30% | Ungapped | - | 5000 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Epoxy | 1.047" (26.60mm) | - | - |
|
ZW46325TCFERRITE CORE TOROID 21.056UH W |
90 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | W | 2.555" (64.90mm) | 21.056 µH | ±30% | Ungapped | - | 10000 | - | 152.0 | 294.0 | - | 44667.0 | Epoxy | 1.022" (25.96mm) | - | - |
|
|
0077737A7FERRITE CORE TOROID 204NH KOOLMU |
62 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mµ | 2.917" (74.09mm) | 204 nH | ±8% | Ungapped | - | 60 | - | 184.0 | 497.0 | - | 91400.0 | Coated | 1.378" (35.00mm) | - | - |
|
|
0077735A7KOOL MU 026 PERM BLACK 740 SIZE |
36 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 2.917" (74.09mm) | 88 nH | ±8% | Ungapped | - | 26 | - | 184.0 | 497.0 | - | 91400.0 | Uncoated | 1.378" (35.00mm) | - | - |
|
|
0077102A7FERRITE CORE TOROID 48NH KOOL MU |
43 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 4.055" (103.00mm) | 48 nH | ±8% | Ungapped | - | 26 | - | 243.0 | 358.0 | - | 86900.0 | Coated | 0.705" (17.91mm) | - | - |
|
B64290A0084X830FERRITE CORE TOROID 5.5UH N30 |
46 |
|
برگه مشخصات |
T102/66/15 | Tray | Active | Toroid | R 102 x 65.8 x 15 | N30 | 4.016" (102.00mm) | 5.5 µH | ±25% | Ungapped | - | 4200 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Uncoated | 0.591" (15.00mm) | - | - |
|
|
5967003821FERRITE CORE TOROID 55NH 67 |
40 |
|
برگه مشخصات |
- | Box | Active | Toroid | - | 67 | 2.472" (62.80mm) | 55 nH | -25%, +35% | Ungapped | - | 40 | 0.92 | 145.0 | 158.0 | - | 22800.0 | Plastic | 0.539" (13.70mm) | - | - |
|
|
LRF624520MKDXCOMMON MODE COILS |
16 |
|
برگه مشخصات |
FW | Bulk | Active | Toroid | - | Nanocrystalline | 2.598" (66.00mm) | 32.3 µH | - | Ungapped | - | - | - | 168.1 | 136.0 | - | - | Uncoated | 0.945" (24.00mm) | - | - |
|
|
00K114LE060KOOL MU 114L E-CORE |
28 |
|
برگه مشخصات |
- | Bulk | Active | E | - | Kool Mu | - | 445 nH | ±8% | Ungapped | - | 60 | - | 215.0 | 1220.0 | - | 262000.0 | Uncoated | 1.818" (46.18mm) | 4.500" (114.30mm) | 1.376" (34.94mm) |
|
|
0079617A7FERRITE CORE TOROID 189NH KOOLMU |
63 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu MAX | 2.440" (61.98mm) | 189 nH | ±8% | Ungapped | - | 60 | - | 144.0 | 360.0 | - | 51800.0 | Coated | 0.984" (25.00mm) | - | - |
|
PC95SP100X100X5FERRITE CORE SP PCS95 1PCS |
22 |
|
برگه مشخصات |
SP | Tray | Active | SP | SP 100 x 100 x 5 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.197" (5.00mm) | 3.937" (100.00mm) | 3.937" (100.00mm) |
|

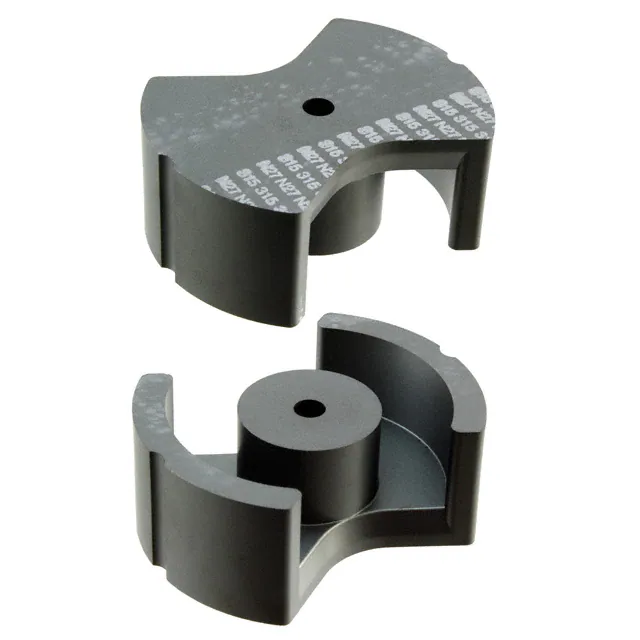

B65684A0315A027FERRITE CORE PM 315NH N27 2PCS |
79 |
|
برگه مشخصات |
PM62/49 | Box | Active | PM | PM 62 x 49 | N27 | 2.441" (62.00mm) | 315 nH | ±3% | Gapped | 48.0 | 2000 | 0.191 | 109.0 | 570.0 | 470.0 | 62000.0 | Uncoated | 0.965" (24.50mm) | - | - |
|

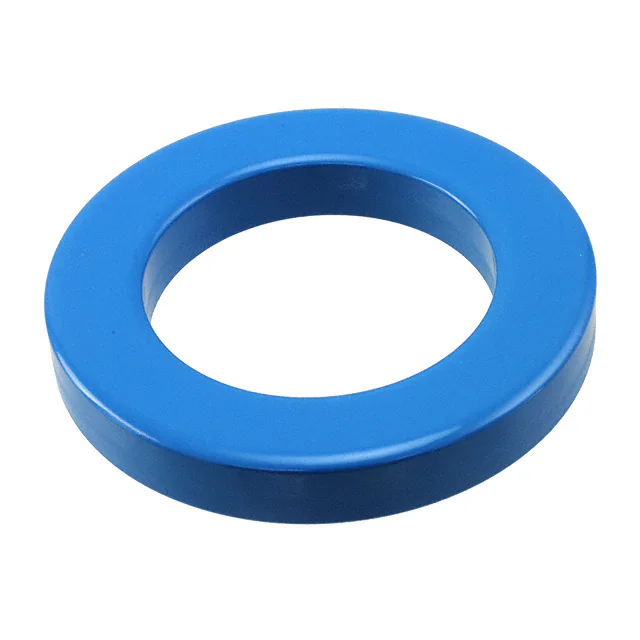

B64290L0084X087FERRITE CORE TOROID 2.88UH N87 |
37 |
|
برگه مشخصات |
TX102/66/15 | Box | Active | Toroid | - | N87 | 4.126" (104.80mm) | 2.88 µH | ±25% | Ungapped | - | 2200 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Epoxy | 0.650" (16.50mm) | - | - |
|
U100/57/25-3C94FERRITE CORE U 3C94 |
43 |
|
برگه مشخصات |
- | Bulk | Active | U | U 100 x 57 x 25 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.248" (57.10mm) | 4.000" (101.60mm) | 1.000" (25.40mm) |
|

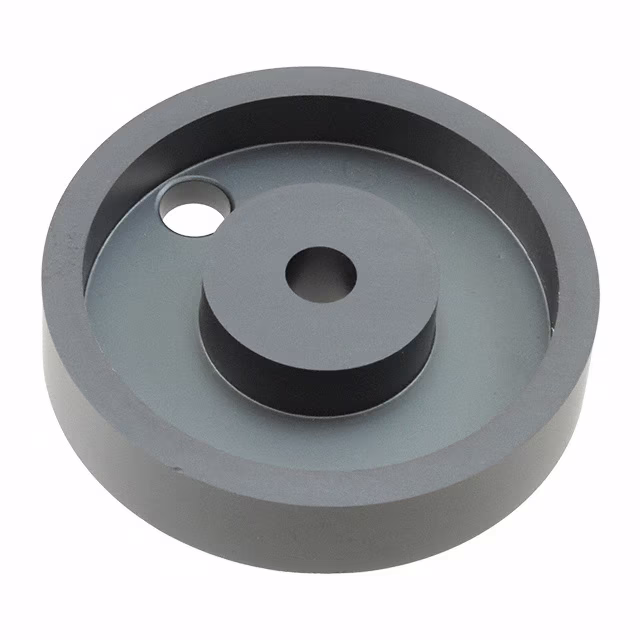

B65945A0000X022FERRITE CORE P N22 |
60 |
|
برگه مشخصات |
PCH70/14.5 | Box | Active | P (Pot Core) | P Core Half 70 x 14.5 | N22 | 2.756" (70.00mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.571" (14.50mm) | - | - |
|
B66894G0000X197FERRITE CORE E N97 |
7 |
|
برگه مشخصات |
E100/60/28 | Bulk | Active | E | E 100/60/28 | N97 | - | - | -20%, +30% | Ungapped | 2020.0 | - | 0.373 | 274.0 | 735.0 | 690.0 | 201390.0 | Uncoated | 2.339" (59.40mm) | 3.949" (100.30mm) | 1.083" (27.50mm) |
|
E100/60/28-3C94FERRITE CORE E 3C94 |
78 |
|
برگه مشخصات |
- | Bulk | Active | E | E 100 x 60 x 28 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.339" (59.40mm) | 3.949" (100.30mm) | 1.083" (27.50mm) |
|
|
0070617A7KOOL MU ULTRA 060 PERM BLACK |
65 |
|
برگه مشخصات |
- | Tray | Active | Toroid | - | Kool Mµ | 2.440" (61.98mm) | 189 nH | ±8% | Ungapped | - | 60 | - | 144.0 | 360.0 | - | 51800.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
B65982Q0100K097FERRITE CORE PQ 100NH N97 |
88 |
|
برگه مشخصات |
PQ65/60 | Tray | Active | PQ | PQ 65 x 60 | N97 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.228 | 137.0 | 171.0 | 531.0 | 81950.0 | Uncoated | 1.181" (30.00mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
E100/60/28-3C92FERRITE CORE E 3C92 |
90 |
|
برگه مشخصات |
- | Bulk | Active | E | E 100 x 60 x 28 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.339" (59.40mm) | 3.949" (100.30mm) | 1.083" (27.50mm) |
