خانه > محصولات > مغناطیسی - ترانسفورماتور، اجزای سلف > هسته های فریت

هسته های فریت

شماره قطعه تولیدکننده	موجودی	قیمت	تعداد	برگه مشخصات	سری	بسته بندی	وضعیت محصول	نوع هسته	بسته دستگاه تامین کننده	مواد	قطر	ضریب القایی (Al)	تحمل	شکاف	نفوذپذیری موثر (µe)	نفوذپذیری اولیه (µi)	ضریب هسته (ΣI/A) mm-1	طول موثر (le) میلی متر	منطقه موثر (Ae) mm²	حداقل مقطع هسته (Amin) mm²	حجم مغناطیسی موثر (Ve) mm³	پایان	ارتفاع	طول	عرض
PLT32/20/3.2/R-3C95 FERRITE CORE PLT 3C95 Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	PLT	PLT 32 x 20 x 3.2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125" (3.18mm)	1.250" (31.75mm)	0.800" (20.32mm)
EQ25/LP-3C95 FERRITE CORE EQ 3C95 Ferroxcube	9	-	RFQ	برگه مشخصات	-	Bulk	Active	EQ	EQ 25 x LP	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.220" (5.60mm)	0.984" (25.00mm)	0.709" (18.00mm)
B66361G0000X197 FERRITE CORE ETD N97 EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	ETD34/17/11	Bulk	Active	ETD	ETD 34/17/11	N97	-	-	-20%, +30%	Ungapped	1710.0	-	0.81	78.6	97.1	91.6	7630.0	Uncoated	0.689" (17.50mm)	1.339" (34.00mm)	0.437" (11.10mm)
5943001201 FERRITE CORE TOROID 43 Fair-Rite Products Corp.	0	-	RFQ	برگه مشخصات	-	Bulk	Active	Toroid	-	43	1.142" (29.00mm)	-	±20%	Ungapped	-	800	-	73.0	68.0	-	5000.0	Uncoated	0.545" (13.84mm)	-	-
B65531D0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	P11/7	Box	Active	P (Pot Core)	P 11 x 7	N48	0.445" (11.30mm)	250 nH	±3%	Gapped	199.0	-	1.0	15.9	15.9	-	253.0	Uncoated	0.130" (3.30mm)	-	-
B66363G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	ETD39/20/13	Box	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787" (20.00mm)	1.531" (38.90mm)	0.504" (12.80mm)

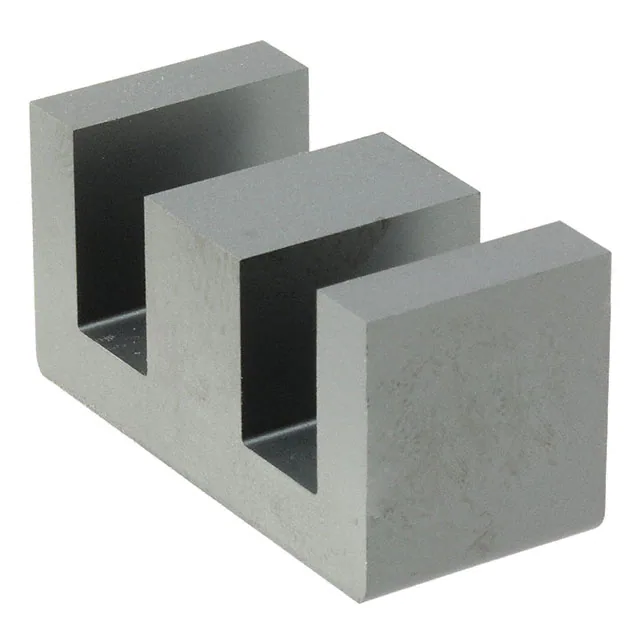

B66329G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	E42/21/20	Box	Active	E	E 42 x 21 x 20	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835" (21.20mm)	1.654" (42.00mm)	0.787" (20.00mm)
E38/8/25-3C95 FERRITE CORE E 3C95 Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	E	E 38 x 8 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325" (8.26mm)	1.500" (38.10mm)	1.000" (25.40mm)
C055120A2 FERRITE CORE TOROID 72NH MPP Magnetics, a division of Spang & Co.	0	-	RFQ	برگه مشخصات	-	Bulk	Active	Toroid	-	MPP	0.653" (16.59mm)	72 nH	±8%	Ungapped	-	125	-	41.2	19.2	-	791.0	Coated	0.250" (6.35mm)	-	-

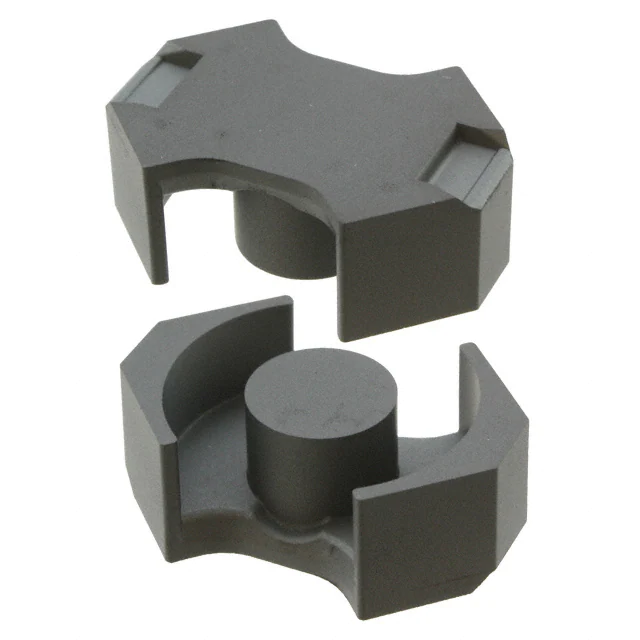

B65811J0000R049 FERRITE CORE RM 2.2UH N49 2PCS EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	RM8	Box	Active	RM	RM 8	N49	-	2.2 µH	-20%, +30%	Ungapped	1040.0	1500	0.59	38.0	64.0	55.0	2430.0	Uncoated	0.324" (8.25mm)	0.913" (23.20mm)	0.433" (11.00mm)
B64290L0616X830 FERRITE CORE TOROID 9.16UH N30 EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	TX25.3/14.8/20	Box	Active	Toroid	-	N30	1.047" (26.60mm)	9.16 µH	±25%	Ungapped	-	4300	0.59	60.07	102.5	-	6157.0	Epoxy	0.839" (21.30mm)	-	-
B65651D0000R048 FERRITE CORE P 2.8UH N48 2PCS EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	P18/11	Box	Active	P (Pot Core)	P 18 x 11	N48	0.724" (18.40mm)	2.8 µH	-20%, +30%	Ungapped	1340.0	-	0.6	25.9	43.0	-	1114.0	Uncoated	0.209" (5.30mm)	-	-
B66365G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	ETD44/22/15	Box	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886" (22.50mm)	1.724" (43.80mm)	0.598" (15.20mm)
PQ32/20-3C95 FERRITE CORE PQ 3C95 2PC SET Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	PQ	PQ 32 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.811" (20.60mm)	1.299" (33.00mm)	0.866" (22.00mm)

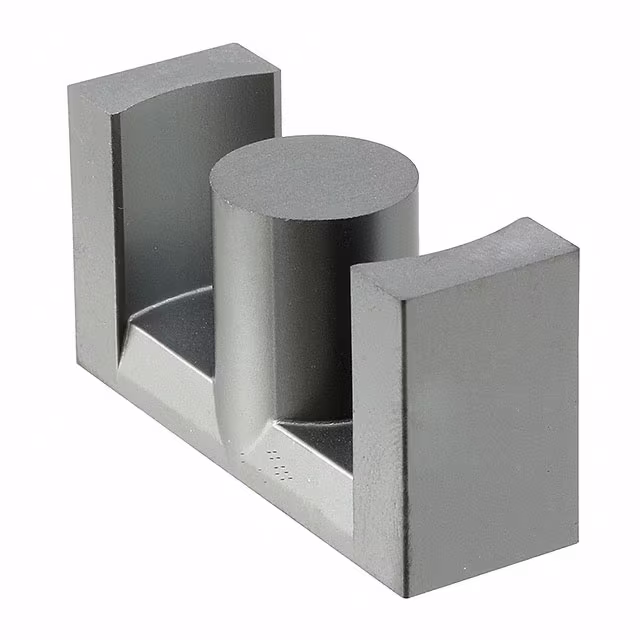

B66367G2000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	ETD49/25/16	Box	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980" (24.90mm)	1.909" (48.50mm)	0.657" (16.70mm)
B65877A0000R097 FERRITE CORE PQ 4.65UH N97 2PCS EPCOS - TDK Electronics	18	-	RFQ	برگه مشخصات	PQ26/25	Box	Active	PQ	PQ 26 x 25	N97	-	4.65 µH	-20%, +30%	Ungapped	1620.0	2300	0.44	53.6	122.0	108.7	6530.0	Uncoated	0.487" (12.38mm)	1.043" (26.50mm)	0.748" (19.00mm)
B66344G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	8	-	RFQ	برگه مشخصات	E55/28/25	Box	Active	E	E 55 x 28 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094" (27.80mm)	2.165" (55.00mm)	0.984" (25.00mm)
PQ40/40-3F36 FERRITE CORE PQ 3F36 2PC SET Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	PQ	PQ 40 x 40	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.567" (39.80mm)	1.634" (41.50mm)	1.102" (28.00mm)
PQ40/30-3C95 FERRITE CORE PQ 3C95 2PC SET Ferroxcube	22	-	RFQ	برگه مشخصات	-	Bulk	Active	PQ	PQ 40 x 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181" (30.00mm)	1.634" (41.50mm)	1.102" (28.00mm)
ETD59/31/22-3C97 FERRITE CORE ETD 3C97 Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	ETD	ETD 59 x 31 x 22	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220" (31.00mm)	2.354" (59.80mm)	0.852" (21.65mm)
