خانه > محصولات > مغناطیسی - ترانسفورماتور، اجزای سلف > هسته های فریت

هسته های فریت

شماره قطعه تولیدکننده	موجودی	قیمت	تعداد	برگه مشخصات	سری	بسته بندی	وضعیت محصول	نوع هسته	بسته دستگاه تامین کننده	مواد	قطر	ضریب القایی (Al)	تحمل	شکاف	نفوذپذیری موثر (µe)	نفوذپذیری اولیه (µi)	ضریب هسته (ΣI/A) mm-1	طول موثر (le) میلی متر	منطقه موثر (Ae) mm²	حداقل مقطع هسته (Amin) mm²	حجم مغناطیسی موثر (Ve) mm³	پایان	ارتفاع	طول	عرض
PC44PQ32/30Z-12 FERRITE CORE PQ PCS44 2PC SET TDK Corporation	0	-	RFQ	برگه مشخصات	-	Tray	Active	PQ	PQ 32 x 30	PC44	-	-	±25%	Ungapped	-	-	0.464	47.6	161.0	-	12000.0	Uncoated	1.195" (30.35mm)	1.260" (32.00mm)	0.866" (22.00mm)
B66229G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	6	-	RFQ	برگه مشخصات	E32/16/9	Box	Active	E	E 32 x 16 x 9	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646" (16.40mm)	1.260" (32.00mm)	0.374" (9.50mm)
PC44PQ35/35Z-12 FERRITE CORE PQ PCS44 2PC SET TDK Corporation	0	-	RFQ	برگه مشخصات	-	Tray	Active	PQ	PQ 35 x 35	PC44	-	-	±25%	Ungapped	-	-	0.448	87.9	196.0	-	17300.0	Uncoated	1.368" (34.75mm)	1.382" (35.10mm)	1.024" (26.00mm)
TX22/14/6.4-3E65 FERRITE CORE TOROID Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	Toroid	TX 22 x 14 x 6.4	-	0.880" (22.35mm)	-	±30%	Ungapped	-	5200	2.2	54.2	24.8	-	1340.0	Epoxy	0.265" (6.75mm)	-	-
5980001801 FERRITE CORE TOROID 355NH Fair-Rite Products Corp.	18	-	RFQ	برگه مشخصات	HF	Bulk	Active	Toroid	-	-	0.870" (22.10mm)	355 nH	±25%	Ungapped	-	550	207.0	54.2	26.1	-	1420.0	Uncoated	0.250" (6.35mm)	-	-
B66479G0000X192 FERRITE CORE EQ N92 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	EQ13/9/3	Box	Active	EQ	EQ 13 x 3	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.112" (2.85mm)	0.504" (12.80mm)	0.343" (8.70mm)
PC95EI18/6/10-Z FERRITE COR HE 4.72UH PCS95 1SET TDK Corporation	0	-	RFQ	برگه مشخصات	Planar	Tray	Active	HE, PLT	EI 18 x 6 x 10	PC95	-	4.72 µH	±25%	Ungapped	-	-	0.51	40.0	20.3	40.0	811.0	Uncoated	0.236" (6.00mm)	0.709" (18.00mm)	0.394" (10.00mm)
TX22/14/13-3E65 FERRITE CORE TOROID Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	Toroid	TX 22 x 14 x 13	-	0.880" (22.35mm)	-	±30%	Ungapped	-	10300	1.07	54.2	50.9	-	2750.0	Epoxy	0.510" (12.95mm)	-	-
RM7/I-3C90 FERRITE CORE RM 3C90 2PC SET Ferroxcube	0	-	RFQ	-	-	Bulk	Active	RM	RM 7	3C90	-	-	-	Ungapped	-	-	0.68	30.0	44.1	39.6	1325.0	Uncoated	0.528" (13.40mm)	0.799" (20.30mm)	0.677" (17.20mm)

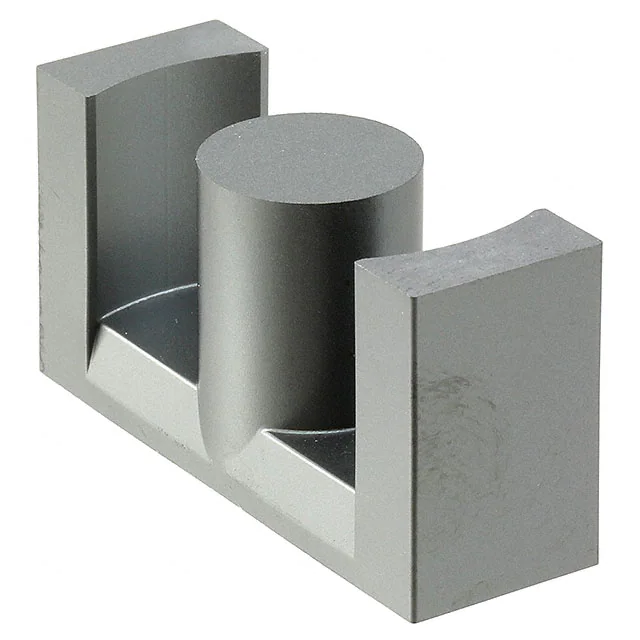

B66367G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	ETD49/25/16	Box	Active	ETD	ETD 49 x 25 x 16	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980" (24.90mm)	1.909" (48.50mm)	0.657" (16.70mm)
TX25/15/10-3E6 FERRITE CORE TOROID Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	Toroid	TX 25 x 15 x 10	-	1.007" (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429" (10.90mm)	-	-
PC95ELT20X7.7-Z FERRITE CORE ELH 5.63UH 1SET TDK Corporation	0	-	RFQ	برگه مشخصات	Planar	Tray	Active	ELH, PLT	ELT 20 x 7.7	PC95	-	5.63 µH	±25%	Ungapped	-	-	0.47	54.6	25.6	52.9	1400.0	Uncoated	0.230" (5.84mm)	0.787" (20.00mm)	0.630" (16.00mm)
B66482K0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	I23/2/13	Tray	Active	I	I 23 x 2 x 13	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.083" (2.10mm)	0.913" (23.20mm)	0.492" (12.50mm)
PC95PQI20/9Z-12 FERRITE CORE HPQ 7.07UH 1SET TDK Corporation	6	-	RFQ	برگه مشخصات	Planar	Tray	Active	HPQ, PQD	PQI 20 x 9	PC95	-	7.07 µH	±25%	Ungapped	-	-	0.35	66.0	22.9	59.3	1510.0	Uncoated	0.236" (6.00mm)	0.807" (20.50mm)	0.551" (14.00mm)
B64290L0657X830 FERRITE CORE TOROID 4.54UH N30 EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	TX30/20/12.5	Box	Active	Toroid	-	N30	1.264" (32.10mm)	4.54 µH	±25%	Ungapped	-	4300	1.19	77.02	64.66	-	4980.0	Epoxy	0.531" (13.50mm)	-	-

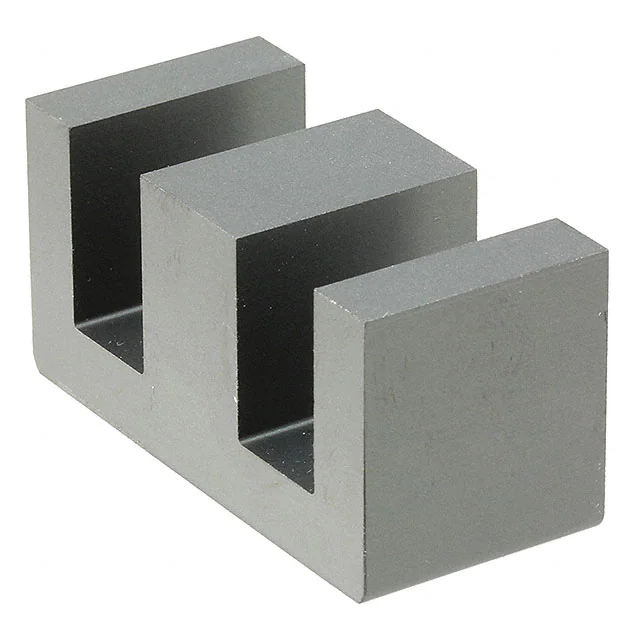

B66329G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	E42/21/20	Box	Active	E	E 42 x 21 x 20	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835" (21.20mm)	1.654" (42.00mm)	0.787" (20.00mm)
B66329G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	0	-	RFQ	برگه مشخصات	E42/21/20	Box	Active	E	E 42 x 21 x 20	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835" (21.20mm)	1.654" (42.00mm)	0.787" (20.00mm)
TX36/23/15-3E10-M FERRITE CORE TOROID Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	Toroid	TX 36 x 23 x 15	-	1.463" (37.15mm)	-	±30%	Ungapped	10000.0	-	0.919	89.7	97.5	-	8740.0	Epoxy	0.630" (16.00mm)	-	-
PQ26/20-3C97 FERRITE CORE PQ 3C97 2PC SET Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	PQ	PQ 26 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795" (20.20mm)	1.075" (27.30mm)	0.748" (19.00mm)
PQ26/25-3C97 FERRITE CORE PQ 3C97 2PC SET Ferroxcube	0	-	RFQ	برگه مشخصات	-	Bulk	Active	PQ	PQ 26 x 25	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972" (24.70mm)	1.075" (27.30mm)	0.748" (19.00mm)
