هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM10/ILP-3C95FERRITE CORE RM 3C95 2PC SET |
0 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 10 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.512" (13.00mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
B66347G0000X197FERRITE CORE ER N97 |
4 |
|
برگه مشخصات |
ER42/22/15 | Box | Active | ER | ER 42 x 22 x 15 | N97 | - | - | - | - | - | 2300 | 0.58 | 99.0 | 170.0 | 170.0 | 16800.0 | Uncoated | 0.858" (21.80mm) | 1.654" (42.00mm) | 0.591" (15.00mm) |
|

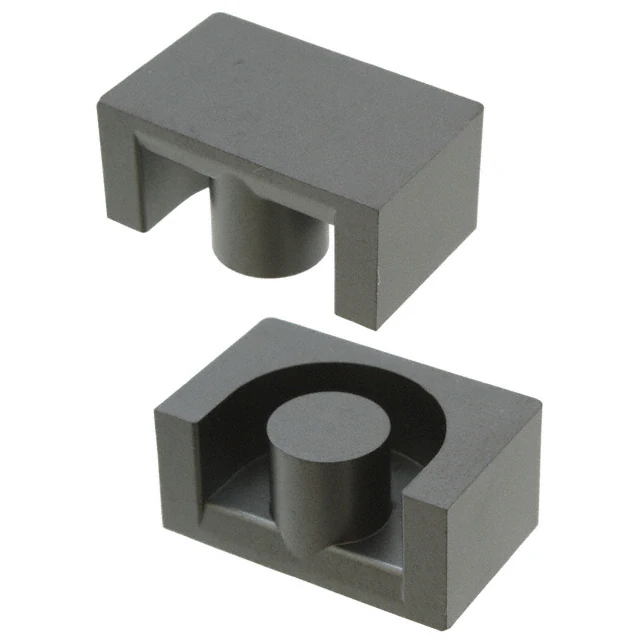

B65847A0000R087FERRITE CORE EP 4UH N87 2PCS |
0 |
|
برگه مشخصات |
EP20 | Box | Active | EP | EP 20 | N87 | - | 4 µH | -20%, +30% | Ungapped | 1630.0 | 2200 | 0.51 | 40.0 | 78.0 | 60.0 | 3120.0 | Uncoated | 0.425" (10.80mm) | 0.965" (24.50mm) | 0.602" (15.30mm) |
|
B65877A0000R087FERRITE CORE PQ 4.5UH N87 2PCS |
13 |
|
برگه مشخصات |
PQ26/25 | Box | Active | PQ | PQ 26 x 25 | N87 | - | 4.5 µH | -20%, +30% | Ungapped | 1550.0 | 2200 | 0.44 | 53.6 | 122.0 | 108.7 | 6530.0 | Uncoated | 0.487" (12.38mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
TX36/23/15-3E12FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 36 x 23 x 15 | - | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.630" (16.00mm) | - | - |
|
B66367G0200X187FERRITE CORE ETD N87 1PC |
0 |
|
برگه مشخصات |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
_3C91.jpg)
|
P26/16-3C91FERRITE CORE P 3C91 2PC SET |
19 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | P 26 x 16 | 3C91 | 1.004" (25.50mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.634" (16.10mm) | - | - |
|
B66329G0000X197FERRITE CORE E N97 1PC |
0 |
|
برگه مشخصات |
E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
TX42/26/13-3C94FERRITE CORE TOROID 3C94 |
4 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 42 x 26 x 13 | 3C94 | 1.697" (43.15mm) | - | ±25% | Ungapped | 2300.0 | - | 1.076 | 103.0 | 95.8 | - | 9860.0 | Epoxy | 0.531" (13.50mm) | - | - |
|
B65879Q0150K097FERRITE CORE PQ 100NH N95 2=1PCS |
21 |
|
برگه مشخصات |
PQ32/30 | Bulk | Active | PQ | - | N95 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.598" (15.19mm) | 1.102" (28.00mm) | 0.886" (22.50mm) |
|
PLT58/38/4-3F4FERRITE CORE PLT 3F4 |
2 |
|
برگه مشخصات |
- | Bulk | Active | PLT | PLT 58 x 38 x 4 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
35T1417-00HFERRITE CORE TOROID 4.456UH |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | - | 1.467" (37.27mm) | 4.456 µH | ±20% | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.434" (11.02mm) | - | - |
|
B66395G1000X187FERRITE CORE ETD N87 1PC |
21 |
|
برگه مشخصات |
ETD54/28/19 | Box | Active | ETD | ETD 54 x 28 x 19 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.156" (54.50mm) | 0.760" (19.30mm) |
|
PC95PQ26/25Z-12FERRITE CORE PQ 6.52UH PCS95 2PC |
0 |
|
برگه مشخصات |
PQ | Tray | Active | PQ | PQ 26 x 25 | PC95 | - | 6.52 µH | ±25% | Ungapped | - | - | 0.47 | 55.5 | 118.0 | - | 6530.0 | Uncoated | 0.974" (24.75mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|

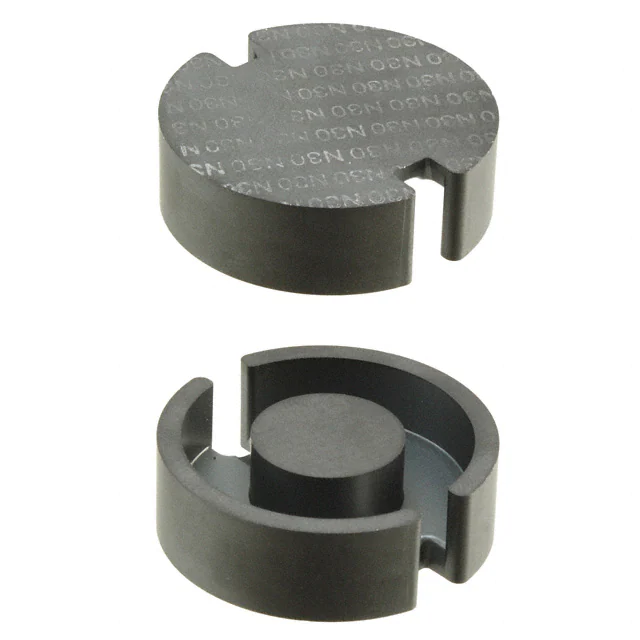

B65611W0000R030FERRITE CORE P 15.2UH N30 2PCS |
9 |
|
برگه مشخصات |
P36/22 | Box | Active | P (Pot Core) | P 36 x 22 | N30 | 1.417" (36.00mm) | 15.2 µH | -20%, +30% | Ungapped | 3040.0 | 4300 | 0.25 | 53.5 | 213.0 | 173.0 | 11400.0 | Uncoated | 0.433" (11.00mm) | - | - |
|
TX42/26/18-3C94FERRITE CORE TOROID 3C94 |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | 3C94 | 1.697" (43.15mm) | - | ±25% | Ungapped | 2300.0 | - | 0.769 | 103.0 | 134.0 | - | 13810.0 | Epoxy | 0.736" (18.70mm) | - | - |
|
TX51/32/19-3C94FERRITE CORE TOROID 3C94 |
17 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 51 x 32 x 19 | 3C94 | 2.069" (52.55mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.783" (19.90mm) | - | - |
|
P30/19-3F46FERRITE CORE P 3F46 2PC SET |
0 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | P 30 x 19 | 3F46 | 1.181" (30.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.740" (18.80mm) | - | - |
|
B66397G0200X187FERRITE CORE ETD N87 |
0 |
|
برگه مشخصات |
ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Gapped | - | 2200 | 0.38 | 139.0 | 368.0 | 368.0 | 51200.0 | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
TX50/30/19-3C94FERRITE CORE TOROID 3C94 |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 50 x 30 x 19 | 3C94 | 2.018" (51.25mm) | - | ±25% | Ungapped | 2300.0 | - | 0.65 | 120.4 | 186.0 | - | 22378.0 | Epoxy | 0.791" (20.10mm) | - | - |
