هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E32/6/20/R-3C95FERRITE CORE E 3C95 |
136 |
|
برگه مشخصات |
- | Bulk | Active | E | E 32 x 6 x 20 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|

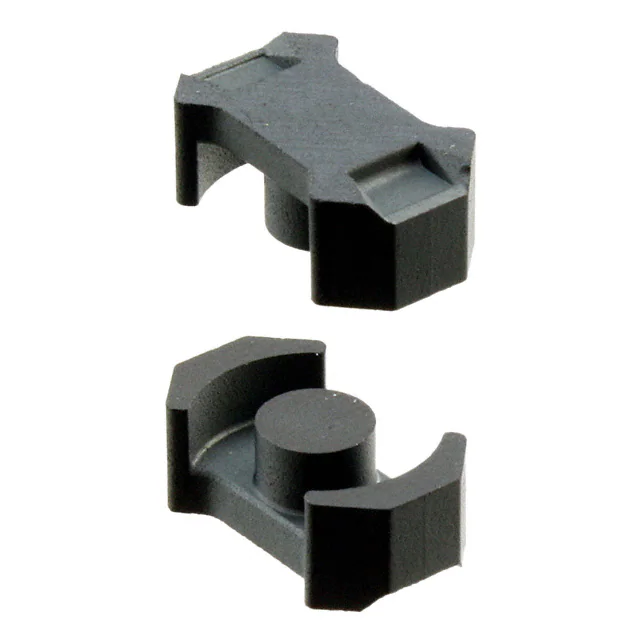

B65803P0000R049FERRITE CORE RM 950NH N49 2PCS |
845 |
|
برگه مشخصات |
RM4/LP | Box | Active | RM | RM 4 LP | N49 | - | 950 nH | -20%, +30% | Ungapped | 900.0 | 1500 | 1.2 | 17.3 | 14.5 | 11.3 | 251.0 | Uncoated | 0.154" (3.90mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
B65531D0000R033FERRITE CORE P 780NH M33 2PCS |
3,005 |
|
برگه مشخصات |
P11/7 | Tray | Active | P (Pot Core) | P 11 x 7 | M33 | 0.445" (11.30mm) | 780 nH | -20%, +30% | Ungapped | 620.0 | 750 | 1.0 | 15.9 | 15.9 | - | 253.0 | Uncoated | 0.130" (3.30mm) | - | - |
|

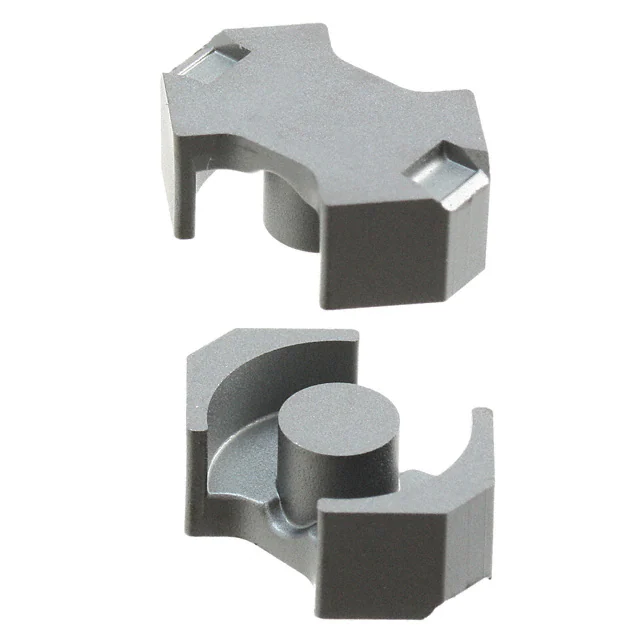

B65805J0000R087FERRITE CORE RM 2UH N87 2PCS |
1,626 |
|
برگه مشخصات |
RM5 | Box | Active | RM | RM 5 | N87 | - | 2 µH | -20%, +30% | Ungapped | 1480.0 | 2200 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
B65805P0000R087FERRITE CORE N87 2PCS |
1,363 |
|
برگه مشخصات |
RM5/LP | Box | Active | - | - | N87 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B64290L0651X087FERRITE CORE TOROID 2.63UH N87 |
459 |
|
برگه مشخصات |
TX22/14/13 | Box | Active | Toroid | - | N87 | 0.917" (23.30mm) | 2.63 µH | ±25% | Ungapped | - | 2200 | 1.05 | 54.15 | 51.15 | - | 2789.0 | Epoxy | 0.543" (13.80mm) | - | - |
|
B65803P0000R087FERRITE CORE RM 1.3UH N87 2PCS |
1,104 |
|
برگه مشخصات |
RM4/LP | Box | Active | RM | RM 4 LP | N87 | - | 1.3 µH | -20%, +30% | Ungapped | 1230.0 | 2200 | 1.2 | 17.3 | 14.5 | 11.3 | 251.0 | Uncoated | 0.154" (3.90mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|

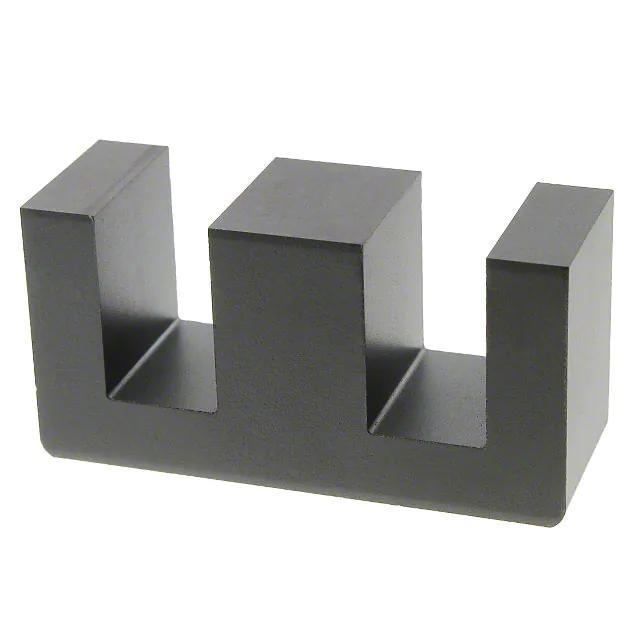

B66325G0000X187FERRITE CORE E N87 1PC |
2,499 |
|
برگه مشخصات |
E42/21/15 | Box | Active | E | E 42 x 21 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.598" (15.20mm) |
|
B62152A0004X001FERRITE CORE 2 HOLE 190NH K1 |
1,634 |
|
برگه مشخصات |
MHB2-14.5/8.5/8.3 | Bulk | Active | Multi-Hole (2) | - | K1 | - | 190 nH | ±30% | Ungapped | - | 80 | 0.54 | 15.3 | 28.4 | - | 435.0 | Uncoated | 0.327" (8.30mm) | 0.571" (14.50mm) | 0.335" (8.50mm) |
|
ER23/3.6/13-3C92-SFERRITE CORE ER 3C92 2PC SET |
3,687 |
|
برگه مشخصات |
- | Bulk | Active | ER | ER 23 x 3.6 x 13 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.142" (3.60mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
|
B66363G1000X187FERRITE CORE ETD N87 1PC |
654 |
|
برگه مشخصات |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
|
B66363G0200X187FERRITE CORE ETD N87 1PC |
401 |
|
برگه مشخصات |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
|
E32/6/20/R-3F36FERRITE CORE E 3F36 |
598 |
|
برگه مشخصات |
- | Bulk | Active | E | E 32 x 6 x 20 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|
RM8/I-3C95FERRITE CORE RM 3C95 2PC SET |
434 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 8 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.646" (16.40mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B65805J0250A087FERRITE CORE RM |
966 |
|
برگه مشخصات |
RM5 | Bulk | Active | RM | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
C058380A2FERRITE CORE TOROID 89NH HIGH FL |
1,352 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | High Flux | 0.710" (18.03mm) | 89 nH | ±8% | Ungapped | - | 125 | - | 41.4 | 23.2 | - | 960.0 | Coated | 0.280" (7.11mm) | - | - |
|
B65517D0063A033FERRITE CORE P 63NH M33 2PCS |
2,698 |
|
برگه مشخصات |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | M33 | 0.366" (9.30mm) | 63 nH | ±3% | Gapped | 63.0 | 750 | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|

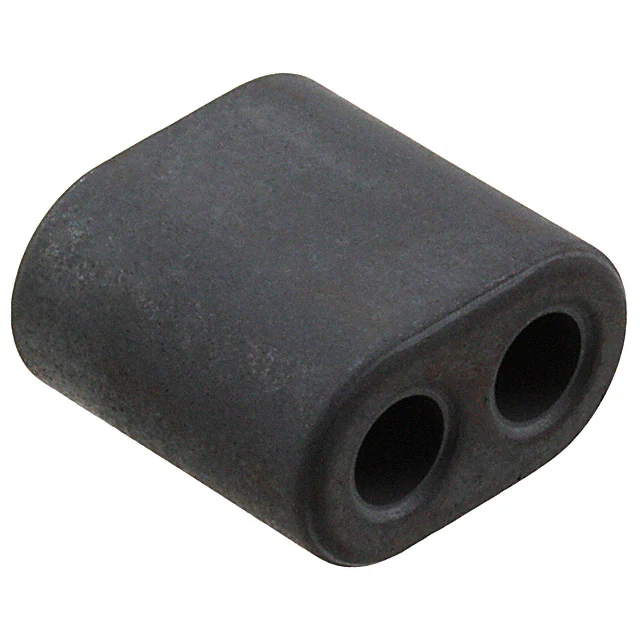

B62152A0001X001FERRITE CORE 2 HOLE 330NH K1 |
2,522 |
|
برگه مشخصات |
MHB2-14.5/8.5/14.5 | Bulk | Active | Multi-Hole (2) | - | K1 | - | 330 nH | ±30% | Ungapped | - | 80 | 0.31 | 15.3 | 49.7 | - | 760.0 | Uncoated | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.335" (8.50mm) |
|
|
B65805J0000Y038FERRITE CORE RM 6.7UH T38 2PCS |
1,630 |
|
برگه مشخصات |
RM5 | Box | Active | RM | RM 5 | T38 | - | 6.7 µH | -30%, +40% | Ungapped | 4950.0 | 10000 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
B65511A0000Y030FERRITE CORE P 2UH N30 2PCS |
2,896 |
|
برگه مشخصات |
P7/4 | Box | Active | P (Pot Core) | P 7 x 4 | N30 | 0.289" (7.35mm) | 2 µH | -30%, +40% | Ungapped | 2270.0 | 4300 | 1.43 | 10.0 | 7.0 | - | 70.0 | Uncoated | 0.083" (2.10mm) | - | - |
