هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66281K0000X197FERRITE CORE I N97 |
5,205 |
|
برگه مشخصات |
I14/1.5/5 | Bag | Active | I | I 14 x 1.5 x 5 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
9077024002FERRITE CORE U 77 |
454 |
|
برگه مشخصات |
- | Bulk | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 239.0 | 96.0 | 40.0 | - | 3880.0 | Uncoated | 0.750" (19.05mm) | 1.000" (25.40mm) | 0.250" (6.35mm) |
|
PC95ER14/4.5/9-ZFERRITE CORE ER 2.55UH PCS95 2PC |
275 |
|
برگه مشخصات |
Planar | Tray | Active | ER | EI 14 x 4.5 x 9 | PC95 | - | 2.55 µH | ±25% | Ungapped | - | - | 0.68 | 22.7 | 15.4 | 21.2 | 349.0 | Uncoated | 0.089" (2.25mm) | 0.545" (13.85mm) | 0.354" (9.00mm) |
|
PC44EPC13-ZFERRITE CORE EPCS PCS44 2PC SET |
4,910 |
|
برگه مشخصات |
- | Tray | Active | EPC | EPC 13 | PC44 | - | - | ±25% | Ungapped | - | - | 2.45 | 30.6 | 12.5 | - | 382.0 | Uncoated | 0.260" (6.60mm) | 0.522" (13.25mm) | 0.181" (4.60mm) |
|
5980000301FERRITE CORE TOROID 340NH 80 |
4,734 |
|
برگه مشخصات |
HF | Bag | Active | Toroid | - | 80 | 0.500" (12.70mm) | 340 nH | ±25% | Ungapped | - | 550 | 0.02214 | 29.2 | 13.2 | - | 385.0 | Uncoated | 0.193" (4.90mm) | - | - |
|
E30/15/7-3C94FERRITE CORE E 3C94 |
6,718 |
|
برگه مشخصات |
- | Bulk | Active | E | E 30 x 15 x 7 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.213" (30.80mm) | 0.287" (7.30mm) |
|
|
E25/13/11-3C94FERRITE CORE E 3C94 |
1,966 |
|
برگه مشخصات |
- | Bulk | Active | E | E 25 x 13 x 11 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.433" (11.00mm) |
|
B66302G0000X138FERRITE CORE E T38 1PC |
9,199 |
|
برگه مشخصات |
E8.8/4/2 | Box | Active | E | E 8 x 8 | T38 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 0.354" (9.00mm) | 0.079" (2.00mm) |
|
B64290L0638X035FERRITE CORE TOROID 3.2UH T35 |
445 |
|
برگه مشخصات |
TX22/14/6.4 | Box | Active | Toroid | - | T35 | 0.917" (23.30mm) | 3.2 µH | ±25% | Ungapped | - | 5300 | 2.07 | 54.15 | 26.17 | - | 1417.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
|
HF90T14X7X8FERRITE CORE TOROID |
509 |
|
برگه مشخصات |
T | Tray | Active | Toroid | - | - | 0.551" (14.00mm) | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.276" (7.00mm) | - | - |
|
EQ13-3C95FERRITE CORE EQ 3C95 |
1,421 |
|
برگه مشخصات |
- | Bulk | Active | EQ | EQ 13 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.112" (2.85mm) | 0.504" (12.80mm) | 0.343" (8.70mm) |
|
|
RM6S/I-3C90-A250FERRITE CORE RM 3C90 2PC SET |
1,112 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 6 | 3C90 | - | - | ±3% | Gapped | 157.0 | - | 0.784 | 29.2 | 37.0 | 31.2 | 1090.0 | Uncoated | 0.488" (12.40mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B65935E0000X022FERRITE CORE PS N22 |
4,000 |
|
برگه مشخصات |
PS9.4/4.6 | Box | Active | PS | PS 9 x 3.5 | N22 | - | - | - | - | - | 2300 | - | - | - | - | - | Uncoated | 0.138" (3.50mm) | - | - |
|
B65935A0000X022FERRITE CORE P N22 1PC |
2,833 |
|
برگه مشخصات |
PS9.4/4.6 | Box | Active | P (Pot Core) | PCH 9.4 x 4.6 | N22 | 0.370" (9.40mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.181" (4.60mm) | - | - |
|
B65523J0000R097FERRITE CORE ER 840NH N97 2PCS |
179 |
|
برگه مشخصات |
ER9.5 | Box | Active | ER | ER 9.5 x 5 | N97 | - | 840 nH | -20%, +30% | Ungapped | 1032.0 | 2300 | 1.54 | 13.6 | 8.81 | - | 120.0 | Uncoated | 0.098" (2.50mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|

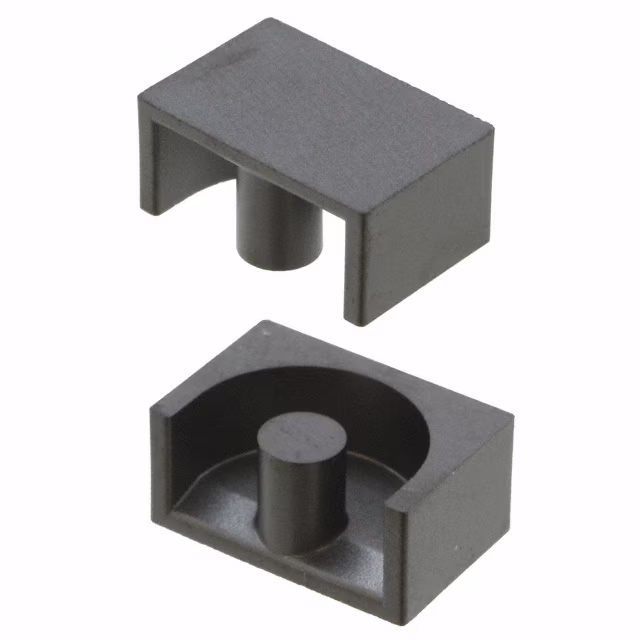

B65841A0000R030FERRITE CORE EP 2UH N30 2PCS |
5,133 |
|
برگه مشخصات |
EP10 | Box | Active | EP | EP 10 | N30 | - | 2 µH | -20%, +30% | Ungapped | 2700.0 | 4300 | 1.7 | 19.2 | 11.3 | 8.5 | 217.0 | Uncoated | 0.205" (5.20mm) | 0.465" (11.80mm) | 0.309" (7.85mm) |
|
|
E32/16/9-3C94FERRITE CORE E 3C94 |
1,345 |
|
برگه مشخصات |
- | Bulk | Active | E | E 32 x 16 x 9 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.646" (16.40mm) | 1.260" (32.00mm) | 0.374" (9.50mm) |
|

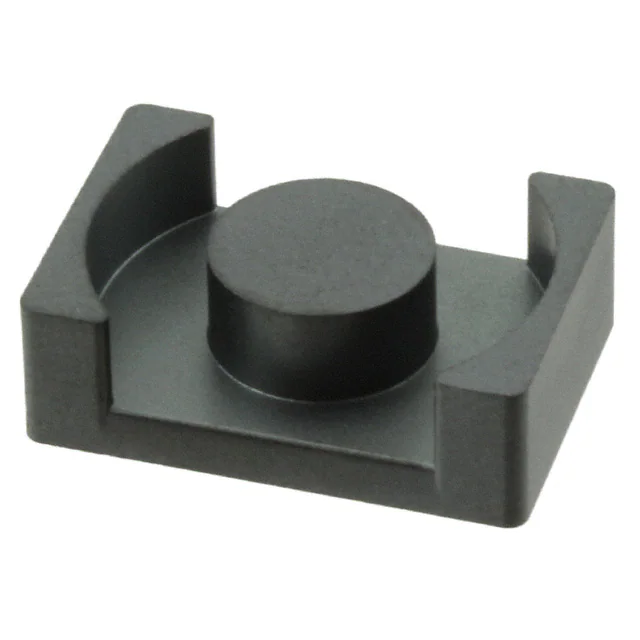

B66483G0000X149FERRITE CORE EQ N49 1PC |
970 |
|
برگه مشخصات |
EQ20/6.3/14 | Box | Active | EQ | EQ 20 x 6 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.248" (6.30mm) | 0.787" (20.00mm) | 0.551" (14.00mm) |
|
|
PC47EI22-ZFERRITE CORE E 2.4UH PCS47 1SET |
433 |
|
برگه مشخصات |
E | Tray | Active | E | - | PC47 | - | 2.4 µH | ±25% | Ungapped | - | 2500 | 0.936 | 39.3 | 42.0 | - | 1650.0 | Uncoated | - | 0.866" (22.00mm) | - |
|
B62152P0007X030FERRITE CORE 2 HOLE 7.3UH N30 |
5,814 |
|
برگه مشخصات |
MHB2/P-6.2/7.25/4.2 | Box | Active | Multi-Hole (2) | - | N30 | - | 7.3 µH | ±30% | Ungapped | - | 4300 | 0.75 | 7.6 | 10.2 | - | 78.0 | Parylene | 0.246" (6.25mm) | 0.287" (7.30mm) | 0.167" (4.25mm) |
