هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4277242409FERRITE CORE ROD 77 |
504 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 77 | 0.512" (13.00mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - | 0.690" (17.50mm) | - |
|
7895400321FERRITE CORE PLANAR E/I 95 SET |
564 |
|
برگه مشخصات |
- | Bulk | Active | Planar E/I | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 33.0 | 26.1 | 79.0 | 79.0 | 2060.0 | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | - |
|

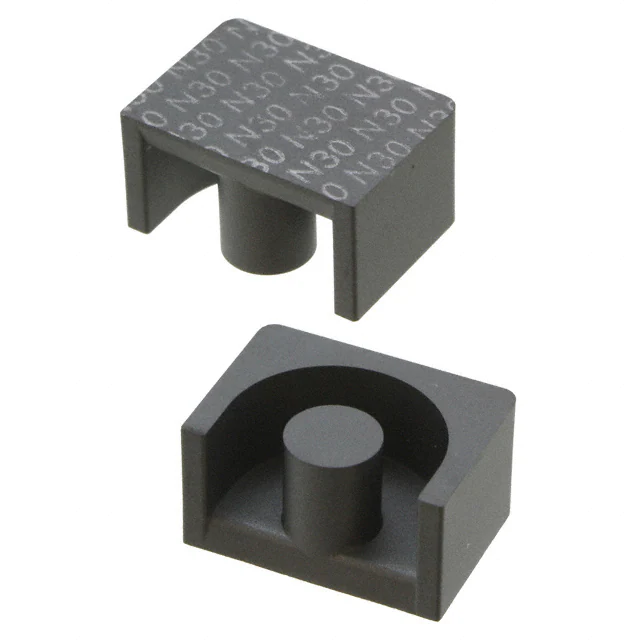

B65843A0000R030FERRITE CORE EP 2.8UH N30 2PCS |
490 |
|
برگه مشخصات |
EP13 | Box | Active | EP | EP 13 | N30 | - | 2.8 µH | -20%, +30% | Ungapped | 2765.0 | 4300 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
TX22/14/6.4-3E6FERRITE CORE TOROID |
2,026 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 22 x 14 x 6.4 | - | 0.880" (22.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.265" (6.75mm) | - | - |
|
TX20/10/7-3E65FERRITE CORE TOROID |
774 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 20 x 10 x 7 | - | 0.797" (20.25mm) | - | ±30% | Ungapped | - | 10000 | 1.3 | 43.6 | 33.6 | - | 1465.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
|
9277002002FERRITE CORE U 77 |
386 |
|
برگه مشخصات |
- | Box | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 139.0 | 95.0 | 68.0 | - | 6500.0 | Uncoated | - | - | - |
|
B66455G0000X187FERRITE CORE ELP N87 1PC |
7,275 |
|
برگه مشخصات |
ELP22/6/16 | Box | Active | ELP | ELP 22 x 6 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|

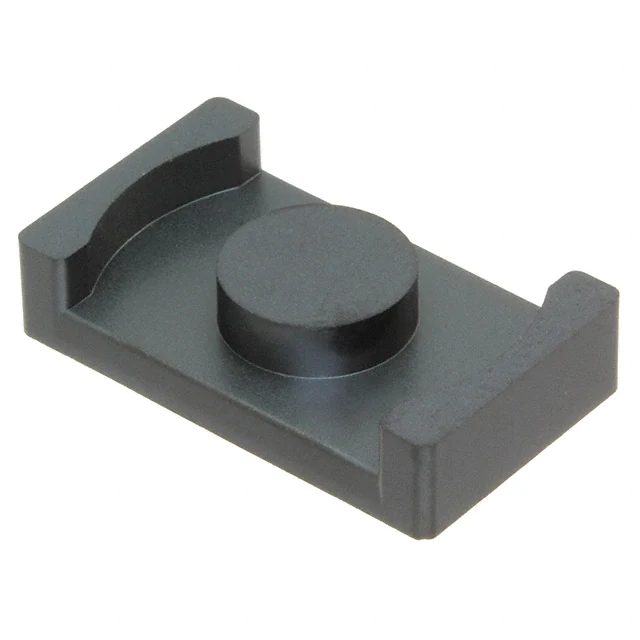

B66484G0000X187FERRITE CORE ER N87 1PC |
1,109 |
|
برگه مشخصات |
ER25/6/15 | Box | Active | ER | ER 25 x 6 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.216" (5.50mm) | 0.984" (25.00mm) | 0.583" (14.80mm) |
|
B66229G1000X187FERRITE CORE E N87 1PC |
173 |
|
برگه مشخصات |
E32/16/9 | Box | Active | E | E 32 x 16 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.646" (16.40mm) | 1.260" (32.00mm) | 0.374" (9.50mm) |
|
B66233G0000X187FERRITE CORE E N87 1PC |
1,470 |
|
برگه مشخصات |
E32/16/11 | Box | Active | E | E 32 x 16 x 11 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.646" (16.40mm) | 1.260" (32.00mm) | 0.433" (11.00mm) |
|
B66361G0500X127FERRITE CORE ETD N27 1PC |
923 |
|
برگه مشخصات |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
|
B65531W0000R087FERRITE CORE P 2UH N87 2PCS |
185 |
|
برگه مشخصات |
P11/7 | Box | Active | P (Pot Core) | P 11 x 7 | N87 | 0.445" (11.30mm) | 2 µH | -20%, +30% | Ungapped | 1470.0 | 2200 | 0.92 | 16.3 | 17.7 | 14.1 | 289.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
ETD34/17/11-3C97FERRITE CORE ETD 3C97 |
620 |
|
برگه مشخصات |
- | Bulk | Active | ETD | ETD 34 x 17 x 11 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.681" (17.30mm) | 1.378" (35.00mm) | 0.437" (11.10mm) |
|
PC47EER25.5-ZFERRITE COR EER 1.92UH PCS47 2PC |
408 |
|
برگه مشخصات |
E | Tray | Active | EER | EER 25.5 | PC47 | - | 1.92 µH | ±25% | Ungapped | - | - | 1.08 | 48.2 | 44.8 | - | 2160.0 | Uncoated | 0.366" (9.30mm) | 1.004" (25.50mm) | 0.295" (7.50mm) |
|
E34/14/9-3C92FERRITE CORE E 3C92 |
192 |
|
برگه مشخصات |
- | Bulk | Active | E | E 34 x 14 x 9 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.555" (14.10mm) | 1.350" (34.30mm) | 0.366" (9.30mm) |
|
B66482G0000X608FERRITE CORE PCS200 |
1,318 |
|
برگه مشخصات |
ER23/5/13 | Bulk | Active | - | - | PC200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B64290L0638X038FERRITE CORE TOROID 6.07UH T38 |
1,385 |
|
برگه مشخصات |
TX22/14/6.4 | Box | Active | Toroid | - | T38 | 0.917" (23.30mm) | 6.07 µH | ±30% | Ungapped | - | 10000 | 2.07 | 54.15 | 26.17 | - | 1417.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
5977000621FERRITE CORE TOROID 1.27UH 77 |
1,076 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 77 | 0.860" (21.84mm) | 1.27 µH | -30%, +25% | Ungapped | - | 2000 | 2.131 | 51.8 | 24.3 | - | 1261.0 | Plastic | 0.280" (7.11mm) | - | - |
|
B66480G0000X187FERRITE CORE ER N87 1PC |
1,007 |
|
برگه مشخصات |
ER18/3/10 | Box | Active | ER | ER 18 x 3 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 0.709" (18.00mm) | 0.382" (9.70mm) |
|
EFD12/6/3.5-3F36-SFERRITE CORE EFD 3F36 2PC SET |
547 |
|
برگه مشخصات |
- | Bulk | Active | EFD | EFD 12 x 6 x 3.5 | 3F36 | - | - | ±25% | Ungapped | 1130.0 | - | 2.5 | 28.5 | 11.4 | 10.7 | 325.0 | Uncoated | 0.244" (6.20mm) | 0.492" (12.50mm) | 0.138" (3.50mm) |
