هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5678302021FERRITE CORE PS 78 SET |
134 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | 78 | 1.181" (30.00mm) | - | ±25% | Ungapped | - | 2300 | 35.6 | 45.3 | 127.0 | - | 5750.0 | Uncoated | - | - | - |
|

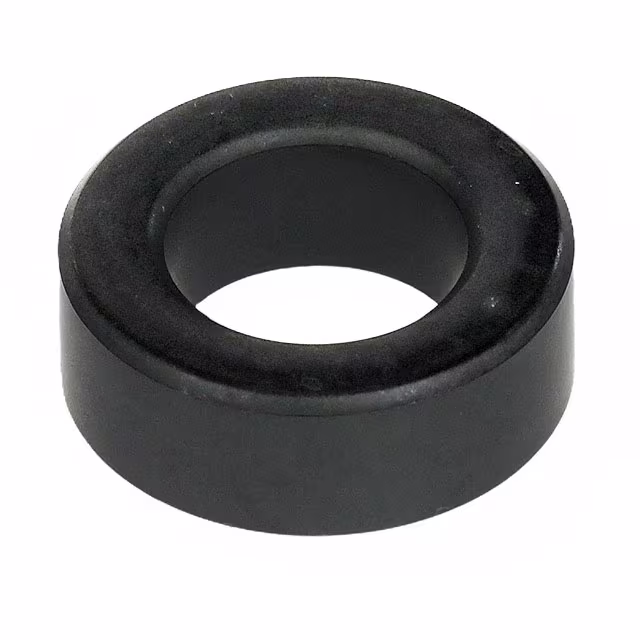

B64290A0618X033FERRITE CORE TOROID |
329 |
|
برگه مشخصات |
T25.3/14.8/15 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
PQ20/20-3C97FERRITE CORE PQ 3C97 2PC SET |
1,027 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 20 x 20 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.795" (20.20mm) | 0.839" (21.30mm) | 0.551" (14.00mm) |
|
5977001621FERRITE CORE TOROID 1.665UH 77 |
201 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 77 | 1.274" (32.35mm) | 1.665 µH | -30%, +25% | Ungapped | - | 2000 | 1.6226 | 75.7 | 46.6 | - | 3532.0 | Plastic | 0.343" (8.70mm) | - | - |
|
E41/17/12-3C94FERRITE CORE E 3C94 |
1,253 |
|
برگه مشخصات |
- | Bulk | Active | E | E 41 x 17 x 12 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.654" (16.60mm) | 1.598" (40.60mm) | 0.488" (12.40mm) |
|
|
PQ20/16-3F36FERRITE CORE PQ 3F36 2PC SET |
233 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 20 x 16 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.638" (16.20mm) | 0.839" (21.30mm) | 0.551" (14.00mm) |
|

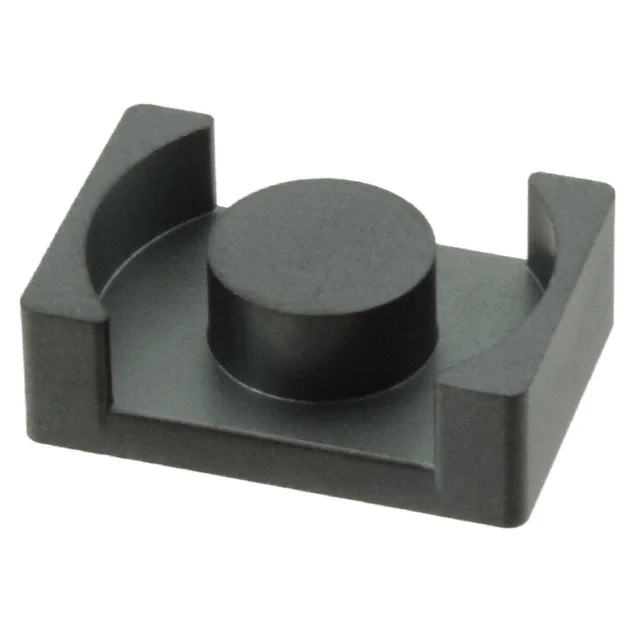

B66506G0000X149FERRITE CORE EQ N49 1PC |
919 |
|
برگه مشخصات |
EQ30/8/20 | Box | Active | EQ | EQ 30 x 8 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.315" (8.00mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
|
P14/8/I-3C91FERRITE CORE P 3C91 2PC SET |
2,826 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | P 14 x 8 | 3C91 | 0.553" (14.05mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.165" (4.20mm) | - | - |
|
B64290L0651X038FERRITE CORE TOROID 12UH T38 |
1,288 |
|
برگه مشخصات |
TX22/14/13 | Box | Active | Toroid | - | T38 | 0.917" (23.30mm) | 12 µH | ±30% | Ungapped | - | 10000 | 1.05 | 54.15 | 51.15 | - | 2789.0 | Epoxy | 0.543" (13.80mm) | - | - |
|
PC95ELT18X7.3-ZFERRITE CORE ELH 4.76UH 1SET |
695 |
|
برگه مشخصات |
Planar | Tray | Active | ELH, PLT | ELT 18 x 7.3 | PC95 | - | 4.76 µH | ±25% | Ungapped | - | - | 0.54 | 44.3 | 23.8 | 43.0 | 1050.0 | Uncoated | 0.222" (5.65mm) | 0.709" (18.00mm) | 0.567" (14.40mm) |
|
B65525J0000R049FERRITE CORE ER 800NH N49 2PCS |
7,372 |
|
برگه مشخصات |
ER11/5 | Tape & Reel (TR) | Active | ER | ER 11 x 5 | N49 | - | 800 nH | -20%, +30% | Ungapped | 715.0 | - | 1.1 | 14.1 | 12.4 | - | 174.0 | Uncoated | 0.098" (2.50mm) | 0.433" (11.00mm) | 0.236" (6.00mm) |
|
B66285G0000X197FERRITE CORE ELP N97 1PC |
1,550 |
|
برگه مشخصات |
ELP22/6/16 | Box | Active | ELP | ELP 22 x 6 x 16 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
TX26/15/20-3E27FERRITE CORE TOROID 3E+27 |
684 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 26 x 15 x 20 | 3E27 | 1.061" (26.95mm) | - | ±25% | Ungapped | 5500.0 | - | 0.538 | 60.1 | 112.0 | - | 6720.0 | Epoxy | 0.827" (21.00mm) | - | - |
|

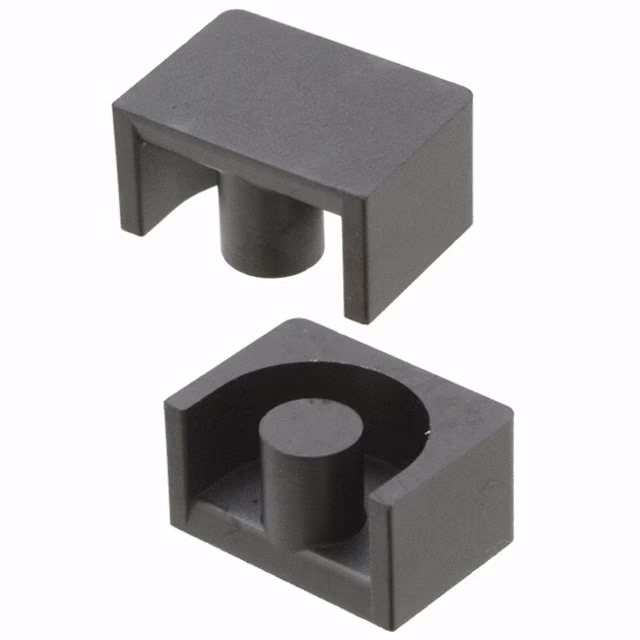

B65843A0000Y038FERRITE CORE EP 7UH T38 2PCS |
1,718 |
|
برگه مشخصات |
EP13 | Box | Active | EP | EP 13 | T38 | - | 7 µH | -30%, +40% | Ungapped | 6910.0 | 10000 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
RM7/ILP-3C95FERRITE CORE RM 3C95 2PC SET |
971 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 7 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.386" (9.80mm) | 0.799" (20.30mm) | - |
|
|
H5AP18/11Z-52B2PCS POT CORE FOR SIGNAL TRANSFO |
133 |
|
برگه مشخصات |
P | Tray | Not For New Designs | P (Pot Core) | P 18 x 11 | H5A | - | 4.5 µH | ±25% | Ungapped | 2138.0 | 3300 | 0.596 | 25.8 | 43.3 | 34.4 | 1117.0 | Uncoated | 0.417" (10.60mm) | - | - |
|
|
5995001001FERRITE CORE TOROID 1949NH 95 |
432 |
|
برگه مشخصات |
HF | Tray | Active | Toroid | - | 95 | 1.142" (29.00mm) | 1949 nH | ±25% | Ungapped | - | 3000 | 0.01934 | 73.7 | 38.0 | - | 2798.0 | Uncoated | 0.295" (7.50mm) | - | - |
|
B66484K0000X187FERRITE CORE I N87 1PC |
588 |
|
برگه مشخصات |
I25/3/15 | Box | Active | I | I 25 x 3 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.984" (25.00mm) | 0.583" (14.80mm) |
|
EFD10/5/3-3F46-SFERRITE CORE EFD 3F46 2PC SET |
1,995 |
|
برگه مشخصات |
- | Bulk | Active | EFD | EFD 10 x 5 x 3 | 3F46 | - | - | ±25% | Ungapped | 655.0 | - | 3.29 | 23.7 | 7.2 | 6.5 | 171.0 | Uncoated | 0.205" (5.20mm) | 0.413" (10.50mm) | 0.106" (2.70mm) |
|
PC95ER25/5.5/18-ZFERRITE CORE ER 4.4UH PCS95 2PC |
490 |
|
برگه مشخصات |
Planar | Tray | Active | ER | ER 25 x 5.5 x 18 | PC95 | - | 4.4 µH | ±25% | Ungapped | - | - | 0.49 | 53.7 | 26.1 | 38.5 | 1400.0 | Uncoated | 0.108" (2.75mm) | 0.996" (25.30mm) | 0.709" (18.00mm) |
