هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9277023002FERRITE CORE U 77 |
390 |
|
برگه مشخصات |
- | Box | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 116.0 | 78.0 | 67.0 | - | 5200.0 | Uncoated | - | - | - |
|
B66480G0000X608FERRITE CORE PCS200 |
999 |
|
برگه مشخصات |
ER18/3/10 | Bulk | Active | - | - | PC200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B66482G0000X187FERRITE CORE ER N87 1PC |
396 |
|
برگه مشخصات |
ER23/5/13 | Box | Active | ER | ER 23 x 5 x 13 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
|
B65841A0000Y038FERRITE CORE EP 4.8UH T38 2PCS |
2,510 |
|
برگه مشخصات |
EP10 | Box | Active | EP | EP 10 | T38 | - | 4.8 µH | -30%, +40% | Ungapped | 6490.0 | 2300 | 1.7 | 19.2 | 11.3 | 8.5 | 217.0 | Uncoated | 0.205" (5.20mm) | 0.465" (11.80mm) | 0.309" (7.85mm) |
|
B66281K0000X149FERRITE CORE I N49 |
9,610 |
|
برگه مشخصات |
I14/1.5/5 | Bag | Active | I | I 14 x 1.5 x 5 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
5977001321FERRITE CORE TOROID 1.35UH 77 |
517 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 77 | 1.043" (26.50mm) | 1.35 µH | -30%, +25% | Ungapped | - | 2000 | 2.0033 | 61.7 | 30.8 | - | 1901.0 | Plastic | 0.280" (7.11mm) | - | - |
|
5977001021FERRITE CORE TOROID 1.365UH 77 |
621 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 77 | 1.187" (30.15mm) | 1.365 µH | -30%, +25% | Ungapped | - | 2000 | 1.9811 | 73.2 | 36.9 | - | 2704.0 | Plastic | 0.325" (8.26mm) | - | - |
|
B66455K0000X187FERRITE CORE I N87 |
293 |
|
برگه مشخصات |
I22/2.5/16 | Tray | Active | I | I 22 x 2.5 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
B66281G0000X149FERRITE CORE ELP N49 1PC |
5,610 |
|
برگه مشخصات |
ELP14/3.5/5 | Box | Active | ELP | ELP 14 x 3.5 x 5 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.138" (3.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
B66283K0000X197FERRITE CORE I N97 |
1,231 |
|
برگه مشخصات |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|

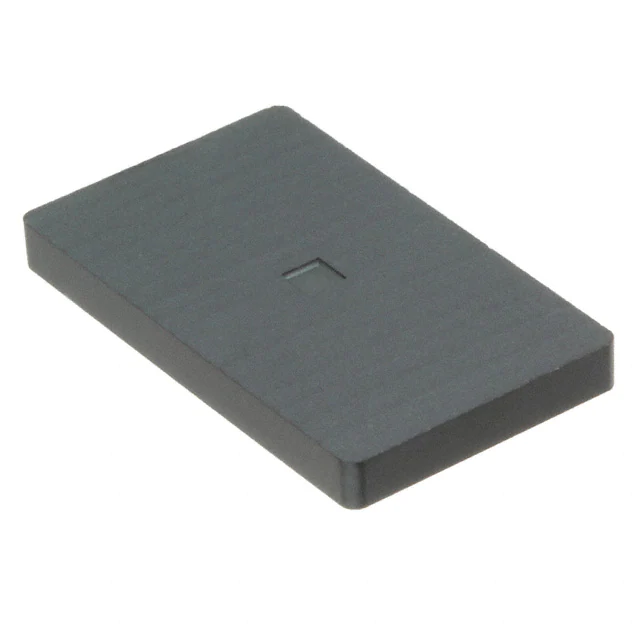

B66481P0000X197FERRITE CORE I N97 1PC |
6,887 |
|
برگه مشخصات |
I25/2/18 | Box | Active | I | I 25 x 2 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.091" (2.30mm) | 0.984" (25.00mm) | 0.709" (18.00mm) |
|
B65513J0000R049FERRITE CORE ER 1.1UH N49 2PCS |
2,761 |
|
برگه مشخصات |
ER14.5 | Box | Active | ER | ER 14.5 x 6 | N49 | - | 1.1 µH | -20%, +30% | Ungapped | 800.0 | 1500 | 1.1 | 19.0 | 17.6 | - | 333.0 | Uncoated | 0.116" (2.95mm) | 0.571" (14.50mm) | 0.264" (6.70mm) |
|
TX13/7.9/6.4-4C65FERRITE CORE TOROID 4C65 |
2,016 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 13 x 7.9 x 6.4 | 4C65 | 0.526" (13.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.275" (7.00mm) | - | - |
|
B65805J0000R030FERRITE CORE RM 3.5UH N30 2PCS |
1,936 |
|
برگه مشخصات |
RM5 | Box | Active | RM | RM 5 | N30 | - | 3.5 µH | -20%, +30% | Ungapped | 2590.0 | 4300 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
B65803J0000R608FERRITE CORE RM PCS200 |
1,705 |
|
برگه مشخصات |
RM4 | Bulk | Active | RM | RM 4 | PC200 | - | - | -20%, +30% | Ungapped | 670.0 | 800 | 1.7 | 22.0 | 13.0 | 11.3 | 286.0 | Uncoated | 0.413" (10.50mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
TX22/14/13-3C94FERRITE CORE TOROID 3C94 |
473 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 22 x 14 x 13 | 3C94 | 0.880" (22.35mm) | - | ±20% | Ungapped | - | 2300 | 1.07 | 54.2 | 50.9 | - | 2750.0 | Epoxy | 0.510" (12.95mm) | - | - |
|
B65517D0250J048FERRITE CORE P 250NH N48 2PCS |
19,202 |
|
برگه مشخصات |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366" (9.30mm) | 250 nH | ±5% | Gapped | 249.0 | - | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
B65517D0100A048FERRITE CORE P 100NH N48 2PCS |
8,685 |
|
برگه مشخصات |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366" (9.30mm) | 100 nH | ±3% | Gapped | 100.0 | - | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
B64290L0626X830FERRITE CORE TOROID 3.42UH N30 |
1,200 |
|
برگه مشخصات |
TX22.6/14.7/9.2 | Box | Active | Toroid | - | N30 | 0.937" (23.80mm) | 3.42 µH | ±25% | Ungapped | - | 4300 | 1.59 | 56.82 | 35.78 | - | 2033.0 | Epoxy | 0.402" (10.20mm) | - | - |
|
B66480G0000X149FERRITE CORE ER N49 1PC |
18,824 |
|
برگه مشخصات |
ER18/3/10 | Box | Active | ER | ER 18 x 3 x 10 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 0.709" (18.00mm) | 0.382" (9.70mm) |
