هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

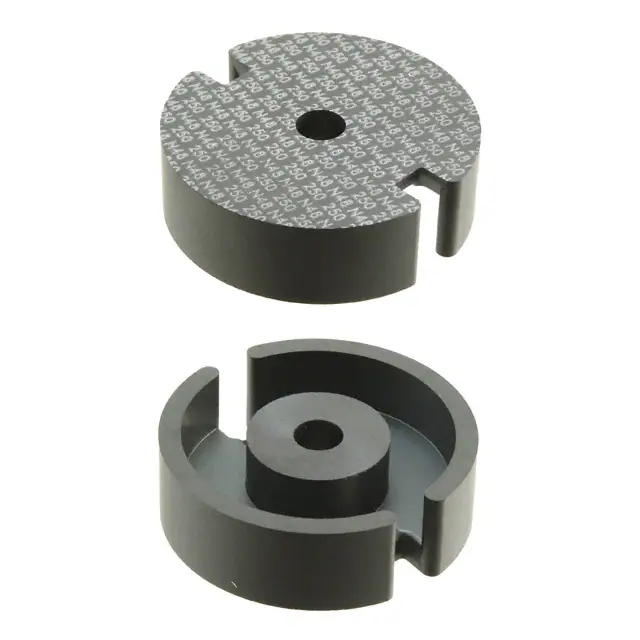

B65611T0250G048FERRITE CORE P 250NH N48 2PCS |
340 |
|
برگه مشخصات |
P36/22 | Box | Active | P (Pot Core) | P 36 x 22 | N48 | 1.417" (36.00mm) | 250 nH | ±2% | Gapped | 51.0 | - | 0.26 | 52.0 | 202.0 | - | 10500.0 | Uncoated | 0.433" (11.00mm) | - | - |
|
B65881Q0100K095FERRITE CORE PQ 100NH N95 |
248 |
|
برگه مشخصات |
PQ35/35 | Bulk | Active | PQ | PQ 35 x 35 | N95 | - | 100 nH | ±10% | Distributed Gapped | - | 3000 | 0.47 | 79.7 | 171.0 | 161.0 | 13650.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
PQ50/50-3F36FERRITE CORE PQ 3F36 2PC SET |
102 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 50 x 50 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.969" (50.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) |
|
HF60T62X13X39FERRITE CORE TOROID |
321 |
|
برگه مشخصات |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|

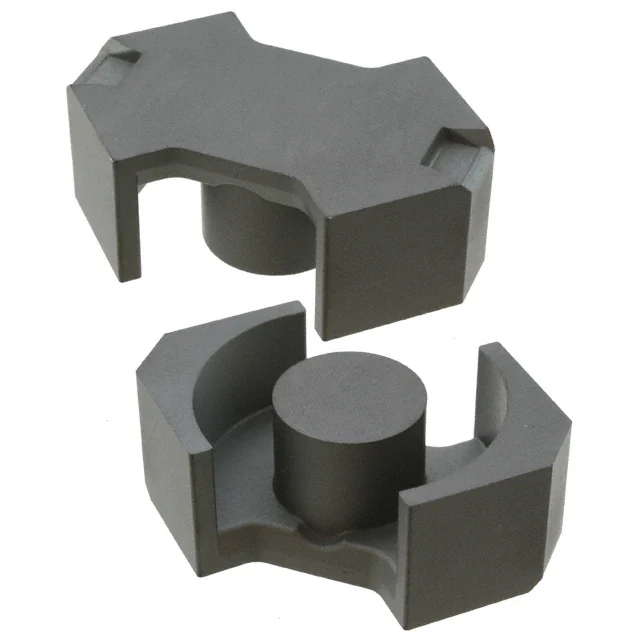

B65887E0000R049FERRITE CORE RM 3.9UH N49 2PCS |
210 |
|
برگه مشخصات |
RM14 | Box | Active | RM | RM 14 | N49 | - | 3.9 µH | -20%, +30% | Ungapped | 1090.0 | 2200 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
B65881A0000R095FERRITE CORE PQ 5.7UH N95 2PCS |
198 |
|
برگه مشخصات |
PQ35/35 | Box | Active | PQ | PQ 35 x 35 | N95 | - | 5.7 µH | -20%, +30% | Ungapped | 2120.0 | 2000 | 0.467 | 79.2 | 169.7 | 146.5 | 13440.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
|
TX58/41/18-3C90FERRITE CORE TOROID 3C90 |
156 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 58 x 41 x 18 | 3C90 | 2.354" (59.80mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.729" (18.60mm) | - | - |
|
|
B65883A0000R095FERRITE CORE PQ 5.5UH N95 2PCS |
190 |
|
برگه مشخصات |
PQ40/40 | Box | Active | PQ | PQ 40 x 40 | N95 | - | 5.5 µH | -20%, +30% | Ungapped | 2145.0 | 2000 | 0.49 | 92.5 | 188.3 | 159.9 | 17430.0 | Uncoated | 0.783" (19.90mm) | 1.594" (40.50mm) | 1.102" (28.00mm) |
|
B64290L0040X065FERRITE CORE TOROID 6.25UH T65 |
825 |
|
برگه مشخصات |
TX58.3/40.8/17.6 | Box | Active | Toroid | - | T65 | 2.366" (60.10mm) | 6.25 µH | ±30% | Ungapped | - | 5000 | 1.0 | 152.4 | 152.4 | - | 23230.0 | Epoxy | 0.740" (18.80mm) | - | - |
|
E71/33/32-3C92FERRITE CORE E 3C92 |
212 |
|
برگه مشخصات |
- | Bulk | Active | E | E 71 x 33 x 32 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|
TX50/30/19-3E6FERRITE CORE TOROID |
122 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 50 x 30 x 19 | - | 2.022" (51.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.791" (20.10mm) | - | - |
|
|
TX58/41/18-3E27FERRITE CORE TOROID 3E+27 |
200 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 58 x 41 x 18 | 3E27 | 2.354" (59.80mm) | - | ±25% | Ungapped | 5500.0 | - | 1.0 | 152.0 | 152.0 | - | 23200.0 | Epoxy | 0.729" (18.60mm) | - | - |
|
|
PQ50/50-3C96FERRITE CORE PQ 3C96 2PC SET |
177 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 50 x 50 | 3C96 | - | - | ±25% | Ungapped | 1730.0 | - | 0.345 | 113.0 | 328.0 | 314.0 | 37100.0 | Uncoated | 1.969" (50.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) |
|
T60006L2045V118FERRITE CORE TOROID 24.3UH |
2,316 |
|
برگه مشخصات |
- | Box | Active | Toroid | - | - | 1.906" (48.40mm) | 24.3 µH | - | Ungapped | - | - | - | 118.0 | 85.5 | - | - | Uncoated | 0.717" (18.20mm) | - | - |
|
|
PQ50/50-3C97FERRITE CORE PQ 3C97 2PC SET |
263 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 50 x 50 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.969" (50.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) |
|
|
B64290A0082X830FERRITE CORE TOROID 8.7UH N30 |
397 |
|
برگه مشخصات |
T50/30/20 | Box | Active | Toroid | R 50 x 30 x 20 | N30 | 1.969" (50.00mm) | 8.7 µH | ±25% | Ungapped | - | 4300 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Uncoated | 0.787" (20.00mm) | - | - |
|
|
PQ50/30-3F36FERRITE CORE PQ 3F36 2PC SET |
399 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 50 x 30 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) |
|
B66397Q0400K195FERRITE CORE ETD 400NH N95 |
150 |
|
برگه مشخصات |
ETD59/31/22 | Bulk | Active | ETD | ETD 59 x 31 x 22 | N95 | - | 400 nH | ±10% | Distributed Gapped | - | - | 0.38 | 139.0 | 368.0 | 368.0 | 51200.0 | Uncoated | 0.870" (22.10mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
5968003801FERRITE CORE TOROID 68 |
723 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 68 | - | - | - | Ungapped | - | 16 | - | 145.0 | 158.0 | - | 22800.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
2661103002FERRITE CORE |
124 |
|
برگه مشخصات |
- | Bulk | Active | Tube | - | 61 | 1.253" Dia (31.83mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | 2.000" (50.80mm) | - |
