هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290L0742X065FERRITE CORE TOROID 2.85UH T65 |
3,717 |
|
برگه مشخصات |
TX13/7.9/6.4 | Box | Active | Toroid | - | T65 | 0.535" (13.60mm) | 2.85 µH | ±30% | Ungapped | - | 4700 | 2.08 | 31.17 | 14.96 | - | 466.0 | Epoxy | 0.281" (7.15mm) | - | - |
|
B64290L0044X035FERRITE CORE TOROID 3.06UH T35 |
4,302 |
|
برگه مشخصات |
TX12.5/7.5/5 | Box | Active | Toroid | - | T35 | 0.535" (13.60mm) | 3.06 µH | ±25% | Ungapped | - | 6000 | 2.46 | 30.09 | 12.23 | - | 368.0 | Epoxy | 0.234" (5.95mm) | - | - |
|
9498103002FERRITE CORE E SET |
2,800 |
|
برگه مشخصات |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 181.0 | 39.9 | 22.0 | 21.6 | 878.0 | Uncoated | 0.315" (8.00mm) | 0.748" (19.00mm) | 0.189" (4.80mm) |
|
8995121221FERRITE CORE EFD 95 SET |
11,505 |
|
برگه مشخصات |
- | Bulk | Active | EFD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 259.0 | 28.4 | 11.0 | 10.8 | 311.0 | Uncoated | 0.244" (6.20mm) | 0.492" (12.50mm) | - |
|
9598100502FERRITE CORE E SET |
3,807 |
|
برگه مشخصات |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 152.0 | 13.6 | 8.93 | 7.6 | 122.0 | Uncoated | - | 0.368" (9.35mm) | - |
|
|
8998121221FERRITE CORE EFD SET |
2,880 |
|
برگه مشخصات |
- | Bulk | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 259.0 | 28.4 | 11.0 | 10.8 | 311.0 | Uncoated | 0.244" (6.20mm) | 0.492" (12.50mm) | - |
|
|
9495103002FERRITE CORE E 95 SET |
2,772 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 181.0 | 39.9 | 22.0 | 21.6 | 878.0 | Uncoated | 0.315" (8.00mm) | 0.748" (19.00mm) | 0.189" (4.80mm) |
|
9578100502FERRITE CORE E 78 SET |
1,303 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 152.0 | 13.6 | 8.93 | 7.6 | 122.0 | Uncoated | - | 0.368" (9.35mm) | - |
|
|
9478104002FERRITE CORE E 78 SET |
1,319 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 150.0 | 46.3 | 30.9 | 30.0 | 1430.0 | Uncoated | - | - | - |
|
|
9578110502FERRITE CORE E 78 SET |
3,780 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 112.0 | 14.0 | 12.6 | 10.3 | 177.0 | Uncoated | - | - | - |
|
E20/10/5-3C94FERRITE CORE E 3C94 |
3,668 |
|
برگه مشخصات |
- | Bulk | Active | E | E 20 x 10 x 5 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.815" (20.70mm) | 0.209" (5.30mm) |
|
9478202002FERRITE CORE E 78 SET |
3,044 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 60.0 | 24.3 | 39.5 | 39.0 | 960.0 | Uncoated | - | - | 0.394" (10.00mm) |
|
|
9498202002FERRITE CORE E SET |
1,701 |
|
برگه مشخصات |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 60.0 | 24.3 | 39.5 | 39.0 | 960.0 | Uncoated | - | - | 0.394" (10.00mm) |
|
B66317G0160X127FERRITE CORE E N27 1PC |
1,029 |
|
برگه مشخصات |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|

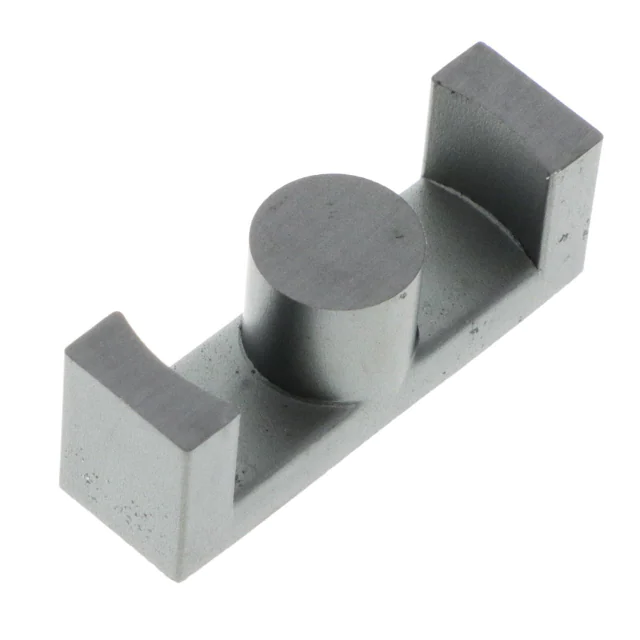

9578261802FERRITE CORE EER 78 SET |
10,742 |
|
برگه مشخصات |
- | Bulk | Active | EER | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 111.0 | 48.0 | 43.4 | 42.5 | 2083.0 | Uncoated | 0.366" (9.30mm) | - | 0.295" (7.50mm) |
|
4052195211FERRITE CORE ROD 52 |
4,924 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 52 | - | - | - | Ungapped | - | 250 | - | - | - | - | - | Uncoated | - | 0.984" (25.00mm) | - |
|
TX14/9/5-3E65FERRITE CORE TOROID |
1,600 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 14 x 9 x 5 | - | 0.561" (14.25mm) | - | ±30% | Ungapped | - | 10000 | 2.84 | 35.0 | 12.3 | - | 430.0 | Epoxy | 0.207" (5.25mm) | - | - |
|
TX13/7.9/6.4-3E10-MFERRITE CORE TOROID |
1,260 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 13 x 7.9 x 6.4 | - | 0.526" (13.35mm) | - | ±30% | Ungapped | 10000.0 | - | 2.21 | 31.2 | 14.1 | - | 442.0 | Epoxy | 0.275" (7.00mm) | - | - |
|
|
B66317G1000X127FERRITE CORE E N27 1PC |
3,581 |
|
برگه مشخصات |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
B66300G0000X138FERRITE CORE E T38 1PC |
7,376 |
|
برگه مشخصات |
E6.3 | Box | Active | E | E 6 x 3 | T38 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.248" (6.30mm) | 0.079" (2.00mm) |
