هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX13/7.1/4.8-3E65FERRITE CORE TOROID |
1,900 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 13 x 7.1 x 4.8 | - | 0.510" (12.95mm) | - | ±30% | Ungapped | - | 10400 | 2.4 | 29.5 | 12.3 | - | 361.0 | Epoxy | 0.198" (5.03mm) | - | - |
|
8998202021FERRITE CORE EFD SET |
1,120 |
|
برگه مشخصات |
- | Bulk | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 156.0 | 47.4 | 31.0 | 29.0 | 1440.0 | Uncoated | - | - | - |
|

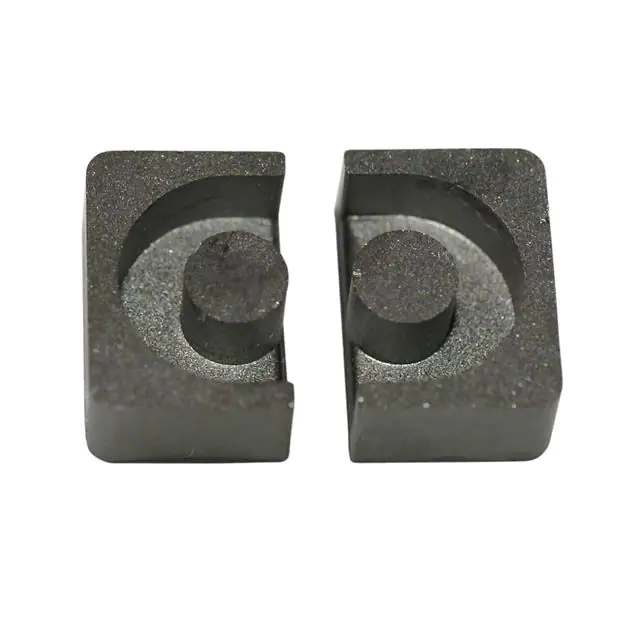

6595070121FERRITE CORE EP 95 SET |
4,775 |
|
برگه مشخصات |
- | Bulk | Active | EP | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 144.0 | 14.8 | 10.3 | 8.5 | 152.0 | Uncoated | - | - | 0.252" (6.40mm) |
|
B66283K0000X192FERRITE CORE I N92 |
1,832 |
|
برگه مشخصات |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
5695110821FERRITE CORE PS 95 SET |
14,218 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | 95 | 0.437" (11.10mm) | - | ±25% | Ungapped | - | 3000 | 95.0 | 16.5 | 17.3 | - | 284.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
B66311G0200X187FERRITE CORE E N87 |
3,205 |
|
برگه مشخصات |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N87 | - | - | - | Gapped | - | 2200 | 1.44 | 46.3 | 32.1 | 31.9 | 1490.0 | Uncoated | 0.398" (10.10mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|

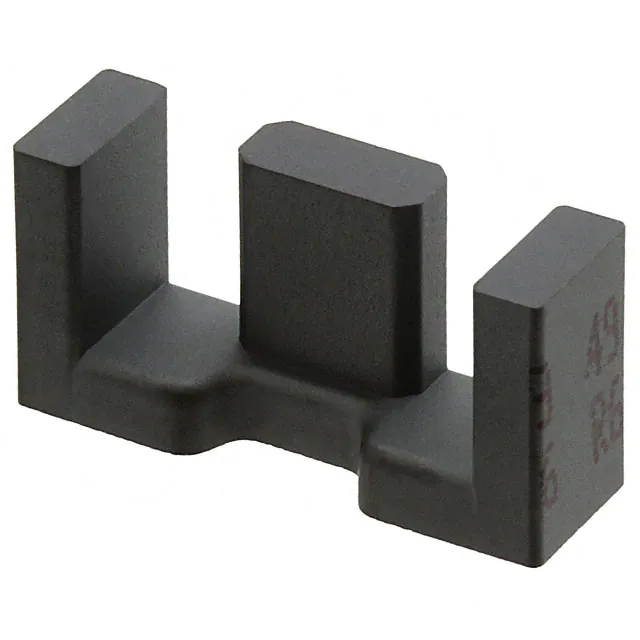

B66411G0000X187FERRITE CORE EFD N87 1PC |
11,451 |
|
برگه مشخصات |
EFD10/5/3 | Box | Active | EFD | EFD 10 x 5 x 3 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.205" (5.20mm) | 0.413" (10.50mm) | 0.106" (2.70mm) |
|
5678140921FERRITE CORE PS 78 SET |
2,100 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | 78 | 0.551" (14.00mm) | - | ±25% | Ungapped | - | 2300 | 79.0 | 19.8 | 25.1 | - | 495.0 | Uncoated | 0.165" (4.20mm) | - | - |
|

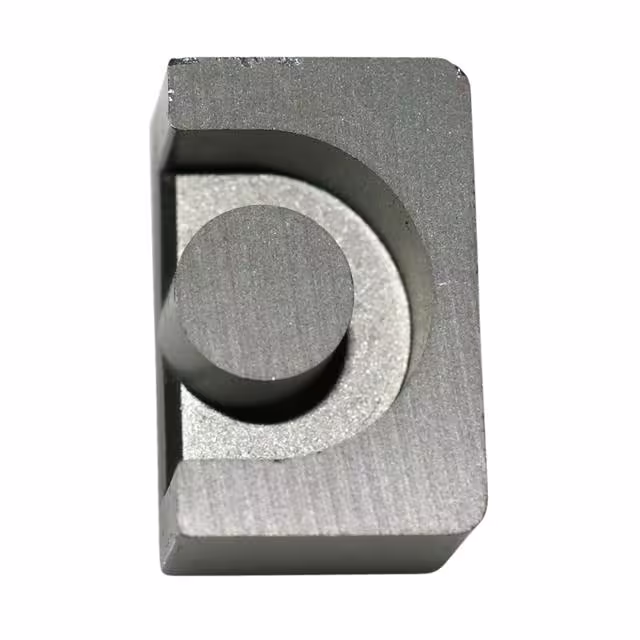

6578100121FERRITE CORE EP 78 SET |
1,982 |
|
برگه مشخصات |
- | Bulk | Active | EP | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 168.0 | 18.5 | 11.0 | 8.5 | 203.0 | Uncoated | - | - | - |
|

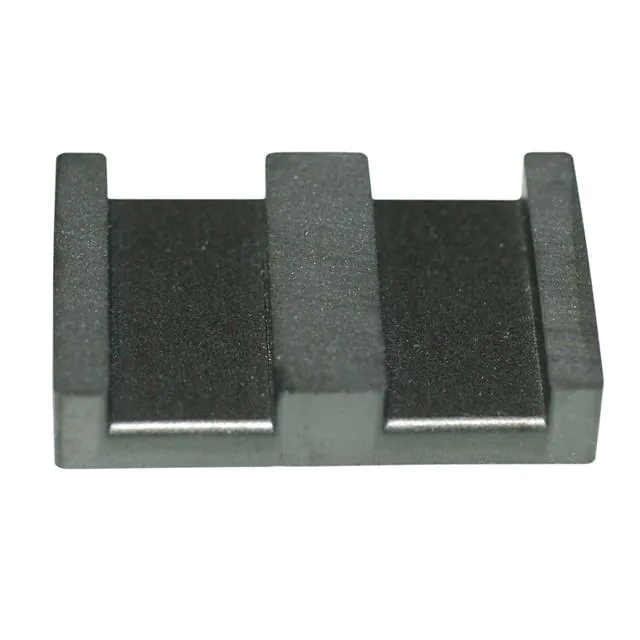

9495202002FERRITE CORE E 95 SET |
1,756 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 60.0 | 24.3 | 39.5 | 39.0 | 960.0 | Uncoated | - | - | 0.394" (10.00mm) |
|

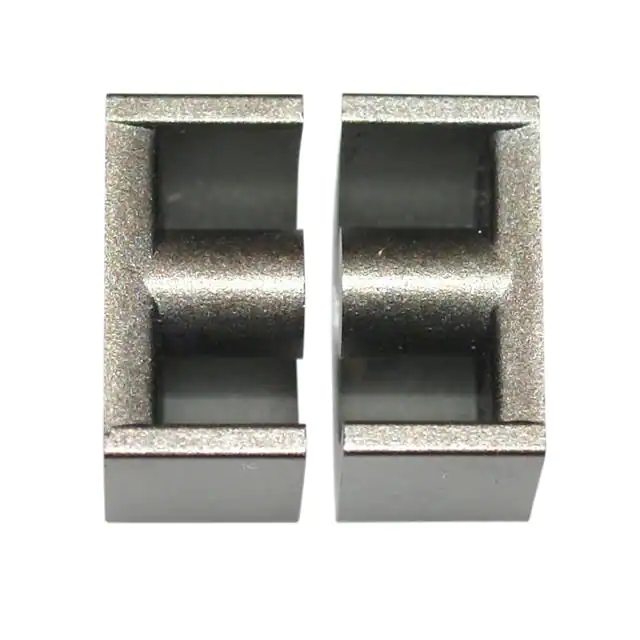

6578130121FERRITE CORE EP 78 SET |
1,871 |
|
برگه مشخصات |
- | Bulk | Active | EP | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 118.0 | 23.2 | 19.7 | 14.8 | 457.0 | Uncoated | 0.256" (6.50mm) | 0.492" (12.50mm) | - |
|
8995202021FERRITE CORE EFD 95 |
1,110 |
|
برگه مشخصات |
- | Bulk | Active | EFD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 156.0 | 47.4 | 31.0 | 29.0 | 1440.0 | Uncoated | - | - | - |
|
|
9495203002FERRITE CORE E 95 SET |
620 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 41.0 | 32.4 | 79.0 | 79.0 | 2560.0 | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | - |
|
B65931C0000X022FERRITE CORE N22 |
2,663 |
|
برگه مشخصات |
PS5.6/3.7 | Box | Active | - | - | N22 | 0.220" (5.60mm) | - | - | - | - | 2300 | - | - | - | - | - | Uncoated | 0.146" (3.70mm) | - | - |
|
|
5695140921FERRITE CORE PS 95 SET |
1,589 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | 95 | 0.551" (14.00mm) | - | ±25% | Ungapped | - | 3000 | 79.0 | 19.8 | 25.1 | - | 495.0 | Uncoated | 0.165" (4.20mm) | - | - |
|
|
8998252521FERRITE CORE EFD SET |
576 |
|
برگه مشخصات |
- | Bulk | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 104.0 | 58.8 | 58.0 | 55.0 | 3320.0 | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | - |
|
B64290A0045X035FERRITE CORE TOROID 3.87UH T35 |
4,740 |
|
برگه مشخصات |
T16/9.6/6.3 | Box | Active | Toroid | R 16 x 9.6 x 6.3 | T35 | 0.630" (16.00mm) | 3.87 µH | ±25% | Ungapped | - | 6000 | 1.95 | 38.52 | 19.73 | - | 760.0 | Uncoated | 0.248" (6.30mm) | - | - |
|
5695261721FERRITE CORE P 95 SET |
550 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | - | 95 | 0.118" (3.00mm) | - | ±25% | Ungapped | - | 3000 | 44.0 | 38.0 | 86.7 | 74.0 | 3310.0 | Uncoated | 0.317" (8.05mm) | - | - |
|
|
5979001001FERRITE CORE TOROID 860NH 79 |
477 |
|
برگه مشخصات |
HF | Bulk | Active | Toroid | - | 79 | 1.142" (29.00mm) | 860 nH | ±25% | Ungapped | - | 1400 | 1.98 | 73.2 | 37.0 | - | 2700.0 | Uncoated | 0.295" (7.50mm) | - | - |
|
RM6S/ILP-3C95FERRITE CORE RM 3C95 2PC SET |
273 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 6 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.354" (9.00mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
