هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H5AP14/8Z-52B2PCS POT CORE FOR SIGNAL TRANSFO |
539 |
|
برگه مشخصات |
P | Tray | Not For New Designs | P (Pot Core) | P 14 x 8 | H5A | - | 3 µH | ±25% | Ungapped | 1884.0 | 3300 | 0.789 | 19.8 | 25.1 | 18.4 | 497.0 | Uncoated | 0.335" (8.50mm) | - | - |
|
B65843A0160B087FERRITE CORE EP 160NH N87 2PCS |
1,458 |
|
برگه مشخصات |
EP13 | Box | Active | EP | EP 13 | N87 | - | 160 nH | ±4% | Gapped | 158.0 | 2200 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
B65807J0250A041FERRITE CORE RM 250NH N41 2PCS |
852 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | N41 | - | 250 nH | ±3% | Gapped | 155.0 | 2800 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B66361G1000X127FERRITE CORE ETD N27 1PC |
761 |
|
برگه مشخصات |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
|
5698261721FERRITE CORE PS SET |
255 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | - | 1.004" (25.50mm) | - | ±25% | Ungapped | - | 2400 | 44.0 | 38.0 | 86.7 | - | 3310.0 | Uncoated | 0.317" (8.05mm) | - | - |
|
B66453K0000X197FERRITE CORE I N97 |
1,618 |
|
برگه مشخصات |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B66381G0000X172FERRITE CORE E N72 1PC |
167 |
|
برگه مشخصات |
B66381 | Box | Not For New Designs | E | E 40 x 16 x 12 | N72 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.650" (16.50mm) | 1.598" (40.60mm) | 0.492" (12.50mm) |
|
TX25/15/13-3E65FERRITE CORE TOROID |
278 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 25 x 15 x 13 | - | 1.007" (25.95mm) | - | ±25% | Ungapped | 5200.0 | - | 0.97 | 60.1 | 62.1 | - | 3740.0 | Epoxy | 0.539" (13.70mm) | - | - |
|
B66461G0000X187FERRITE CORE ELP N87 1PC |
195 |
|
برگه مشخصات |
ELP43/10/28 | Box | Active | ELP | ELP 43 x 10 x 28 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
|
TX25/15/13-3E10-MFERRITE CORE TOROID |
231 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 25 x 15 x 13 | - | 1.007" (25.95mm) | - | ±30% | Ungapped | 10000.0 | - | 0.97 | 60.1 | 62.1 | - | 3740.0 | Epoxy | 0.539" (13.70mm) | - | - |
|
B66501G0000X192FERRITE CORE ER N92 1PC |
123 |
|
برگه مشخصات |
ER32/5/21 | Box | Active | ER | ER 32 x 5 x 21 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 1.260" (32.00mm) | 0.827" (21.00mm) |
|
B66283G0000X192FERRITE CORE ELP N92 1PC |
1,607 |
|
برگه مشخصات |
ELP18/4/10 | Box | Active | ELP | ELP 18 x 4 x 10 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
7878400321FERRITE CORE E 78 SET |
612 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 33.0 | 26.1 | 79.0 | 79.0 | 2060.0 | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | - |
|

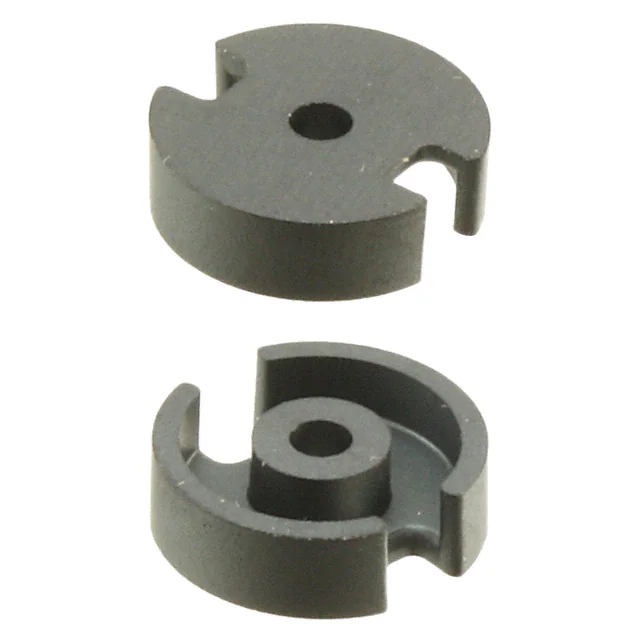

B65531D0160A048FERRITE CORE P 160NH N48 2PCS |
2,000 |
|
برگه مشخصات |
P11/7 | Box | Active | P (Pot Core) | P 11 x 7 | N48 | 0.445" (11.30mm) | 160 nH | ±3% | Gapped | 127.0 | - | 1.0 | 15.9 | 15.9 | - | 253.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
B65517D0160A048FERRITE CORE P 160NH N48 2PCS |
531 |
|
برگه مشخصات |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366" (9.30mm) | 160 nH | ±3% | Gapped | 159.0 | - | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
TX22/14/13-3E6FERRITE CORE TOROID |
233 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 22 x 14 x 13 | - | 0.880" (22.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.510" (12.95mm) | - | - |
|
9578394002FERRITE CORE ETD 78 SET |
176 |
|
برگه مشخصات |
- | Bulk | Active | ETD | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 72.0 | 92.4 | 128.0 | 126.7 | 11850.0 | Uncoated | - | - | 0.500" (12.70mm) |
|
B66455G0000X197FERRITE CORE ELP N97 1PC |
739 |
|
برگه مشخصات |
ELP22/6/16 | Box | Active | ELP | ELP 22 x 6 x 16 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
5976000221FERRITE CORE TOROID 4.4UH 76 |
11,790 |
|
برگه مشخصات |
- | Bag | Active | Toroid | - | 76 | 0.392" (9.95mm) | 4.4 µH | -35%, +30% | Ungapped | - | 10000 | 2.855 | 20.7 | 7.25 | - | 150.0 | Plastic | 0.140" (3.55mm) | - | - |
|
6678322121FERRITE CORE PQ 78 SET |
225 |
|
برگه مشخصات |
- | Bulk | Active | PQ | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 32.7 | 53.7 | 164.2 | 140.4 | 8821.0 | Uncoated | - | 1.260" (32.00mm) | 0.866" (22.00mm) |
