IGBT های منفرد
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | نوع IGBT | ولتاژ - خرابی امیتر کلکتور (حداکثر) | فعلی - گردآورنده (IC) (حداکثر) | جریان - پالس جمع کننده (Icm) | Vce(on) (Max) @ Vge، Ic | قدرت - حداکثر | انرژی سوئیچینگ | نوع ورودی | شارژ دروازه | Td (روشن/خاموش) @ 25 درجه سانتی گراد | شرایط تست | زمان بازیابی معکوس (trr) | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

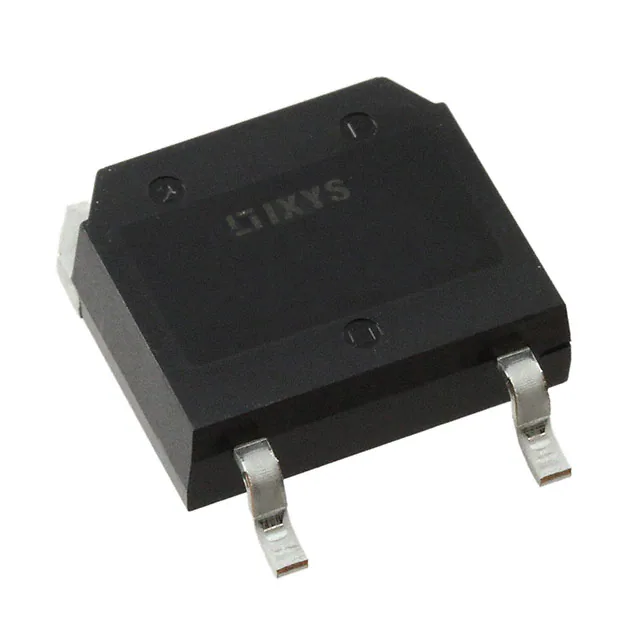

IXBT32N300HVIGBT 3000V 80A TO268HV |
8,252 |
|
برگه مشخصات |
BIMOSFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 3000 V | 80 A | 280 A | 3.2V @ 15V, 32A | 400 W | - | Standard | 142 nC | 50ns/160ns | 1250V, 32A, 2Ohm, 15V | 1500 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXBT) |
|
IXBH14N300HVDISC IGBT BIMSFT VERYHIVOLT TO-2 |
5,891 |
|
برگه مشخصات |
BIMOSFET™ | TO-247-3 | Tube | Active | - | 3000 V | 38 A | 120 A | 2.7V @ 15V, 14A | 200 W | - | Standard | 62 nC | - | - | 1.4 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV (IXBH) |
|
IXGF20N250IGBT 2500V 23A ISOPLUSI4 |
2,701 |
|
برگه مشخصات |
- | i4-Pac™-5 (3 Leads) | Tube | Obsolete | - | 2500 V | 23 A | 105 A | 3.1V @ 15V, 20A | 100 W | - | Standard | 53 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
IXGF30N400IGBT 4000V 30A 160W I4-PAK |
9,830 |
|
برگه مشخصات |
- | i4-Pac™-5 (3 Leads) | Tube | Active | - | 4000 V | 30 A | 360 A | 5.2V @ 15V, 90A | 160 W | - | Standard | 135 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
MMIX1G120N120A3V1IGBT 1200V 220A 400W SMPD |
7,047 |
|
برگه مشخصات |
GenX3™ | 24-PowerSMD, 21 Leads | Tube | Obsolete | PT | 1200 V | 220 A | 700 A | 2.2V @ 15V, 100A | 400 W | 10mJ (on), 33mJ (off) | Standard | 420 nC | 40ns/490ns | 960V, 100A, 1Ohm, 15V | 700 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
|
IXGT25N250HVIGBT 2500V 60A TO268HV |
3,747 |
|
برگه مشخصات |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 2500 V | 60 A | 200 A | 2.9V @ 15V, 25A | 250 W | - | Standard | 75 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXGT) |
|
|
IXBH32N300HVDISC IGBT BIMSFT-VERYHIVOLT TO-2 |
3,593 |
|
برگه مشخصات |
BIMOSFET™ | TO-247-3 Variant | Tube | Active | - | 3000 V | 80 A | 280 A | 3.2V @ 15V, 32A | 400 W | - | Standard | 142 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV |
|
|
IXGT25N250-T/RIGBT NPT 2500V 60A TO268HV |
4,726 |
|
- |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | NPT | 2500 V | 60 A | 200 A | 2.9V @ 15V, 25A | 250 W | - | Standard | 75 nC | 68ns/209ns | 1250V, 50A, 5Ohm, 15V | 233 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXGT) |
|
|
IXBF42N300IGBT 3000V ISOPLUSI4 |
2,852 |
|
برگه مشخصات |
BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Active | - | 3000 V | 60 A | 380 A | 3V @ 15V, 42A | 240 W | - | Standard | 200 nC | 72ns/445ns | 1500V, 42A, 20Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXBT20N360HVIGBT 3600V 70A TO268AA |
6,080 |
|
برگه مشخصات |
BIMOSFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Not For New Designs | - | 3600 V | 70 A | 220 A | 3.4V @ 15V, 20A | 430 W | 15.5mJ (on), 4.3mJ (off) | Standard | 110 nC | 18ns/238ns | 1500V, 20A, 10Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
DF400R07W2S5FB77BPSA1LOW POWER EASY |
3,845 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXG65I3300KNIGBT PT 3300V 85A ISOPLUS264 |
6,988 |
|
- |
X2PT™ | ISOPLUS264™ | Tube | Active | PT | 3300 V | 85 A | - | - | - | - | Standard | - | - | - | - | - | - | - | Through Hole | ISOPLUS264™ |
|
|
IXG50I4500KNIGBT PT 4500V 74A ISOPLUS264 |
5,404 |
|
برگه مشخصات |
X2PT™ | ISOPLUS264™ | Tube | Active | PT | 4500 V | 74 A | - | - | - | - | Standard | - | - | - | - | - | - | - | Through Hole | ISOPLUS264™ |
.jpg)
|
IXBX55N300IGBT 3000V 130A 625W PLUS247 |
4,057 |
|
برگه مشخصات |
BIMOSFET™ | TO-247-3 Variant | Tube | Not For New Designs | - | 3000 V | 130 A | 600 A | 3.2V @ 15V, 55A | 625 W | - | Standard | 335 nC | - | - | 1.9 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXBF55N300DISC IGBT BIMSFT-VERYHIVOLT I4-P |
2,073 |
|
برگه مشخصات |
BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Active | - | 3000 V | 86 A | 600 A | 3.2V @ 15V, 55A | 357 W | - | Standard | 335 nC | - | - | 1.9 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXBF50N360IGBT 3600V 70A 290W I4-PAK |
4,195 |
|
برگه مشخصات |
BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Obsolete | - | 3600 V | 70 A | 420 A | 2.9V @ 15V, 50A | 290 W | - | Standard | 210 nC | 46ns/205ns | 960V, 50A, 5Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXBL60N360IGBT 3600V 92A ISOPLUSI5 |
4,754 |
|
برگه مشخصات |
BIMOSFET™ | ISOPLUSi5-Pak™ | Tube | Active | - | 3600 V | 92 A | 720 A | 3.4V @ 15V, 60A | 417 W | - | Standard | 450 nC | 50ns/340ns | 960V, 60A, 4.7Ohm, 15V | 1.95 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
|
|
IXBH42N300HVDISC IGBT BIMSFT-VERYHIVOLT TO-2 |
9,189 |
|
- |
BIMOSFET™ | TO-247-3 Variant | Tube | Active | - | 3000 V | 104 A | 400 A | 3V @ 15V, 42A | 500 W | - | Standard | 200 nC | - | - | 1.7 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV |
|
|
CSM350KNDISC IGBT XPT-GENX3 TO-264(3) |
5,680 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IXBL64N250IGBT 2500V 116A ISOPLUSI5 |
6,835 |
|
برگه مشخصات |
BIMOSFET™ | ISOPLUSi5-PAK™ | Tube | Active | - | 2500 V | 116 A | 750 A | 3V @ 15V, 64A | 500 W | - | Standard | 400 nC | - | - | 160 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
