IGBT های منفرد
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | نوع IGBT | ولتاژ - خرابی امیتر کلکتور (حداکثر) | فعلی - گردآورنده (IC) (حداکثر) | جریان - پالس جمع کننده (Icm) | Vce(on) (Max) @ Vge، Ic | قدرت - حداکثر | انرژی سوئیچینگ | نوع ورودی | شارژ دروازه | Td (روشن/خاموش) @ 25 درجه سانتی گراد | شرایط تست | زمان بازیابی معکوس (trr) | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXYX110N120A4IGBT 1200V 110A GNX4 XPT PLUS247 |
3,036 |
|
برگه مشخصات |
XPT™, GenX4™ | TO-247-3 | Tube | Active | PT | 1200 V | 375 A | 900 A | 1.8V @ 15V, 110A | 1360 W | 2.5mJ (on), 8.4mJ (off) | Standard | 305 nC | 42ns/550ns | 600V, 50A, 1.5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXG100IF1200HFIGBT PT 1200V 140A PLUS247-3 |
8,030 |
|
- |
X2PT™ | TO-247-3 Variant | Tube | Active | PT | 1200 V | 140 A | - | - | - | - | Standard | - | - | - | - | - | - | - | Through Hole | PLUS247™-3 |
|
IXGR60N60C3C1IGBT 600V 75A 170W ISOPLUS247 |
5,043 |
|
برگه مشخصات |
GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 75 A | 260 A | 2.5V @ 15V, 40A | 170 W | 830µJ (on), 450µJ (off) | Standard | 115 nC | 24ns/70ns | 480V, 40A, 3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
|
IPQ-5312-0-MRQFN251-TR-03-0IPQ-5312-0-MRQFN251-TR-03-0. |
7,126 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPQ-5312-0-MRQFN251-MT-03-0IPQ-5312-0-MRQFN251-MT-03-0. |
2,500 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APT40GP90B2DQ2GIGBT PT 900V 101A |
5,125 |
|
برگه مشخصات |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 900 V | 101 A | 160 A | 3.9V @ 15V, 40A | 543 W | 795µJ (off) | Standard | 145 nC | 14ns/90ns | 600V, 40A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|

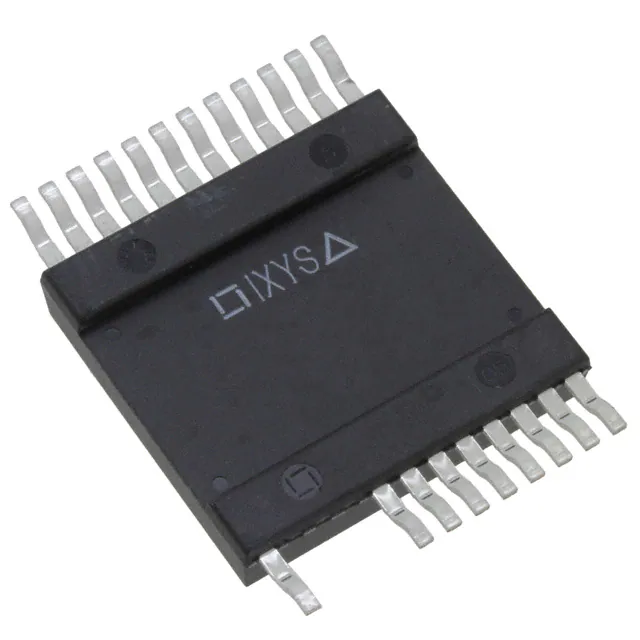

MMIX1X100N60B3H1IGBT 600V 145A 400W SMPD |
8,122 |
|
برگه مشخصات |
GenX3™, XPT™ | 24-PowerSMD, 21 Leads | Tube | Active | - | 600 V | 145 A | 440 A | 1.8V @ 15V, 70A | 400 W | 1.9mJ (on), 2mJ (off) | Standard | 143 nC | 30ns/120ns | 360V, 70A, 2Ohm, 15V | 140 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
APT50GT120LRDQ2GIGBT NPT 1200V 106A TO264 |
7,239 |
|
برگه مشخصات |
Thunderbolt IGBT® | TO-264-3, TO-264AA | Tube | Active | NPT | 1200 V | 106 A | 150 A | 3.7V @ 15V, 50A | 694 W | 2585µJ (on), 1910µJ (off) | Standard | 240 nC | 23ns/215ns | 800V, 50A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 [L] |
|
|
IXXK300N60C3IGBT 600V 510A 2300W TO264 |
9,828 |
|
برگه مشخصات |
GenX3™, XPT™ | TO-264-3, TO-264AA | Tube | Active | PT | 600 V | 510 A | 1075 A | 2V @ 15V, 100A | 2300 W | 3.35mJ (on), 1.9mJ (off) | Standard | 438 nC | 50ns/160ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXXK) |
|
IXGK55N120A3H1IGBT 1200V 125A 460W TO264 |
9,423 |
|
برگه مشخصات |
GenX3™ | TO-264-3, TO-264AA | Tube | Active | PT | 1200 V | 125 A | 400 A | 2.3V @ 15V, 55A | 460 W | 5.1mJ (on), 13.3mJ (off) | Standard | 185 nC | 23ns/365ns | 960V, 55A, 3Ohm, 15V | 200 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXGK) |
|
|
IXGK50N120C3H1IGBT 1200V 95A 460W TO264 |
7,632 |
|
برگه مشخصات |
GenX3™ | TO-264-3, TO-264AA | Tube | Active | PT | 1200 V | 95 A | 240 A | 4.2V @ 15V, 40A | 460 W | 2mJ (on), 630µJ (off) | Standard | 196 nC | 31ns/123ns | 600V, 40A, 2Ohm, 15V | 75 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXGK) |
|
|
APT150GN60B2GIGBT TRENCH FIELD STOP 600V 220A |
7,893 |
|
برگه مشخصات |
- | TO-247-3 Variant | Tube | Active | Trench Field Stop | 600 V | 220 A | 450 A | 1.85V @ 15V, 150A | 536 W | 8.81mJ (on), 4.295mJ (off) | Standard | 970 nC | 44ns/430ns | 400V, 150A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | - |
.jpg)
|
IXRH40N120IGBT 1200V 55A 300W TO247AD |
6,568 |
|
برگه مشخصات |
- | TO-247-3 | Bulk | Obsolete | NPT | 1200 V | 55 A | - | 2.7V @ 15V, 30A | 300 W | 3mJ (on), 700µJ (off) | Standard | 90 nC | - | 600V, 35A, 15Ohm, 15V | 2.1 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXYN75N65C3D1IGBT 650V 150A SOT227B |
7,163 |
|
برگه مشخصات |
XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | 650 V | 150 A | 360 A | 2.3V @ 15V, 60A | 600 W | 2mJ (on), 950µJ (off) | Standard | 122 nC | 26ns/93ns | 400V, 60A, 3Ohm, 15V | 65 ns | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227B |
.jpg)
|
IXGR55N120A3H1IGBT 1200V 70A 200W ISOPLUS247 |
6,109 |
|
برگه مشخصات |
GenX3™ | TO-247-3 | Tube | Active | PT | 1200 V | 70 A | 330 A | 2.35V @ 15V, 55A | 200 W | 5.1mJ (on), 13.3mJ (off) | Standard | 185 nC | 23ns/365ns | 960V, 55A, 3Ohm, 15V | 200 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
APT95GR65JDU60INSULATED GATE BIPOLAR TRANSISTO |
7,057 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | NPT | 650 V | 135 A | 380 A | 2.4V @ 15V, 95A | 446 W | - | Standard | 420 nC | 29ns/226ns | 433V, 95A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
|
APT50GF120B2RGIGBT NPT 1200V 135A |
6,959 |
|
برگه مشخصات |
- | TO-247-3 Variant | Tube | Active | NPT | 1200 V | 135 A | 150 A | 3V @ 15V, 50A | 781 W | 3.6mJ (on), 2.64mJ (off) | Standard | 340 nC | 25ns/260ns | 800V, 50A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
.jpg)
|
IXSX50N60AU1IGBT 600V 75A 300W PLUS247 |
3,625 |
|
- |
- | TO-247-3 Variant | Tube | Obsolete | - | 600 V | 75 A | 200 A | 2.7V @ 15V, 50A | 300 W | 6mJ (off) | Standard | 190 nC | 70ns/200ns | 480V, 50A, 2.7Ohm, 15V | 50 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXXX300N60C3IGBT 600V 510A 2300W TO247 |
3,247 |
|
برگه مشخصات |
GenX3™, XPT™ | TO-247-3 Variant | Tube | Active | PT | 600 V | 510 A | 1075 A | 2V @ 15V, 100A | 2300 W | 3.35mJ (on), 1.9mJ (off) | Standard | 438 nC | 50ns/160ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXGT25N250IGBT 2500V TO-268 |
3,361 |
|
برگه مشخصات |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | NPT | 2500 V | 60 A | - | 2.9V @ 15V, 25A | 250 W | - | Standard | - | - | - | - | - | - | - | Surface Mount | TO-268AA |
