رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1-E DC24RELAY GEN PURPOSE SPDT 16A 24V |
5,615 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-1-E DC5RELAY GEN PURPOSE SPDT 16A 5V |
941 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9AS5L12-24RELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
برگه مشخصات |
T9A | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
2961312RELAY GEN PURPOSE SPDT 16A 24V |
1,315 |
|
برگه مشخصات |
REL-MR | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 17 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|
2903677RELAY GEN PURPOSE 4PDT 6A 24V |
324 |
|
برگه مشخصات |
REL-IR | - | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 42 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 14 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|

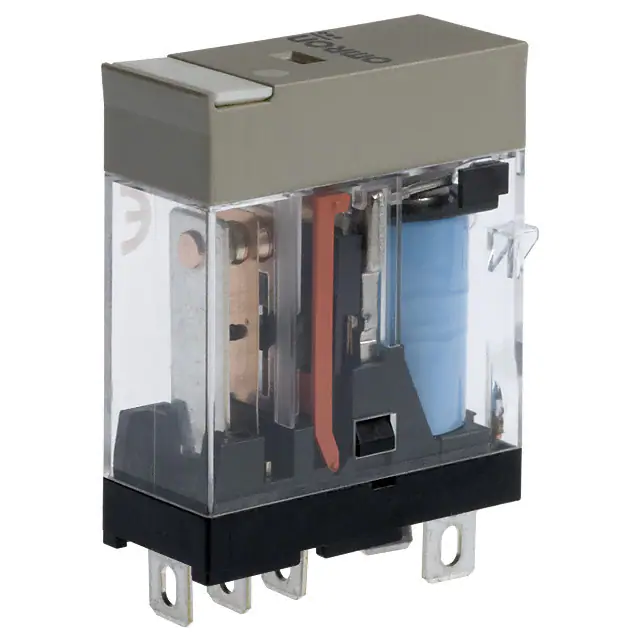

G2R-1-S DC12(S)RELAY GEN PURPOSE SPDT 10A 12V |
3,485 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 43.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
|
G6B-1174P-US DC12RELAY GEN PURPOSE SPST 8A 12V |
16,751 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RT314615RELAY GEN PURPOSE SPDT 16A 115V |
2,827 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Active | Through Hole | 115VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 86.3 VAC | 17.3 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RT114615RELAY GEN PURPOSE SPDT 12A 115V |
3,384 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Active | Through Hole | 115VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 86.3 VAC | 17.3 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T9SV1K15-12RELAY GEN PURPOSE SPST 35A 12V |
2,503 |
|
برگه مشخصات |
T9S | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 9695VA | 188 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | 0.8 VDC | 18 ms | 15 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | UR, VDE | General Purpose | - | - |
|
G6D-1A-ASI DC12RELAY GEN PURPOSE SPST 5A 12V |
13,585 |
|
برگه مشخصات |
G6D | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
DK1A-5V-FRELAY GEN PURPOSE SPST 10A 5V |
2,915 |
|
برگه مشخصات |
DK | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DSP1A-DC5VRELAY GEN PURPOSE SPST 8A 5V |
247 |
|
برگه مشخصات |
DSP | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G6C-2114P-US DC24RELAY GEN PURPOSE DPST 8A 24V |
20,981 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2R-2A4-DC24RELAY GEN PURPOSE DPST 4A 24V |
859 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9AS5D22-12RELAY GEN PURPOSE SPDT 20A 12V |
4,092 |
|
برگه مشخصات |
T9A | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 83 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G6B-2114P-US DC24RELAY GEN PURPOSE DPST 5A 24V |
3,899 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
40.62.9.024.0000RELAY GEN PURPOSE DPDT 10A 24V |
354 |
|
برگه مشخصات |
40 | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA | General Purpose | - | - |
|
|
G6D-1A-ASI DC24RELAY GEN PURPOSE SPST 5A 24V |
15,239 |
|
برگه مشخصات |
G6D | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
ST2-DC24V-FRELAY GEN PURPOSE DPST 8A 24V |
1,096 |
|
برگه مشخصات |
ST | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 3040VA, 2000W | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
