رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6B-2114P-US DC12RELAY GEN PURPOSE DPST 5A 12V |
3,114 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
G6B-2214P-US DC12RELAY GEN PURPOSE DPST 5A 12V |
1,622 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
G6B-2114P-US DC5RELAY GENERAL PURPOSE DPST 5A 5V |
703 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
G4W-2212P-US-TV5-HP DC24RELAY GEN PURPOSE DPST 10A 24V |
1,431 |
|
برگه مشخصات |
G4W | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 33.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
2906224RELAY GEN PURPOSE SPDT 11A 12V |
668 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 11 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
G2RK-1 DC12RELAY GEN PURPOSE SPDT 5A 12V |
1,396 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 70.6 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
2-1415898-5RELAY GEN PURPOSE SPST 16A 12V |
2,883 |
|
برگه مشخصات |
RT1, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | - | Class F | 8.4 VDC | 6.6 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
.JPG)
|
MY2 DC12 (S)RELAY GEN PURPOSE DPDT 5A 12V |
673 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 72.7 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
2903362RELAY GEN PURPOSE SPST 6A 12V |
280 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 16 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
|
AZ2850-2A-24DERELAY SOLAR DPST 40A 24V |
395 |
|
برگه مشخصات |
AZ2850 | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 68.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
2903342RELAY GEN PURPOSE SPDT 11A 24V |
1,070 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 11 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2906223RELAY GEN PURPOSE DPDT 8A 12V |
254 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
|
MY2 DC24 (S)RELAY GEN PURPOSE DPDT 5A 24V |
254 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 36.3 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|

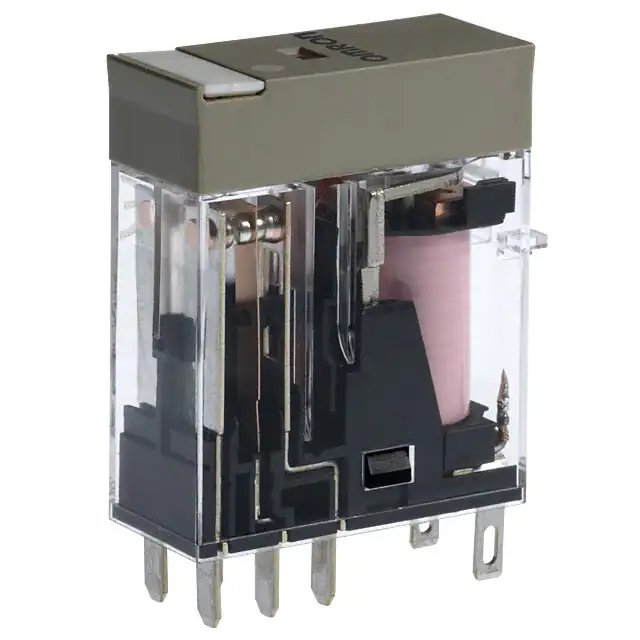

G2R-2-S DC24(S)RELAY GEN PURPOSE DPDT 5A 24V |
4,723 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.6 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|

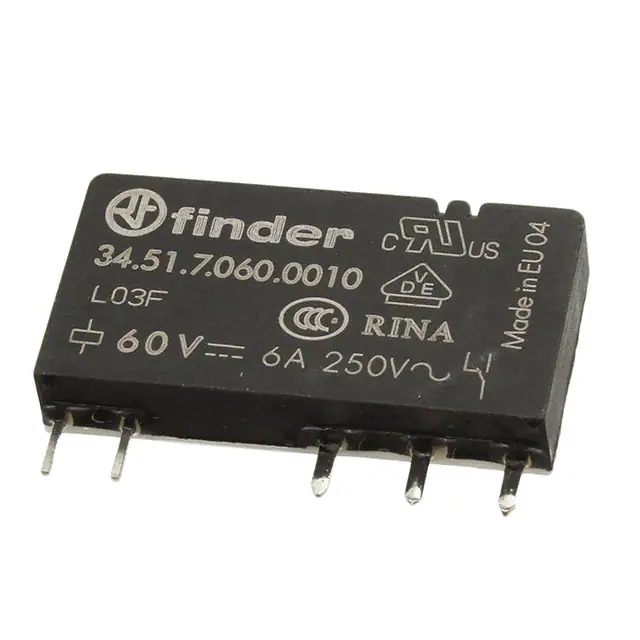

34.51.7.060.0010RELAY GEN PURPOSE SPDT 6A 60V |
204 |
|
برگه مشخصات |
34 | Tube | Active | Through Hole | 60VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 42 VDC | - | 5 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, cURus, RINA, VDE | General Purpose | - | - |
|
LY2-DC12RELAY GEN PURPOSE DPDT 10A 12V |
7,333 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
G6CU-1114P-US DC3RELAY GEN PURPOSE SPST 10A 3V |
2,864 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G4A-1A-PE DC12RELAY GEN PURPOSE SPST 20A 12V |
5,532 |
|
برگه مشخصات |
G4A | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|

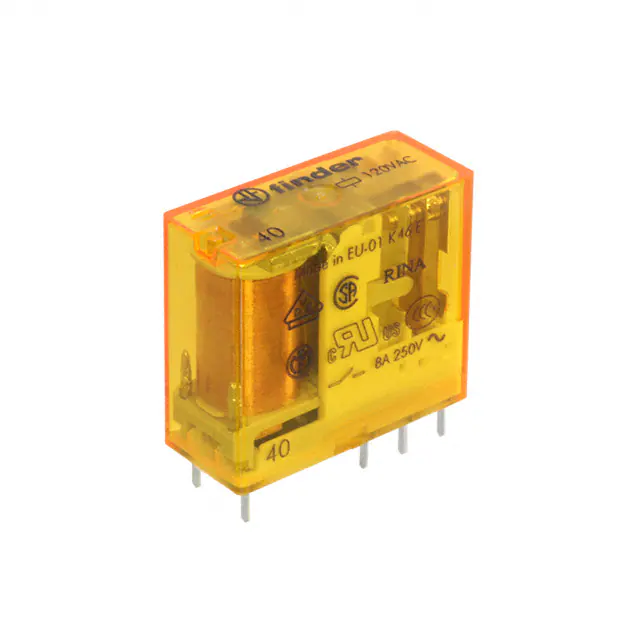

40.52.8.120.0000RELAY GEN PURPOSE DPDT 8A 120V |
433 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 8.4 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 96 VAC | 24 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
G7L-1A-TUB-CB-AC100/120RELAY GEN PURPOSE SPST 30A 120V |
1,308 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 20.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
