رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9AP5D52-12RELAY GEN PURPOSE SPDT 20A 12V |
2,631 |
|
برگه مشخصات |
T9A | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 83 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
34.51.7.005.0010RELAY GEN PURPOSE SPDT 6A 5V |
1,207 |
|
برگه مشخصات |
34 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 38.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 5 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, cURus, RINA, VDE | General Purpose | - | - |
|
|
G2R-1A-E DC48RELAY GEN PURPOSE SPST 16A 48V |
197 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|

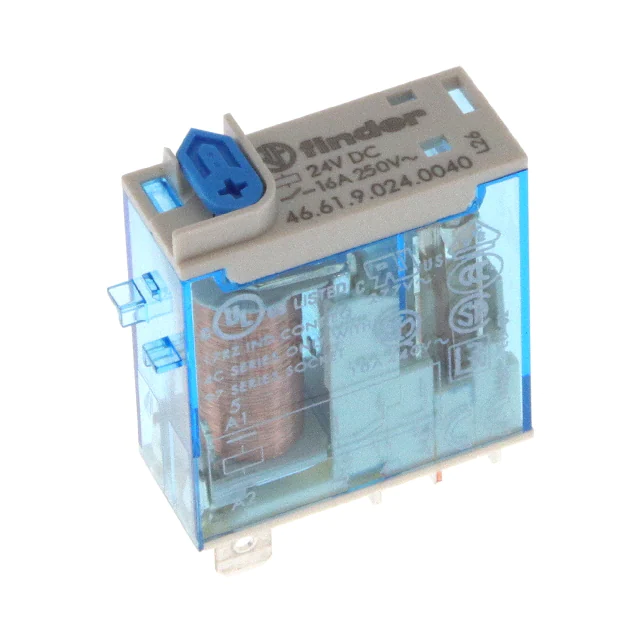

46.61.9.024.0040RELAY GEN PURPOSE SPDT 16A 24V |
579 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 20 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 17.5 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
G6C-2117P-US DC12RELAY GEN PURPOSE DPST 8A 12V |
960 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
2961192RELAY GEN PURPOSE DPDT 8A 24V |
1,021 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 17 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|
|
2961257RELAY GEN PURPOSE DPDT 8A 12V |
622 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|
2903361RELAY GEN PURPOSE SPST 6A 24V |
5,140 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
|
|
T9CP1A54-24RELAY GEN PURPOSE SPST 30A 24V |
107 |
|
برگه مشخصات |
T9C, OEG | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 66.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 19.2 VAC | 7.2 VAC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CSA, UR, VDE | General Purpose | - | - |
|
DSP1-DC5V-FRELAY GEN PURPOSE DPST 5A 5V |
2,326 |
|
برگه مشخصات |
DSP | Tube | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
RT424F12RELAY GEN PURPOSE DPDT 8A 12V |
9,595 |
|
برگه مشخصات |
RT2, SCHRACK | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T9CP1A54-240RELAY GEN PURPOSE SPST 30A 240V |
1,454 |
|
برگه مشخصات |
T9C, OEG | Bulk | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 20.9 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CSA, UR, VDE | General Purpose | - | - |
|
RTS3T005RELAY GEN PURPOSE SPST 16A 5V |
2,183 |
|
برگه مشخصات |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
DE2A-5VRELAY GEN PURPOSE DPST 8A 5V |
4,625 |
|
برگه مشخصات |
DE | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
40.62.7.024.4000RELAY GEN PURPOSE DPDT 10A 24V |
326 |
|
برگه مشخصات |
40 | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 2.4 VDC | 12 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CCC, CSA, cURus, EAC, ENEC, RINA | General Purpose | - | - |
|
|
G6C-2114P-US DC5RELAY GEN PURPOSE DPST 8A 5V |
5,402 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6C-2114P-US DC12RELAY GEN PURPOSE DPST 8A 12V |
3,354 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DK1A-12V-FRELAY GEN PURPOSE SPST 10A 12V |
1,746 |
|
برگه مشخصات |
DK | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-S DC24(S)RELAY GEN PURPOSE SPDT 10A 24V |
1,934 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 21.6 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
G6B-2214P-US DC5RELAY GENERAL PURPOSE DPST 5A 5V |
7,015 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
