رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KA-14AG-12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
KA | Bulk | Obsolete | Chassis Mount | 12VAC | 3PDT (3 Form C) | 10 A | 240VAC - Nom | - | 168 mA | Non Latching | - | Solder Lug | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10L-E1X4-V700RELAY DRY CIR |
0 |
|
- |
R10L | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 120VAC, 30VDC - Max | 600VA, 150W | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
KUP-14A45-240RELAY GEN PURPOSE 3PDT 10A 240V |
93 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 12 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E1X6-V1.5KRELAY GEN PURPOSE 6PDT 5A 48V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 48VDC | 6PDT (6 Form C) | 5 A | 120VAC - Nom | - | 32 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E2Y4-V185RELAY GEN PURPOSE 4PDT 3A 12V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | PC Pin | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
R10-E1X2-J1.0KRELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 45 mA | Non Latching | - | Plug In | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

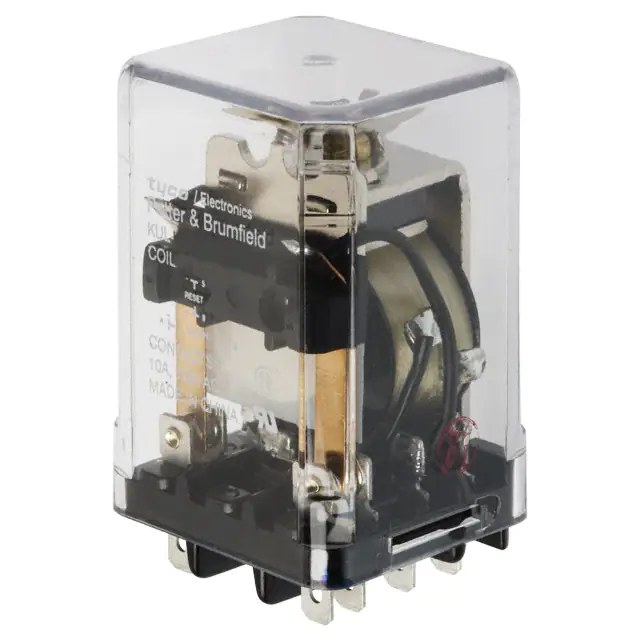

KUL-11D15D-12RELAY GEN PURPOSE DPDT 10A 12V |
138 |
|
برگه مشخصات |
KUL | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 133.3 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 25 ms | 25 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KA-14AY-120RELAY GEN PURPOSE 3PDT 5A 120V |
35 |
|
برگه مشخصات |
KA | Tray | Obsolete | Chassis Mount | 120VAC | 3PDT (3 Form C) | 5 A | 240VAC - Nom | - | 17.5 mA | Non Latching | - | Solder Lug | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
KHU-17D11-48RELAY GEN PURPOSE 4PDT 3A 48V |
0 |
|
برگه مشخصات |
KH | Bulk | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 18.8 mA | Non Latching | - | Plug In | - | Class B | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
K10P-11D15-120RELAY GEN PURPOSE DPDT 15A 120V |
0 |
|
برگه مشخصات |
K10 | Tray | Obsolete | Socketable | 120VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | - | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 90 VDC | 12 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
PRD-11DH1-12RELAY GEN PURPOSE DPDT 20A 12V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
LJR224ADRELAY IMPULSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
JR | Bulk | Obsolete | Socketable | 24VAC/DC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | 2200VA, 80W | - | Latching, Single Coil | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -10°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | Impulse | - | - |
|
|
KHAU-17D12B-24RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
برگه مشخصات |
KHA | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 37.5 mA | Non Latching | Test Button | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KA-14DG-110RELAY GEN PURPOSE 3PDT 10A 110V |
0 |
|
برگه مشخصات |
KA | Bulk | Obsolete | Chassis Mount | 110VDC | 3PDT (3 Form C) | 10 A | 240VAC - Nom | - | 11.5 mA | Non Latching | - | Solder Lug | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10-E1Y2-JJ5.0KRELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 20 mA | Non Latching | - | Plug In | - | - | 14.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
KRP-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10S-E2Y1-J2.5KRELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 2 mA | Non Latching | - | PC Pin | - | - | 5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KA-14AG-240RELAY GEN PURPOSE 3PDT 10A 240V |
35 |
|
برگه مشخصات |
KA | Tray | Obsolete | Chassis Mount | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC - Nom | - | 8.8 mA | Non Latching | - | Solder Lug | - | Class B | 204 VAC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KRP-3DH-12RELAY GEN PURPOSE SPST 20A 12V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 12VDC | SPST-NO (DM) (1 Form X) | 20 A | 240VAC - Max | 4800VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
1-1393102-3RELAY GEN PURPOSE SPST 20A 12V |
84 |
|
برگه مشخصات |
KRP-3 | Box | Active | Socketable | 12VDC | SPST-NO (DM) (1 Form X) | 20 A | 240VAC - Max | - | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
