رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10S-E1Y1-J1.0KRELAY GEN PURPOSE SPDT 3A 5V |
250 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 5VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 3.2 mA | Non Latching | - | Plug In | - | - | 3.25 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
KUMP-14A18-12RELAY GEN PURPOSE 3PDT 15A 12V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Obsolete | Socketable | 12VAC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 230 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 10.2 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10S-E1Y1-J5.0KRELAY GEN PURPOSE SPDT 3A 12V |
255 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 1.4 mA | Non Latching | - | Plug In | - | - | 7 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
K10P-11A55-120RELAY GEN PURPOSE DPDT 15A 120V |
99 |
|
برگه مشخصات |
K10 | Bulk | Obsolete | Through Hole | 120VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 11 mA | Non Latching | - | PC Pin | - | Class B | 102 VAC | 12 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

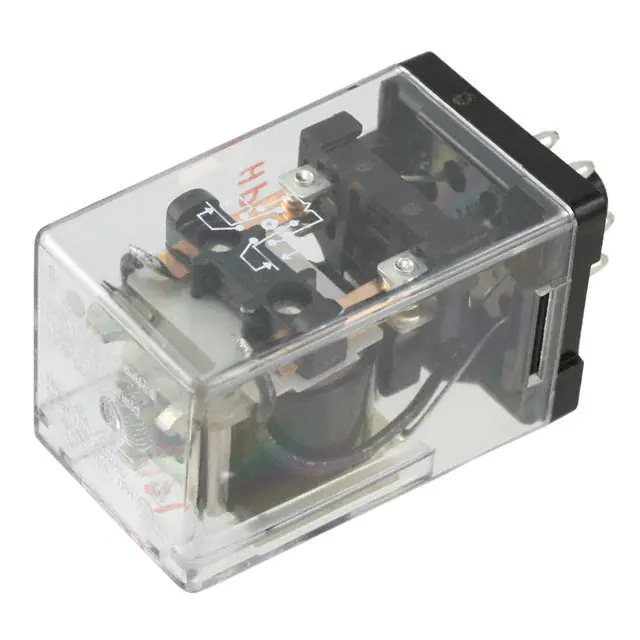

KAP-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
- |
KAP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
KUHP-11D17-24RELAY GEN PURPOSE DPDT 20A 24V |
639 |
|
برگه مشخصات |
KUHP | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 51 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KHAU-17A11-6RELAY GEN PURPOSE 4PDT 3A 6V |
0 |
|
برگه مشخصات |
KHA | Bulk | Obsolete | Socketable | 6VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 200 mA | Non Latching | - | Plug In | - | Class B | 5.1 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KHAU-17A12-12RELAY GEN PURPOSE 4PDT 5A 12V |
0 |
|
برگه مشخصات |
KHA | Bulk | Obsolete | Socketable | 12VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 100 mA | Non Latching | - | Plug In | - | Class B | 10.2 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E7P4-J1.0KRELAY GEN PURPOSE 4PDT 3A 12V |
4 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 45 mA | Non Latching | - | PC Pin | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
PRD-60031-110-50 AMP HEAVY DUTY |
30 |
|
- |
PRD | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R10-E1X8-115VRELAY GEN PURPOSE 8PDT 5A 115V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 115VAC | 8PDT (8 Form C) | 5 A | 120VAC - Nom | - | 15.3 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10-E7X6-J1.0KRELAY GEN PURPOSE 6PDT 5A 12V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 12VDC | 6PDT (6 Form C) | 5 A | 120VAC - Nom | - | 45 mA | Non Latching | - | PC Pin | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

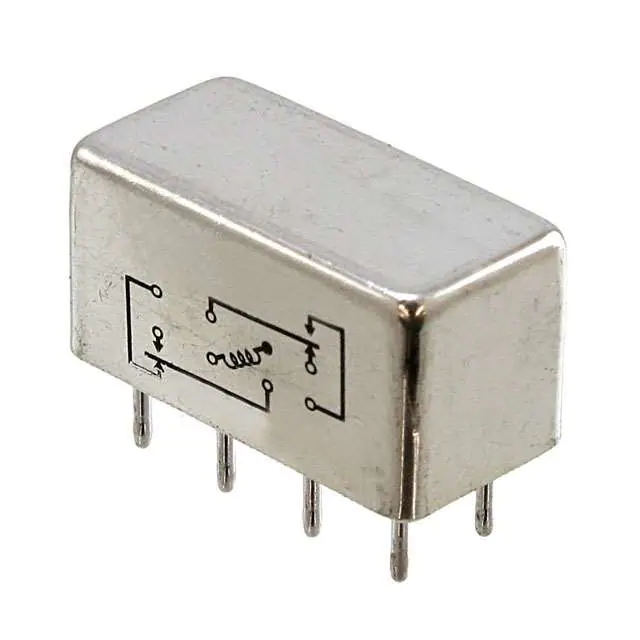

1-1617036-5RELAY GEN PURPOSE DPDT 4A 5V |
0 |
|
برگه مشخصات |
HFW4A, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 4 A | - | - | 185 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|
|
FCA-125-5RELAY GEN PURPOSE SPDT 25A 28V |
0 |
|
برگه مشخصات |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCB-205-0219LFCB-205-0219L=M83536/2-019L |
0 |
|
- |
FCB-205, CII | Bulk | Active | Through Hole | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
B07B311BC3B07B311BC3 = 07 10AMP RELAY |
0 |
|
برگه مشخصات |
07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCB-205-0123LFCB-205-0123L=M83536/1-023L |
49 |
|
- |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
6-1393817-8RELAY GEN PURP |
0 |
|
برگه مشخصات |
V23003, AXICOM | Bulk | Active | Socketable | - | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 250VDC - Max | - | - | Latching, Dual Coil | - | Plug In | - | - | - | - | - | - | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
FW1106G06FW1106G06 = M5757/10-043 |
0 |
|
برگه مشخصات |
FW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 3 A | - | - | 39.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.47 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
KUHP-11AT1-24RELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
برگه مشخصات |
KUHP | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 115 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
