رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

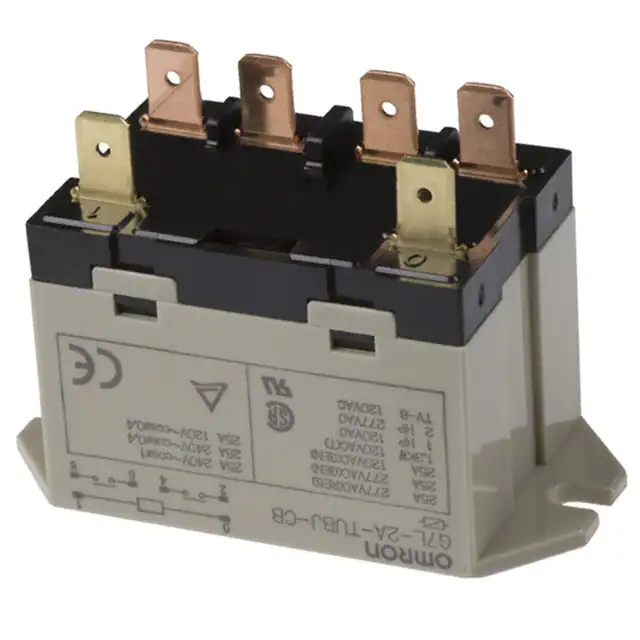

G7L-2A-TUB-J-CB-AC200/240RELAY GEN PURPOSE DPST 25A 240V |
2,834 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
2905291RELAY GEN PURPOSE DPDT 8.5A 24V |
179 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8.5 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 9 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
RH2B-UDC12VRELAY GEN PURPOSE DPDT 10A 12V |
1,417 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH2B-UDC24VRELAY GEN PURPOSE DPDT 10A 24V |
553 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 37 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|

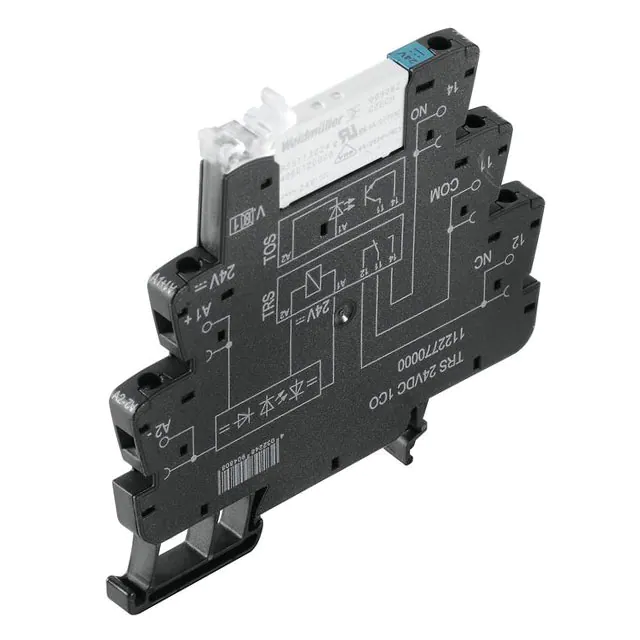

1122770000RELAY GEN PURPOSE SPDT 6A 24V |
407 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 11.5 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 16 VDC | 3 VDC | 6 ms | 16 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
857-152RELAY GEN PURPOSE SPDT 6A 24V |
153 |
|
برگه مشخصات |
857 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | - | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | UL | General Purpose | - | - |
|
G2R-24 AC120RELAY GEN PURPOSE DPDT 4A 120V |
3,976 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 120VAC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
S2EB-24VRELAY GEN PURPOSE 4PST 4A 24V |
646 |
|
برگه مشخصات |
S | Box | Active | Through Hole | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 8.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
LY2N-DC24RELAY GEN PURPOSE DPDT 10A 24V |
1,705 |
|
برگه مشخصات |
LY | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
AZSR165-1A-12DLRELAY EV CHG SOLAR SPST 80A 12V |
200 |
|
برگه مشخصات |
AZSR165 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 80 A | 690VAC - Max | 55200VA | 184.6 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | TUV, UL | EV Charging, Solar | - | - |
|
|
G7L-2A-TUB-J-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
664 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
2903331RELAY GEN PURPOSE DPDT 8A 230V |
172 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 6 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
AZSR190-1A-12DRELAY EV CHG SOLAR SPST 100A 12V |
455 |
|
برگه مشخصات |
AZSR190 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 100 A | 800VAC - Max | 48000VA | 171.4 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 40 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | TUV, UL | EV Charging, Solar | - | - |
|
LY2-AC110/120RELAY GEN PURPOSE DPDT 10A 120V |
148 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 9.2 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
LY2-DC24RELAY GEN PURPOSE DPDT 10A 24V |
979 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
RT4S4LC4RELAY GEN PURPOSE DPDT 8A 24V |
1,825 |
|
برگه مشخصات |
RT, SCHRACK | Tube | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 16.8 VDC | 2.4 VDC | - | - | -20°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-SN DC12(S)RELAY GEN PURPOSE SPDT 10A 12V |
965 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 43.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
2961105RELAY GEN PURPOSE SPDT 6A 24V |
5,032 |
|
برگه مشخصات |
REL-MR | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | - | - | 5 ms | 2.5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cULus, EAC, UR | General Purpose | - | - |
|
HE2AN-DC24VRELAY GEN PURPOSE DPST 25A 24V |
486 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
|
S2EB-12VRELAY GEN PURPOSE 4PST 4A 12V |
646 |
|
برگه مشخصات |
S | Box | Active | Through Hole | 12VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
