رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

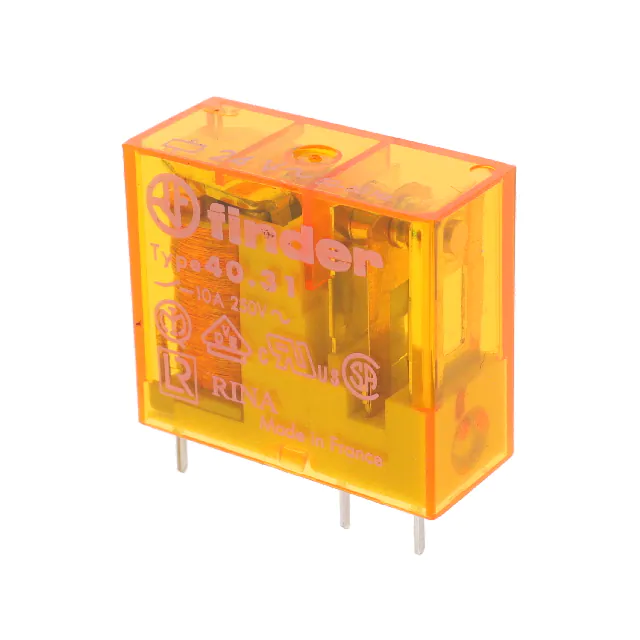

40.31.8.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
54 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 45 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 19.2 VAC | 4.8 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
2961309RELAY GEN PURPOSE SPDT 16A 12V |
82 |
|
برگه مشخصات |
REL-MR | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|

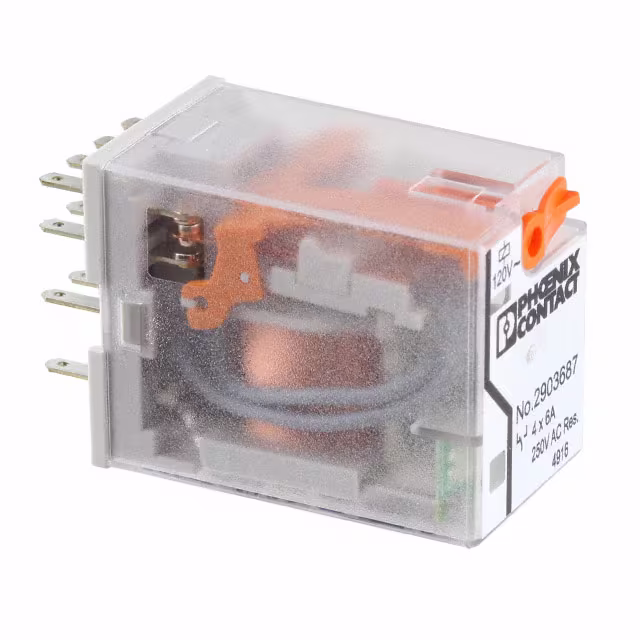

2903687RELAY GEN PURPOSE 4PDT 6A 120V |
51 |
|
برگه مشخصات |
REL-IR | - | Active | Socketable | 120VAC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
RM85-5021-25-1024RELAY GEN PURPOSE SPST 16A 24V |
54 |
|
برگه مشخصات |
RM85 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
7760056340DRI424024LTD |
32 |
|
برگه مشخصات |
DRI | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 150W | 21.8 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, Quick Connect - 0.102" (2.6mm) | - | - | - | - | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
RJ1S-CD-D24RELAY GEN PURPOSE SPDT 12A 24V |
26 |
|
برگه مشخصات |
RJ | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 22.1 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
G2R-1-T DC48RELAY GEN PURPOSE SPDT 10A 48V |
48 |
|
برگه مشخصات |
G2R | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 11.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
46.61.9.012.0040RELAY GEN PURPOSE SPDT 16A 12V |
34 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 40 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
RSB2A080BDHARMONY, INTERFACE PLUG-IN RELAY |
95 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 28VDC - Max | 2000VA, 224W | 16.7 mA | Non Latching | - | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
2961299RELAY GEN PURPOSE DPDT 8A 12V |
26 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
|
RSB2A080F7HARMONY, INTERFACE PLUG-IN RELAY |
77 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 8 A | 250VAC, 28VDC - Max | 2000VA, 224W | 14.4 mA | Non Latching | - | Plug In | - | - | - | 18 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-S DC48(S)RELAY GEN PURPOSE SPDT 10A 48V |
26 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 11.4 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
40.51.8.120.0000RELAY GEN PURPOSE SPDT 10A 120V |
68 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 8.4 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 96 VAC | 24 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
G2R-1-S DC6(S)RELAY GEN PURPOSE SPDT 10A 6V |
55 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 6VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 87 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.2 VDC | 0.9 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
|
2961435RELAY GEN PURPOSE DPDT 8A 24V |
33 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 32 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|
7760056097RELAY GEN PURPOSE 4PDT 5A 24V |
31 |
|
برگه مشخصات |
DRM | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 36.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
AZDC6-2AE-5DRELAY GEN PURPOSE DPST 12.5A 5V |
42 |
|
برگه مشخصات |
AZDC6 | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 12.5 A | 600VDC - Max | 7500W | 277.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 30 ms | 10 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
|

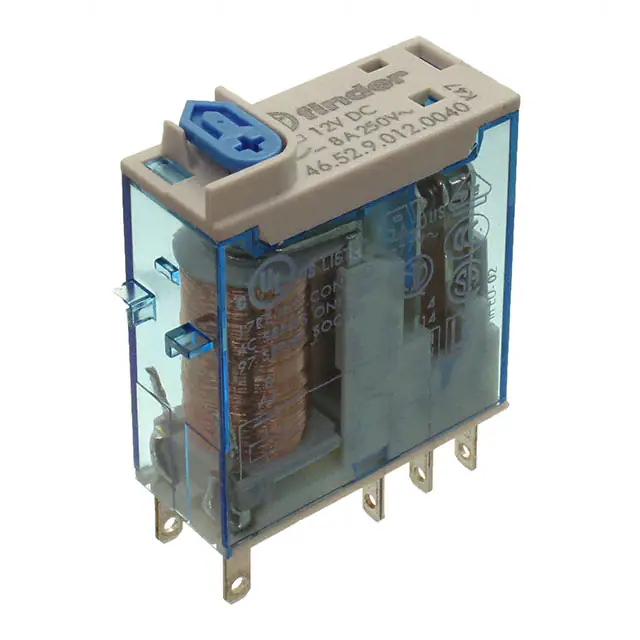

46.52.9.012.0040RELAY GEN PURPOSE DPDT 8A 12V |
91 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 40 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 8.8 VDC | 2.4 VDC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
46.61.9.012.0074RELAY GEN PURPOSE SPDT 16A 12V |
100 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 40 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|

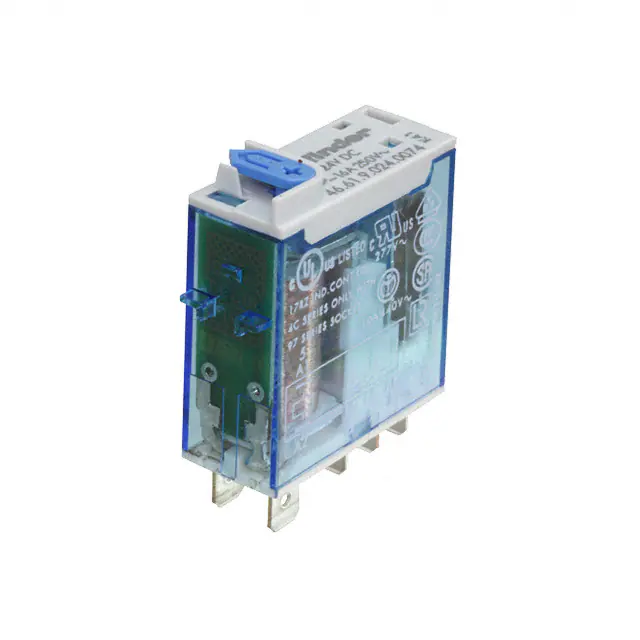

46.61.9.024.0074RELAY GEN PURPOSE SPDT 16A 24V |
33 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 20 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 17.5 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
