رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1021AS36VDC.45RELAY GEN PURPOSE SPST 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021CS36VDC.45RELAY GEN PURPOSE SPDT 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021CS39VDC.20RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021CS39VDC.36RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021CS36VDC.36RELAY GEN PURPOSE SPDT 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021CS39VDC.45RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021AS39VDC.45RELAY GEN PURPOSE SPST 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021AS39VDC.20RELAY GEN PURPOSE SPST 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J1021AS39VDC.36RELAY GEN PURPOSE SPST 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|

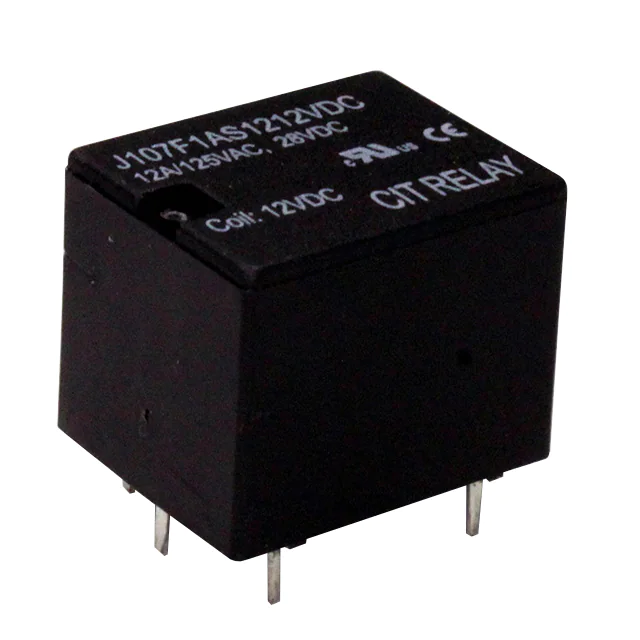

J107F1AS1212VDC.45RELAY GEN PURPOSE SPST 12A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J107F1AS129VDC.80RELAY GEN PURPOSE SPST 12A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 89.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J107F1AS129VDC.45RELAY GEN PURPOSE SPST 12A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J107F1AS1212VDC.80RELAY GEN PURPOSE SPST 12A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
AZ943-1AH-5DEGRELAY GEN PURPOSE SPST 15A 5V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 15 A | 277VAC, 30VDC - Max | 2770VA, 300W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO), Gold (Au) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
J107F1CS129VDC.45RELAY GEN PURPOSE SPDT 12A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J107F1CS129VDC.80RELAY GEN PURPOSE SPDT 12A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 89.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
AZ943-1CH-5DEFRELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ943-1CH-5DRELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ943-1CH-6DRELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ952-1CM-12DERELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 1 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
