رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J102K1CS35VDC.36RELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1CS35VDC.45RELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS312VDC.45RELAY GEN PURPOSE SPST 3A 12V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
J107F1AS159VDC.80RELAY GEN PURPOSE SPST 15A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 89.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J102K1AS36VDC.45RELAY GEN PURPOSE SPST 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS36VDC.36RELAY GEN PURPOSE SPST 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS36VDC.20RELAY GEN PURPOSE SPST 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1CS39VDC.45RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS35VDC.36RELAY GEN PURPOSE SPST 3A 5V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS35VDC.20RELAY GEN PURPOSE SPST 3A 5V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1CS312VDC.45RELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J107F1AS159VDC.36RELAY GEN PURPOSE SPST 15A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J102K1AS39VDC.20RELAY GEN PURPOSE SPST 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J107F1AS159VDC.45RELAY GEN PURPOSE SPST 15A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J102K1AS35VDC.45RELAY GEN PURPOSE SPST 3A 5V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
AZ943-1CH-3DERELAY GEN PURPOSE SPDT 10A 3V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | - | Non Latching | - | PC Pin | Sealed - Fully | Class B | - | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|

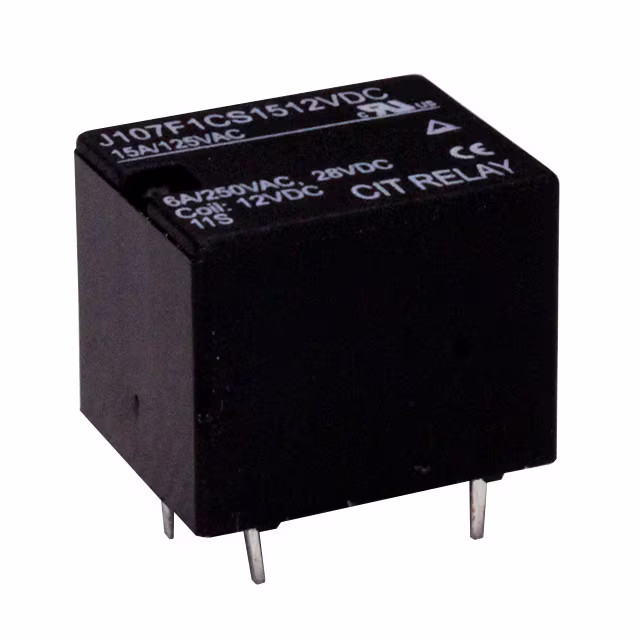

J107F1CS1512VDC.45RELAY GEN PURPOSE SPDT 15A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J107F1CS1512VDC.36RELAY GEN PURPOSE SPDT 15A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J107F1CS1512VDC.80RELAY GEN PURPOSE SPDT 15A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J107F1CS159VDC.80RELAY GEN PURPOSE SPDT 15A 9V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 89.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
