رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ943-1CH-12DRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ951-1CM-6DSERELAY GENERAL PURPOSE SPDT 3A 6V |
0 |
|
- |
AZ951 | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ951-1CM-12DSERELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
- |
AZ951 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ951-1CH-5DERELAY GENERAL PURPOSE SPDT 5A 5V |
0 |
|
- |
AZ951 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 220VAC, 60VDC - Max | 625VA, 150W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 1 ms | -25°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ952-1CM-5DSERELAY GENERAL PURPOSE SPDT 3A 5V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ952-1CM-12DSERELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ951-1CM-12DERELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
- |
AZ951 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 1 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ943-1AH-18DEFRELAY GEN PURPOSE SPST 15A 18V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 15 A | 277VAC, 30VDC - Max | 2770VA, 300W | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ952-1CM-6DSERELAY GENERAL PURPOSE SPDT 3A 6V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 220VAC, 60VDC - Max | 375VA, 90W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
PR25-9V-S-360-1A19 X 15.3 X 15.7 MM, 9 V, 15 A, |
0 |
|
برگه مشخصات |
PR25 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 15 A | 300VAC, 30VDC - Max | 2770VA, 300W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.8 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AZ7705T-1A-3DFRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
- |
AZ7705 | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1250VA, 150W | 150 mA | Non Latching | - | PC Pin | - | Class F | 2.1 VDC | 0.3 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Alloy, Cadmium Free | CUR, UL | General Purpose | - | - |
|

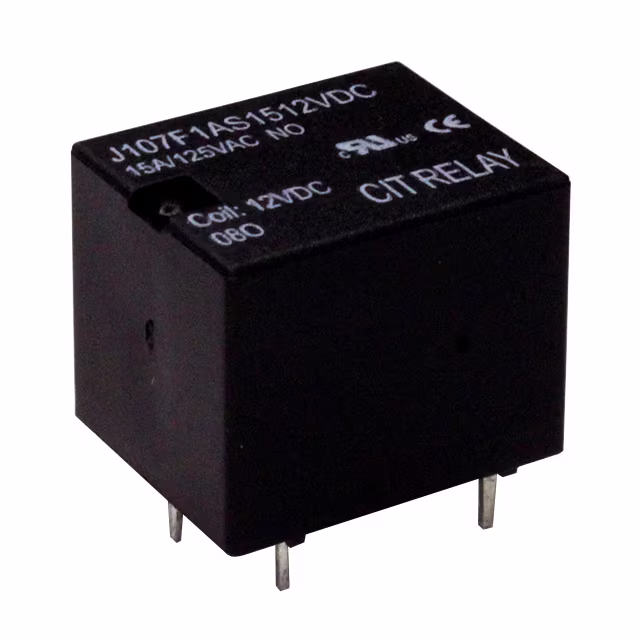

J107F1AS1512VDC.45RELAY GEN PURPOSE SPST 15A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J107F1AS1512VDC.36RELAY GEN PURPOSE SPST 15A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

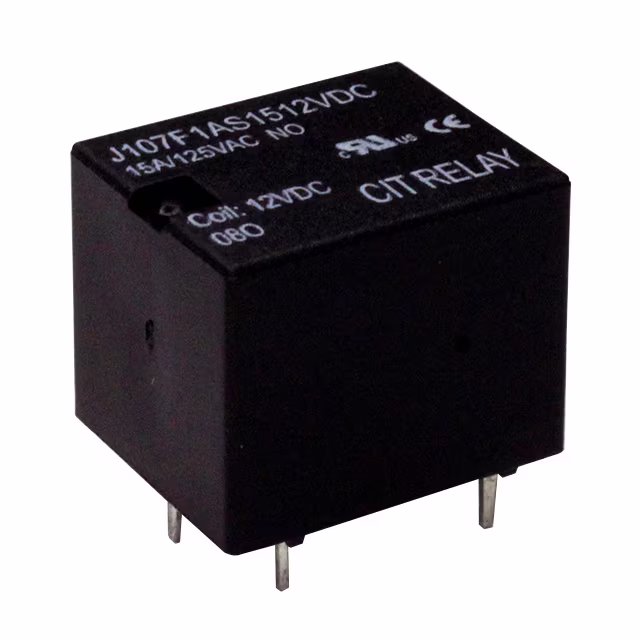

J107F1AS1512VDC.80RELAY GEN PURPOSE SPST 15A 12V |
0 |
|
برگه مشخصات |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J102K1CS39VDC.20RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1CS36VDC.45RELAY GEN PURPOSE SPDT 3A 6V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS312VDC.20RELAY GEN PURPOSE SPST 3A 12V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS39VDC.45RELAY GEN PURPOSE SPST 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1CS39VDC.36RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J102K1AS312VDC.36RELAY GEN PURPOSE SPST 3A 12V |
0 |
|
برگه مشخصات |
J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
