رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2800-2A-12DERELAY EV CHG SOLAR DPST 40A 12V |
105 |
|
برگه مشخصات |
AZ2800 | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
G2R-1-T DC36RELAY GEN PURPOSE SPDT 10A 36V |
212 |
|
برگه مشخصات |
G2R | Tray | Active | Chassis Mount | 36VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 14.7 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 25.2 VDC | 5.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
V23092-A1024-A201RELAY GEN PURPOSE SPDT 6A 24V |
576 |
|
برگه مشخصات |
SNR, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
1-1414147-0RELAY GEN PURPOSE SPST 70A 12V |
207 |
|
برگه مشخصات |
F7 | Bulk | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | - | 133.3 mA | Non Latching | Resistor | Quick Connect - 0.187"/0.250" | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|
PT371024RELAY GEN PURPOSE 3PDT 10A 24V |
4,941 |
|
برگه مشخصات |
PT, SCHRACK | Bulk | Active | Through Hole | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 30.8 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
PT270012RELAY GEN PURPOSE DPDT 12A 12V |
1,232 |
|
برگه مشخصات |
PT, SCHRACK | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 62.5 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
PT370024RELAY GEN PURPOSE 3PDT 10A 24V |
672 |
|
برگه مشخصات |
PT, SCHRACK | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 30.8 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
PT370012RELAY GEN PURPOSE 3PDT 10A 12V |
278 |
|
برگه مشخصات |
PT, SCHRACK | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 62.5 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
PT571024RELAY GEN PURPOSE 4PDT 6A 24V |
268 |
|
برگه مشخصات |
PT, SCHRACK | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 30.8 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
RPM12BDHARMONY, POWER PLUG-IN RELAY, 15 |
224 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 53.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|

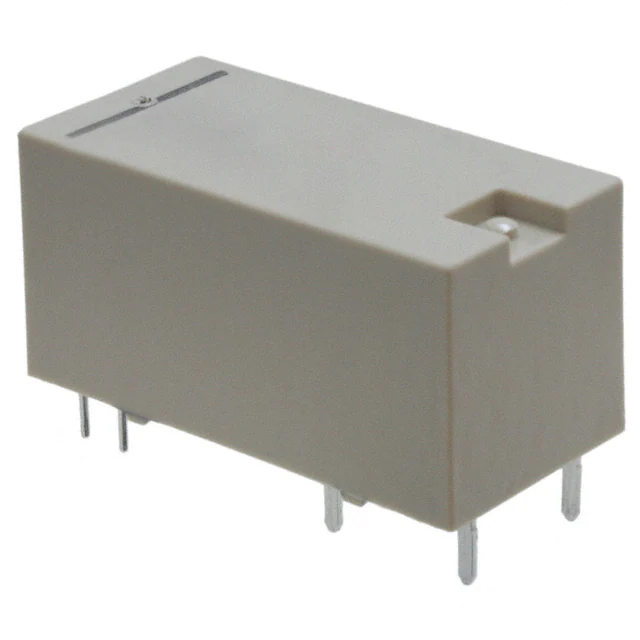

DE1A1B-L2-24VRELAY GEN PURPOSE DPST 8A 24V |
458 |
|
برگه مشخصات |
DE | Tube | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
ST1-DC24V-FRELAY GEN PURPOSE DPST 8A 24V |
1,457 |
|
برگه مشخصات |
ST | Box | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 250VDC - Max | 3040VA, 2000W | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
G2R-2-S DC12(S)RELAY GEN PURPOSE DPDT 5A 12V |
351 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 43.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
MY2N-GS-R DC24RELAY GEN PURPOSE DPDT 5A 24V |
1,117 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 36.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
AZ2800-2A-24AERELAY EV CHG SOLAR DPST 40A 24V |
242 |
|
برگه مشخصات |
AZ2800 | Tray | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 166 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 19.2 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
G6CK-1114P-US DC12RELAY GEN PURPOSE SPST 10A 12V |
123 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 23.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RJ1S-CL-D24RELAY GEN PURPOSE SPDT 12A 24V |
106 |
|
برگه مشخصات |
RJ | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 25.7 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2R-2 AC120RELAY GEN PURPOSE DPDT 5A 120V |
776 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 120VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
APF3024HRELAY GEN PURPOSE SPDT 6A 4.5V |
2,286 |
|
برگه مشخصات |
APF | Tube | Active | Through Hole | 4.5VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 37.8 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.225 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
G4W-2214P-US-HP DC24RELAY GEN PURPOSE DPST 10A 24V |
6,042 |
|
برگه مشخصات |
G4W | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 33.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UR, VDE | General Purpose | - | - |
