رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4W-2214P-US-HP DC12RELAY GEN PURPOSE DPST 10A 12V |
508 |
|
برگه مشخصات |
G4W | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
ADJH21024RELAY GEN PURPOSE SPST 50A 24V |
150 |
|
برگه مشخصات |
ADJH | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 41.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
MY2N-GS-R AC110/120RELAY GEN PURPOSE DPDT 5A 120V |
549 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 27.1 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|

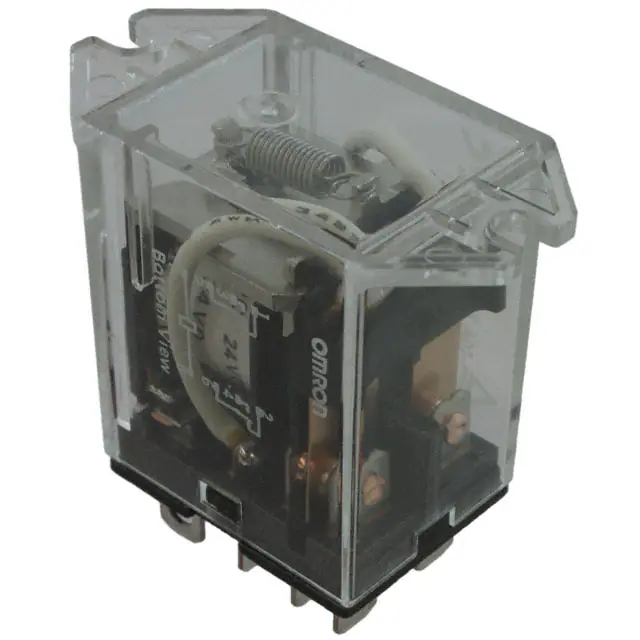

LY2F-DC24RELAY GEN PURPOSE DPDT 10A 24V |
3,777 |
|
برگه مشخصات |
LY | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
AZ2800-2A-120AERELAY EV CHG SOLAR DPST 40A 120V |
145 |
|
برگه مشخصات |
AZ2800 | Tray | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 96 VAC | 24 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|

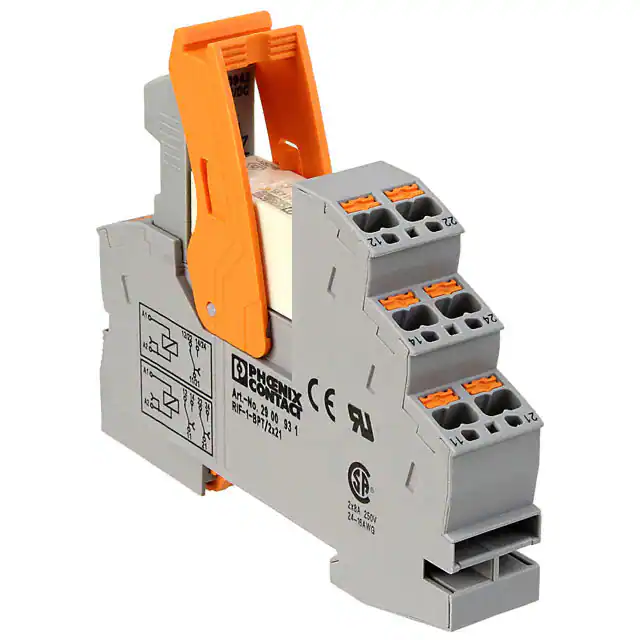

2903333RELAY GEN PURPOSE DPDT 8A 24V |
229 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
APF30224RELAY GEN PURPOSE SPDT 6A 24V |
1,390 |
|
برگه مشخصات |
APF | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 7.1 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
DE2A-12VRELAY GEN PURPOSE DPST 8A 12V |
4,952 |
|
برگه مشخصات |
DE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
.JPG)
|
MY2N DC24 (S)RELAY GEN PURPOSE DPDT 5A 24V |
205 |
|
برگه مشخصات |
MY | Tray | Last Time Buy | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 36.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4-GS-R DC24RELAY GEN PURPOSE 4PDT 3A 24V |
1,112 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 36.3 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
AZSR165-1AE-12DLRELAY EV CHG SOLAR SPST 80A 12V |
123 |
|
برگه مشخصات |
AZSR165 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 80 A | 690VAC - Max | 55200VA | 184.6 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | TUV, UL | EV Charging, Solar | - | - |
|
V23148-A0007-A101RELAY GEN PURPOSE SPDT 7A 24V |
321 |
|
برگه مشخصات |
V23148, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
55.32.9.024.0040RELAY GEN PURPOSE DPDT 10A 24V |
145 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 40 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
ADY30005RELAY GEN PURPOSE DPST 8A 5V |
106 |
|
برگه مشخصات |
ADY | Tray | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
G2R-14 AC24RELAY GEN PURPOSE SPDT 8A 24V |
1,563 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VAC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G7L-2A-TUB-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
960 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-TUB-J-CB DC12RELAY GEN PURPOSE DPST 25A 12V |
597 |
|
برگه مشخصات |
G7L | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 158 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G6BK-1114P-US DC24RELAY GEN PURPOSE SPST 5A 24V |
510 |
|
برگه مشخصات |
G6B | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 11.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
DE2A-24VRELAY GEN PURPOSE DPST 8A 24V |
1,132 |
|
برگه مشخصات |
DE | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
, MY4-DC24(S), MY4-DC100~110(S).jpg)
|
MY4 DC12 (S)RELAY GEN PURPOSE 4PDT 3A 12V |
718 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 72.7 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
