رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP3SL024RELAY GEN PURPOSE SPST 16A 24V |
2,443 |
|
برگه مشخصات |
RP3SL, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 14 ms | 12 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

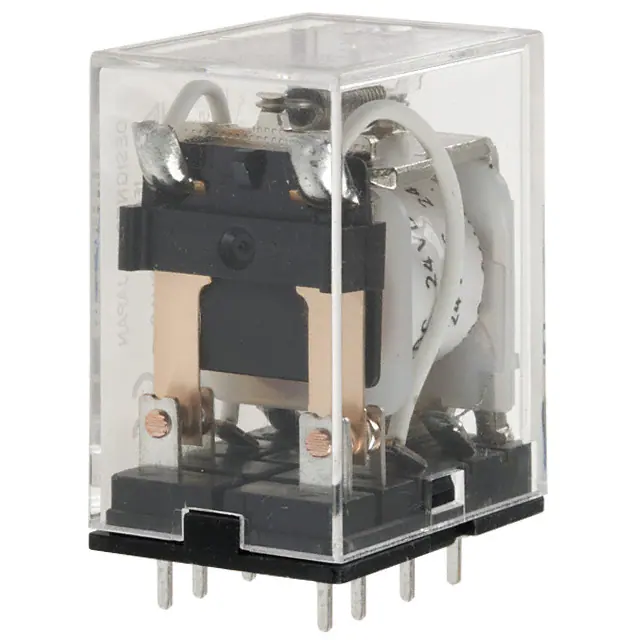

MY2-02-DC24RELAY GEN PURPOSE DPDT 5A 24V |
121 |
|
برگه مشخصات |
MY | Tray | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 36.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
MY4IN-GS-R AC110/120RELAY GEN PURPOSE |
691 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 27.1 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
AZ2800-2C-12DERELAY EV CHG SOLAR DPDT 40A 12V |
466 |
|
برگه مشخصات |
AZ2800 | Tray | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 140 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2800-2C-24DERELAY EV CHG SOLAR DPDT 40A 24V |
149 |
|
برگه مشخصات |
AZ2800 | Tray | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 68.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|

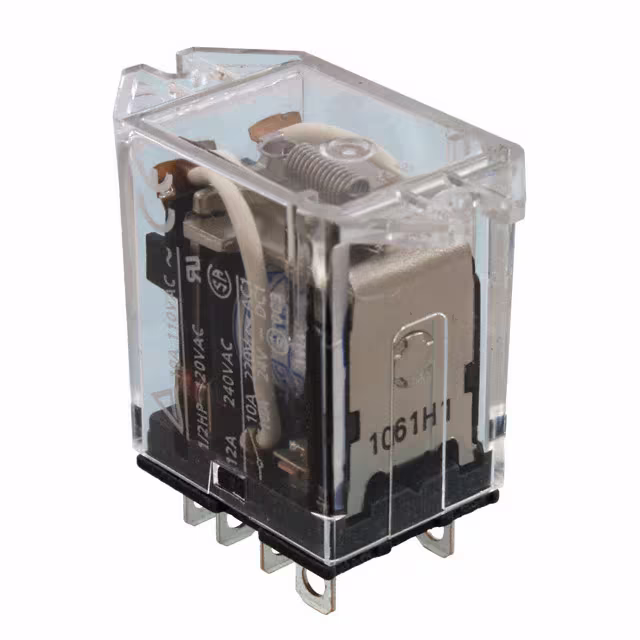

LY2F-AC110/120RELAY GEN PURPOSE DPDT 10A 120V |
120 |
|
برگه مشخصات |
LY | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 9.2 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
RH1B-UAC24VRELAY GEN PURPOSE SPDT 10A 24V |
603 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 37 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
2903339RELAY GEN PURPOSE SPDT 10A 230V |
143 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 6 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
|
G2R-1 AC24RELAY GEN PURPOSE SPDT 10A 24V |
297 |
|
برگه مشخصات |
G2R | Tube | Active | Through Hole | 24VAC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|

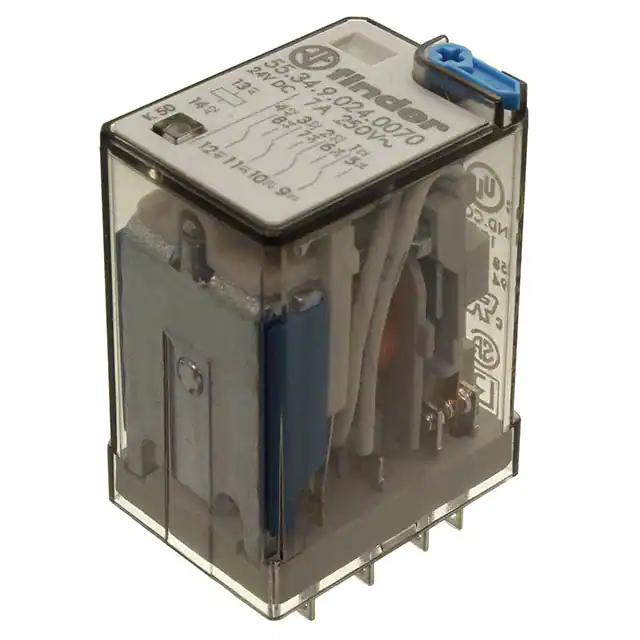

55.34.9.024.0070RELAY GEN PURPOSE 4PDT 7A 24V |
128 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 7 A | 250VAC - Max | 1750VA | 40 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 4.8 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|

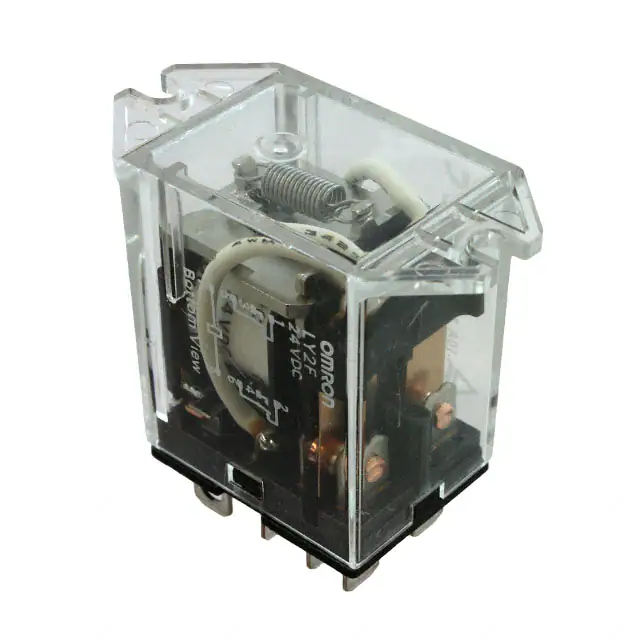

LY2F-DC12RELAY GEN PURPOSE DPDT 10A 12V |
230 |
|
برگه مشخصات |
LY | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|

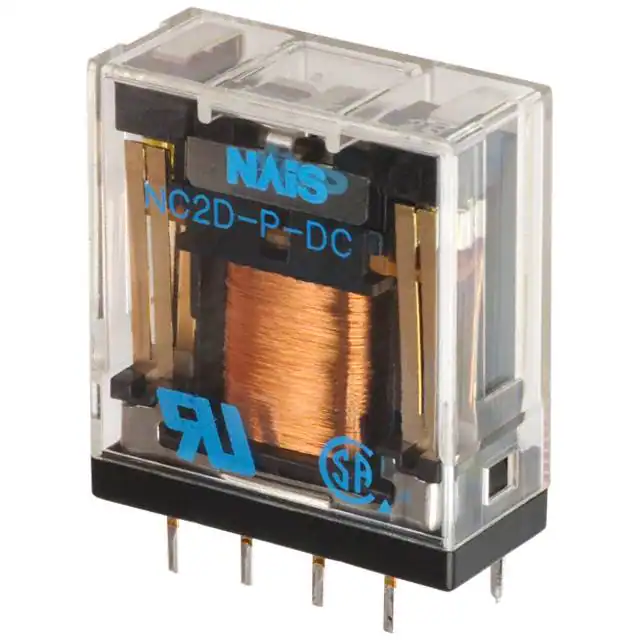

NC2D-P-DC5VRELAY GEN PURPOSE DPDT 5A 5V |
841 |
|
برگه مشخصات |
NC | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 72 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
NC2EBD-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
598 |
|
برگه مشخصات |
NC | Tube | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 15 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
LY2-AC100/110RELAY GEN PURPOSE DPDT 10A 110V |
555 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 110VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 11 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
.JPG)
|

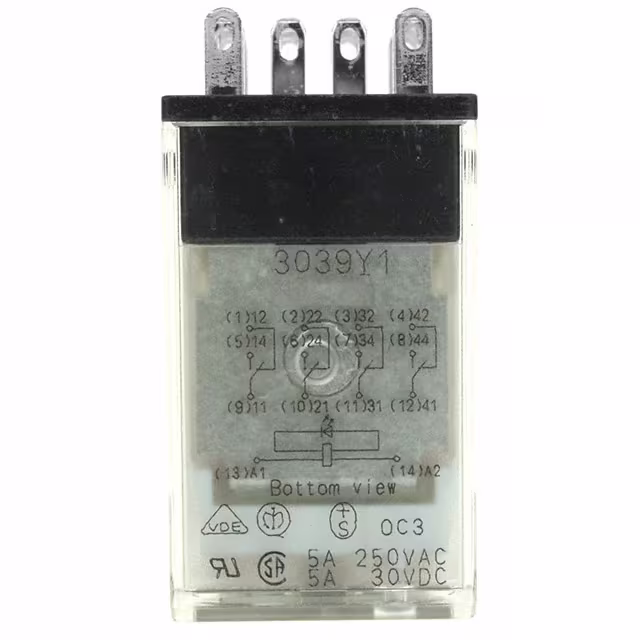

MY4N AC110/120 (S)RELAY GEN PURPOSE 4PDT 3A 120V |
112 |
|
برگه مشخصات |
MY | Tray | Last Time Buy | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 27.1 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
NC2D-JP-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
1,496 |
|
برگه مشخصات |
NC | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-P-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
537 |
|
برگه مشخصات |
NC | Tray | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 15 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
LY2N-AC200/220RELAY GEN PURPOSE DPDT 10A 220V |
2,411 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 5.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
NC2EBD-P-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
1,330 |
|
برگه مشخصات |
NC | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2EBD-P-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
3,454 |
|
برگه مشخصات |
NC | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
