رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-2A-BUBJ-CB-IN DC24RELAY GEN PURPOSE DPST 25A 24V |
4,782 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
HE2AN-Q-AC120VRELAY GEN PURPOSE DPST 25A 120V |
504 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 22.1 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 84 VAC | 18 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
RR2BA-UDC24VRELAY GEN PURPOSE DPDT 10A 24V |
130 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 60 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
G7L-2A-P-PV-DC12RELAY GEN PURPOSE DPST 30A 12V |
255 |
|
برگه مشخصات |
G7L-PV | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 280VAC - Max | 8400VA | 192 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 30 ms | -25°C ~ 85°C | Silver Alloy, Cadmium Free | UL, VDE | General Purpose | - | - |
|
AZSR180-1AE-12DRELAY EV CHG SOLAR SPST 80A 12V |
455 |
|
برگه مشخصات |
AZSR180 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 80 A | 440VAC, 150VDC - Max | 22160VA, 2400W | 40 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 40 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | UL, VDE | EV Charging, Solar | - | - |
|
|
G7L-1A-BUBJ-CB DC24RELAY GEN PURPOSE SPST 30A 24V |
130 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
AZSR180-1AE-24DRELAY EV CHG SOLAR SPST 80A 24V |
591 |
|
برگه مشخصات |
AZSR180 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 80 A | 440VAC, 150VDC - Max | 22160VA, 2400W | 20 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 40 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | UL, VDE | EV Charging, Solar | - | - |
|
LY2N-DC12RELAY GEN PURPOSE DPDT 10A 12V |
392 |
|
برگه مشخصات |
LY | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
AZSR250-2AE-24DRELAY EV CHG SOLAR DPST 55A 24V |
281 |
|
برگه مشخصات |
AZSR250 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 55 A | 440VAC, 150VDC - Max | 13850VA 1500W | 20 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 40 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | EV Charging, Solar | - | - |
|

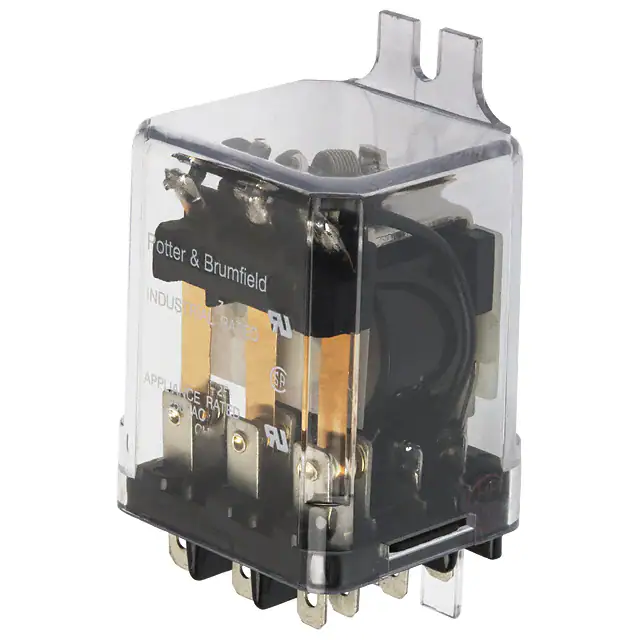

KUP-11D55-12RELAY GEN PURPOSE DPDT 10A 12V |
184 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
RH2B-ULCAC110-120VRELAY GEN PURPOSE DPDT 10A 120V |
256 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 9.2 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|

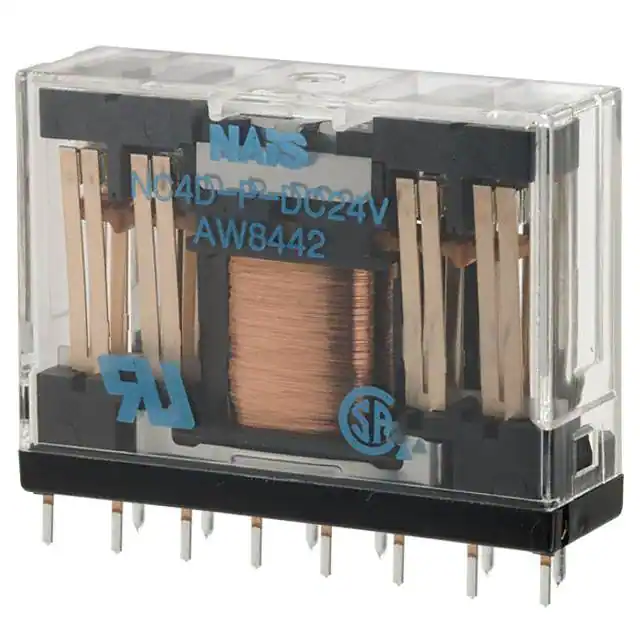

NC4D-P-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
579 |
|
برگه مشخصات |
NC | Tray | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
39.61.0.024.0060RELAY GEN PURPOSE SPDT 6A 24V |
251 |
|
برگه مشخصات |
39 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 11 mA | Non Latching | - | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, VDE | General Purpose | - | - |
|
|
AZDC105-1AH-12DTRELAY GEN PURPOSE SPST 150A 12V |
129 |
|
برگه مشخصات |
AZDC105 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 150 A | 60VDC - Max | 9000W | 266.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | TUV, UL | General Purpose | - | - |
|
KHAU-17D12-24RELAY GEN PURPOSE 4PDT 5A 24V |
1,572 |
|
برگه مشخصات |
KHA | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
K10P-11D15-6RELAY GEN PURPOSE DPDT 15A 6V |
250 |
|
برگه مشخصات |
K10 | Tray | Active | Socketable | 6VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 4.5 VDC | 0.6 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
K10P-11A15-24RELAY GEN PURPOSE DPDT 15A 24V |
246 |
|
برگه مشخصات |
K10 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 52 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | 2.4 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
K10P-11D55-12RELAY GEN PURPOSE DPDT 15A 12V |
134 |
|
برگه مشخصات |
K10 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 75 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
NC4D-JP-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
210 |
|
برگه مشخصات |
NC | Tube | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|

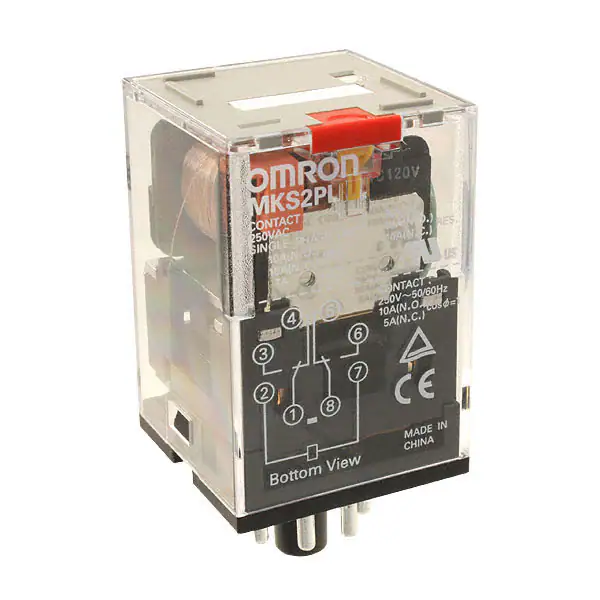

MKS2PI-AC120RELAY GEN PURPOSE DPDT 10A 120V |
193 |
|
برگه مشخصات |
MK-S | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 19.3 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
