رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE1AN-DC24VRELAY GEN PURPOSE SPST 30A 24V |
309 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
RP821024RELAY GEN PURPOSE DPDT 8A 24V |
112 |
|
برگه مشخصات |
RP II/2, SCHRACK | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
AHES4192RELAY GEN PURPOSE 3PST 35A 24V |
6,930 |
|
برگه مشخصات |
HE-S | Tray | Active | Through Hole | 24VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 35 A | 277VAC - Nom | - | 78 mA | Non Latching | Contact Weld Detection | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
EW60-1A3-CL12D04,00000RELAY GEN PURPOSE SPST 60A 12V |
467 |
|
برگه مشخصات |
EW60 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 60 A | 440VAC - Max | 26400VA | 250 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 100 ms | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | UL | General Purpose | - | - |
|
40.52.8.024.5000RELAY GEN PURPOSE DPDT 8A 24V |
133 |
|
برگه مشخصات |
40 | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 4.8 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
LY2-AC220/240RELAY GEN PURPOSE DPDT 10A 240V |
234 |
|
برگه مشخصات |
LY | Tray | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 4.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
1122880000RELAY GEN PURPOSE SPDT 6A 24V |
139 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 16 VDC | 4 VDC | 6 ms | 7 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
|
G7L-1A-TUB-J-CB AC100/120RELAY GEN PURPOSE SPST 30A 120V |
258 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 20.4 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
RT3S4LC4RELAY GEN PURPOSE SPDT 16A 24V |
2,249 |
|
برگه مشخصات |
RT, SCHRACK | Tube | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 16.8 VDC | 2.4 VDC | - | - | -20°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
NC4D-P-DC5VRELAY GEN PURPOSE 4PDT 5A 5V |
694 |
|
برگه مشخصات |
NC | Tube | Active | Through Hole | 5VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 144 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|

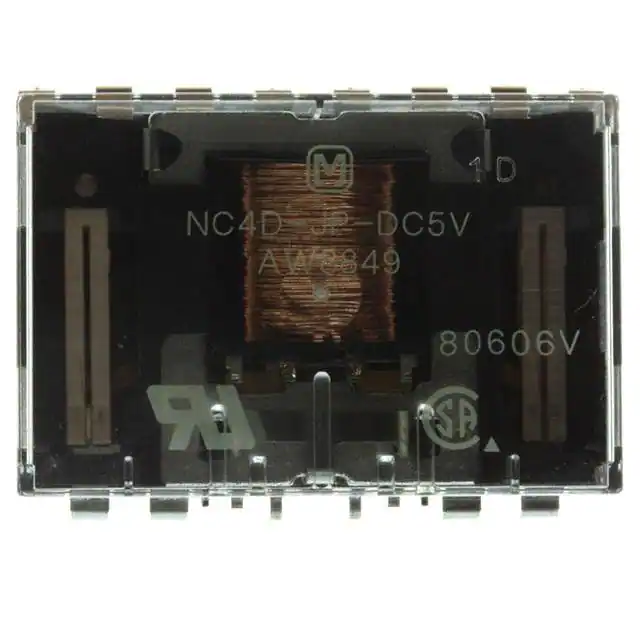

NC4D-JP-DC5VRELAY GEN PURPOSE 4PDT 5A 5V |
612 |
|
برگه مشخصات |
NC | Tube | Active | Through Hole | 5VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 144 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
NC4EBD-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
674 |
|
برگه مشخصات |
NC | Tube | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
S4EB-L2-5VRELAY GEN PURPOSE 4PST 4A 5V |
323 |
|
برگه مشخصات |
S | Box | Active | Through Hole | 5VDC | 4PST-NO (4 Form A) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 38.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 15 ms | 15 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
NC4EBD-JP-DC12VRELAY GEN PURPOSE 4PDT 5A 12V |
834 |
|
برگه مشخصات |
NC | Tray | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
NC4D-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
783 |
|
برگه مشخصات |
NC | Tube | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
RH2B-UD-DC24VRELAY GEN PURPOSE DPDT 10A 24V |
184 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 37 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
S3EB-24VRELAY GEN PURPOSE 4PST 4A 24V |
293 |
|
برگه مشخصات |
S | Box | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 8.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|

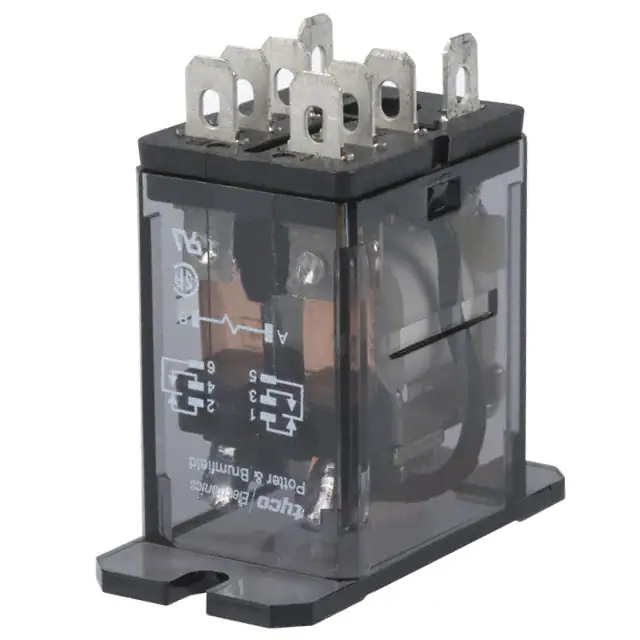

K10P-11AT5-120RELAY GEN PURPOSE DPDT 15A 120V |
1,972 |
|
برگه مشخصات |
K10 | Tray | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | 12 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

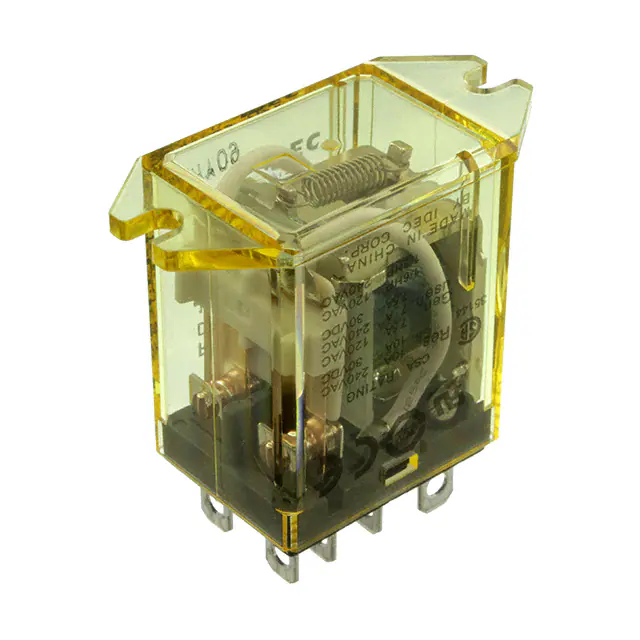

RH2B-UTAC220-240VRELAY GEN PURPOSE DPDT 10A 240V |
480 |
|
برگه مشخصات |
RH | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 4.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
60.13.8.120.0040RELAY GEN PURP 3PDT 10A 120V |
140 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 18.6 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 96 VAC | 24 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
