رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RH3B-UAC6VRELAY PLUG-IN 3PDT 10A 6VAC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 6VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 280 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.8 VAC | 1.8 VAC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH3B-UAC12VRELAY PLUG-IN 3PDT 10A 12VAC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 12VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 140 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
26.02.8.110.00002 STEP IMPULSE/LATCHING RELAY, D |
0 |
|
برگه مشخصات |
26 | Bulk | Active | Chassis Mount | 110VAC | DPST-NO (2 Form A) | 10 A | 400VAC - Max | 4000VA | 40 mA | Non Latching | - | Screw Terminal | - | - | 88 VAC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, EAC, UKCA | Impulse | - | - |
|
|
26.06.8.110.00003 STEP IMPULSE/LATCHING RELAY, D |
0 |
|
برگه مشخصات |
26 | Bulk | Active | Chassis Mount | 110VAC | DPST-NO (2 Form A) | 10 A | 400VAC - Max | 4000VA | 40 mA | Non Latching | - | Screw Terminal | - | - | 88 VAC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, EAC, UKCA | Impulse | - | - |
|
|
NC2EBD-P-DC100VRELAY GEN PURPOSE DPDT 5A 100V |
0 |
|
برگه مشخصات |
NC | Bulk | Active | Through Hole | 100VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 7.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 80 VDC | 10 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
1479700000TRS 48VUC 1CO 16A |
0 |
|
برگه مشخصات |
TRS | Box | Active | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | 4000VA, 384W | 9 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 11 ms | 7 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, DNV-GL, PRS, UKCA | General Purpose | - | - |
|
|
T92P11D22-6RELAY GEN PURP |
0 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 6VDC | DPDT (2 Form C) | 40 A | 600VAC - Max | 24000VA | 272.7 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 4.5 VDC | 0.6 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92S11F22-24RELAY GEN PURPOSE DPDT 30A 24V |
0 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 540.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 19.2 VAC | 2.4 VAC | 25 ms | 25 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
RY2-2012-26-1110-DRELAY GEN PURPOSE DPDT 12A 110V |
0 |
|
- |
RY2 | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 8.1 mA | Non Latching | Diode | Plug In, 8 Pin | - | - | 88 VDC | - | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2-2012-26-5120-DRELAY GEN PURPOSE DPDT 12A 120V |
0 |
|
- |
RY2 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 31.8 mA | Non Latching | Diode | Plug In, 8 Pin | - | - | 96 VAC | - | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2-2012-26-5230-DRELAY GEN PURPOSE DPDT 12A 230V |
0 |
|
- |
RY2 | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 14.3 mA | Non Latching | Diode | Plug In, 8 Pin | - | - | 184 VAC | - | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
|
60.13.9.125.0074RELAY GEN PURPOSE 3PDT 10A 125V |
0 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 125VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 10.4 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 100 VDC | 25 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
60.13.9.125.0060RELAY GEN PURPOSE 3PDT 10A 125V |
0 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 125VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 10.4 mA | Non Latching | Diode, Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | 100 VDC | 25 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
2765660000RELAY GEN PURPOSE 3PDT 16A 48V |
0 |
|
برگه مشخصات |
DRW | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 16 A | 400VAC, 250VDC - Max | 6400VA, 384W | 30 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|

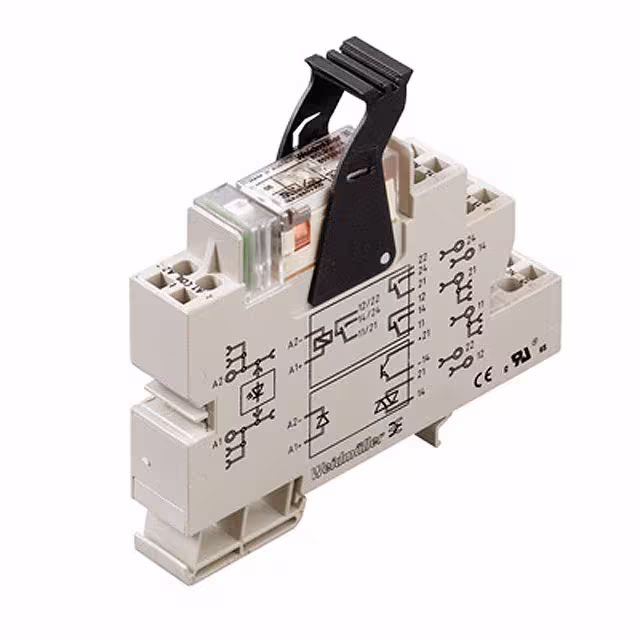

8530701001RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
PRZ | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 50°C | - | CE, cURus | General Purpose | - | - |
|
|
2909663PLC-RSC- 24DC/ 1AU/MS/SEN |
0 |
|
- |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | Class A | 18.5 VDC | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | CE, UKCA | General Purpose | - | - |
|
|
2909678PLC-RPT- 24DC/ 1AU/MS/SEN |
0 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | Class A | 18.5 VDC | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | CE, UKCA | General Purpose | - | - |
|
|
38.01.0.125.0060RELAY GEN PURPOSE SPDT 16A 125V |
0 |
|
برگه مشخصات |
38 | Bulk | Active | DIN Rail | 125VAC/DC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 4.6 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC/DC | 12.5 VAC/DC | 8 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
|
15257.2RELAY GEN PURPOSE 4PDT 6A 115V |
0 |
|
برگه مشخصات |
PRS | Box | Active | Socketable | 115VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 3200VA | 23.7 mA | Non Latching | - | Plug In | - | - | 92 VAC | 34.5 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
15723Q2M2RELAY GEN PURP |
0 |
|
- |
157, CII | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC, 28VDC - Nom | 3.1VA | 333.3 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
