رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
38.11.0.024.0060EMR INTERFACE MODULE, SPDT 16A, |
0 |
|
برگه مشخصات |
38 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 20 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
|
46.52.9.072.0000TMINIATURE IDUSTRIAL RELAY |
0 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 72VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 6.9 mA | Non Latching | - | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 52.6 VDC | 14.4 VDC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
RH1B-ULCDC48VRELAY PLUG-IN SPDT 10A 48VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 18 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH1B-ULCDC12VRELAY PLUG-IN SPDT 10A 12VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 64 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH3B-UTDC12VRELAY TOP MOUNT 3PDT 10A 12VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Chassis Mount | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 120 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH2B-UCAC220-240VRELAY PLUG-IN DPDT 10A 240VAC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 220 ~ 240VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 4.6 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH1V2-ULCDC24VRELAY PCB SPDT 10A 24VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 32 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH3B-UTDC48VRELAY TOP MOUNT 3PDT 10A 48VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Chassis Mount | 48VDC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 30 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH3B-UTDC24VRELAY TOP MOUNT 3PDT 10A 24VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 60 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH1B-ULCDC6VRELAY PLUG-IN SPDT 10A 6VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 6VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 128 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RM2S-ULDC48VRELAY PLUG-IN DPDT 5A 48VDC |
0 |
|
- |
RM | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 18.5 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RM2S-ULDC6VRELAY PLUG-IN DPDT 5A 6VDC |
0 |
|
- |
RM | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 150 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag) | CE, CSA, TUV, UR | General Purpose | - | - |
|
8536571001RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
PRZ | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 33.3 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 8.4 VDC | 1.2 VDC | - | - | -40°C ~ 50°C | - | CE, cURus | General Purpose | - | - |
|

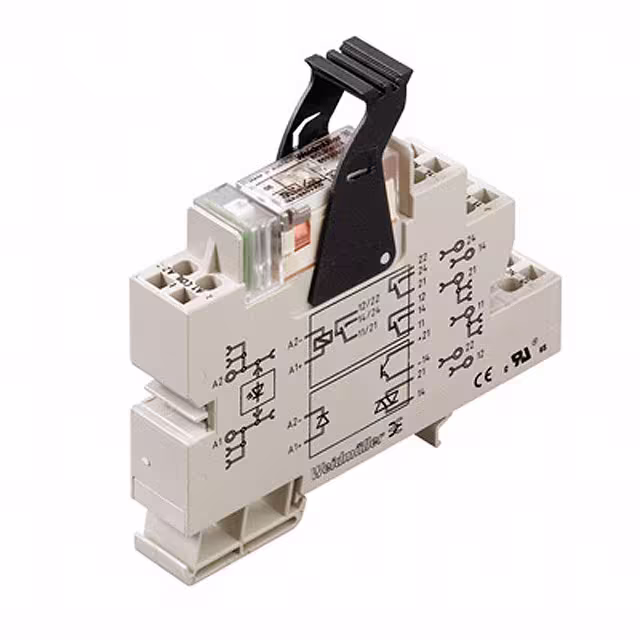

8530691001RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
PRZ | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 50°C | - | CE, cURus | General Purpose | - | - |
|
KUMP-11D18-110RELAY GEN PURPOSE DPDT 15A 110V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 82.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
V23050A1006A542RELAY GEN PURPOSE 6PST 8A 6V |
0 |
|
برگه مشخصات |
SR6B, SCHRACK | Tube | Active | Through Hole | 6VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC - Max | 3200VA | 200 mA | Non Latching | - | PC Pin | - | - | 4.5 VDC | 0.6 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) | CCC, cURus, TUV, VDE | General Purpose | - | - |
|
|
RSL1GB4EDRELAY 1 CO,48VAC/VDC 6A LOW LEVE |
0 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 48VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 4.5 mA | Non Latching | - | PC Pin | - | - | 36 VDC | 2.4 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, EAC, UL | General Purpose | - | - |
|
1219980000RELAY GEN PURPOSE SPST 16A 220V |
0 |
|
- |
DRH | Bulk | Active | Socketable | 220VDC | SPST-NC (1 Form B) | 16 A | 400VAC - Max | 6400VA | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 154 VDC | 22 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
2765630000RELAY GEN PURPOSE DPDT 16A 220V |
0 |
|
برگه مشخصات |
DRW | Bulk | Active | Socketable | 220VDC | DPDT (2 Form C) | 16 A | 400VAC, 250VDC - Max | 6400VA, 384W | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
2765250000RELAY GEN PURPOSE 3PDT 10A 220V |
0 |
|
برگه مشخصات |
DRL | Bulk | Active | Socketable | 220VDC | 3PDT (3 Form C) | 10 A | 250VAC, 24VDC - Max | 2500VA, 300W | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
