رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE2AN-Q-DC48VRELAY GEN PURPOSE DPST 25A 48V |
0 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 33.6 VDC | 4.8 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
R15-2012-23-5048-WTLRELAY GEN PURPOSE DPDT 10A 48V |
0 |
|
- |
R15 | Bulk | Active | Socketable | 48VAC | DPDT (2 Form C) | 10 A | 440VAC - Max | 4400VA | - | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | - | - | 12 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|

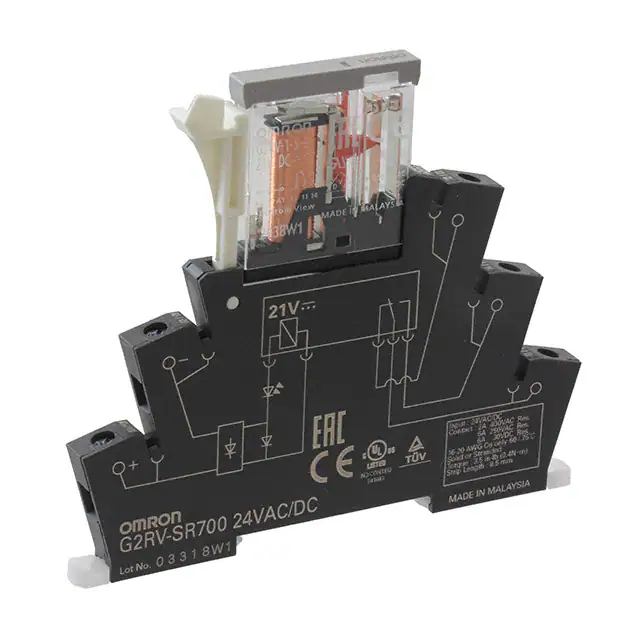

G2RV-SR700 AC/DC24RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
برگه مشخصات |
G2RV-SR | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 12.6 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy | CE, cULus, TUV | General Purpose | - | - |
|
NC4EBD-JPL2-DC48VRELAY GEN PURPOSE 4PDT 5A 48V |
0 |
|
برگه مشخصات |
NC | Tube | Active | Through Hole | 48VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 38.4 VDC | - | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
2152910000RELAY GEN PURPOSE SPDT 6A 120V |
0 |
|
- |
TERMSERIES | Bulk | Active | DIN Rail | 120VAC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 88 VAC | 43 VAC | 15 ms | 50 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, cULus, EAC | General Purpose | - | - |
|
KUP-14A45-12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Socketable | 12VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 230 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 10.2 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
15418.2RELAY GEN PURPOSE SPDT 12A 115V |
0 |
|
برگه مشخصات |
PRSU | Box | Active | DIN Rail | 115VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 6.5 mA | Non Latching | - | Screw Terminal | - | - | 86.3 VAC | 17.3 VAC | 7 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
AHES3193QRELAY GEN PURPOSE DPST 40A 48V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 39 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES4291QRELAY GEN PURPOSE 3PST 40A 12V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 12VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 157 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES3293QRELAY GEN PURPOSE DPST 40A 48V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 39 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES4290QRELAY GEN PURPOSE 3PST 40A 6V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 6VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 313 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | 0.3 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES4292QRELAY GEN PURPOSE 3PST 40A 24V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 24VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 78 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES4293QRELAY GEN PURPOSE 3PST 40A 48V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 48VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 39 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES4295QRELAY GEN PURPOSE 3PST 40A 9V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 9VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 209 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.45 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES4193QRELAY GEN PURPOSE 3PST 40A 48V |
0 |
|
برگه مشخصات |
HE-S | Bulk | Active | Through Hole | 48VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 40 A | 480VAC, 110VDC - Max | 19200VA, 4400W | 39 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
RY2S-ULAC110VRELAY PLUG-IN DPDT 3A 110VDC |
0 |
|
- |
RY | Bulk | Active | Socketable | 110VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 8.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2V-ULAC24VRELAY PCB DPDT 3A 24VAC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 37 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2V-ULAC12VRELAY PCB DPDT 3A 12VAC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 12VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 75 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 9.6 VAC | 3.6 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2V-ULAC120VRELAY PCB DPDT 3A 120VAC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 120VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 7.5 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RH1B-UD-DC110VRELAY PLUG-IN SPDT 10A 110VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 110VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 8 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
