سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

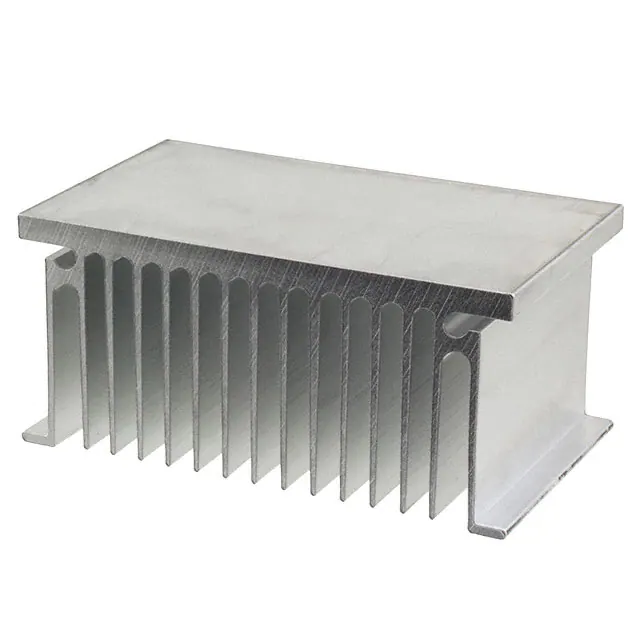

511-3UHEATSINK FOR PWR MOD/IGBT/RELAY |
41 |
|
برگه مشخصات |
511 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 5.210" (132.33mm) | - | 2.410" (61.21mm) | - | - | 0.90°C/W | Aluminum | - |
|
1254156.50X12" EXTRUSION 6664 XX4509 |
43 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.500" (165.10mm) | - | 1.600" (40.64mm) | - | - | 0.33°C/W | Aluminum | - |
|
1253674.125X12" EXTRUSION 2656 XX5138 |
39 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.125" (104.77mm) | - | 1.750" (44.45mm) | - | - | 0.48°C/W | Aluminum | - |
|

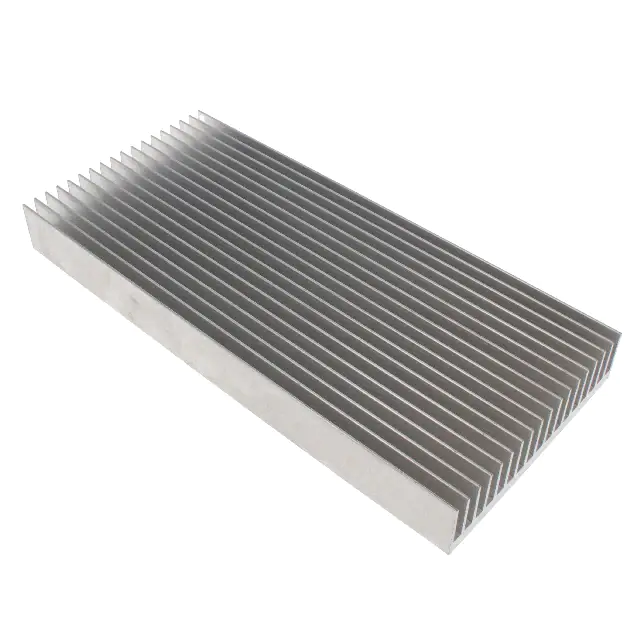

1254035.375X12" EXTRUSION 6037 XX5045 |
60 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.375" (136.53mm) | - | 1.312" (33.32mm) | - | - | 0.45°C/W | Aluminum | - |
|
1277125.00" WIDE X 12" FLATBACK HEATSI |
54 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.000" (127.00mm) | - | 1.650" (41.91mm) | - | - | 0.28°C/W | Aluminum | - |
|
|
ATS-NVP-3275-C3-R0HEATSINK 100X87X16MM NVIDIA JETS |
89 |
|
برگه مشخصات |
- | Box | Active | Top Mount | Nvidia Jetson Xavier AGX, Orin AGX | Bolt On, Thermal Material | Rectangular, Fins | 3.937" (100.00mm) | 3.425" (87.00mm) | - | 0.630" (16.00mm) | - | - | 0.21°C/W | Aluminum | Black Anodized |
|
1277236.75" WIDE X 12" FLATBACK HEATSI |
30 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.750" (171.45mm) | - | 1.630" (41.40mm) | - | - | 0.33°C/W | Aluminum | - |
|

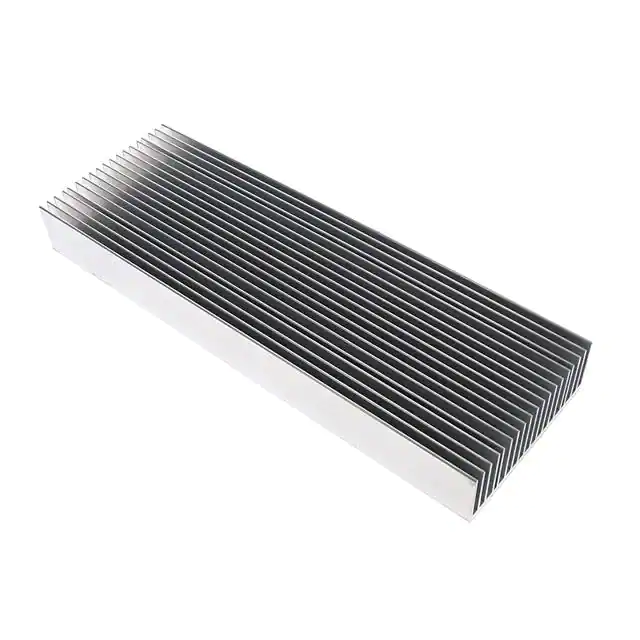

ATS-EXL99-300-R0HEATSINK AL6063 300X100X34.5MM |
29 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 3.937" (100.00mm) | - | 1.358" (34.50mm) | - | 1.14°C/W @ 200 LFM | 4.34°C/W | Aluminum | Degreased |
|
511-6UHEATSINK FOR PWR MOD/IGBT/RELAY |
48 |
|
برگه مشخصات |
511 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 5.210" (132.33mm) | - | 2.410" (61.21mm) | - | - | 0.65°C/W | Aluminum | - |
|
1254095.50X12" EXTRUSION 13760 XX2199 |
9 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.500" (139.70mm) | - | 2.000" (50.80mm) | - | - | 0.30°C/W | Aluminum | - |
|
1277366.8" WIDE X 12" FLATBACK W/ MOUN |
27 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 6.800" (172.72mm) | - | 2.000" (50.80mm) | - | - | 0.23°C/W | Aluminum | - |
|

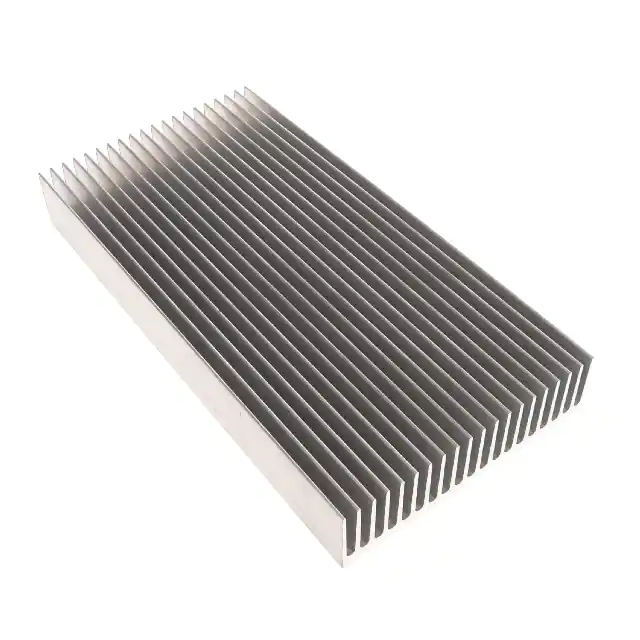

1277186.00" WIDE X 12" FLATBACK HEATSI |
65 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.000" (152.40mm) | - | 1.600" (40.64mm) | - | - | 0.28°C/W | Aluminum | - |
|
1254307.343WX12" EXTRUSIO 13454 XX4771 |
48 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.343" (186.51mm) | - | 1.312" (33.32mm) | - | - | 0.28°C/W | Aluminum | - |
|
1277595.53" X 36" FLATBACK HEATSINK 19 |
27 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.530" (140.46mm) | - | 0.325" (8.26mm) | - | - | 0.71°C/W | Aluminum | - |
|
ATS-EXL74-300-R0HEATSINK AL6063 300X70X15MM |
26 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 2.40°C/W @ 200 LFM | 18.20°C/W | Aluminum | Degreased |
|
|
SM423-22001YAMD 2U 92.4X118X64MM |
16 |
|
برگه مشخصات |
- | Box | Active | Top Mount | AMD GENOA 9004 2U CPU Cooler | Push Pin | Rectangular, Fins | 4.646" (118.00mm) | 3.638" (92.40mm) | - | 2.519" (64.00mm) | - | - | - | Aluminum, Copper | Nickel |
|
1277287.875" WIDE X 12" FLATBACK HEATS |
9 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.875" (200.02mm) | - | 1.312" (33.32mm) | - | - | 0.30°C/W | Aluminum | - |
|
1277564.00" WIDE X 36" FLATBACK HEATSI |
8 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.000" (101.60mm) | - | 0.750" (19.05mm) | - | - | 0.93°C/W | Aluminum | - |
|

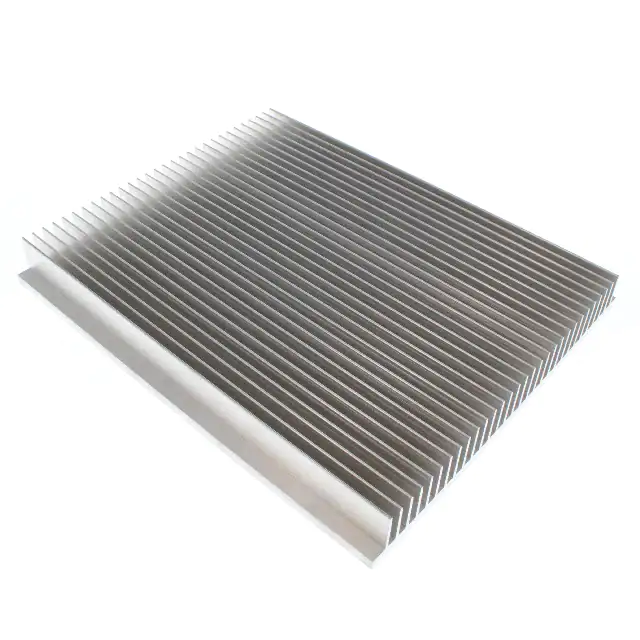

1254429.875WX12" EXTRUSIO 16329 XX1703 |
15 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 9.875" (250.83mm) | - | 1.310" (33.27mm) | - | - | 0.23°C/W | Aluminum | - |
|
ATS-EXL98-300-R0HEATSINK AL6063 300X120X36MM |
17 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.724" (120.00mm) | - | 1.417" (36.00mm) | - | 0.95°C/W @ 200 LFM | 4.69°C/W | Aluminum | Degreased |
