سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
510-3MHEATSINK FOR PWR MOD/IGBT/RELAY |
16 |
|
برگه مشخصات |
510 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 7.380" (187.45mm) | - | 3.106" (78.89mm) | - | - | 0.56°C/W | Aluminum | - |
|
TGH-1535-01ALUMINIUM HEAT SINK 153.5X150MM |
15 |
|
برگه مشخصات |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 5.906" (150.00mm) | 6.043" (153.50mm) | - | 1.338" (34.00mm) | - | - | - | Aluminum | - |
|
1277206.50" X 12" FLATBACK HEATSINK 16 |
18 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.500" (165.10mm) | - | 2.190" (55.63mm) | - | - | 0.35°C/W | Aluminum | - |
|
ATS-EXL101-300-R0HEATSINK AL6063 300X152.4X34.6MM |
16 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 6.000" (152.40mm) | - | 1.362" (34.60mm) | - | 0.85°C/W @ 200 LFM | 3.59°C/W | Aluminum | Degreased |
|
1253744.375WX36" EXTRUSIO 16296 XX1527 |
4 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.375" (111.13mm) | - | 1.290" (32.77mm) | - | - | 0.35°C/W | Aluminum | - |
|
1254166.50X36" EXTRUSION 6664 XX4509 |
9 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.500" (165.10mm) | - | 1.600" (40.64mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL72-1220-R0HEATSINK AL6063 1220X41X6.6MM |
16 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.604" (40.75mm) | - | 0.260" (6.60mm) | - | 17.70°C/W @ 200 LFM | 47.40°C/W | Aluminum | Degreased |
|
652452F00000G65245 EXTRUSION 1.65X1.26"X4' |
20 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 1.260" (32.00mm) | - | 1.650" (41.91mm) | - | 2.00°C/W @ 300 LFM | - | Aluminum | - |
|

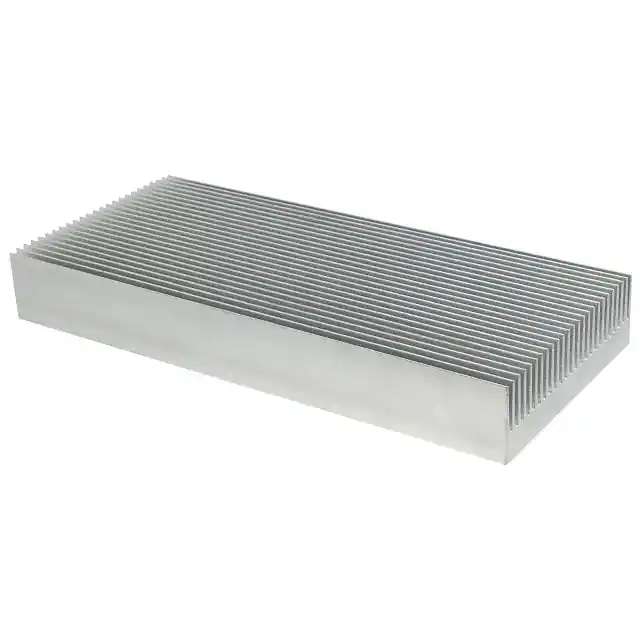

122254HEATSINK 19671 PROFILE 12" |
14 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.324" (135.23mm) | - | 1.630" (41.40mm) | - | - | - | Aluminum | Unfinished |
|

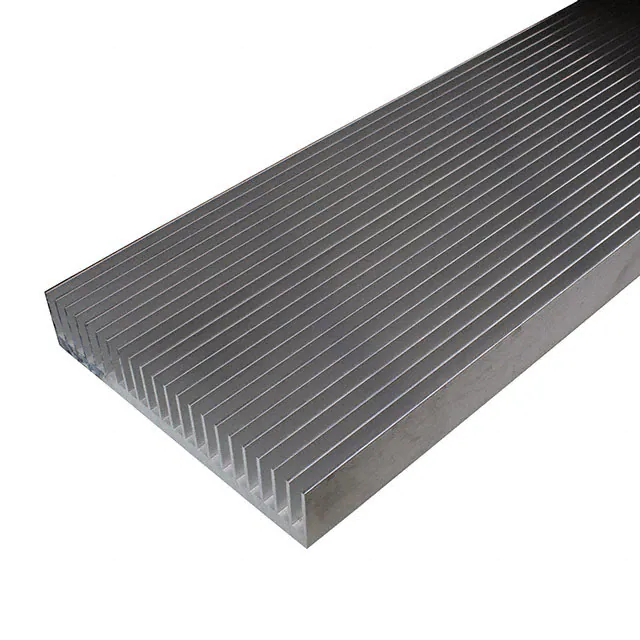

1254226.624WX36" EXTRUSIO 16524 XX7031 |
22 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.624" (168.25mm) | - | 1.312" (33.32mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL109-300-R0HEATSINK AL6063 300X200X32MM |
11 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 7.874" (200.00mm) | - | 1.262" (32.05mm) | - | 0.71°C/W @ 200 LFM | 3.09°C/W | Aluminum | Degreased |
|

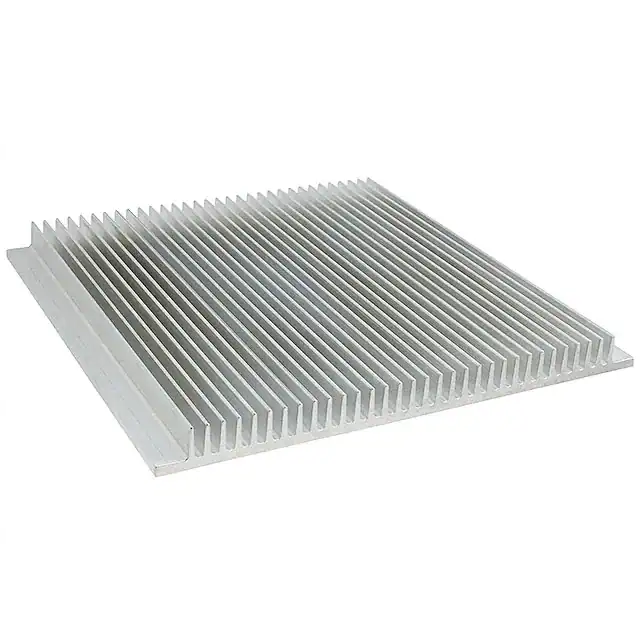

122262HEATSINK 19152 PROFILE 12" |
23 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 12.250" (311.15mm) | - | 1.000" (25.40mm) | - | - | - | Aluminum | Unfinished |
|
663652F00000G66365 EXTRUSION 0.63X1.5"X4' |
19 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 1.500" (38.10mm) | - | 0.630" (16.00mm) | - | 2.00°C/W @ 400 LFM | - | Aluminum | - |
|
1277946.8" WIDE X 36" FLATBACK W/ MOUN |
8 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 6.800" (172.72mm) | - | 2.000" (50.80mm) | - | - | 0.23°C/W | Aluminum | - |
|
|
ATS-EXL75-1220-R0HEATSINK AL6063 1220X76X18.5MM |
8 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.976" (75.60mm) | - | 0.728" (18.50mm) | - | 1.40°C/W @ 200 LFM | 9.70°C/W | Aluminum | Degreased |
|
12544810.25WX12" EXTRUSIO 14236 XX5772 |
12 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 10.250" (260.35mm) | - | 2.500" (63.50mm) | - | - | 0.18°C/W | Aluminum | - |
|
|
ATS-EXL74-1220-R0HEATSINK AL6063 1220X70X15MM |
12 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 2.40°C/W @ 200 LFM | 18.20°C/W | Aluminum | Degreased |
|
ATS-EXL116-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
7 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.031" (51.60mm) | - | 1.673" (42.50mm) | - | 1.90°C/W @ 200 LFM | 5.70°C/W | Aluminum | Degreased |
|

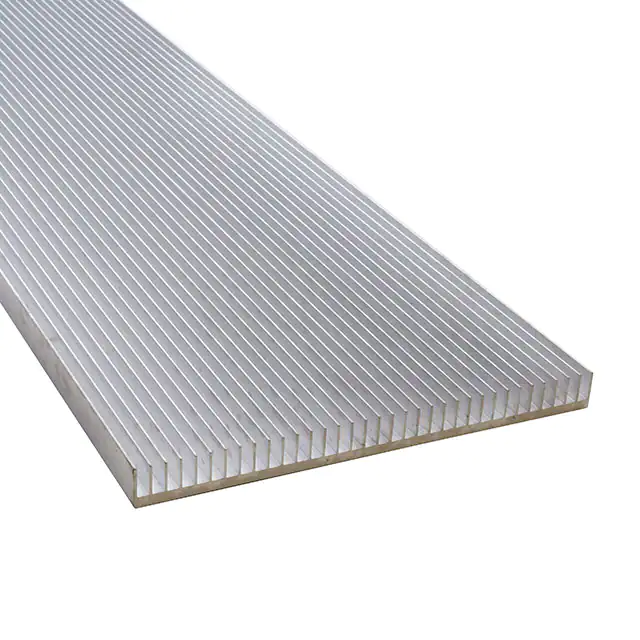

ATS-EXL424-1220-R0HEATSINK AL6063 1220X188X16.5MM |
4 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 7.402" (188.00mm) | - | 0.650" (16.51mm) | - | 0.09°C/W @ 200 LFM | 4.00°C/W | Aluminum | Degreased |
|

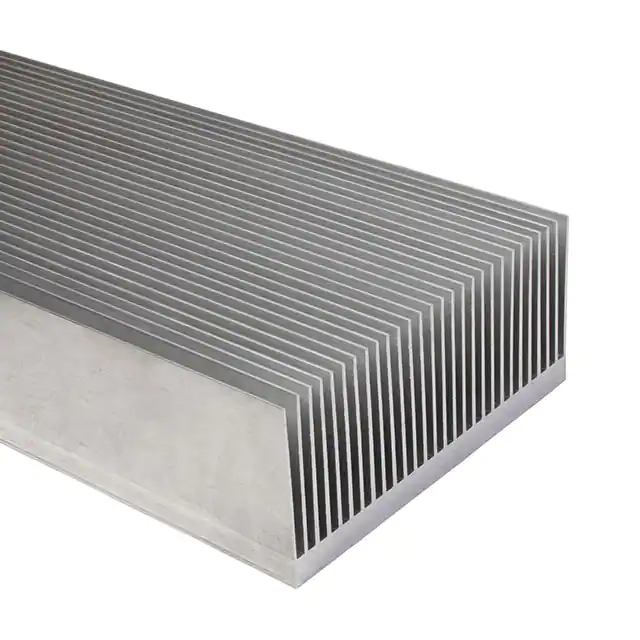

1277866.00" WIDE X 36" LONG HIGH ASPEC |
20 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.000" (152.40mm) | - | 2.750" (69.85mm) | - | - | 0.12°C/W | Aluminum | - |
