سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
780152F00000G78015 EXTRUSION 1.97X1.06"X4.1' |
7 |
|
برگه مشخصات |
- | Box | Active | Board Level, Vertical, Extrusion | - | Clip and PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.063" (27.00mm) | - | 1.970" (50.04mm) | - | - | - | Aluminum | - |
|
ATS-EXL101-1220-R0HEATSINK AL6063 1220X152.4X34.6M |
14 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 6.000" (152.40mm) | - | 1.362" (34.60mm) | - | 0.85°C/W @ 200 LFM | 3.59°C/W | Aluminum | Degreased |
|
ATS-EXL119-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
2 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.740" (95.00mm) | - | 0.551" (14.00mm) | - | 2.10°C/W @ 200 LFM | 14.70°C/W | Aluminum | Degreased |
|
|
1255519.80WX36" SCR EXTRUSION XX5735 |
23 |
|
برگه مشخصات |
- | Box | Active | Board Level, Extrusion | SCR | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 9.800" (248.92mm) | - | 2.850" (72.39mm) | - | - | 0.18°C/W | Aluminum | - |
|
1277823.375" X 36" H STYLE HEATSINK 17 |
25 |
|
برگه مشخصات |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 3.750" (95.25mm) | - | 9.000" (228.60mm) | - | - | 0.15°C/W | Aluminum | - |
|
|
ATS-EXL102-1220-R0HEATSINK AL6063 1220X179X27MM |
15 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 7.047" (179.00mm) | - | 1.063" (27.00mm) | - | 1.20°C/W @ 200 LFM | 4.01°C/W | Aluminum | Degreased |
|
12778112.203" WIDE X 36" FLATBACK HEAT |
4 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 12.203" (309.96mm) | - | 2.870" (72.90mm) | - | - | 0.18°C/W | Aluminum | - |
|

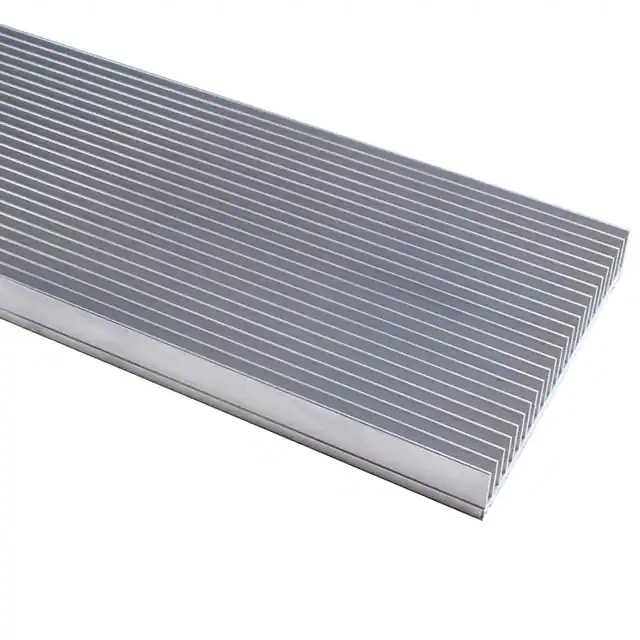

654452F00000G65445 EXTRUSION 1.312X7.34"X4' |
5 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.000" (1219.20mm) | 7.340" (186.44mm) | - | 1.312" (33.32mm) | - | - | - | Aluminum | - |
|
|
ATS-EXL109-1220-R0HEATSINK AL6063 1220X200X32MM |
9 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 7.874" (200.00mm) | - | 1.262" (32.05mm) | - | 0.71°C/W @ 200 LFM | 3.09°C/W | Aluminum | Degreased |
|
|
ALUMINUM HEATSINK 20X20X6MMHEATSINK |
81 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ALUMINUM HEATSINK TO-220HEATSINK TO-220 ALUMINUM |
59 |
|
- |
- | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | - | - | - | - | - | - | - | Aluminum | - |
|
|
V6534B-THEATSINK ALUM ANOD |
567 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.551" (14.00mm) | - | - | - | Aluminum Alloy | Natural Anodized |
|
637-20ABPEHEATSINK TO-220 VERT MT BLK 2" |
26 |
|
برگه مشخصات |
637 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 2.000" (50.80mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 55°C | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS028028006-PF018PINFIN HEATSINK 27.9X27.9X6.4MM |
100 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.098" (27.90mm) | 1.098" (27.90mm) | - | 0.252" (6.40mm) | - | 8.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS028028011-PF020PINFIN HEATSINK 27.9X27.9X11.4MM |
100 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.098" (27.90mm) | 1.098" (27.90mm) | - | 0.449" (11.40mm) | - | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS015015005-SF-4DHEATSINK 15X15X5MM |
93 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.590" (15.00mm) | - | 0.197" (5.00mm) | - | 38.56°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS028028015-PF021PINFIN HEATSINK 27.9X27.9X15.2MM |
100 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.098" (27.90mm) | 1.098" (27.90mm) | - | 0.598" (15.20mm) | - | 3.5°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS017017006-SF-5EHEATSINK 17X17X6MM |
91 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.236" (6.00mm) | - | 28.11°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS015015007-SF-4FHEATSINK 15X15X7MM |
100 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.276" (7.00mm) | - | 26.94°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS025025009-PF015PINFIN HEATSINK 25X25X8.9MM |
84 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.350" (8.89mm) | - | 13.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
