سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS025025006-PF014PINFIN HEATSINK 25X25X6.4MM |
83 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.252" (6.40mm) | - | 17.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS041041007-PF026PINFIN HEATSINK 40.6X40.6X6.6MM |
100 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.598" (40.60mm) | 1.598" (40.60mm) | - | 0.260" (6.60mm) | - | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS024024007-SF-8FHEATSINK 24X24X7MM |
95 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.945" (24.00mm) | 0.945" (24.00mm) | - | 0.276" (7.00mm) | - | 17.71°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS020020006-SF-7EHEATSINK 20X20X6MM |
77 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.236" (6.00mm) | - | 24.03°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS025025011-PF016PINFIN HEATSINK 25X25X11.4MM |
83 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.449" (11.40mm) | - | 10.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS025025015-PF017PINFIN HEATSINK 25X25X15.2MM |
95 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.598" (15.20mm) | - | 8.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS020020007-SF-7FHEATSINK 20X20X7MM |
82 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.276" (7.00mm) | - | 19.93°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS014014009-SF-3HHEATSINK 14X14X9MM |
58 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.354" (9.00mm) | - | 21.76°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS024024004-MF-8CMAXIFLOW HEATSINK 24X24X4MM |
100 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.945" (24.00mm) | 0.945" (24.00mm) | - | 0.157" (4.00mm) | - | 33.94°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX040040013-02-C2-R0HEATSINK 40X40X12.7MM XCUT FP |
55 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 18.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS020020008-SF-7GHEATSINK 20X20X8MM |
92 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.315" (8.00mm) | - | 16.98°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

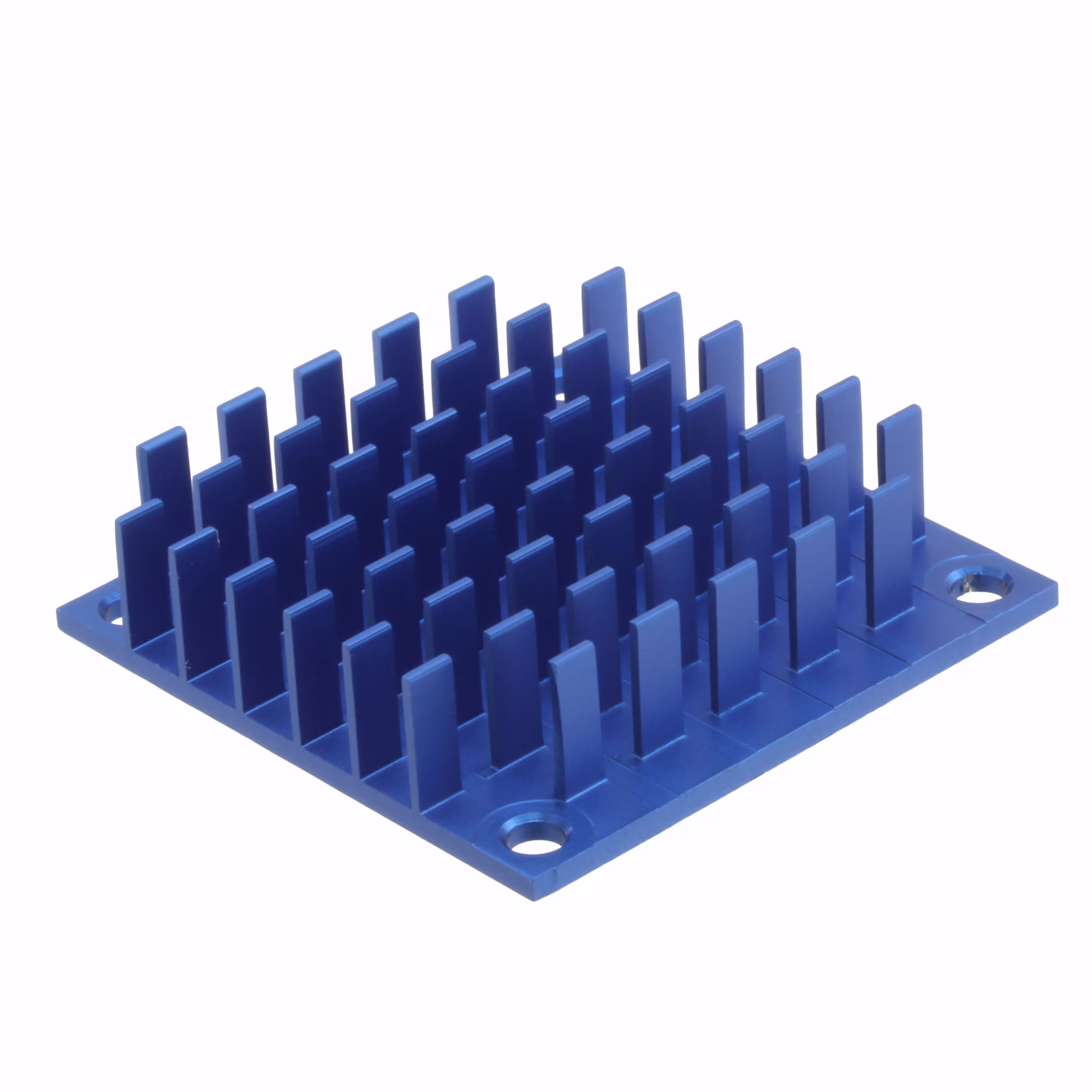

ATS-CPX045045012-198-C2-R0HEATSINK 45X45X12MM XCUT CP |
83 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.472" (12.00mm) | - | 9.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS043045005-PF029PINFIN HEATSINK 44.5X43.2X5.1MM |
85 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Rectangular, Pin Fins | 1.752" (44.50mm) | 1.701" (43.20mm) | - | 0.201" (5.10mm) | - | 10.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
HSB42-353519PHEAT SINK, BGA, 35 X 35 X 19 MM, |
65 |
|
برگه مشخصات |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.748" (19.00mm) | 8.2W @ 75°C | 2.60°C/W @ 200 LFM | 9.16°C/W | Aluminum Alloy | Clean Finished |
|
ATS-CPX030030020-143-C2-R0HEATSINK 30X30X20MM L-TAB CP |
29 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS012012011-SF-2JHEATSINK 12X12X11MM |
83 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.433" (11.00mm) | - | 21.39°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX025025015-44-C2-R0HEATSINK 25X25X15MM L-TAB FP |
89 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS035035009-PF023PINFIN HEATSINK 35X35X8.9MM |
93 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.350" (8.89mm) | - | 7.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX035035015-86-C2-R0HEATSINK 35X35X15MM R-TAB FP |
30 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031004-SF-10CHEATSINK 31X31X4MM |
89 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.157" (4.00mm) | - | 27.95°C/W @ 200 LFM | - | Aluminum | Black Anodized |
