سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1277481.26" X 36" FLATBACK HEATSINK EX |
8 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 1.260" (32.00mm) | - | 1.650" (41.91mm) | - | - | 1.10°C/W | Aluminum | - |
|
SM316-20001YCOOLING MODULE 113*78*24.7MM |
24 |
|
برگه مشخصات |
- | Box | Active | Top Mount | Intel LGA4189 1U Passive CPU Cooler | Push Pin | Rectangular, Fins | 4.449" (113.00mm) | 3.071" (78.00mm) | - | 0.972" (24.70mm) | - | - | - | Aluminum, Copper | Nickel |
|
1277834.000" X 36" H STYLE HEATSINK XX |
21 |
|
برگه مشخصات |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 4.000" (101.60mm) | - | 1.250" (31.75mm) | - | - | 0.58°C/W | Aluminum | - |
|
1277216.50" X 12" FLATBACK HEATSINK XX |
90 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.500" (165.10mm) | - | 1.600" (40.64mm) | - | - | 0.54°C/W | Aluminum | - |
|

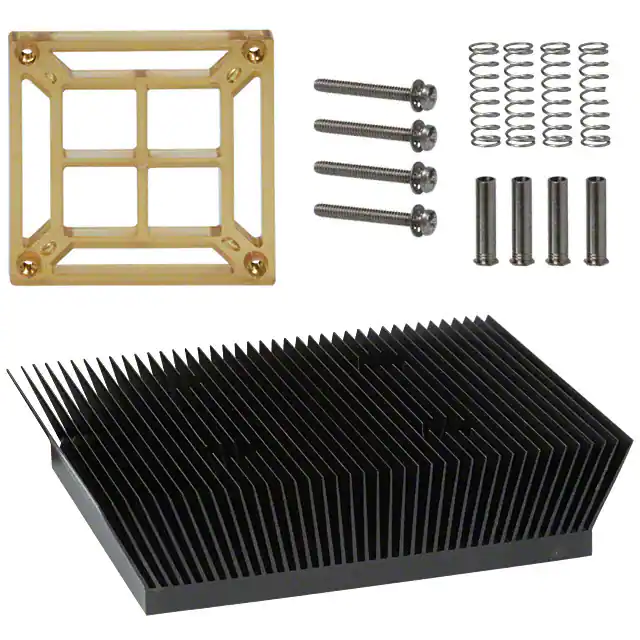

ATS-57002-C1-R0HEAT SINK 94MM X 101MM X 27MM |
89 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | LGA | Push Pin | Rectangular, Angled Fins | 3.700" (94.00mm) | 3.976" (101.00mm) | - | 1.063" (27.00mm) | - | 1.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1253022.80WX36" EXTRUSION 11201 XX6998 |
25 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.800" (71.12mm) | - | 1.250" (31.75mm) | - | - | 0.73°C/W | Aluminum | - |
|
1277464.60" WIDE X 36" DC/DC HEATSINK |
2 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.600" (116.84mm) | - | 0.930" (23.62mm) | - | - | 0.48°C/W | Aluminum | - |
|

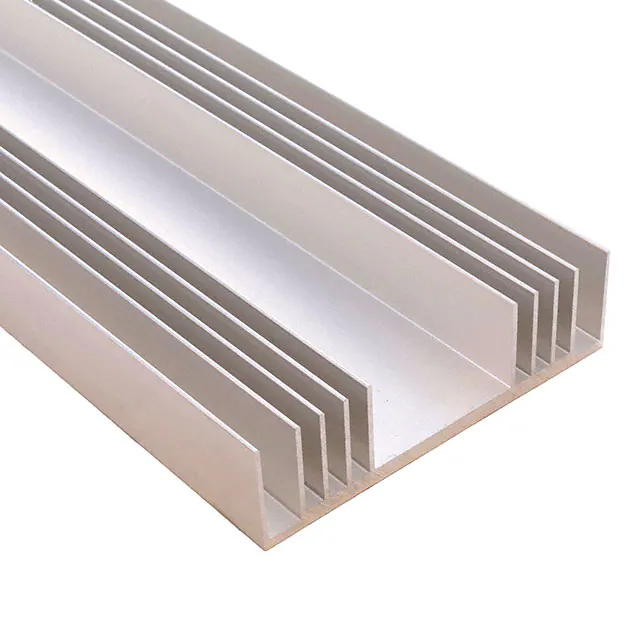

1253925WX36" EXTRUSION 19589 XX7331 |
4 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.000" (127.00mm) | - | 1.380" (35.05mm) | - | - | 0.75°C/W | Aluminum | - |
|
|
ATS-EXL60-1220-R0HEATSINK AL6063 1220X13.9X25MM |
4 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.547" (13.89mm) | - | 0.992" (25.20mm) | - | 11.50°C/W @ 200 LFM | 21.00°C/W | Aluminum | Degreased |
|
1277747.201" WIDE X 36" FLATBACK HEATS |
11 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.201" (182.91mm) | - | 0.460" (11.68mm) | - | - | 0.38°C/W | Aluminum | - |
|
ATS-EXL113-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
6 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 4.50°C/W @ 200 LFM | 10.00°C/W | Aluminum | Degreased |
|
1277686.75" WIDE X 36" FLATBACK HEATSI |
16 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.750" (171.45mm) | - | 1.185" (30.10mm) | - | - | 0.34°C/W | Aluminum | - |
|
1118306HEATSINK, ALUMINUM, ANODIZED, WI |
9 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 4.134" (105.00mm) | 2.654" (67.40mm) | - | 1.972" (50.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS-EXL62-1220-R0HEATSINK AL6063 1220X24.25X17.5M |
12 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.955" (24.26mm) | - | 0.689" (17.50mm) | - | 5.20°C/W @ 200 LFM | 17.90°C/W | Aluminum | Degreased |
|

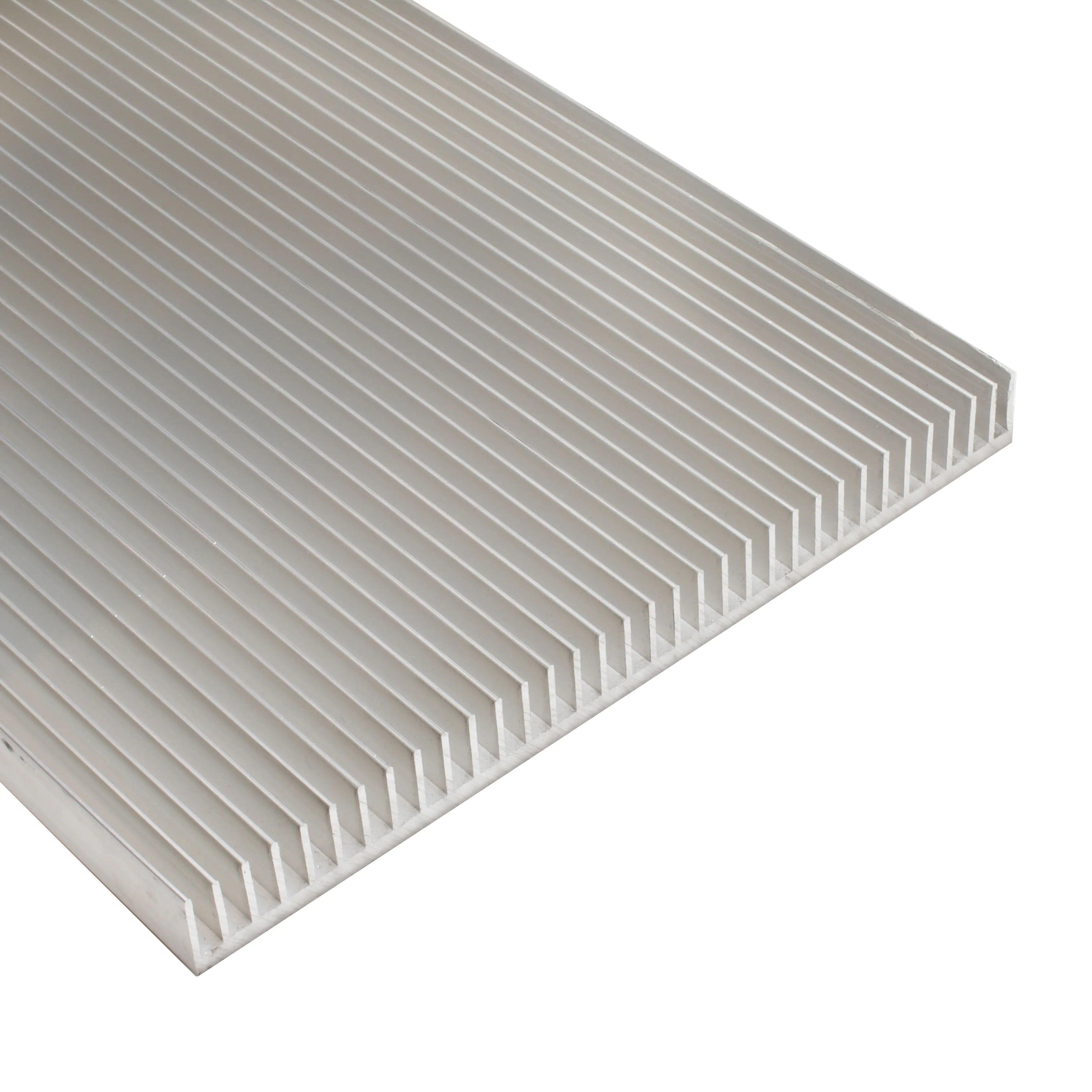

1277779.333" WIDE X 12" FLATBACK HEATS |
9 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 9.333" (237.06mm) | - | 0.905" (23.00mm) | - | - | 0.26°C/W | Aluminum | - |
|
1118305HEATSINK, ALUMINUM, ANODIZED, WI |
10 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 5.000" (127.00mm) | 2.654" (67.40mm) | - | 1.972" (50.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS-EXL65-1220-R0HEATSINK AL6063 1220X25X25MM |
3 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.614" (41.00mm) | - | 0.984" (25.00mm) | - | 4.50°C/W @ 200 LFM | 11.70°C/W | Aluminum | Degreased |
|

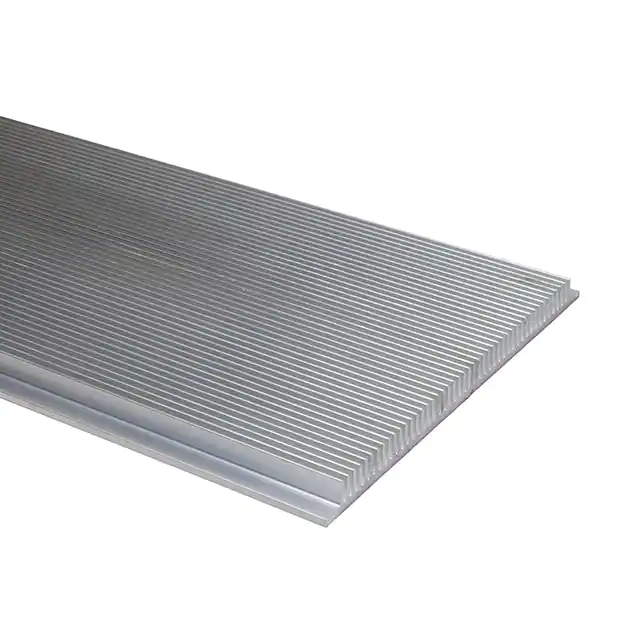

1277726.85" WIDE X 36" FLATBACK HEATSI |
25 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.850" (173.99mm) | - | 1.252" (31.80mm) | - | - | 0.33°C/W | Aluminum | - |
|

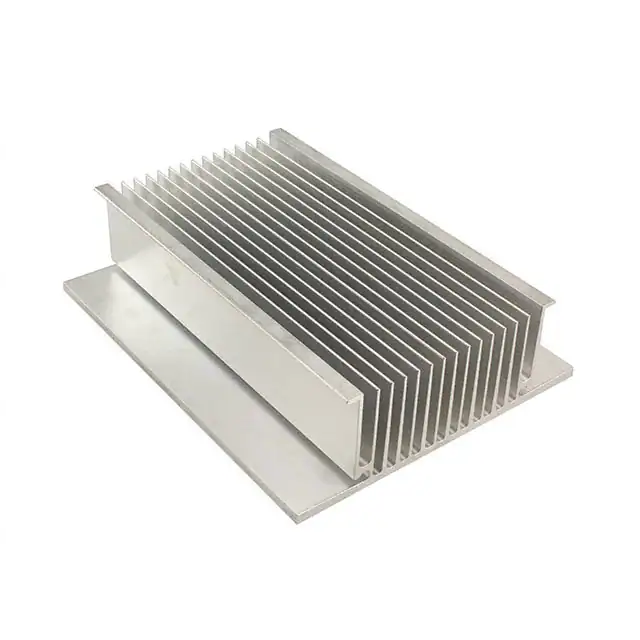

512-9MHEATSINK FOR PWR MOD/IGBT/RELAY |
24 |
|
برگه مشخصات |
512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 9.000" (228.60mm) | 7.200" (182.88mm) | - | 2.350" (59.69mm) | - | - | 0.56°C/W | Aluminum | - |
|
|
ATS-EXL64-1220-R0HEATSINK AL6063 1220X25X22MM |
6 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.984" (25.00mm) | - | 0.866" (22.00mm) | - | 3.90°C/W @ 200 LFM | 18.50°C/W | Aluminum | Degreased |
