هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65885A0000R095FERRITE CORE PQ 2.75UH N95 2PCS |
0 |
|
برگه مشخصات |
PQ16/11.6 | Box | Active | PQ | PQ 16 x 11.6 | N95 | - | 2.75 µH | -20%, +30% | Ungapped | 1400.0 | 2000 | 0.641 | 27.0 | 42.1 | 38.5 | 1136.0 | Uncoated | 0.228" (5.80mm) | 0.646" (16.40mm) | 0.441" (11.20mm) |
|

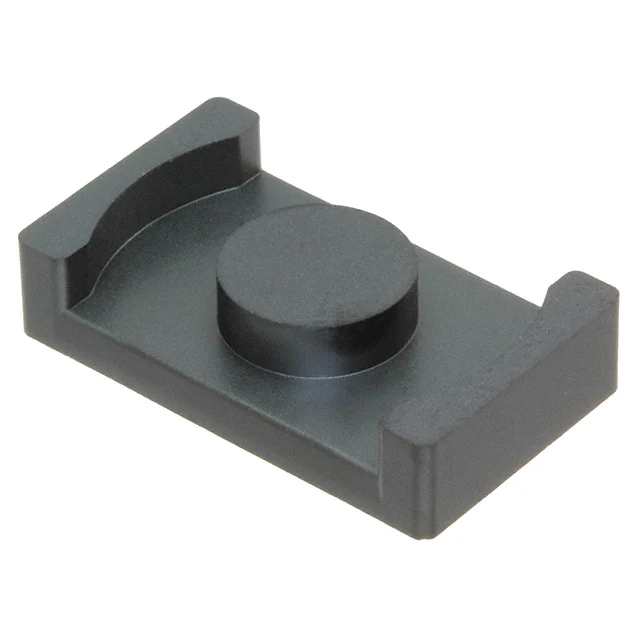

B66347G0000X187FERRITE CORE ER N87 1PC |
0 |
|
برگه مشخصات |
ER42/22/15 | Box | Active | ER | ER 42 x 22 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.858" (21.80mm) | 1.654" (42.00mm) | 0.591" (15.00mm) |
|
B66363G1000X127FERRITE CORE ETD N27 1PC |
0 |
|
برگه مشخصات |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
B65805N0125G048FERRITE CORE RM |
0 |
|
برگه مشخصات |
RM5 | Box | Active | RM | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
TX36/23/10-3E12FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 36 x 23 x 10 | - | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - |
|

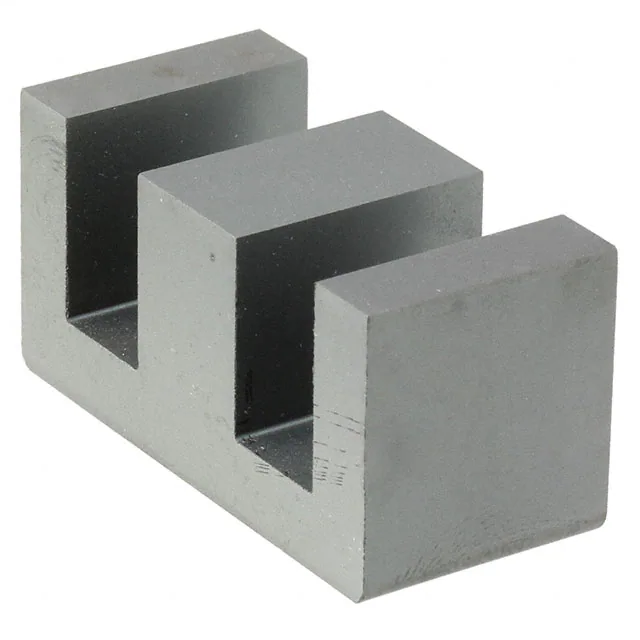

B66329G0500X127FERRITE CORE E N27 1PC |
12 |
|
برگه مشخصات |
E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
PC47EPC13-ZFERRITE COR EPCS 870NH PCS47 2PC |
0 |
|
برگه مشخصات |
EPC | Tray | Active | EPC | EPC 13 | PC47 | - | 870 nH | ±25% | Ungapped | - | - | 2.45 | 30.6 | 12.5 | - | 382.0 | Uncoated | 0.260" (6.60mm) | 0.522" (13.25mm) | 0.181" (4.60mm) |
|
5698181221FERRITE CORE PS SET |
0 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | - | 0.709" (18.00mm) | - | ±25% | Ungapped | - | 2400 | 60.0 | 25.9 | 43.0 | - | 1120.0 | Uncoated | 0.211" (5.36mm) | - | - |
|
|
B65811H2500X041FERRITE CORE RM |
0 |
|
برگه مشخصات |
RM8 | Box | Active | RM | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
TX25/15/13-3C90FERRITE CORE TOROID 3C90 |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 25 x 15 x 13 | 3C90 | 1.007" (25.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.539" (13.70mm) | - | - |
|
E47/20/16-3C92FERRITE CORE E 3C92 |
0 |
|
برگه مشخصات |
- | Bulk | Active | E | E 47 x 20 x 16 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.772" (19.60mm) | 1.846" (46.90mm) | 0.614" (15.60mm) |
|

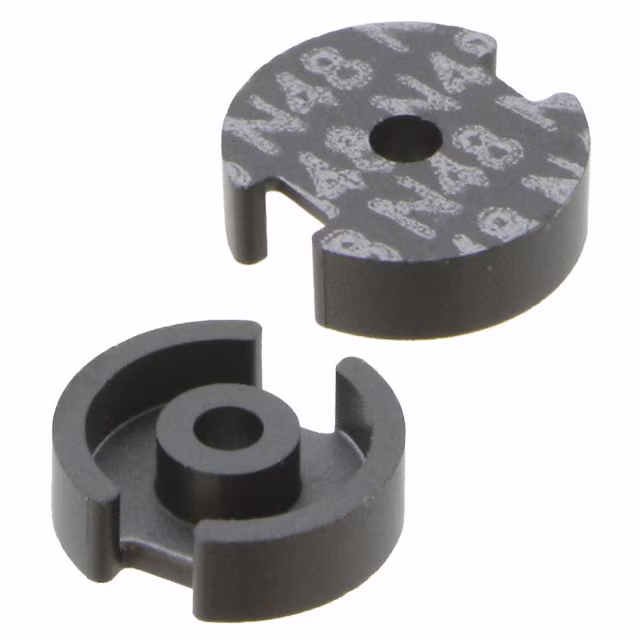

B65511A0000Y048FERRITE CORE P 1UH N48 2PCS |
0 |
|
برگه مشخصات |
P7/4 | Box | Active | P (Pot Core) | P 7 x 4 | N48 | 0.289" (7.35mm) | 1 µH | -30%, +40% | Ungapped | 1140.0 | - | 1.43 | 10.0 | 7.0 | - | 70.0 | Uncoated | 0.083" (2.10mm) | - | - |
|
TX22/14/13-3E10-MFERRITE CORE TOROID |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 22 x 14 x 13 | - | 0.880" (22.35mm) | - | - | Ungapped | - | - | 1.07 | 54.2 | 50.9 | - | 2750.0 | Epoxy | 0.510" (12.95mm) | - | - |
|
|
B64290L0657X065FERRITE CORE TOROID 5.4UH T65 |
0 |
|
برگه مشخصات |
TX30/20/12.5 | Box | Active | Toroid | - | T65 | 1.264" (32.10mm) | 5.4 µH | ±30% | Ungapped | - | 5100 | 1.19 | 77.02 | 64.66 | - | 4980.0 | Epoxy | 0.531" (13.50mm) | - | - |
|
|
TX26/15/20-3E10-MFERRITE CORE TOROID |
4 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 26 x 15 x 20 | - | 1.061" (26.95mm) | - | ±30% | Ungapped | 10000.0 | - | 0.538 | 60.1 | 112.0 | - | 6720.0 | Epoxy | 0.827" (21.00mm) | - | - |
|
B66287G0000X192FERRITE CORE ELP N92 1PC |
0 |
|
برگه مشخصات |
ELP32/6/20 | Box | Active | ELP | ELP 32 x 6 x 20 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
PC95EIR14/4.5/9-ZFERRITE COR HER 2.8UH PCS95 1SET |
0 |
|
برگه مشخصات |
Planar | Tray | Active | HER, PLT | EIR 14 x 4.5 x 9 | PC95 | - | 2.8 µH | ±25% | Ungapped | - | - | 0.68 | 22.7 | 15.4 | 21.2 | 349.0 | Uncoated | 0.177" (4.50mm) | 0.545" (13.85mm) | 0.354" (9.00mm) |
|
B65941A0000X022FERRITE CORE PS N22 |
0 |
|
برگه مشخصات |
PS30.5/10.2 | Box | Active | PS | PS 30.5 x 10.2 | N22 | 1.200" (30.50mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | - | - |
|
B65813P0000R049FERRITE CORE N49 2PCS |
0 |
|
برگه مشخصات |
RM10/LP | Box | Active | - | - | N49 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E47/20/16-3C94FERRITE CORE E 3C94 |
1 |
|
برگه مشخصات |
- | Bulk | Active | E | E 47 x 20 x 16 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.772" (19.60mm) | 1.846" (46.90mm) | 0.614" (15.60mm) |
